| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005386_38471cztM0_level2.fits | modeM0/AS1A12_018T01_9000005386_38471cztM0_level2_quad_clean.evt |
| Size (bytes) | 353,111,040 | 93,294,720 |
| Size | 336.8 MB | 89.0 MB |
| Events in quadrant A | 2,900,099 | 630,349 |
| Events in quadrant B | 3,634,810 | 628,828 |
| Events in quadrant C | 2,677,202 | 615,632 |
| Events in quadrant D | 3,418,208 | 554,071 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12128 | 3 |
| B | 0 | 14486 | 2 |
| C | 0 | 11539 | 2 |
| D | 0 | 14174 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5658 | 4 | 0.070696% |
| B | 5658 | 224 | 3.958996% |
| C | 5658 | 5 | 0.088370% |
| D | 5659 | 184 | 3.251458% |

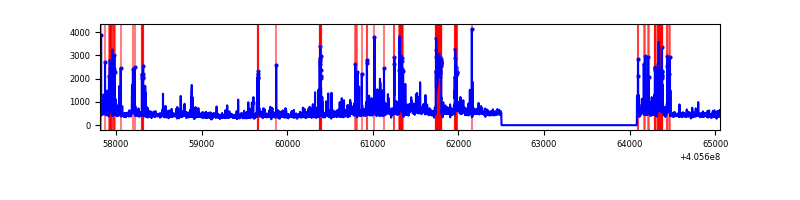

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7240 | 5659 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7240 | 5659 | 136 | 136 | 1.88% | 2.40% |  |
| C | 7240 | 5659 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7241 | 5660 | 165 | 165 | 2.28% | 2.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 406881 | 3178.76 | 632 | 619 | 127.8 |
| A | 9 | 143 | 28802 | 220.52 | 632 | 619 | 127.8 |
| A | 12 | 189 | 12068 | 89.58 | 632 | 619 | 127.8 |
| B | 8 | 3 | 906374 | 7558.45 | 619 | 602 | 119.8 |
| B | 4 | 232 | 111260 | 923.41 | 619 | 602 | 119.8 |
| B | 0 | 221 | 58518 | 483.3 | 619 | 602 | 119.8 |
| C | 15 | 214 | 238460 | 1673.42 | 611 | 612 | 142.1 |
| C | 3 | 233 | 18837 | 128.22 | 611 | 612 | 142.1 |
| C | 14 | 254 | 13577 | 91.21 | 611 | 612 | 142.1 |
| D | 13 | 249 | 264439 | 1791.34 | 603 | 586 | 147.3 |
| D | 10 | 118 | 193572 | 1310.21 | 603 | 586 | 147.3 |
| D | 2 | 153 | 155579 | 1052.27 | 603 | 586 | 147.3 |

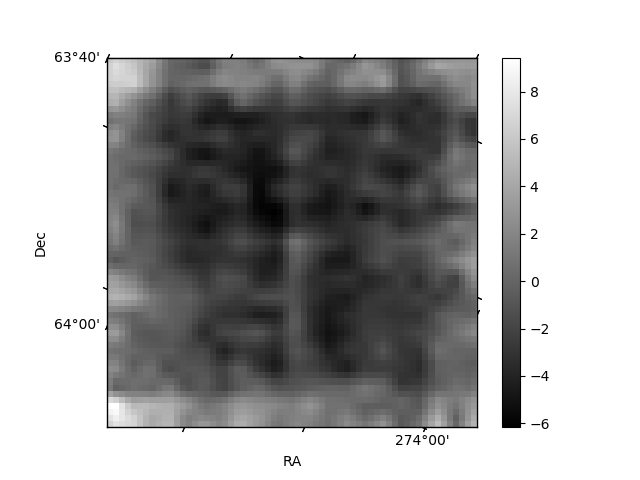

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

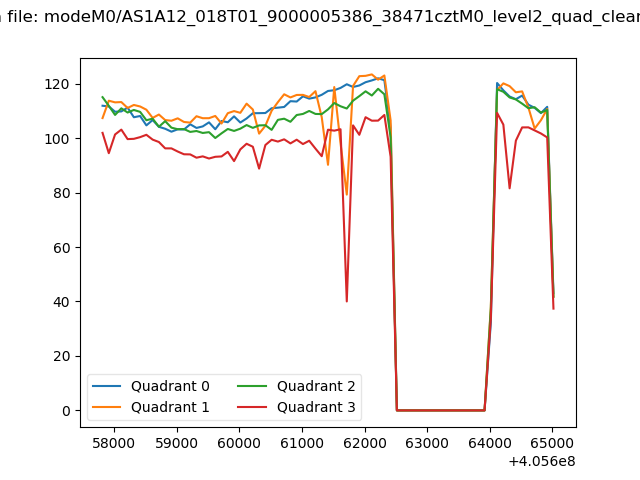

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

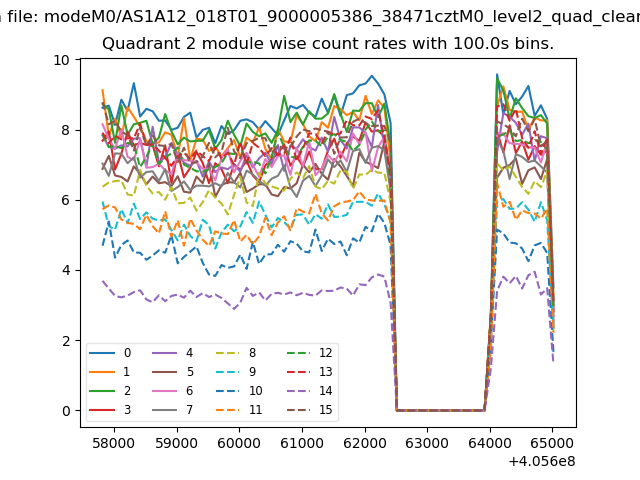

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

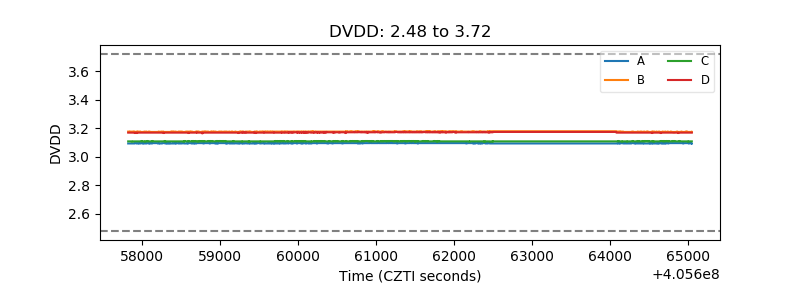

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

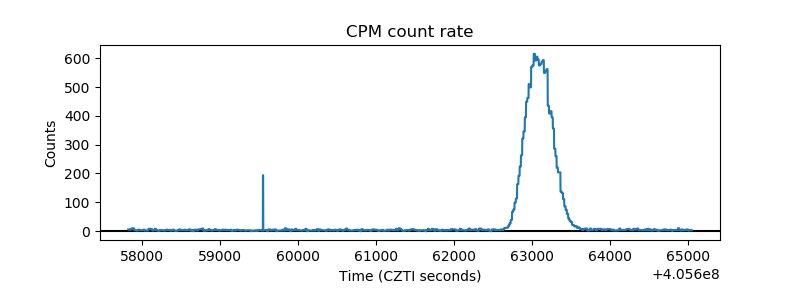

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

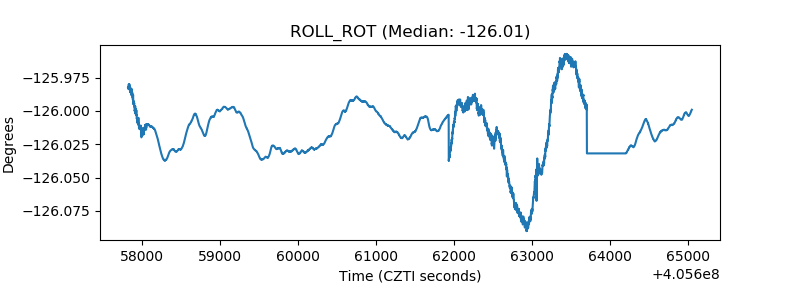

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

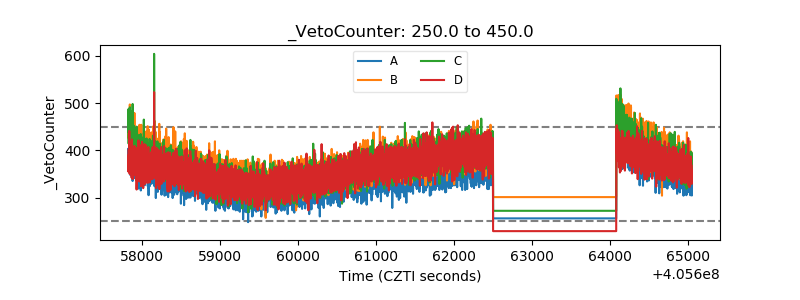

| Veto Counter |  |
