| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_051T01_9000005394_38768cztM0_level2.fits | modeM0/AS1A12_051T01_9000005394_38768cztM0_level2_quad_clean.evt |
| Size (bytes) | 283,512,960 | 84,481,920 |
| Size | 270.4 MB | 80.6 MB |
| Events in quadrant A | 2,552,970 | 566,780 |
| Events in quadrant B | 2,202,666 | 590,986 |
| Events in quadrant C | 2,621,116 | 555,087 |
| Events in quadrant D | 2,741,194 | 506,235 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10365 | 3 |
| B | 0 | 9688 | 2 |
| C | 0 | 10570 | 2 |
| D | 0 | 11297 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4830 | 5 | 0.103520% |
| B | 4830 | 6 | 0.124224% |
| C | 4830 | 51 | 1.055901% |
| D | 4830 | 89 | 1.842650% |

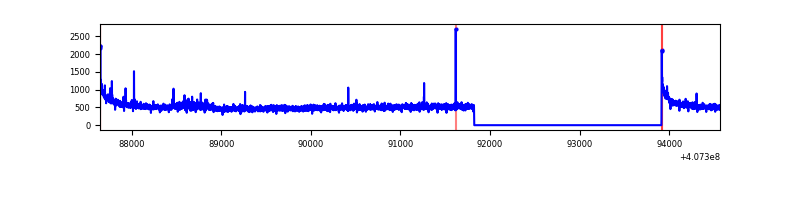

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6922 | 4831 | 6 | 6 | 0.09% | 0.12% |  |
| B | 6922 | 4831 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6922 | 4831 | 39 | 39 | 0.56% | 0.81% |  |
| D | 6922 | 4831 | 74 | 74 | 1.07% | 1.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 370771 | 3326.68 | 550 | 540 | 111.3 |
| A | 15 | 223 | 28610 | 252.22 | 550 | 540 | 111.3 |
| A | 13 | 248 | 16062 | 139.47 | 550 | 540 | 111.3 |
| B | 0 | 230 | 22907 | 207.98 | 552 | 535 | 107.6 |
| B | 12 | 111 | 13064 | 116.47 | 552 | 535 | 107.6 |
| B | 11 | 111 | 12344 | 109.78 | 552 | 535 | 107.6 |
| C | 15 | 214 | 215789 | 1689.66 | 545 | 549 | 127.4 |
| C | 15 | 208 | 122385 | 956.43 | 545 | 549 | 127.4 |
| C | 14 | 254 | 98468 | 768.68 | 545 | 549 | 127.4 |
| D | 10 | 118 | 197140 | 1502.6 | 539 | 524 | 130.9 |
| D | 2 | 16 | 166876 | 1271.31 | 539 | 524 | 130.9 |
| D | 13 | 249 | 82541 | 626.8 | 539 | 524 | 130.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

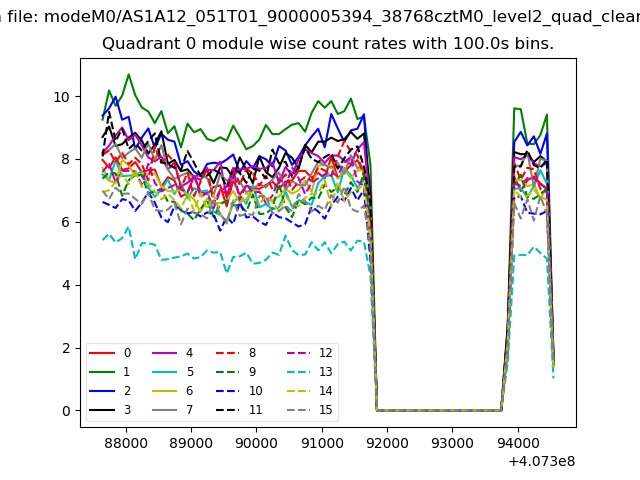

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

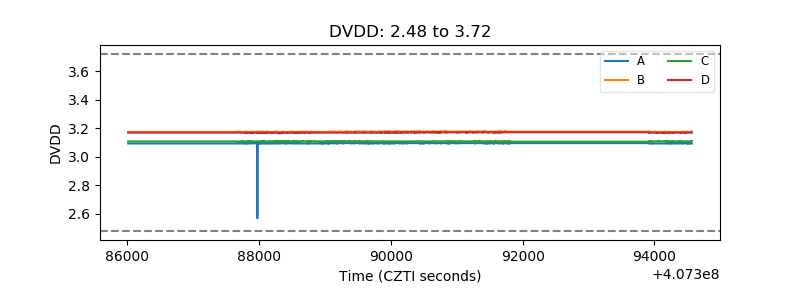

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

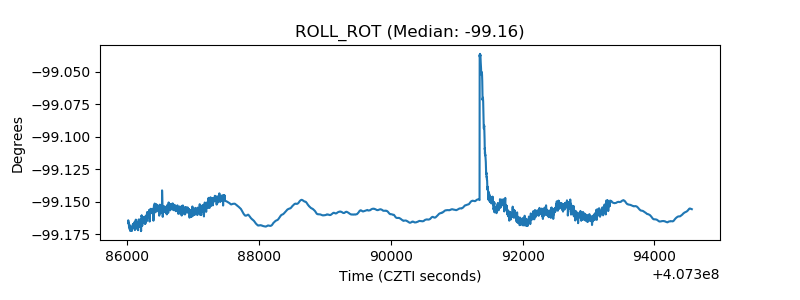

| _ROLL_ROT |  |
| _Roll_DEC |  |

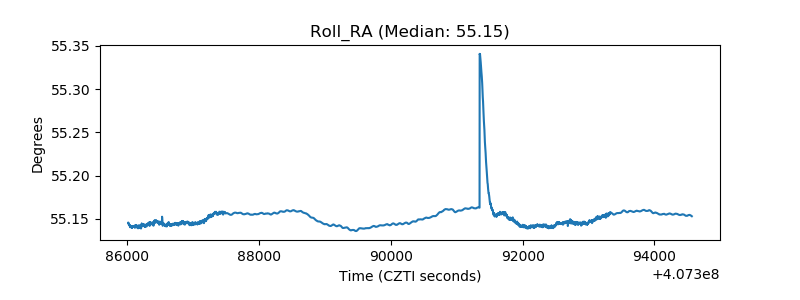

| _Roll_RA |  |
| Veto Counter |  |
