| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_083T02_9000005404_38825cztM0_level2.fits | modeM0/AS1A12_083T02_9000005404_38825cztM0_level2_quad_clean.evt |
| Size (bytes) | 297,843,840 | 91,946,880 |
| Size | 284.0 MB | 87.7 MB |
| Events in quadrant A | 2,629,304 | 619,817 |
| Events in quadrant B | 2,283,782 | 643,318 |
| Events in quadrant C | 2,471,389 | 610,133 |
| Events in quadrant D | 3,236,955 | 547,857 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11049 | 3 |
| B | 0 | 10430 | 2 |
| C | 0 | 10617 | 2 |
| D | 0 | 13102 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5177 | 7 | 0.135213% |
| B | 5177 | 6 | 0.115897% |
| C | 5177 | 12 | 0.231794% |
| D | 5177 | 113 | 2.182731% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7330 | 5178 | 6 | 6 | 0.08% | 0.12% |  |
| B | 7330 | 5178 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7330 | 5178 | 11 | 11 | 0.15% | 0.21% |  |
| D | 7330 | 5178 | 93 | 93 | 1.27% | 1.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 391084 | 3405.86 | 568 | 559 | 114.7 |
| A | 13 | 6 | 13532 | 113.14 | 568 | 559 | 114.7 |
| A | 9 | 143 | 11203 | 92.83 | 568 | 559 | 114.7 |
| B | 5 | 172 | 13692 | 120.68 | 572 | 556 | 108.9 |
| B | 12 | 111 | 13233 | 116.46 | 572 | 556 | 108.9 |
| B | 11 | 111 | 12239 | 107.33 | 572 | 556 | 108.9 |
| C | 15 | 214 | 229598 | 1782.65 | 554 | 557 | 128.5 |
| C | 15 | 208 | 55078 | 424.34 | 554 | 557 | 128.5 |
| C | 0 | 10 | 10408 | 76.67 | 554 | 557 | 128.5 |
| D | 2 | 16 | 335528 | 2586.62 | 542 | 529 | 129.5 |
| D | 2 | 249 | 207577 | 1598.68 | 542 | 529 | 129.5 |
| D | 10 | 118 | 182085 | 1401.85 | 542 | 529 | 129.5 |

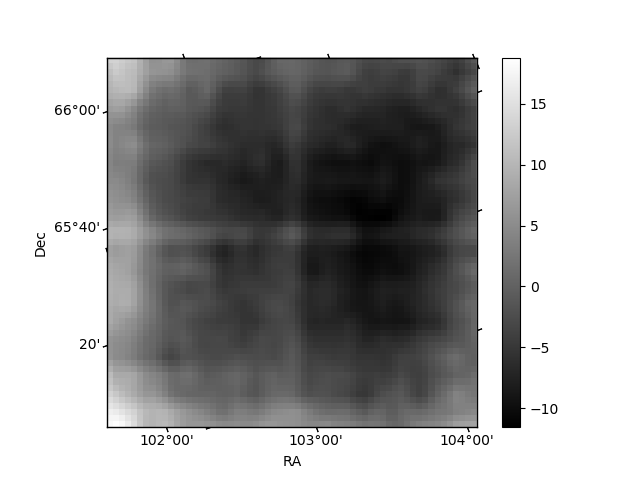

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

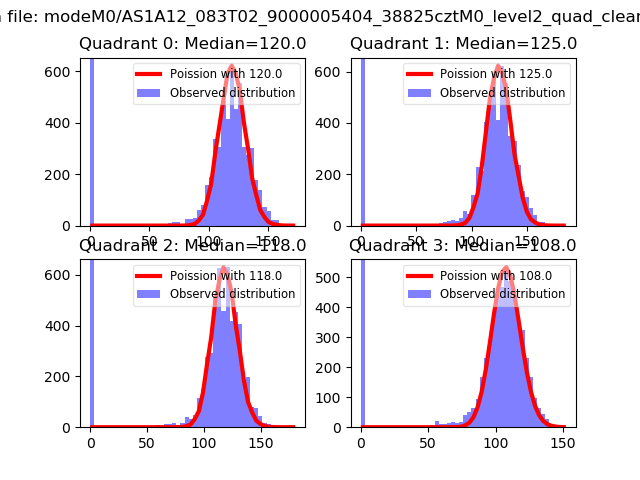

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

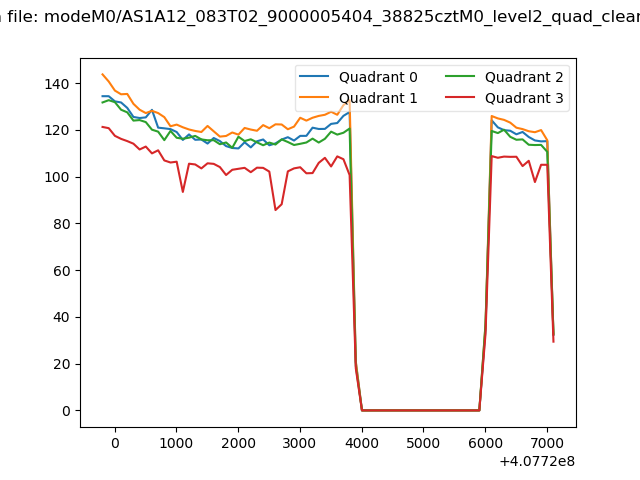

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

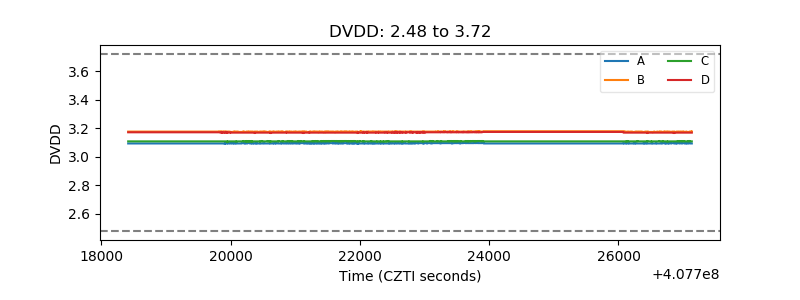

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

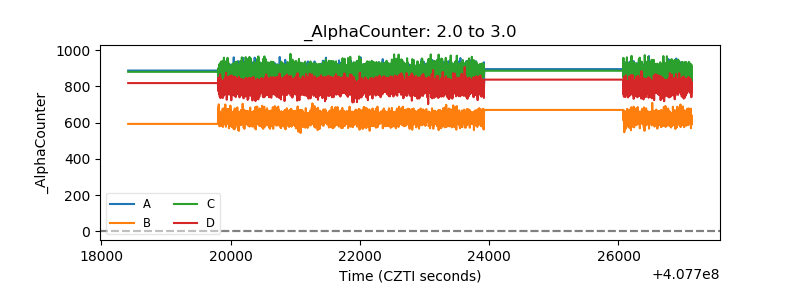

| Alpha Counter |  |

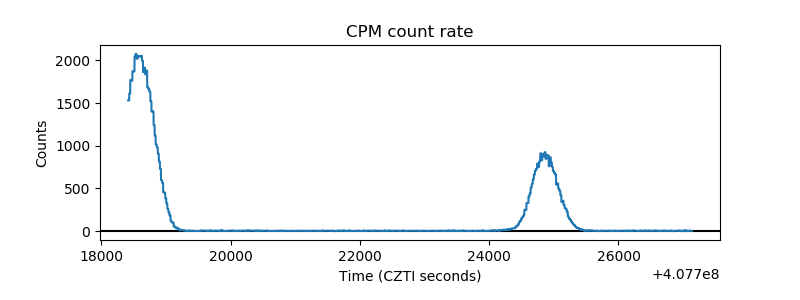

| _CPM_Rate |  |
| CZT Counter |  |

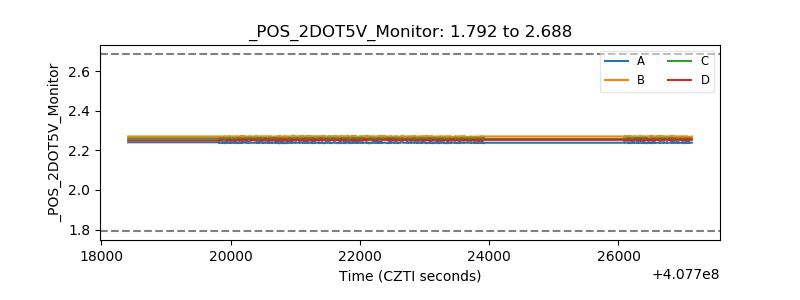

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

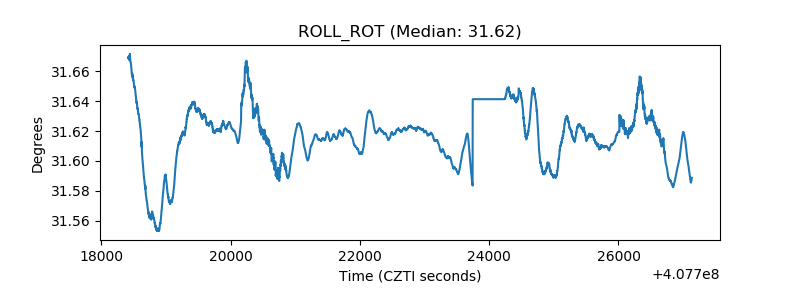

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
