| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_057T01_9000005418_38984cztM0_level2.fits | modeM0/AS1A12_057T01_9000005418_38984cztM0_level2_quad_clean.evt |
| Size (bytes) | 371,257,920 | 92,859,840 |
| Size | 354.1 MB | 88.6 MB |
| Events in quadrant A | 2,827,887 | 634,353 |
| Events in quadrant B | 2,408,132 | 653,314 |
| Events in quadrant C | 2,456,816 | 627,160 |
| Events in quadrant D | 5,677,489 | 560,769 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 39 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11449 | 3 |
| B | 0 | 10220 | 2 |
| C | 0 | 10149 | 2 |
| D | 0 | 20274 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4795 | 33 | 0.688217% |
| B | 4795 | 26 | 0.542231% |
| C | 4795 | 7 | 0.145985% |
| D | 4795 | 260 | 5.422315% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6948 | 4796 | 17 | 17 | 0.24% | 0.35% |  |
| B | 6948 | 4796 | 15 | 15 | 0.22% | 0.31% |  |
| C | 6948 | 4796 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6948 | 4796 | 268 | 268 | 3.86% | 5.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 396005 | 3480.8 | 572 | 562 | 113.6 |
| A | 15 | 222 | 92583 | 810.0 | 572 | 562 | 113.6 |
| A | 13 | 248 | 81984 | 716.7 | 572 | 562 | 113.6 |
| B | 5 | 172 | 115897 | 1068.11 | 575 | 562 | 108.0 |
| B | 0 | 230 | 23784 | 215.06 | 575 | 562 | 108.0 |
| B | 12 | 111 | 12893 | 114.2 | 575 | 562 | 108.0 |
| C | 15 | 214 | 213999 | 1630.01 | 571 | 577 | 130.9 |
| C | 0 | 10 | 8102 | 57.47 | 571 | 577 | 130.9 |
| C | 13 | 61 | 3767 | 24.36 | 571 | 577 | 130.9 |
| D | 12 | 235 | 2920503 | 21603.69 | 557 | 544 | 135.2 |
| D | 1 | 47 | 170837 | 1259.93 | 557 | 544 | 135.2 |
| D | 12 | 217 | 169574 | 1250.59 | 557 | 544 | 135.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

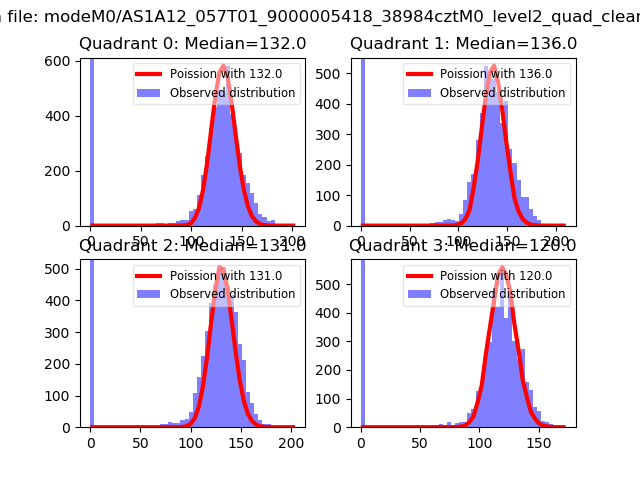

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

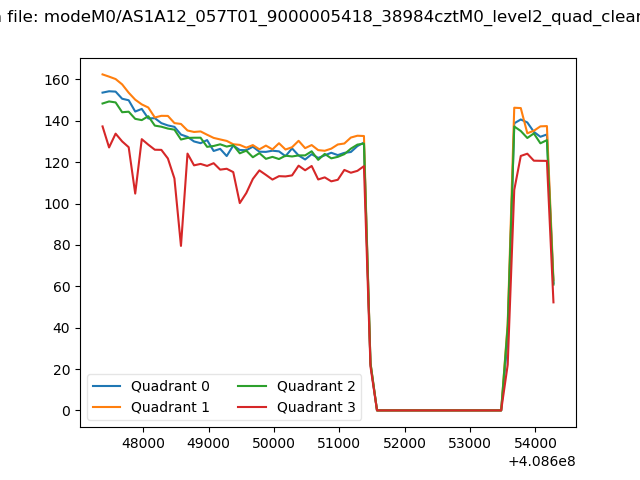

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

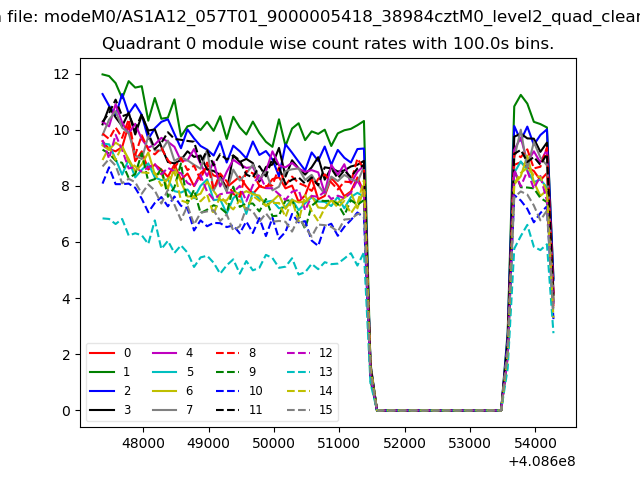

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

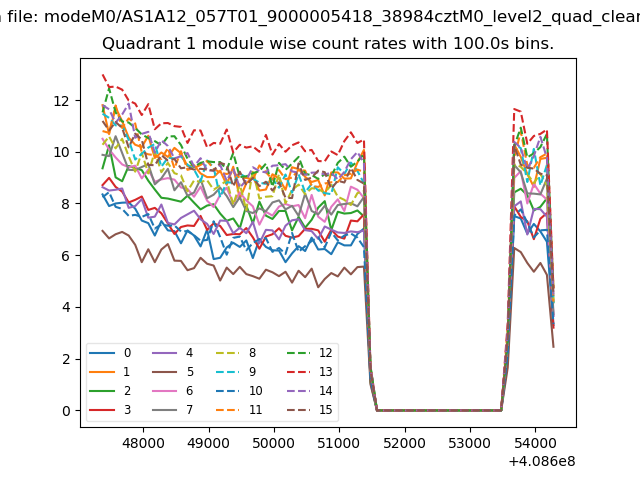

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

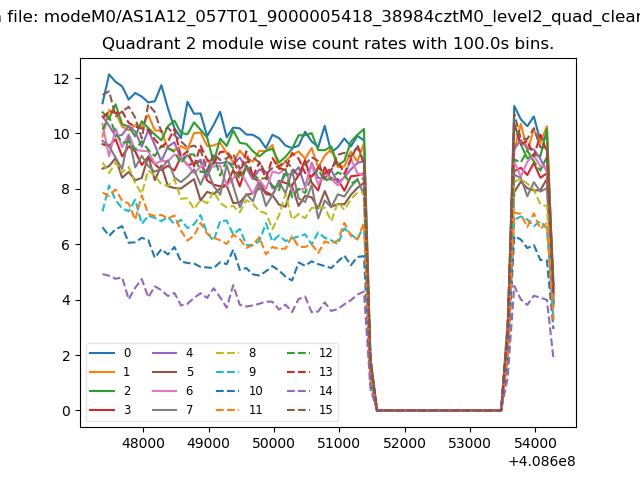

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

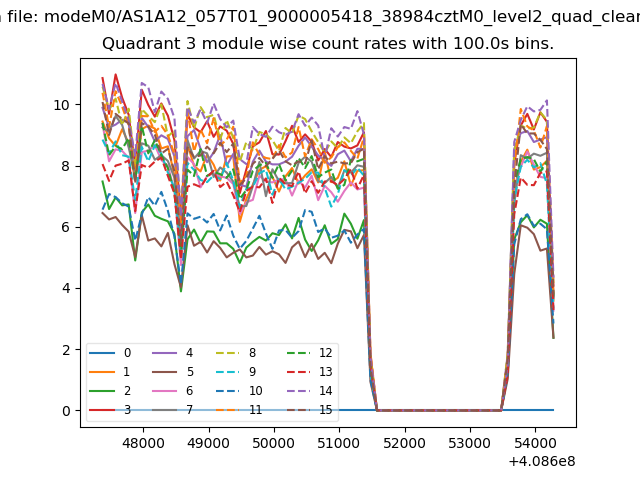

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

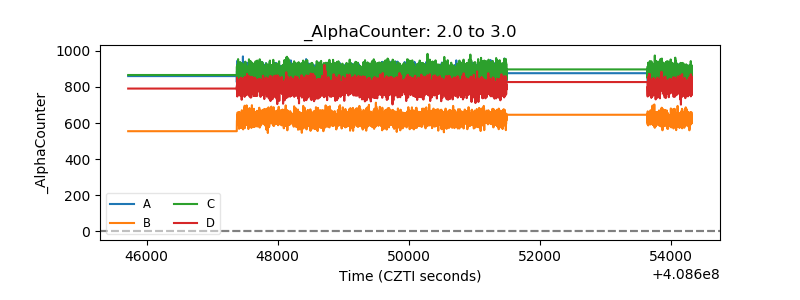

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

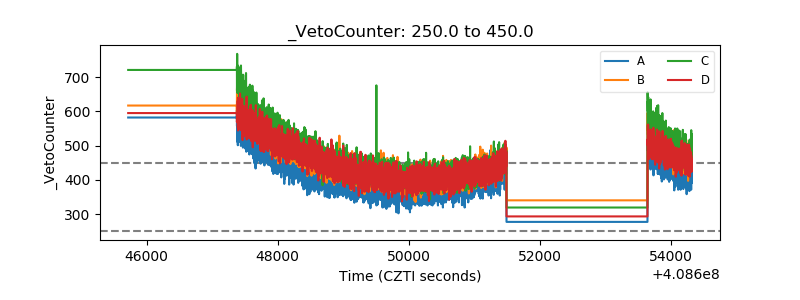

| Veto Counter |  |
