| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_067T01_9000005432_39107cztM0_level2.fits | modeM0/AS1T05_067T01_9000005432_39107cztM0_level2_quad_clean.evt |
| Size (bytes) | 837,066,240 | 174,473,280 |
| Size | 798.3 MB | 166.4 MB |
| Events in quadrant A | 10,220,790 | 1,176,699 |
| Events in quadrant B | 4,946,965 | 1,214,761 |
| Events in quadrant C | 8,105,032 | 1,100,598 |
| Events in quadrant D | 6,877,328 | 1,041,916 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37974 | 4 |
| B | 0 | 21980 | 3 |
| C | 0 | 31019 | 3 |
| D | 0 | 27891 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 39 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10813 | 130 | 1.202257% |
| B | 10813 | 11 | 0.101729% |
| C | 10813 | 479 | 4.429853% |
| D | 10813 | 217 | 2.006844% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13618 | 10815 | 51 | 51 | 0.37% | 0.47% |  |
| B | 13618 | 10815 | 2 | 2 | 0.01% | 0.02% |  |
| C | 13618 | 10815 | 401 | 401 | 2.94% | 3.71% |  |
| D | 13618 | 10815 | 186 | 186 | 1.37% | 1.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 4554081 | 18827.46 | 1202 | 1174 | 241.8 |
| A | 10 | 83 | 745826 | 3079.33 | 1202 | 1174 | 241.8 |
| A | 13 | 248 | 117856 | 482.51 | 1202 | 1174 | 241.8 |
| B | 0 | 230 | 95726 | 409.04 | 1201 | 1169 | 231.2 |
| B | 5 | 184 | 80489 | 343.13 | 1201 | 1169 | 231.2 |
| B | 12 | 111 | 30056 | 124.96 | 1201 | 1169 | 231.2 |
| C | 15 | 208 | 2858740 | 10563.38 | 1161 | 1168 | 270.5 |
| C | 15 | 214 | 448899 | 1655.09 | 1161 | 1168 | 270.5 |
| C | 9 | 187 | 226402 | 832.61 | 1161 | 1168 | 270.5 |
| D | 12 | 235 | 1002446 | 3461.11 | 1169 | 1135 | 289.3 |
| D | 2 | 249 | 282063 | 971.05 | 1169 | 1135 | 289.3 |
| D | 5 | 222 | 170486 | 585.38 | 1169 | 1135 | 289.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

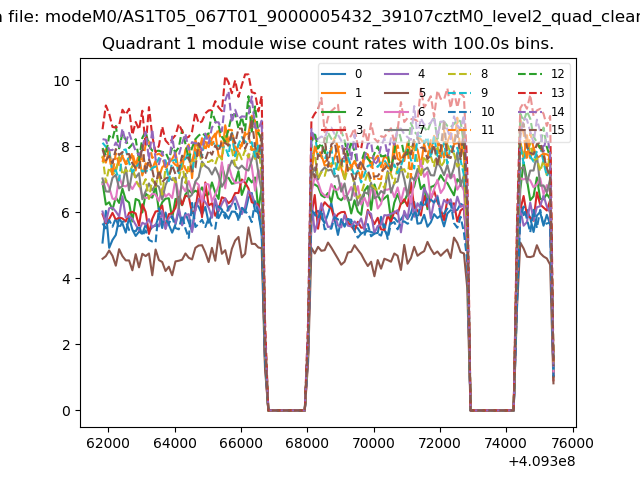

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

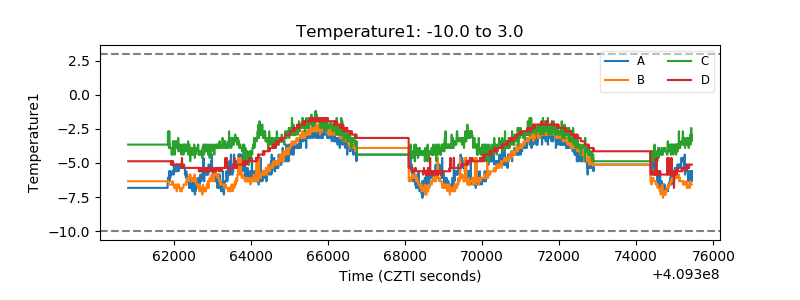

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

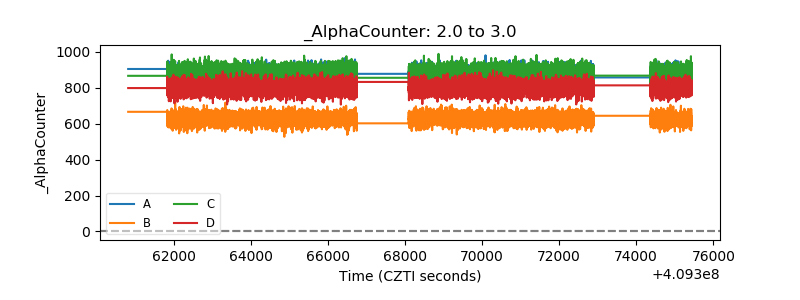

| Alpha Counter |  |

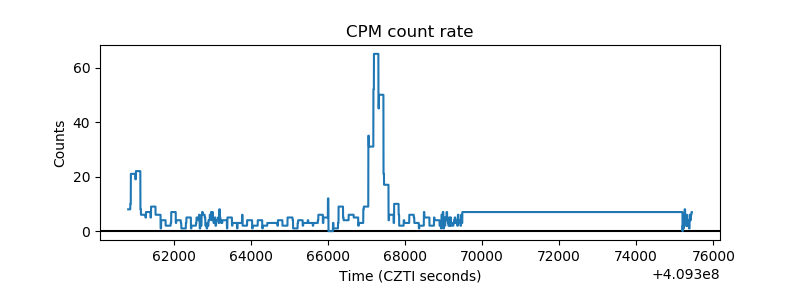

| _CPM_Rate |  |

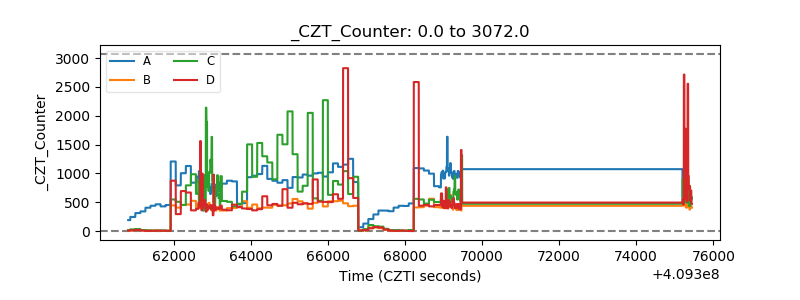

| CZT Counter |  |

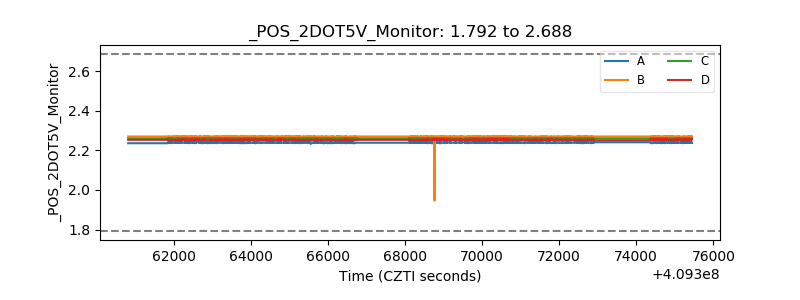

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

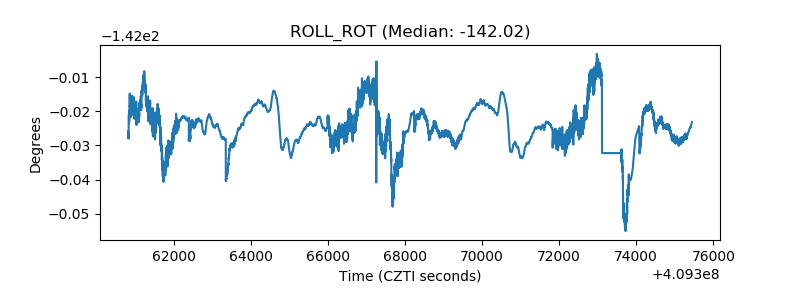

| _ROLL_ROT |  |
| _Roll_DEC |  |

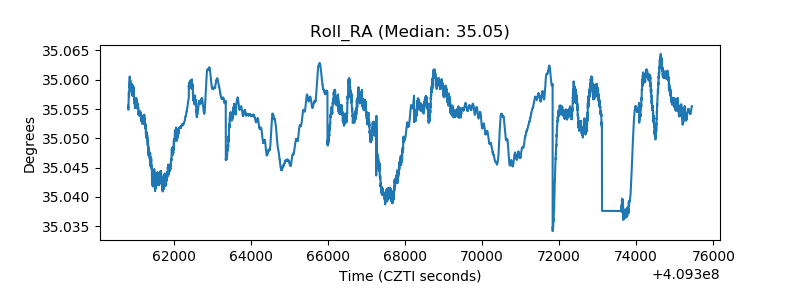

| _Roll_RA |  |
| Veto Counter |  |
