| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_054T04_9000005446_39214cztM0_level2.fits | modeM0/AS1A12_054T04_9000005446_39214cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,341,218,880 | 214,462,080 |
| Size | 1.2 GB | 204.5 MB |
| Events in quadrant A | 7,419,783 | 1,645,752 |
| Events in quadrant B | 6,973,414 | 1,676,379 |
| Events in quadrant C | 6,698,006 | 1,562,492 |
| Events in quadrant D | 27,504,328 | 670,184 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29926 | 4 |
| B | 0 | 29561 | 3 |
| C | 0 | 28189 | 3 |
| D | 0 | 91010 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 276 | 0 |
| B | 0 | 276 | 0 |
| C | 0 | 276 | 0 |
| D | 0 | 276 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13594 | 156 | 1.147565% |
| B | 13594 | 103 | 0.757687% |
| C | 13594 | 31 | 0.228042% |
| D | 13594 | 8224 | 60.497278% |

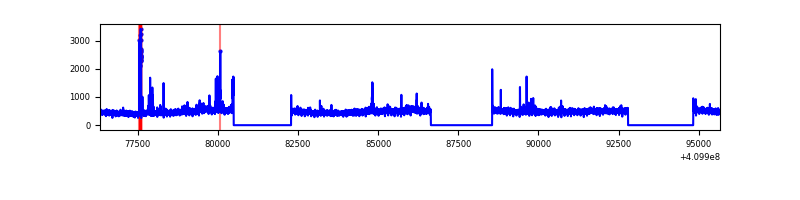

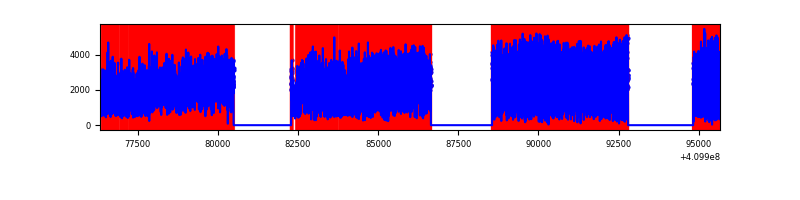

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19334 | 13597 | 101 | 101 | 0.52% | 0.74% |  |
| B | 19334 | 13597 | 61 | 61 | 0.32% | 0.45% |  |
| C | 19334 | 13597 | 23 | 23 | 0.12% | 0.17% |  |
| D | 19334 | 13597 | 6618 | 6618 | 34.23% | 48.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 933294 | 3012.34 | 1558 | 1534 | 309.3 |
| A | 13 | 248 | 328162 | 1055.98 | 1558 | 1534 | 309.3 |
| A | 15 | 174 | 133771 | 427.52 | 1558 | 1534 | 309.3 |
| B | 5 | 184 | 632515 | 2194.66 | 1534 | 1489 | 287.5 |
| B | 5 | 172 | 162193 | 558.91 | 1534 | 1489 | 287.5 |
| B | 0 | 190 | 153300 | 527.98 | 1534 | 1489 | 287.5 |
| C | 15 | 214 | 559680 | 1653.2 | 1486 | 1494 | 337.6 |
| C | 9 | 187 | 223592 | 657.8 | 1486 | 1494 | 337.6 |
| C | 3 | 233 | 94953 | 276.8 | 1486 | 1494 | 337.6 |
| D | 12 | 235 | 22029636 | 83351.66 | 1089 | 1056 | 264.3 |
| D | 5 | 222 | 486114 | 1835.36 | 1089 | 1056 | 264.3 |
| D | 2 | 249 | 468343 | 1768.12 | 1089 | 1056 | 264.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

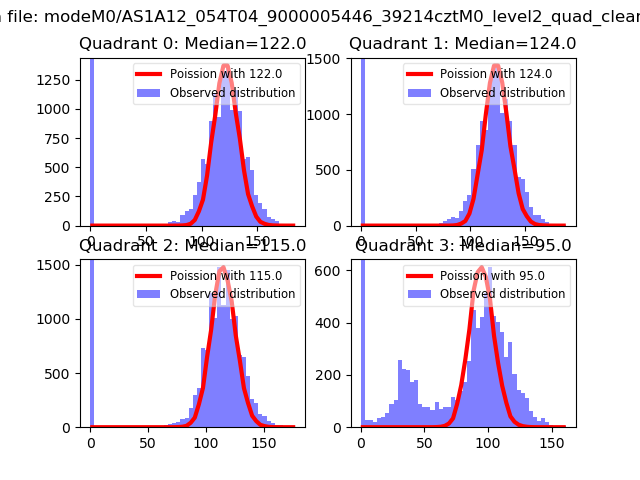

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

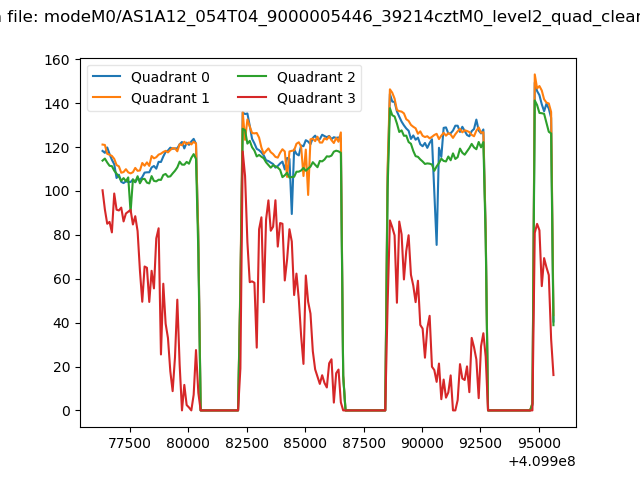

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

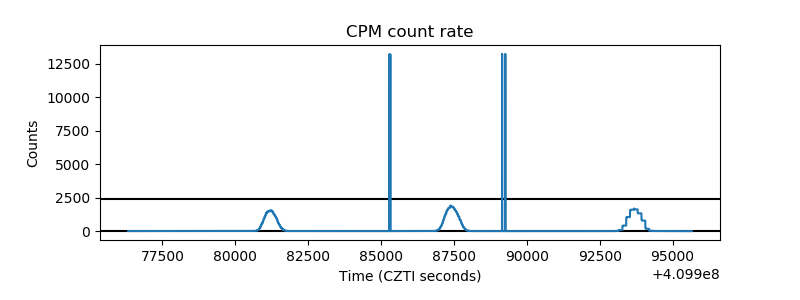

| _CPM_Rate |  |

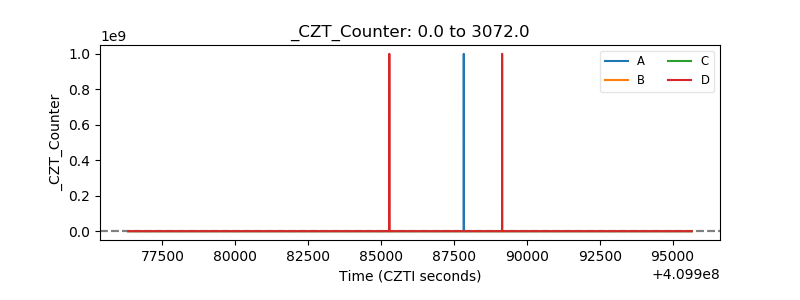

| CZT Counter |  |

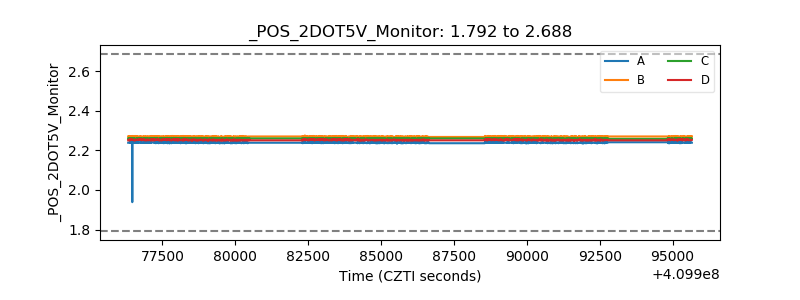

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

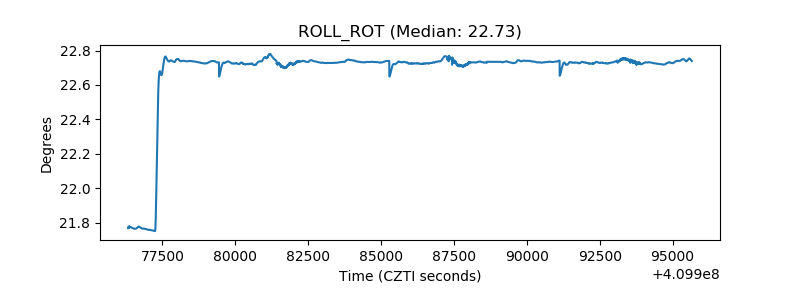

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
