| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_037T01_9000005456_39282cztM0_level2.fits | modeM0/AS1A12_037T01_9000005456_39282cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,731,520 | 61,113,600 |
| Size | 421.3 MB | 58.3 MB |
| Events in quadrant A | 2,425,576 | 468,834 |
| Events in quadrant B | 2,062,975 | 477,113 |
| Events in quadrant C | 2,083,838 | 456,587 |
| Events in quadrant D | 9,447,091 | 148,430 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9822 | 2 |
| B | 0 | 8747 | 1 |
| C | 0 | 8923 | 1 |
| D | 0 | 30939 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4254 | 21 | 0.493653% |
| B | 4254 | 5 | 0.117536% |
| C | 4254 | 22 | 0.517160% |
| D | 4254 | 3076 | 72.308416% |

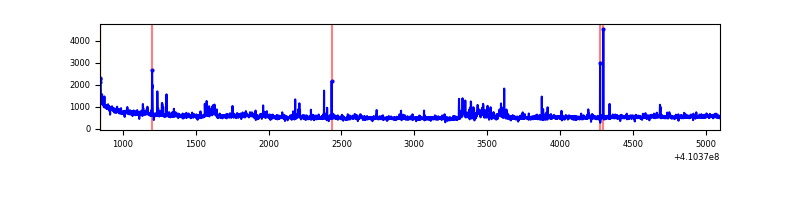

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4254 | 4254 | 7 | 7 | 0.16% | 0.16% |  |
| B | 4254 | 4254 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4254 | 4254 | 16 | 16 | 0.38% | 0.38% |  |
| D | 4254 | 4252 | 2410 | 2410 | 56.65% | 56.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 307004 | 3217.9 | 464 | 456 | 95.3 |
| A | 10 | 83 | 290322 | 3042.79 | 464 | 456 | 95.3 |
| A | 13 | 248 | 18139 | 185.62 | 464 | 456 | 95.3 |
| B | 5 | 184 | 105380 | 1132.42 | 464 | 450 | 92.7 |
| B | 0 | 190 | 67517 | 723.8 | 464 | 450 | 92.7 |
| B | 0 | 189 | 39355 | 419.87 | 464 | 450 | 92.7 |
| C | 15 | 214 | 175663 | 1624.32 | 456 | 457 | 107.9 |
| C | 9 | 187 | 102770 | 948.54 | 456 | 457 | 107.9 |
| C | 3 | 233 | 22023 | 199.93 | 456 | 457 | 107.9 |
| D | 12 | 235 | 7352582 | 101962.05 | 288 | 280 | 72.1 |
| D | 12 | 227 | 688478 | 9543.96 | 288 | 280 | 72.1 |
| D | 5 | 222 | 168754 | 2336.4 | 288 | 280 | 72.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

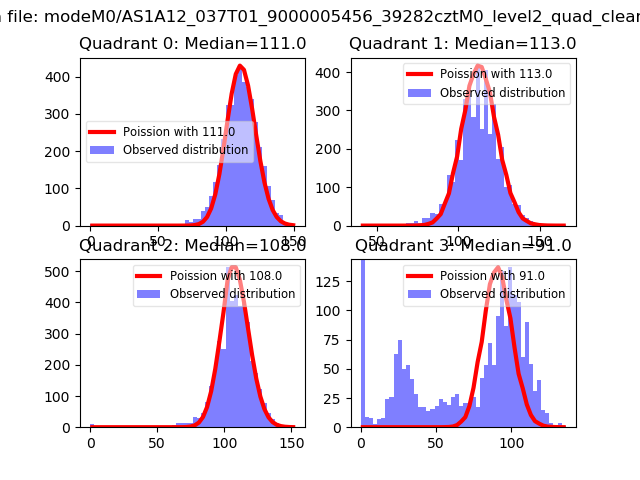

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

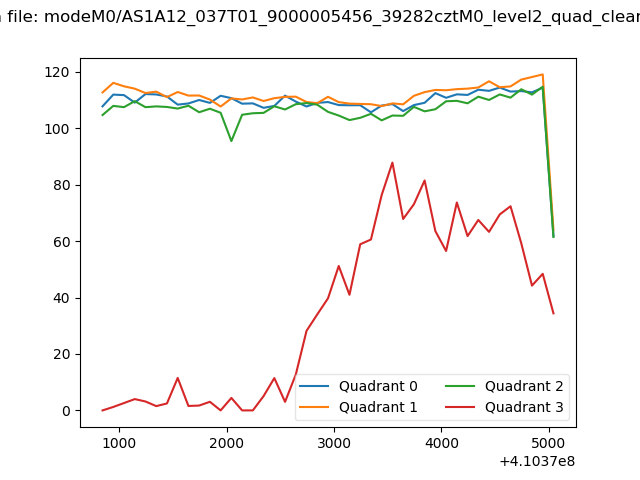

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

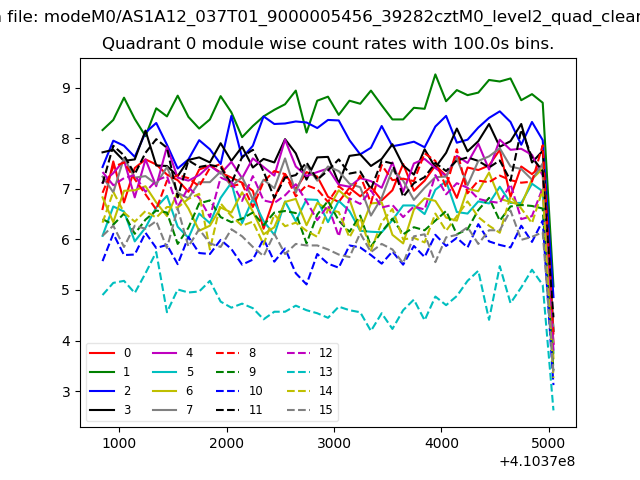

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

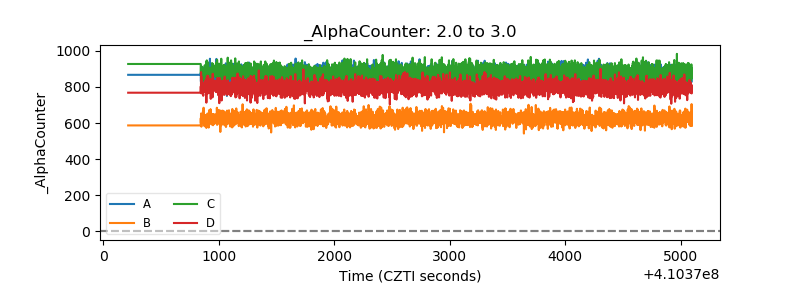

| Alpha Counter |  |

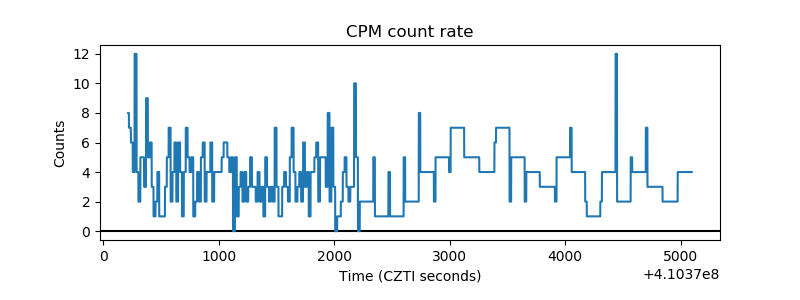

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

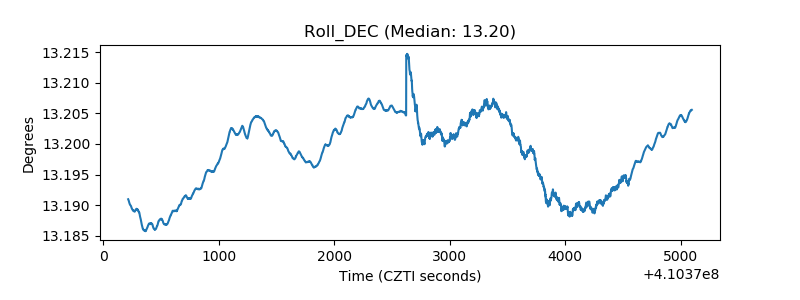

| _Roll_DEC |  |

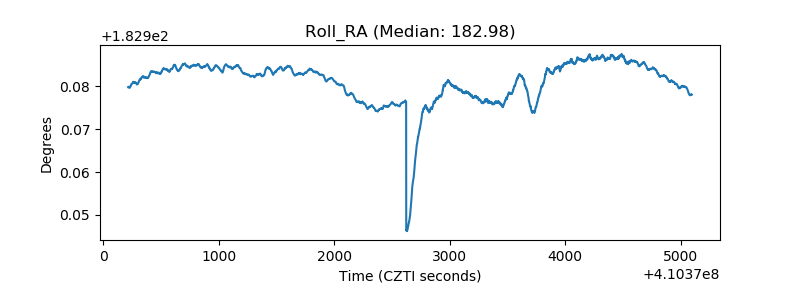

| _Roll_RA |  |
| Veto Counter |  |
