| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_061T07_9000005468_39319cztM0_level2.fits | modeM0/AS1A12_061T07_9000005468_39319cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,211,520 | 89,386,560 |
| Size | 418.9 MB | 85.2 MB |
| Events in quadrant A | 2,894,944 | 624,907 |
| Events in quadrant B | 2,707,593 | 640,311 |
| Events in quadrant C | 2,634,044 | 616,913 |
| Events in quadrant D | 7,609,598 | 453,550 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11663 | 2 |
| B | 0 | 11515 | 1 |
| C | 0 | 10920 | 1 |
| D | 0 | 26261 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5298 | 29 | 0.547376% |
| B | 5298 | 54 | 1.019253% |
| C | 5298 | 12 | 0.226501% |
| D | 5298 | 1436 | 27.104568% |

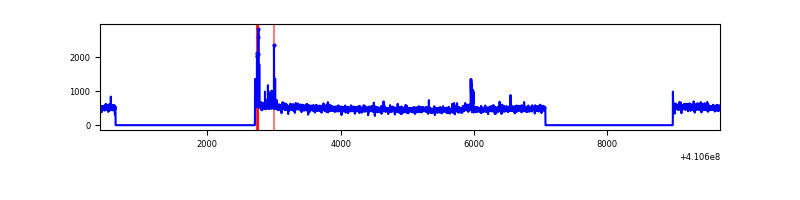

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9302 | 5300 | 15 | 15 | 0.16% | 0.28% |  |
| B | 9302 | 5300 | 42 | 42 | 0.45% | 0.79% |  |
| C | 9302 | 5300 | 6 | 6 | 0.06% | 0.11% |  |
| D | 9302 | 5300 | 1294 | 1294 | 13.91% | 24.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 423217 | 3424.37 | 609 | 598 | 123.4 |
| A | 13 | 248 | 89547 | 720.73 | 609 | 598 | 123.4 |
| A | 15 | 222 | 25883 | 204.88 | 609 | 598 | 123.4 |
| B | 5 | 172 | 173716 | 1483.4 | 604 | 586 | 116.7 |
| B | 5 | 184 | 132516 | 1130.39 | 604 | 586 | 116.7 |
| B | 12 | 111 | 15112 | 124.46 | 604 | 586 | 116.7 |
| C | 15 | 214 | 241791 | 1737.1 | 594 | 598 | 138.8 |
| C | 14 | 254 | 38764 | 274.88 | 594 | 598 | 138.8 |
| C | 9 | 187 | 30040 | 212.04 | 594 | 598 | 138.8 |
| D | 12 | 235 | 4915415 | 37469.79 | 537 | 523 | 131.2 |
| D | 12 | 227 | 272872 | 2076.31 | 537 | 523 | 131.2 |
| D | 13 | 249 | 141699 | 1076.29 | 537 | 523 | 131.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

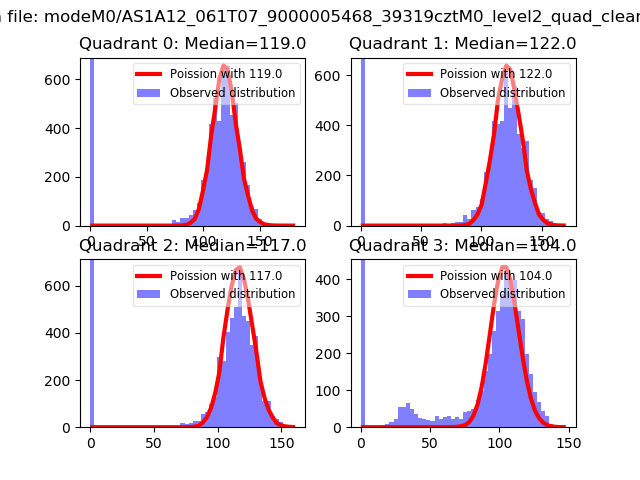

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

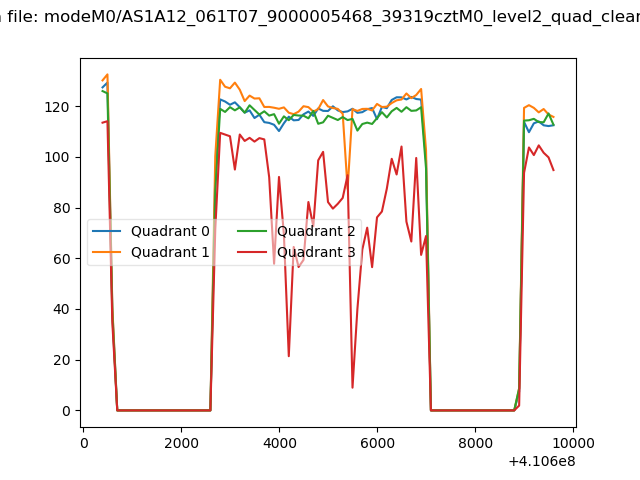

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

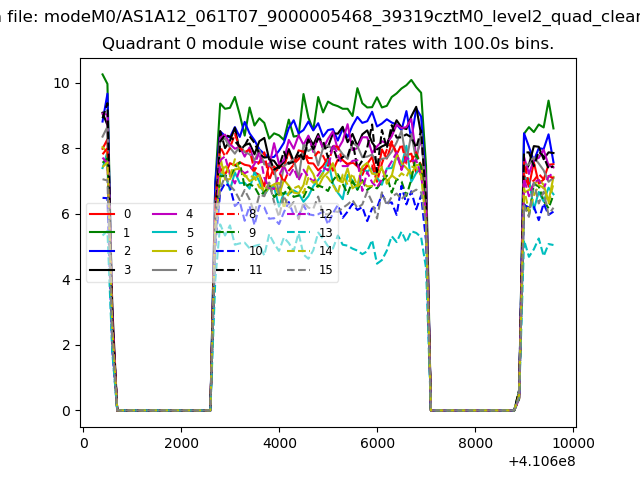

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

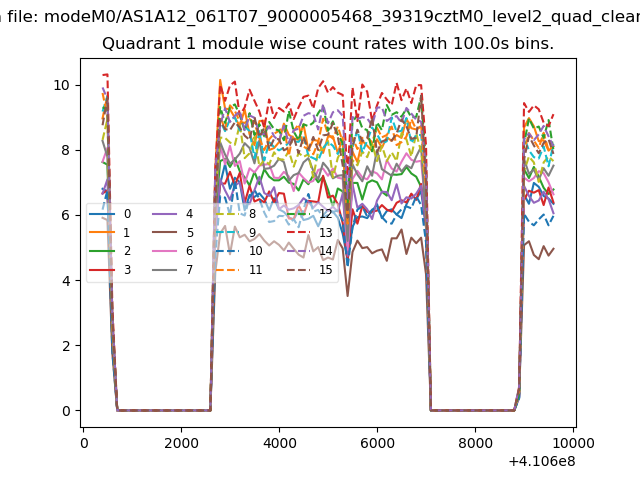

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

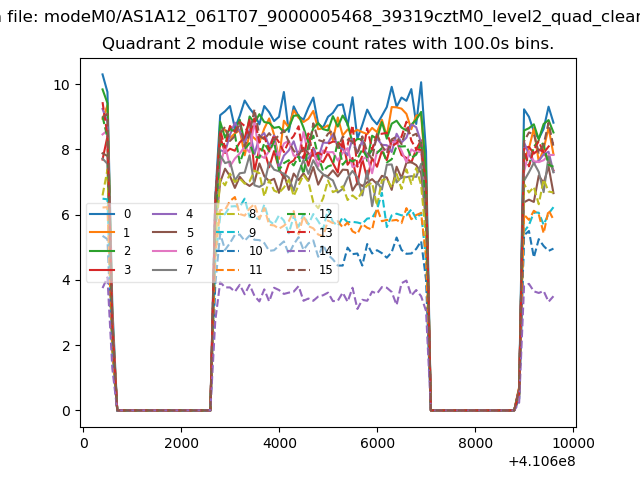

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

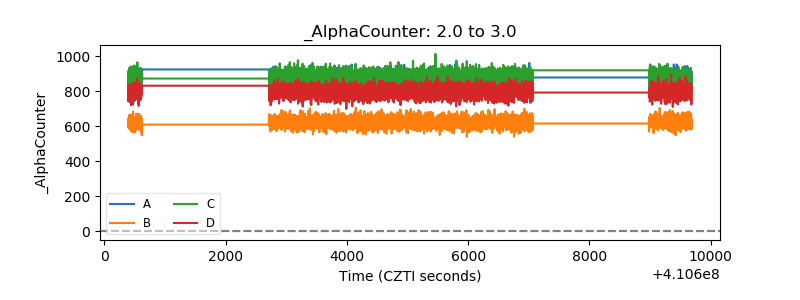

| Alpha Counter |  |

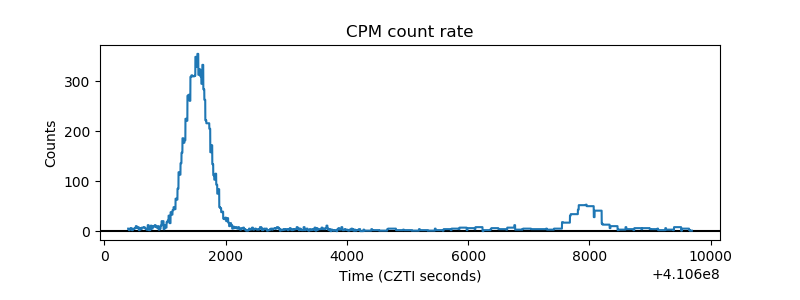

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
