| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005470_39335cztM0_level2.fits | modeM0/AS1A12_018T01_9000005470_39335cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,534,720 | 92,638,080 |
| Size | 444.0 MB | 88.3 MB |
| Events in quadrant A | 3,029,404 | 644,232 |
| Events in quadrant B | 2,775,598 | 654,853 |
| Events in quadrant C | 2,767,283 | 625,975 |
| Events in quadrant D | 8,215,152 | 479,414 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12377 | 3 |
| B | 0 | 12255 | 2 |
| C | 0 | 11818 | 2 |
| D | 0 | 28431 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5730 | 38 | 0.663176% |
| B | 5730 | 105 | 1.832461% |
| C | 5730 | 5 | 0.087260% |
| D | 5730 | 1300 | 22.687609% |

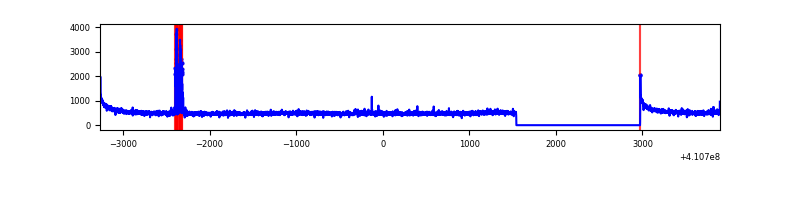

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7161 | 5731 | 32 | 32 | 0.45% | 0.56% |  |
| B | 7161 | 5731 | 60 | 60 | 0.84% | 1.05% |  |
| C | 7161 | 5731 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7161 | 5731 | 1183 | 1183 | 16.52% | 20.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 449023 | 3502.89 | 629 | 617 | 128.0 |
| A | 13 | 248 | 121583 | 944.97 | 629 | 617 | 128.0 |
| A | 13 | 6 | 14914 | 111.69 | 629 | 617 | 128.0 |
| B | 5 | 172 | 274125 | 2289.74 | 619 | 604 | 119.5 |
| B | 5 | 255 | 35795 | 294.6 | 619 | 604 | 119.5 |
| B | 0 | 213 | 15455 | 124.32 | 619 | 604 | 119.5 |
| C | 15 | 214 | 260083 | 1832.54 | 613 | 614 | 141.6 |
| C | 9 | 187 | 100047 | 702.26 | 613 | 614 | 141.6 |
| C | 12 | 249 | 5647 | 35.55 | 613 | 614 | 141.6 |
| D | 12 | 235 | 4609658 | 33066.24 | 567 | 549 | 139.4 |
| D | 12 | 227 | 540818 | 3875.95 | 567 | 549 | 139.4 |
| D | 5 | 222 | 524407 | 3758.21 | 567 | 549 | 139.4 |

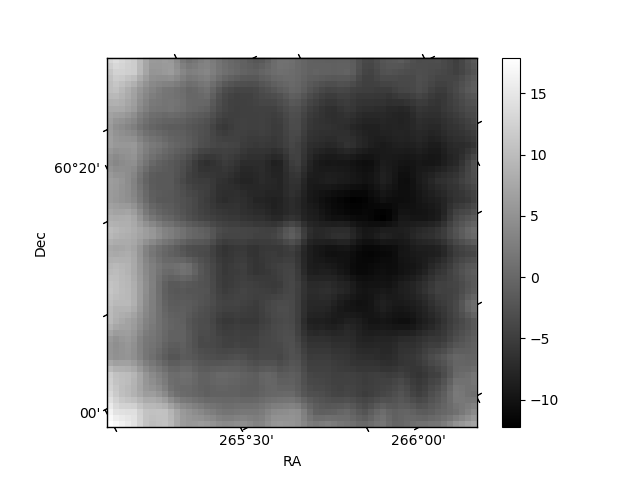

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

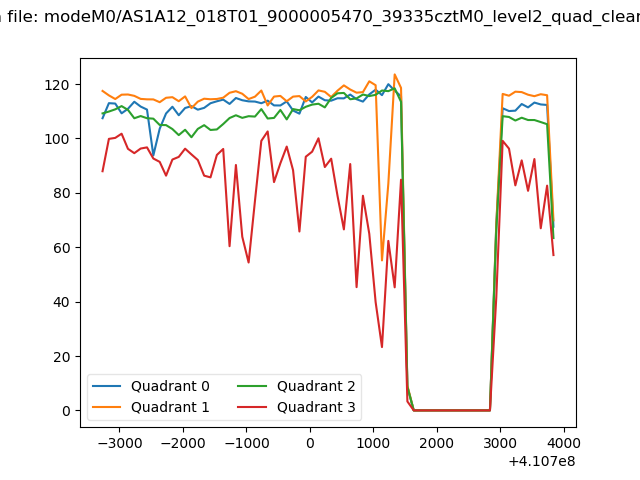

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

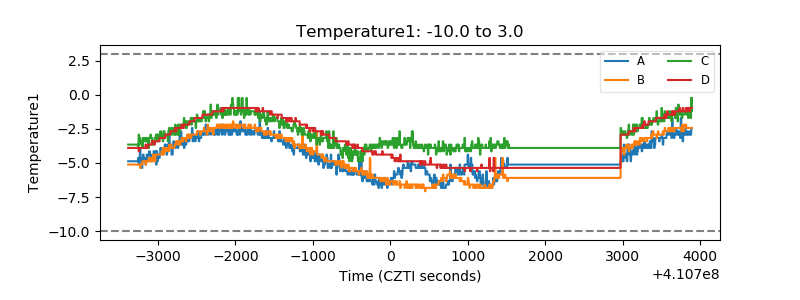

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

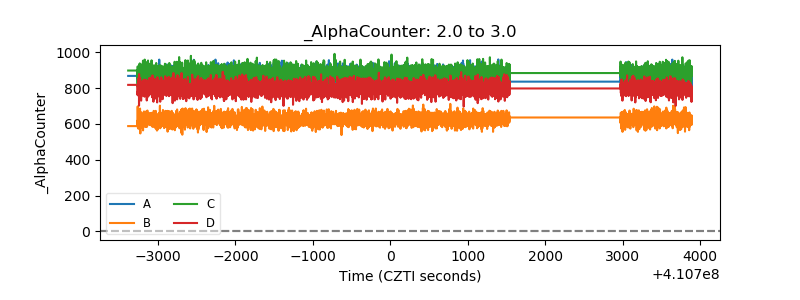

| Alpha Counter |  |

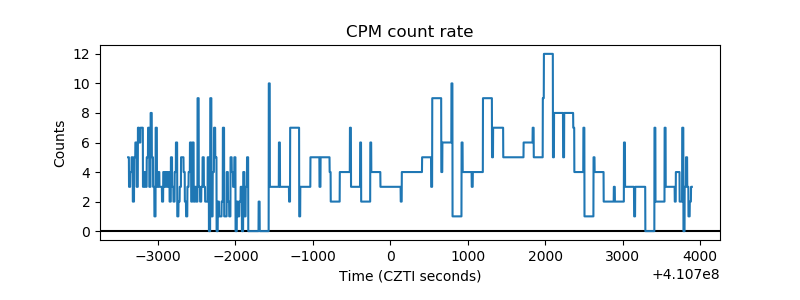

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

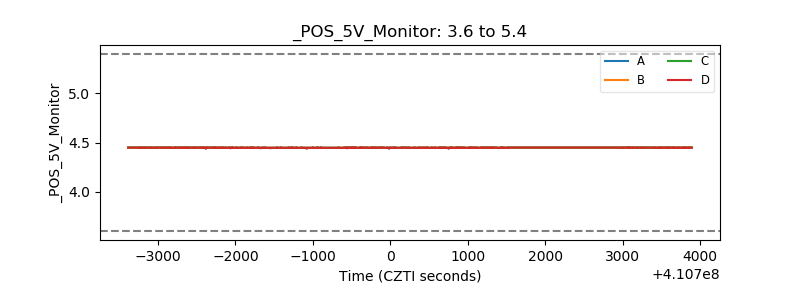

| +5 Volts monitor |  |
| _ROLL_ROT |  |

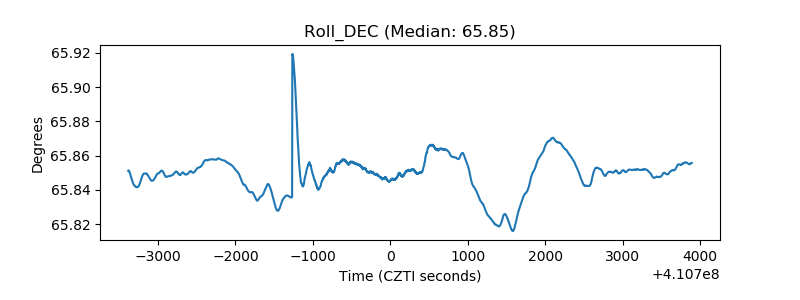

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
