| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_018T01_9000005488_39578cztM0_level2.fits | modeM0/AS1A12_018T01_9000005488_39578cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,771,200 | 83,376,000 |
| Size | 422.3 MB | 79.5 MB |
| Events in quadrant A | 3,061,780 | 591,704 |
| Events in quadrant B | 2,249,480 | 615,000 |
| Events in quadrant C | 5,709,320 | 459,285 |
| Events in quadrant D | 4,990,816 | 516,719 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12350 | 3 |
| B | 0 | 10035 | 2 |
| C | 0 | 20247 | 2 |
| D | 0 | 18280 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4875 | 47 | 0.964103% |
| B | 4875 | 15 | 0.307692% |
| C | 4875 | 1186 | 24.328205% |
| D | 4875 | 369 | 7.569231% |

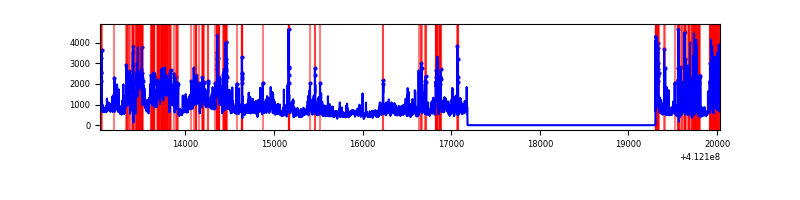

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6997 | 4876 | 28 | 28 | 0.40% | 0.57% |  |
| B | 6997 | 4876 | 7 | 7 | 0.10% | 0.14% |  |
| C | 6997 | 4876 | 1032 | 1032 | 14.75% | 21.16% |  |
| D | 6997 | 4876 | 391 | 391 | 5.59% | 8.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 417515 | 3801.7 | 540 | 530 | 109.7 |
| A | 10 | 83 | 408901 | 3723.17 | 540 | 530 | 109.7 |
| A | 2 | 79 | 80944 | 733.14 | 540 | 530 | 109.7 |
| B | 5 | 172 | 61167 | 590.45 | 545 | 530 | 102.7 |
| B | 0 | 230 | 25276 | 240.96 | 545 | 530 | 102.7 |
| B | 5 | 255 | 22718 | 216.05 | 545 | 530 | 102.7 |
| C | 9 | 187 | 2015470 | 18405.5 | 471 | 473 | 109.5 |
| C | 15 | 208 | 1642199 | 14995.95 | 471 | 473 | 109.5 |
| C | 15 | 214 | 192848 | 1757.2 | 471 | 473 | 109.5 |
| D | 12 | 227 | 2623218 | 20627.04 | 518 | 504 | 127.1 |
| D | 13 | 249 | 160232 | 1256.22 | 518 | 504 | 127.1 |
| D | 1 | 52 | 85961 | 672.1 | 518 | 504 | 127.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

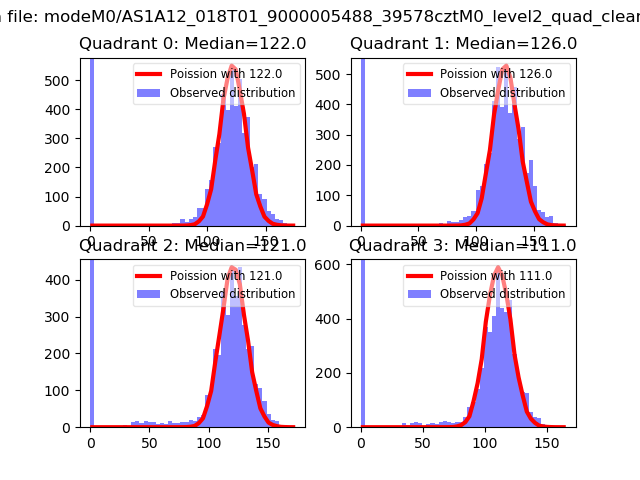

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

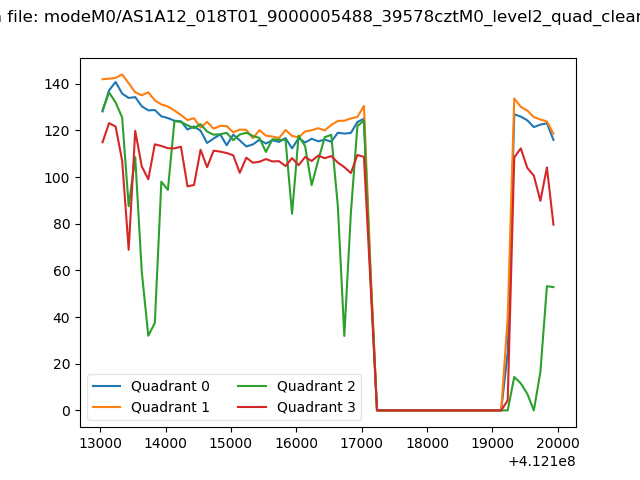

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

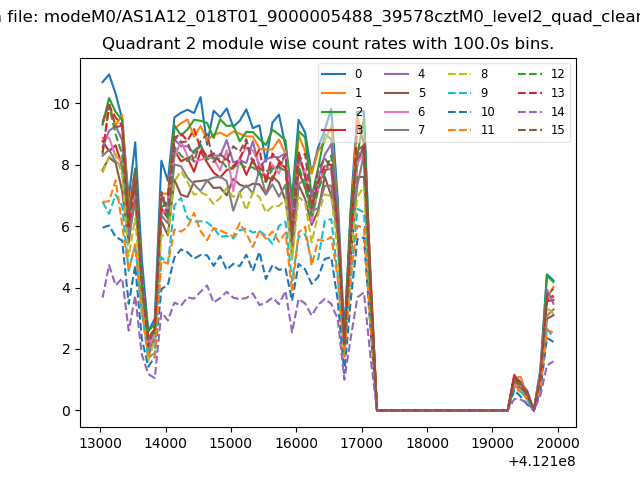

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

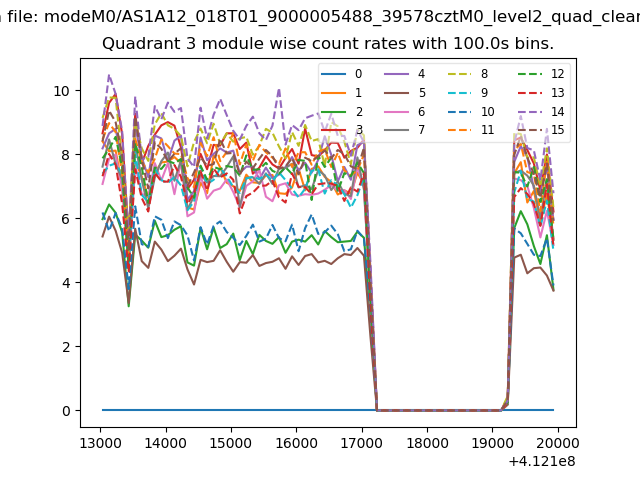

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

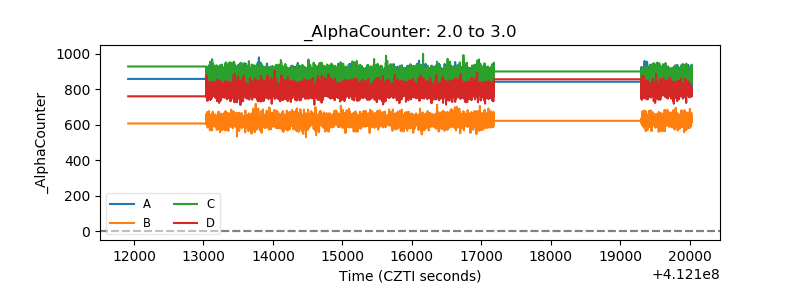

| Alpha Counter |  |

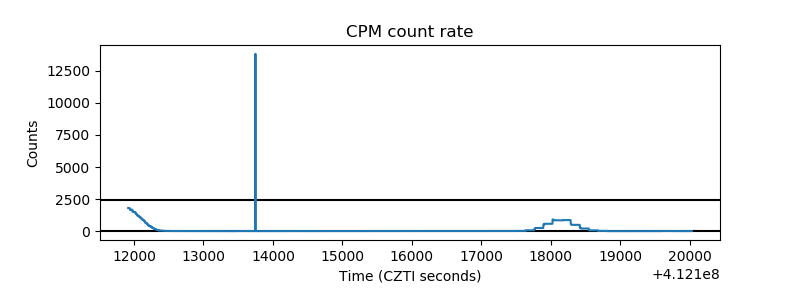

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

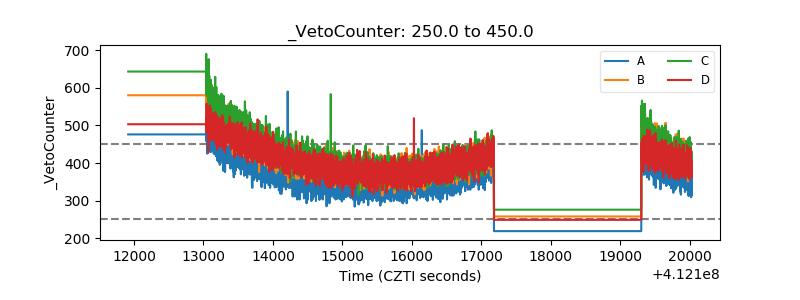

| Veto Counter |  |
