| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005494_39706cztM0_level2.fits | modeM0/AS1A12_022T01_9000005494_39706cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,996,480 | 99,380,160 |
| Size | 430.1 MB | 94.8 MB |
| Events in quadrant A | 5,203,201 | 667,531 |
| Events in quadrant B | 3,225,985 | 710,153 |
| Events in quadrant C | 4,445,272 | 636,486 |
| Events in quadrant D | 3,401,402 | 617,564 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19371 | 3 |
| B | 0 | 12979 | 2 |
| C | 0 | 16788 | 2 |
| D | 0 | 13564 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5395 | 354 | 6.561631% |
| B | 5395 | 101 | 1.872104% |
| C | 5395 | 325 | 6.024096% |
| D | 5395 | 91 | 1.686747% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7367 | 5396 | 238 | 238 | 3.23% | 4.41% |  |
| B | 7367 | 5396 | 54 | 54 | 0.73% | 1.00% |  |
| C | 7367 | 5396 | 285 | 285 | 3.87% | 5.28% |  |
| D | 7367 | 5396 | 80 | 80 | 1.09% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 1743840 | 13453.9 | 639 | 627 | 129.6 |
| A | 10 | 83 | 441332 | 3401.31 | 639 | 627 | 129.6 |
| A | 15 | 174 | 420923 | 3243.79 | 639 | 627 | 129.6 |
| B | 5 | 172 | 586371 | 4787.34 | 644 | 628 | 122.4 |
| B | 0 | 190 | 63688 | 515.4 | 644 | 628 | 122.4 |
| B | 5 | 255 | 31202 | 249.88 | 644 | 628 | 122.4 |
| C | 9 | 187 | 1251916 | 8782.43 | 620 | 626 | 142.5 |
| C | 15 | 208 | 512267 | 3591.06 | 620 | 626 | 142.5 |
| C | 15 | 214 | 218249 | 1527.43 | 620 | 626 | 142.5 |
| D | 12 | 227 | 367609 | 2371.77 | 636 | 618 | 154.7 |
| D | 12 | 233 | 193255 | 1244.96 | 636 | 618 | 154.7 |
| D | 2 | 153 | 149441 | 961.8 | 636 | 618 | 154.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

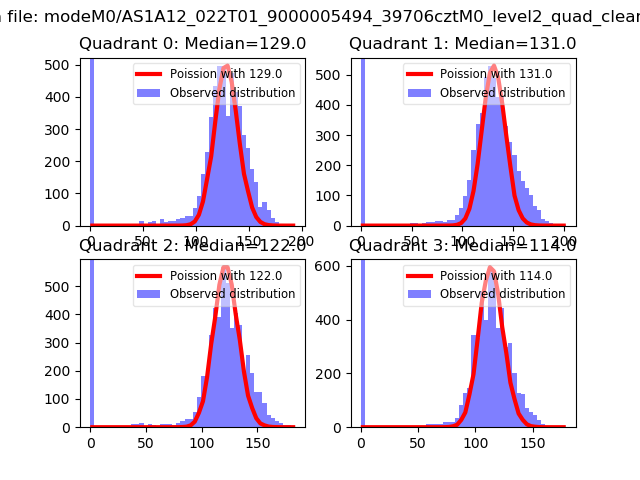

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

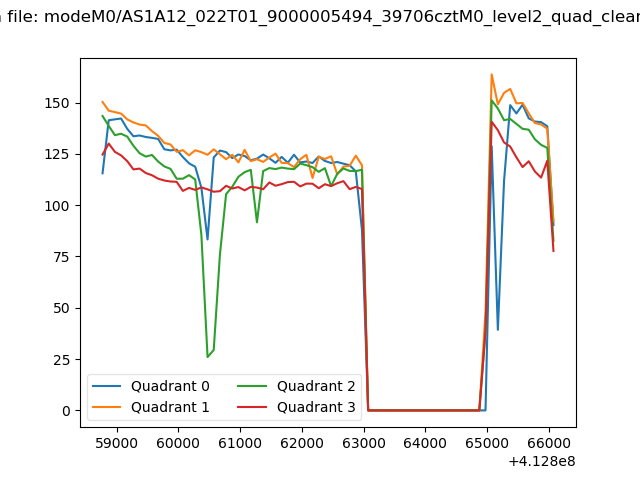

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

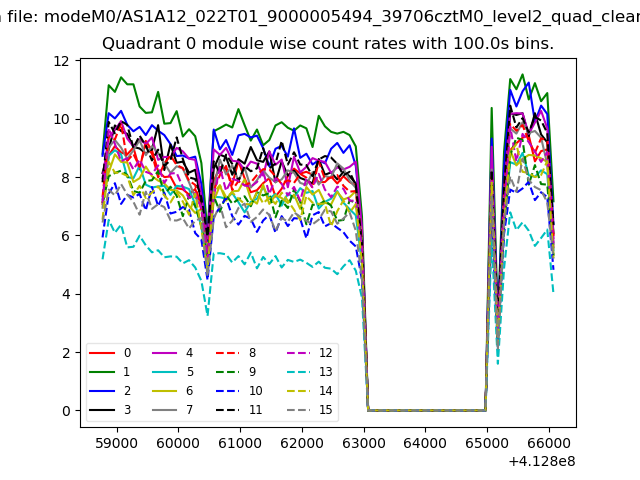

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

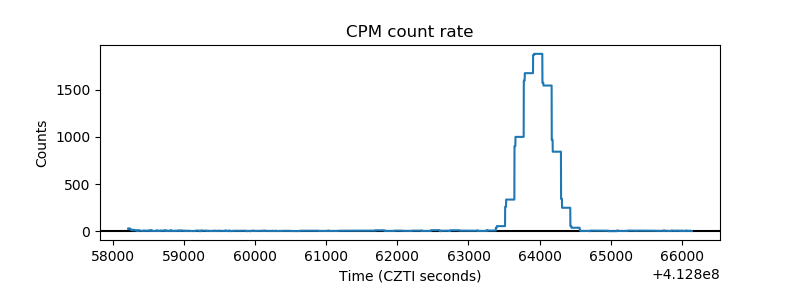

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

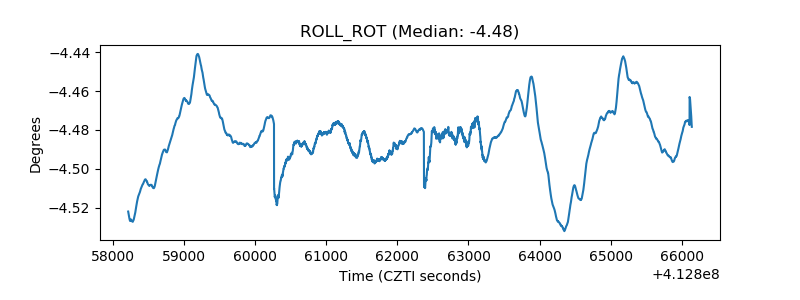

| _ROLL_ROT |  |

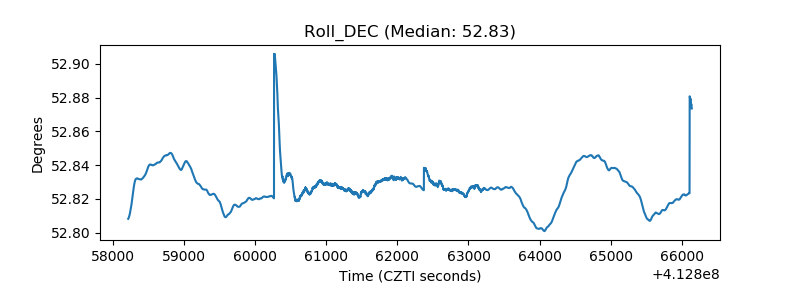

| _Roll_DEC |  |
| _Roll_RA |  |

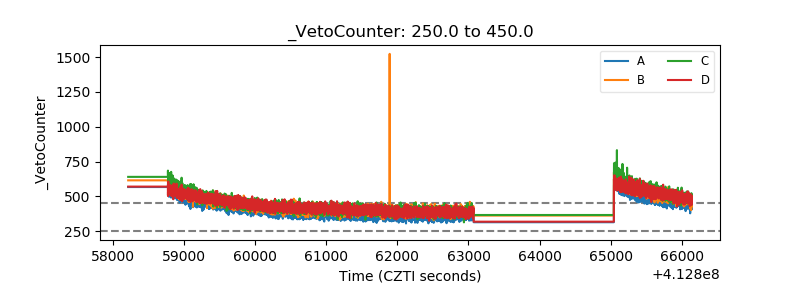

| Veto Counter |  |
