| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005494_39707cztM0_level2.fits | modeM0/AS1A12_022T01_9000005494_39707cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,157,120 | 98,913,600 |
| Size | 396.9 MB | 94.3 MB |
| Events in quadrant A | 5,084,715 | 621,769 |
| Events in quadrant B | 3,234,010 | 708,140 |
| Events in quadrant C | 3,184,303 | 678,369 |
| Events in quadrant D | 3,493,474 | 619,644 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18849 | 2 |
| B | 0 | 12918 | 1 |
| C | 0 | 12721 | 1 |
| D | 0 | 13806 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5250 | 756 | 14.400000% |
| B | 5250 | 176 | 3.352381% |
| C | 5250 | 24 | 0.457143% |
| D | 5250 | 177 | 3.371429% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7341 | 5250 | 527 | 527 | 7.18% | 10.04% |  |
| B | 7342 | 5251 | 89 | 89 | 1.21% | 1.69% |  |
| C | 7342 | 5251 | 23 | 23 | 0.31% | 0.44% |  |
| D | 7342 | 5251 | 141 | 141 | 1.92% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 1249973 | 10200.5 | 605 | 595 | 122.5 |
| A | 15 | 174 | 519355 | 4235.4 | 605 | 595 | 122.5 |
| A | 15 | 222 | 497916 | 4060.36 | 605 | 595 | 122.5 |
| B | 5 | 172 | 637975 | 5402.11 | 633 | 619 | 118.0 |
| B | 0 | 190 | 64714 | 543.25 | 633 | 619 | 118.0 |
| B | 5 | 255 | 26462 | 219.04 | 633 | 619 | 118.0 |
| C | 15 | 208 | 317792 | 2194.47 | 632 | 637 | 144.5 |
| C | 15 | 214 | 217173 | 1498.26 | 632 | 637 | 144.5 |
| C | 9 | 187 | 116040 | 798.5 | 632 | 637 | 144.5 |
| D | 12 | 227 | 489948 | 3196.16 | 628 | 611 | 153.1 |
| D | 12 | 233 | 356814 | 2326.58 | 628 | 611 | 153.1 |
| D | 2 | 153 | 61990 | 400.9 | 628 | 611 | 153.1 |

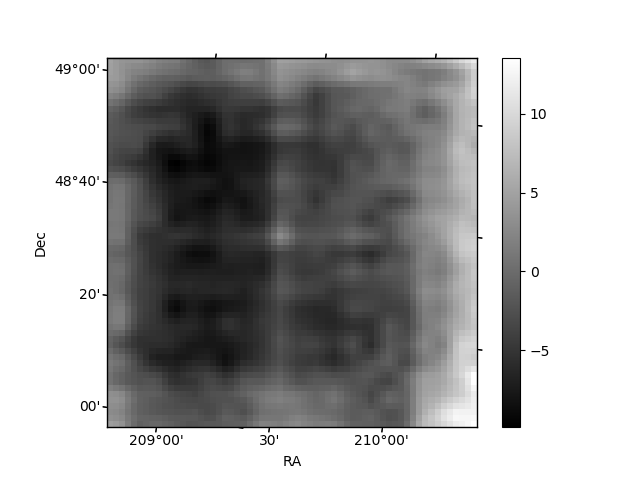

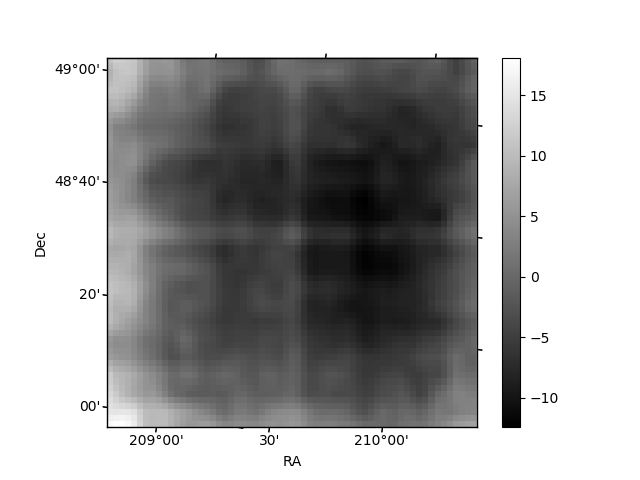

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

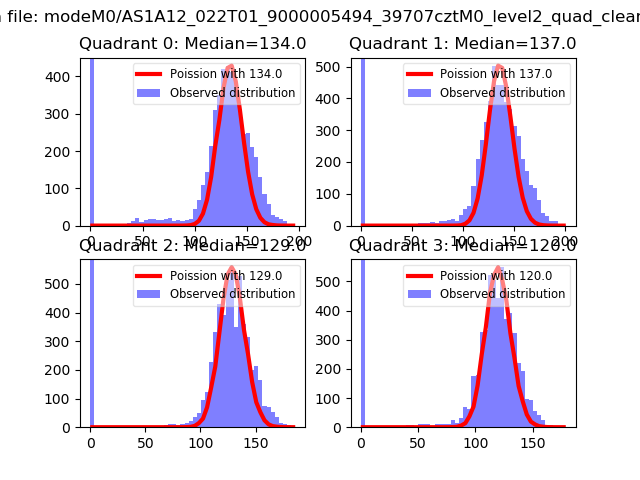

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

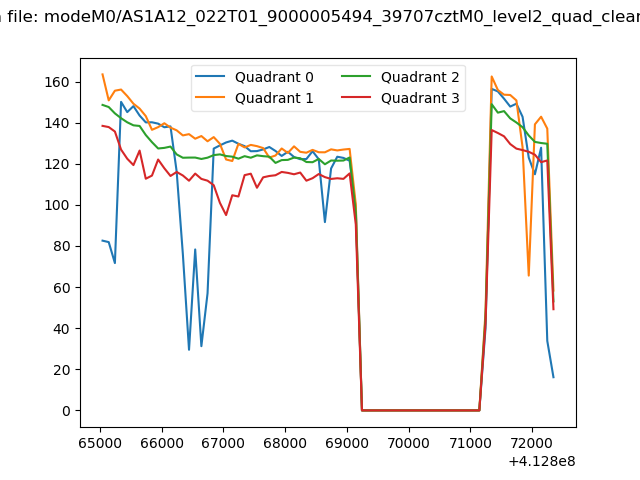

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

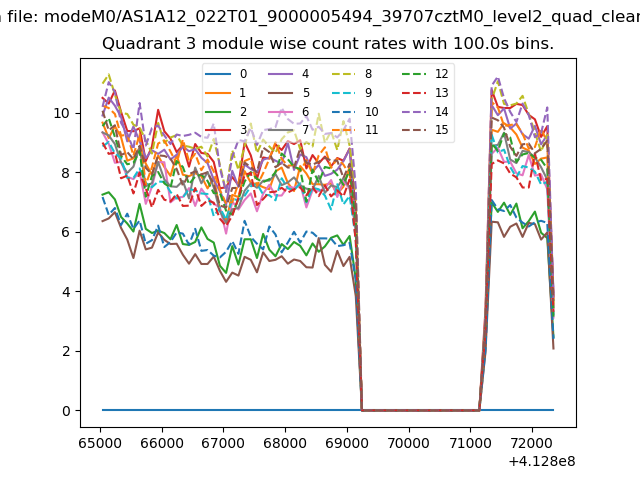

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

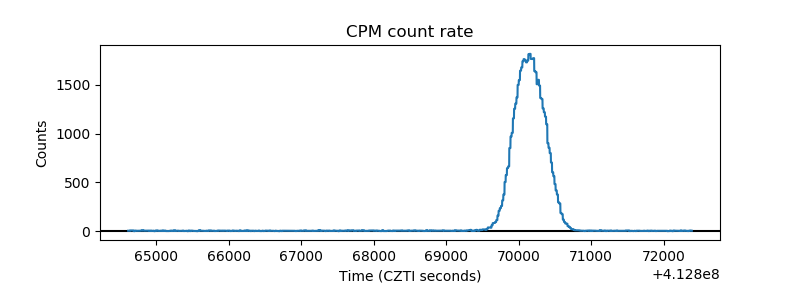

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

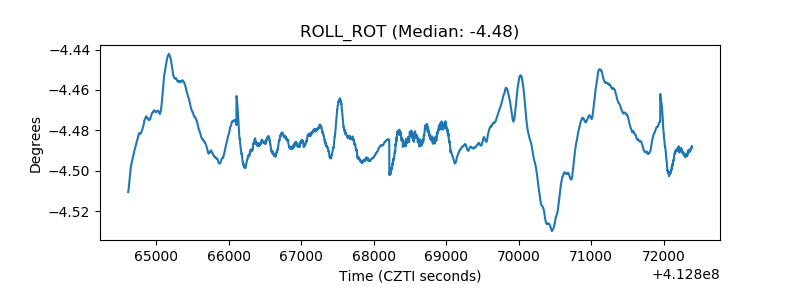

| _ROLL_ROT |  |

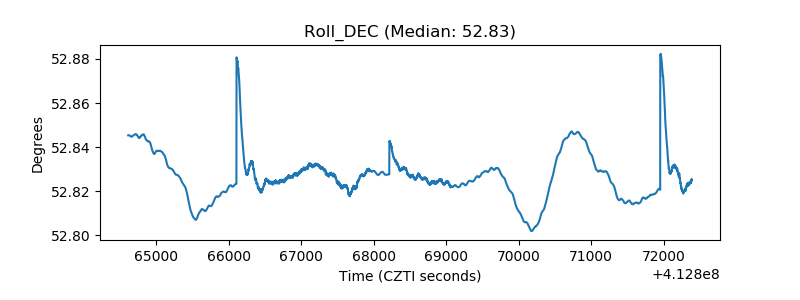

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
