| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005494_39730cztM0_level2.fits | modeM0/AS1A12_022T01_9000005494_39730cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,328,751,360 | 248,999,040 |
| Size | 1.2 GB | 237.5 MB |
| Events in quadrant A | 13,497,407 | 1,484,337 |
| Events in quadrant B | 9,240,347 | 1,789,643 |
| Events in quadrant C | 10,712,106 | 1,706,387 |
| Events in quadrant D | 14,487,507 | 1,443,634 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 332 | 0 |
| B | 0 | 332 | 0 |
| C | 0 | 332 | 0 |
| D | 0 | 332 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50422 | 5 |
| B | 0 | 38588 | 4 |
| C | 0 | 42929 | 4 |
| D | 0 | 54831 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16153 | 2496 | 15.452238% |
| B | 16153 | 369 | 2.284405% |
| C | 16153 | 319 | 1.974865% |
| D | 16153 | 1744 | 10.796756% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21583 | 16157 | 1905 | 1905 | 8.83% | 11.79% |  |
| B | 21583 | 16157 | 167 | 167 | 0.77% | 1.03% |  |
| C | 21583 | 16157 | 271 | 271 | 1.26% | 1.68% |  |
| D | 21583 | 16157 | 1564 | 1564 | 7.25% | 9.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 5294558 | 15929.02 | 1649 | 1619 | 332.3 |
| A | 10 | 83 | 1114017 | 3347.74 | 1649 | 1619 | 332.3 |
| A | 13 | 248 | 568115 | 1704.86 | 1649 | 1619 | 332.3 |
| B | 5 | 172 | 1600247 | 4665.18 | 1759 | 1708 | 342.7 |
| B | 5 | 255 | 524793 | 1526.57 | 1759 | 1708 | 342.7 |
| B | 0 | 190 | 88374 | 252.93 | 1759 | 1708 | 342.7 |
| C | 9 | 187 | 1830352 | 4576.09 | 1725 | 1735 | 399.6 |
| C | 15 | 208 | 1368530 | 3420.38 | 1725 | 1735 | 399.6 |
| C | 15 | 214 | 659340 | 1645.65 | 1725 | 1735 | 399.6 |
| D | 12 | 227 | 7125697 | 17510.89 | 1663 | 1615 | 406.8 |
| D | 12 | 233 | 257431 | 628.79 | 1663 | 1615 | 406.8 |
| D | 2 | 250 | 229601 | 560.39 | 1663 | 1615 | 406.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

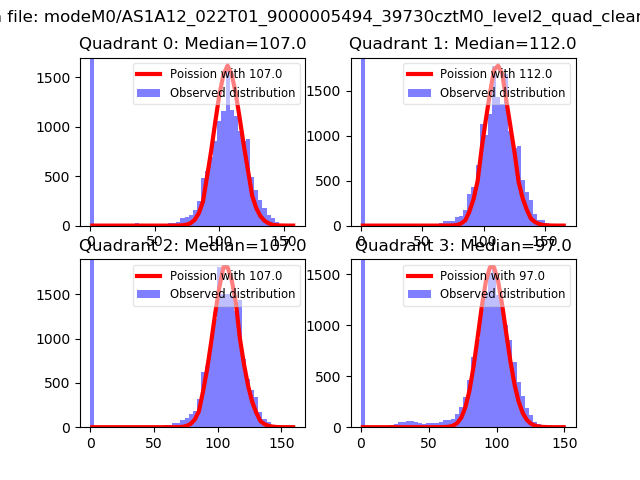

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

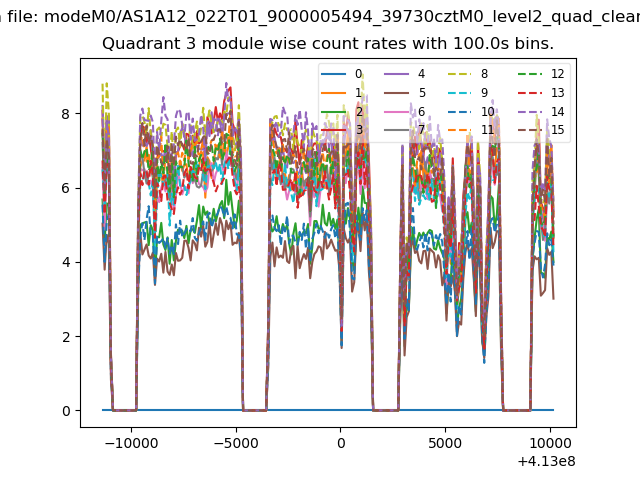

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

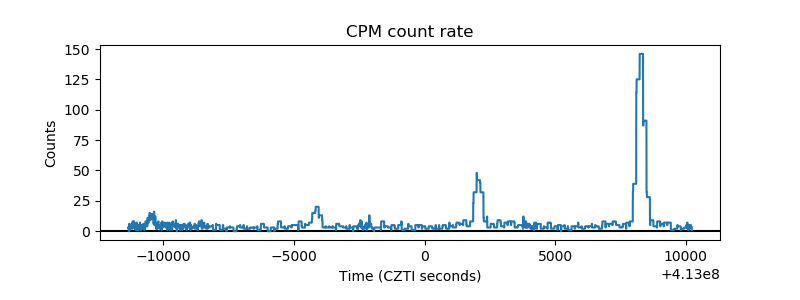

| _CPM_Rate |  |
| CZT Counter |  |

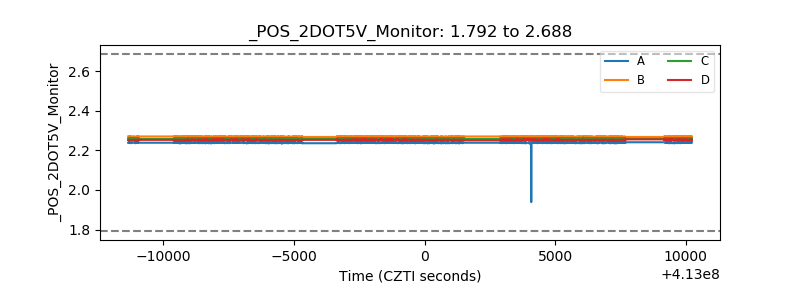

| +2.5 Volts monitor |  |

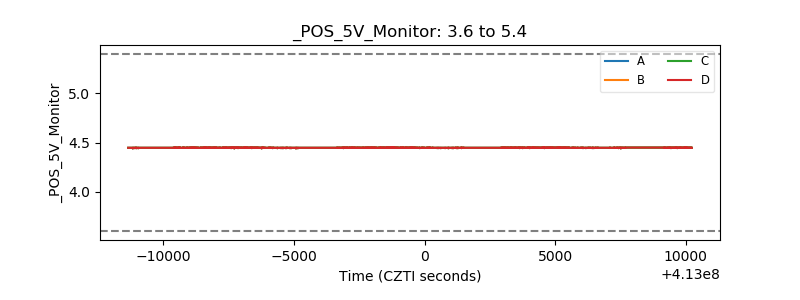

| +5 Volts monitor |  |
| _ROLL_ROT |  |

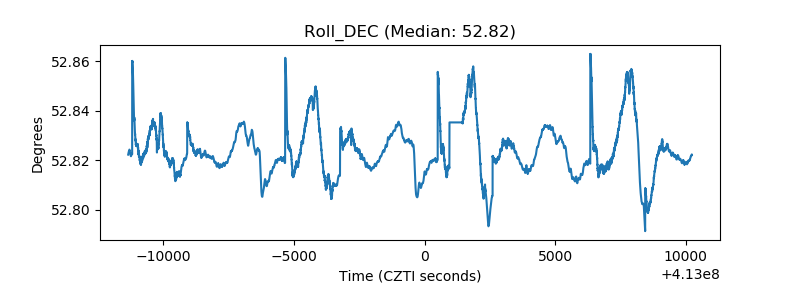

| _Roll_DEC |  |
| _Roll_RA |  |

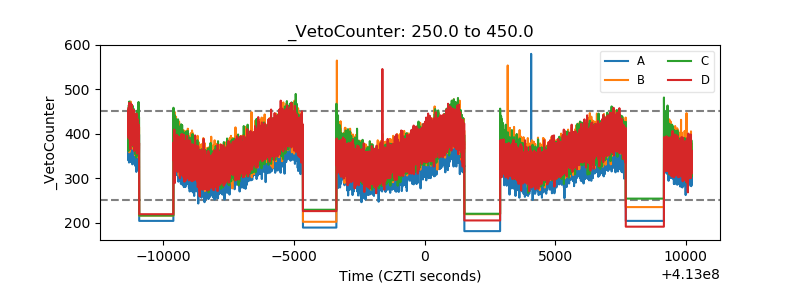

| Veto Counter |  |
