| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005494_39748cztM0_level2.fits | modeM0/AS1A12_022T01_9000005494_39748cztM0_level2_quad_clean.evt |
| Size (bytes) | 336,551,040 | 90,570,240 |
| Size | 321.0 MB | 86.4 MB |
| Events in quadrant A | 2,887,595 | 618,723 |
| Events in quadrant B | 2,685,457 | 629,354 |
| Events in quadrant C | 3,183,353 | 576,782 |
| Events in quadrant D | 3,288,166 | 546,137 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11739 | 3 |
| B | 0 | 11506 | 2 |
| C | 0 | 12782 | 2 |
| D | 0 | 13384 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5306 | 26 | 0.490011% |
| B | 5306 | 57 | 1.074256% |
| C | 5306 | 186 | 3.505466% |
| D | 5306 | 129 | 2.431210% |

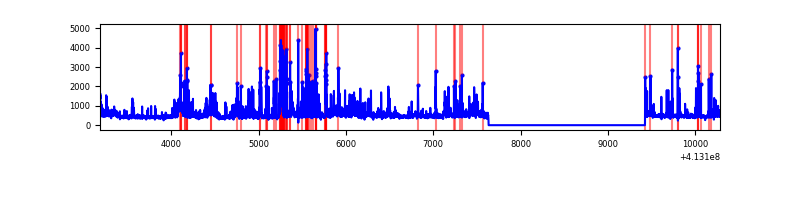

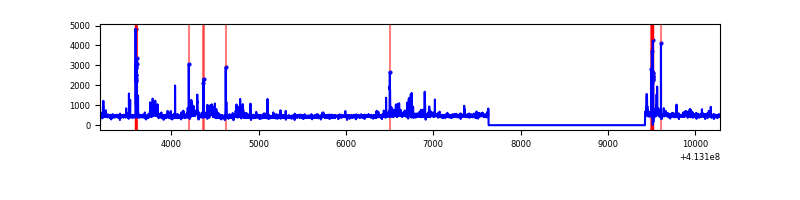

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7098 | 5307 | 18 | 18 | 0.25% | 0.34% |  |
| B | 7098 | 5307 | 37 | 37 | 0.52% | 0.70% |  |
| C | 7098 | 5307 | 148 | 148 | 2.09% | 2.79% |  |
| D | 7098 | 5307 | 97 | 97 | 1.37% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 446189 | 3650.32 | 602 | 591 | 122.1 |
| A | 15 | 174 | 69391 | 563.61 | 602 | 591 | 122.1 |
| A | 13 | 248 | 36848 | 297.02 | 602 | 591 | 122.1 |
| B | 10 | 246 | 140073 | 1215.1 | 589 | 571 | 114.8 |
| B | 5 | 255 | 125567 | 1088.75 | 589 | 571 | 114.8 |
| B | 5 | 172 | 74665 | 645.38 | 589 | 571 | 114.8 |
| C | 14 | 254 | 355934 | 2689.57 | 569 | 572 | 132.1 |
| C | 9 | 187 | 231020 | 1744.16 | 569 | 572 | 132.1 |
| C | 15 | 214 | 219206 | 1654.74 | 569 | 572 | 132.1 |
| D | 12 | 227 | 589409 | 4164.49 | 580 | 562 | 141.4 |
| D | 12 | 233 | 230212 | 1624.15 | 580 | 562 | 141.4 |
| D | 13 | 171 | 79736 | 559.94 | 580 | 562 | 141.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

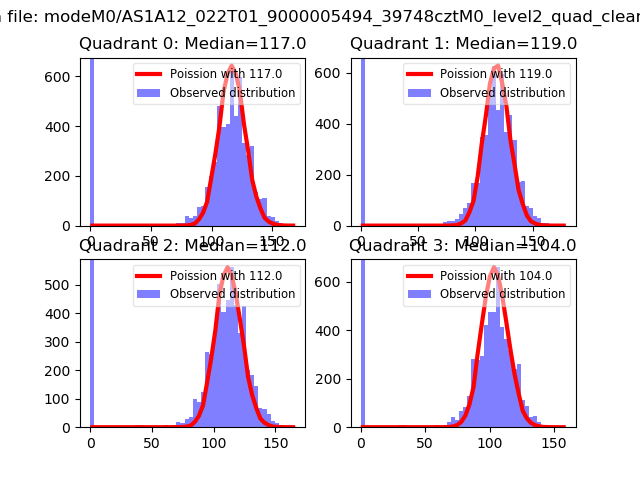

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

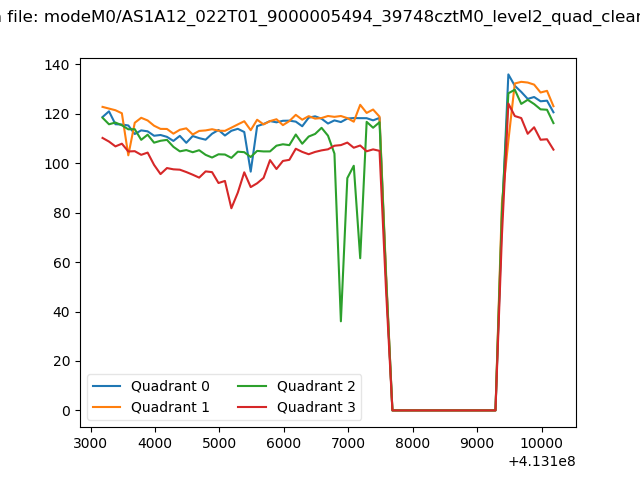

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

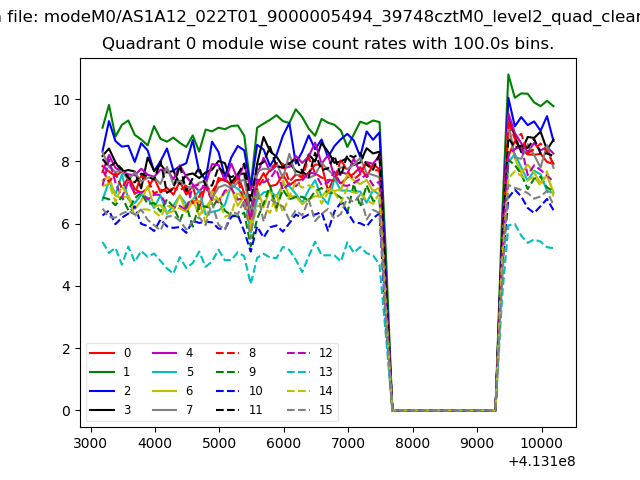

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

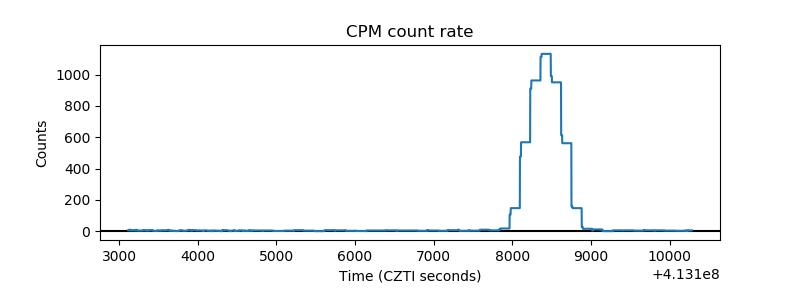

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

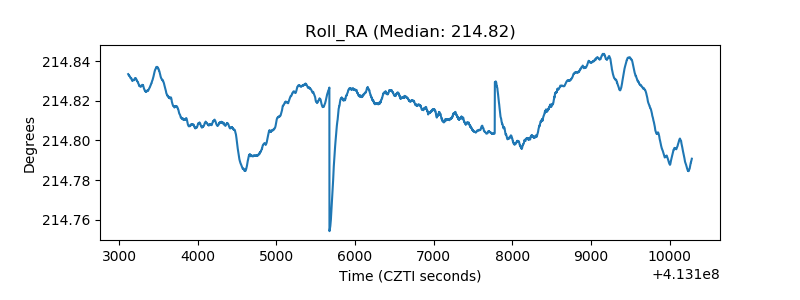

| _Roll_RA |  |
| Veto Counter |  |
