| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_022T01_9000005498_39858cztM0_level2.fits | modeM0/AS1A12_022T01_9000005498_39858cztM0_level2_quad_clean.evt |
| Size (bytes) | 81,927,360 | 16,868,160 |
| Size | 78.1 MB | 16.1 MB |
| Events in quadrant A | 709,566 | 112,735 |
| Events in quadrant B | 896,380 | 112,707 |
| Events in quadrant C | 688,843 | 106,213 |
| Events in quadrant D | 655,475 | 100,536 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2755 | 2 |
| B | 0 | 3347 | 1 |
| C | 0 | 2659 | 1 |
| D | 0 | 2629 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1022 | 23 | 2.250489% |
| B | 1022 | 49 | 4.794521% |
| C | 1022 | 44 | 4.305284% |
| D | 1022 | 24 | 2.348337% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1022 | 1022 | 23 | 23 | 2.25% | 2.25% |  |
| B | 1022 | 1022 | 23 | 23 | 2.25% | 2.25% |  |
| C | 1022 | 1022 | 39 | 39 | 3.82% | 3.82% |  |
| D | 1022 | 1022 | 18 | 18 | 1.76% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 150373 | 6026.88 | 112 | 108 | 24.9 |
| A | 13 | 248 | 110918 | 4444.41 | 112 | 108 | 24.9 |
| A | 10 | 255 | 5171 | 203.07 | 112 | 108 | 24.9 |
| B | 4 | 170 | 388320 | 16243.5 | 112 | 109 | 23.9 |
| B | 5 | 172 | 18767 | 780.69 | 112 | 109 | 23.9 |
| B | 0 | 229 | 13016 | 540.05 | 112 | 109 | 23.9 |
| C | 9 | 187 | 192514 | 6849.92 | 111 | 111 | 28.1 |
| C | 15 | 214 | 45877 | 1629.36 | 111 | 111 | 28.1 |
| C | 0 | 10 | 8874 | 311.98 | 111 | 111 | 28.1 |
| D | 12 | 233 | 59125 | 1994.59 | 110 | 107 | 29.6 |
| D | 7 | 38 | 47000 | 1584.81 | 110 | 107 | 29.6 |
| D | 12 | 227 | 45227 | 1524.89 | 110 | 107 | 29.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

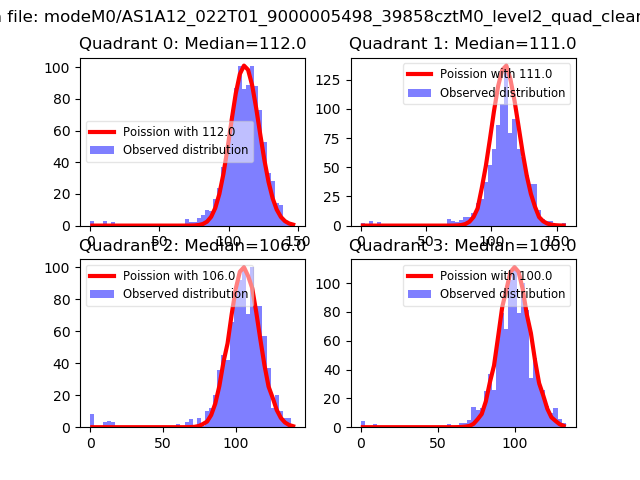

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

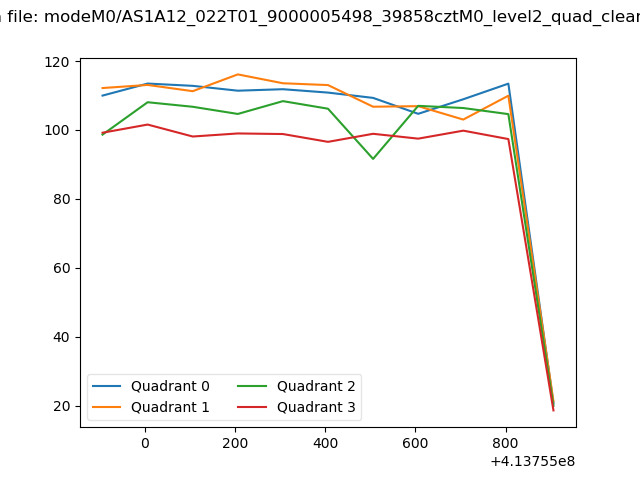

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

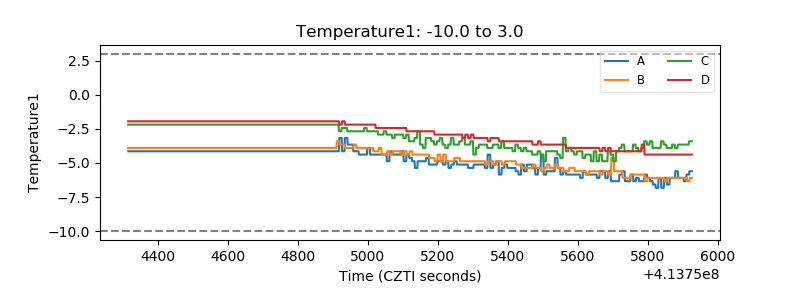

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

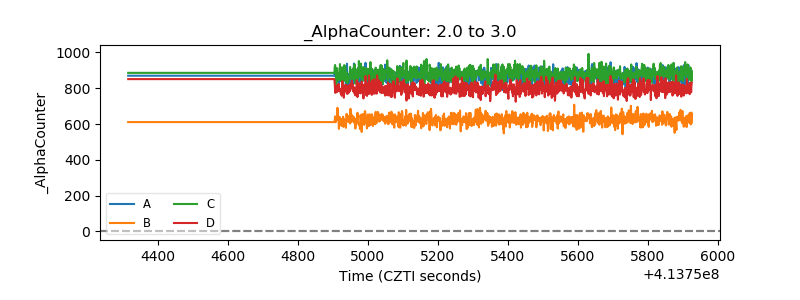

| Alpha Counter |  |

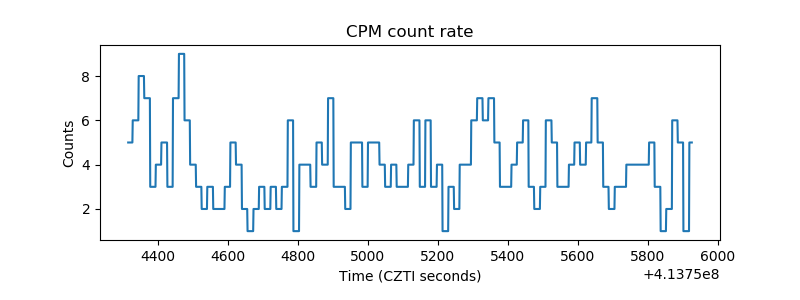

| _CPM_Rate |  |
| CZT Counter |  |

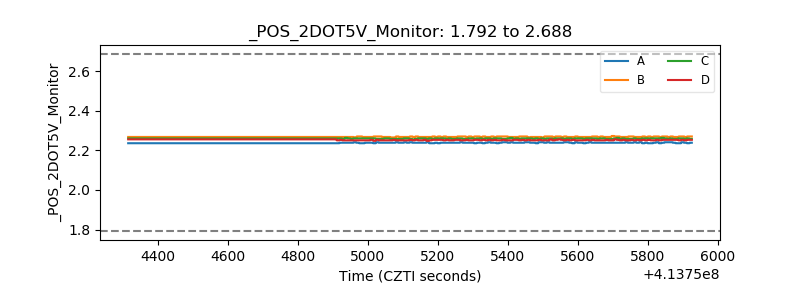

| +2.5 Volts monitor |  |

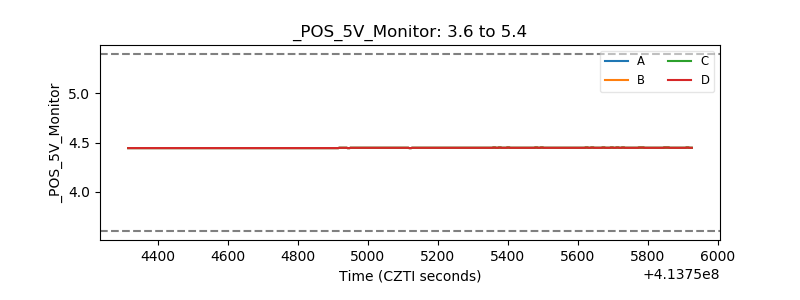

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
