| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000005514_39954cztM0_level2.fits | modeM0/AS1C07_001T01_9000005514_39954cztM0_level2_quad_clean.evt |
| Size (bytes) | 311,031,360 | 84,539,520 |
| Size | 296.6 MB | 80.6 MB |
| Events in quadrant A | 2,966,522 | 582,573 |
| Events in quadrant B | 3,071,632 | 558,653 |
| Events in quadrant C | 2,344,480 | 561,903 |
| Events in quadrant D | 2,749,132 | 513,634 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11715 | 6 |
| B | 0 | 12460 | 2 |
| C | 0 | 10108 | 2 |
| D | 0 | 11517 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4890 | 102 | 2.085890% |
| B | 4892 | 390 | 7.972200% |
| C | 4892 | 14 | 0.286182% |
| D | 4889 | 74 | 1.513602% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7015 | 4892 | 85 | 85 | 1.21% | 1.74% |  |
| B | 7015 | 4893 | 343 | 343 | 4.89% | 7.01% |  |
| C | 7015 | 4893 | 10 | 10 | 0.14% | 0.20% |  |
| D | 7015 | 4892 | 78 | 78 | 1.11% | 1.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 440448 | 4026.49 | 544 | 534 | 109.3 |
| A | 13 | 248 | 181584 | 1657.13 | 544 | 534 | 109.3 |
| A | 6 | 10 | 123987 | 1129.95 | 544 | 534 | 109.3 |
| B | 5 | 255 | 528018 | 5388.83 | 518 | 505 | 97.9 |
| B | 4 | 171 | 477731 | 4875.12 | 518 | 505 | 97.9 |
| B | 0 | 230 | 24312 | 243.2 | 518 | 505 | 97.9 |
| C | 15 | 214 | 206147 | 1713.56 | 520 | 523 | 120.0 |
| C | 0 | 10 | 53975 | 445.44 | 520 | 523 | 120.0 |
| C | 14 | 254 | 21724 | 176.68 | 520 | 523 | 120.0 |
| D | 2 | 249 | 219017 | 1742.47 | 520 | 505 | 125.4 |
| D | 2 | 250 | 115120 | 913.97 | 520 | 505 | 125.4 |
| D | 12 | 227 | 112861 | 895.96 | 520 | 505 | 125.4 |

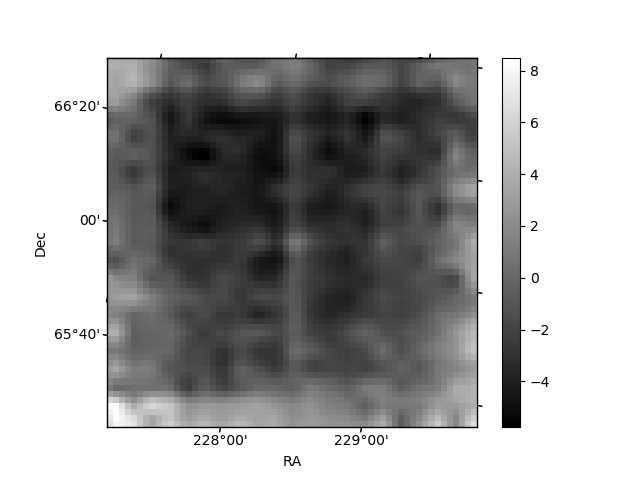

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

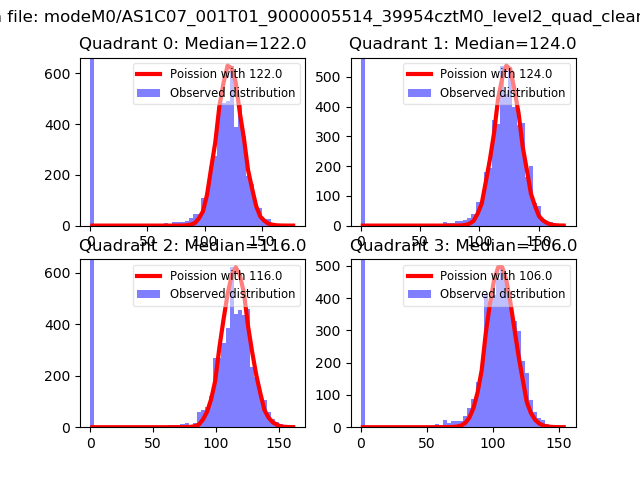

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

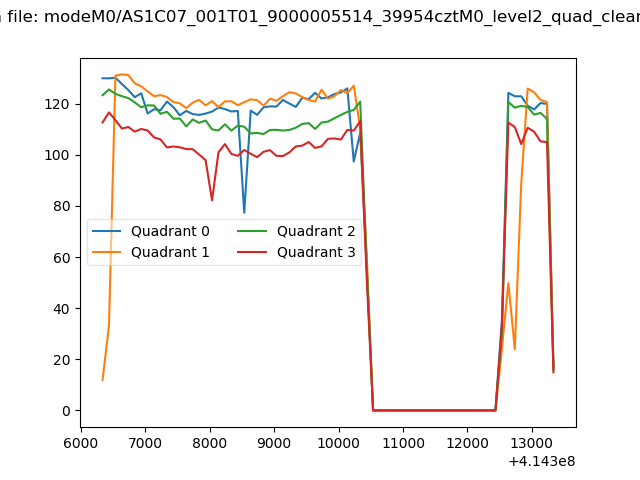

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

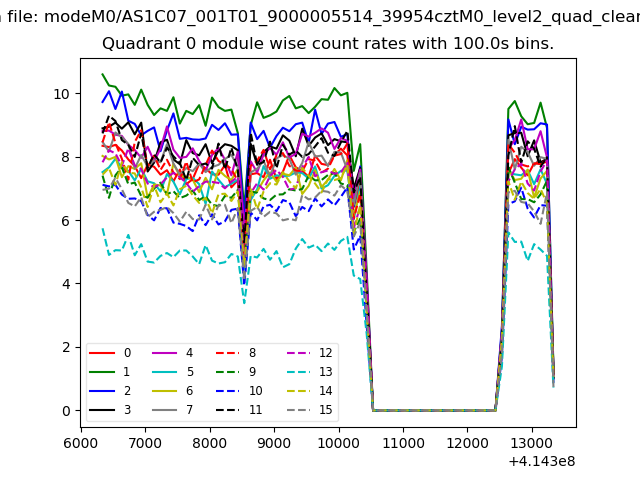

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

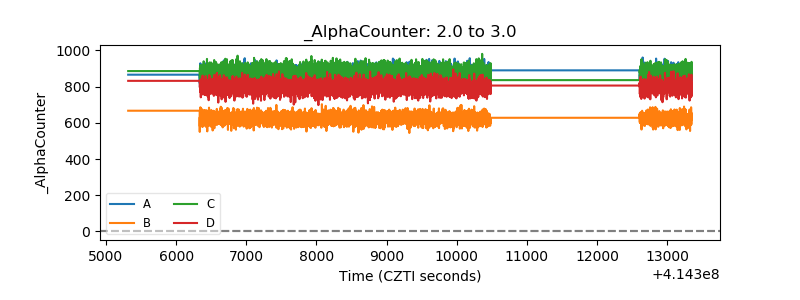

| Alpha Counter |  |

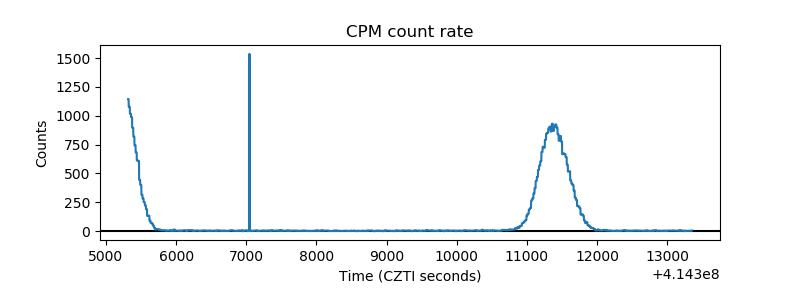

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

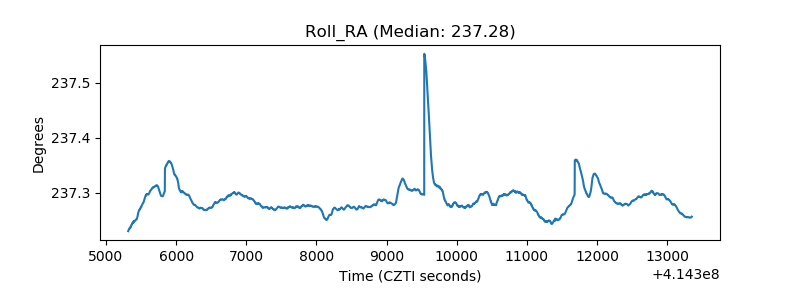

| _Roll_RA |  |
| Veto Counter |  |
