| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_054T03_9000005516_40015cztM0_level2.fits | modeM0/AS1A12_054T03_9000005516_40015cztM0_level2_quad_clean.evt |
| Size (bytes) | 370,872,000 | 88,876,800 |
| Size | 353.7 MB | 84.8 MB |
| Events in quadrant A | 3,075,867 | 599,364 |
| Events in quadrant B | 3,123,226 | 606,867 |
| Events in quadrant C | 3,017,899 | 577,024 |
| Events in quadrant D | 4,085,387 | 525,004 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12277 | 2 |
| B | 0 | 13053 | 9 |
| C | 0 | 12398 | 1 |
| D | 0 | 15907 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5474 | 40 | 0.730727% |
| B | 5473 | 156 | 2.850356% |
| C | 5474 | 149 | 2.721958% |
| D | 5474 | 257 | 4.694921% |

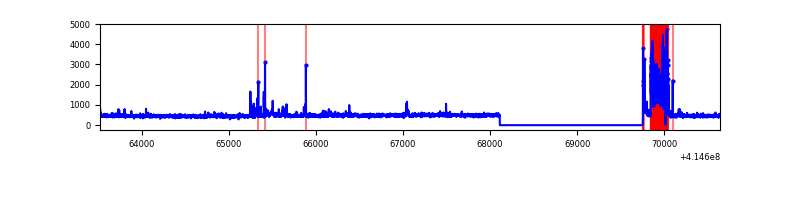

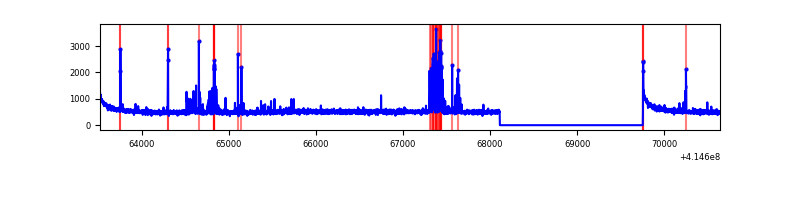

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7117 | 5475 | 37 | 37 | 0.52% | 0.68% |  |
| B | 7117 | 5475 | 84 | 84 | 1.18% | 1.53% |  |
| C | 7117 | 5475 | 132 | 132 | 1.85% | 2.41% |  |
| D | 7117 | 5475 | 280 | 280 | 3.93% | 5.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 487873 | 3925.66 | 601 | 587 | 124.1 |
| A | 13 | 248 | 206871 | 1661.86 | 601 | 587 | 124.1 |
| A | 9 | 143 | 19161 | 149.64 | 601 | 587 | 124.1 |
| B | 4 | 171 | 720994 | 6192.36 | 592 | 575 | 116.3 |
| B | 0 | 230 | 18096 | 150.6 | 592 | 575 | 116.3 |
| B | 0 | 218 | 17572 | 146.1 | 592 | 575 | 116.3 |
| C | 14 | 254 | 448072 | 3294.21 | 579 | 583 | 135.8 |
| C | 15 | 214 | 226748 | 1664.92 | 579 | 583 | 135.8 |
| C | 9 | 54 | 40651 | 294.96 | 579 | 583 | 135.8 |
| D | 12 | 227 | 911076 | 6373.95 | 580 | 565 | 142.8 |
| D | 2 | 250 | 586226 | 4099.87 | 580 | 565 | 142.8 |
| D | 13 | 249 | 157119 | 1095.94 | 580 | 565 | 142.8 |

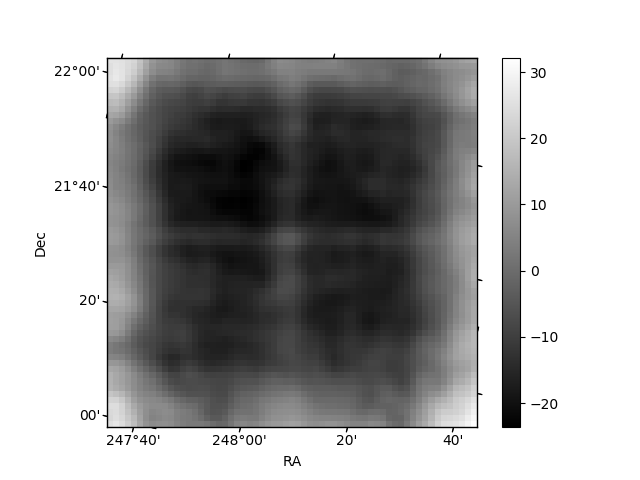

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

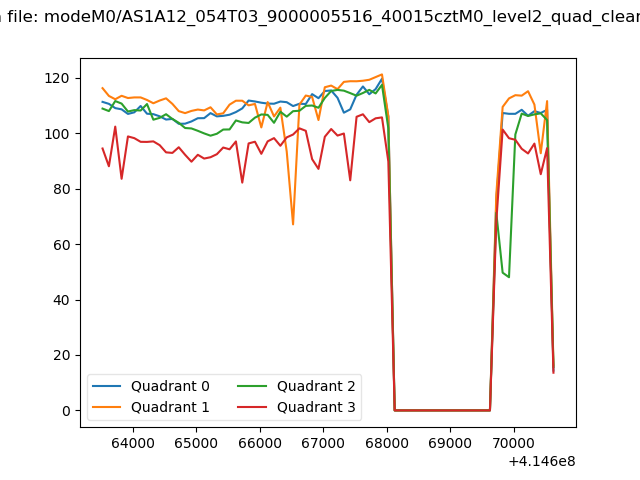

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

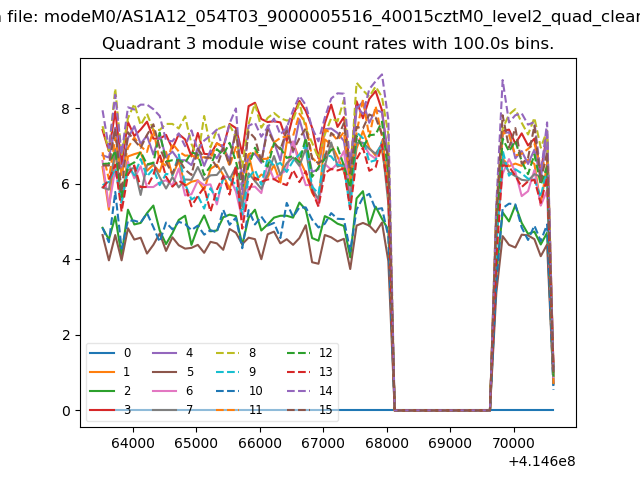

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

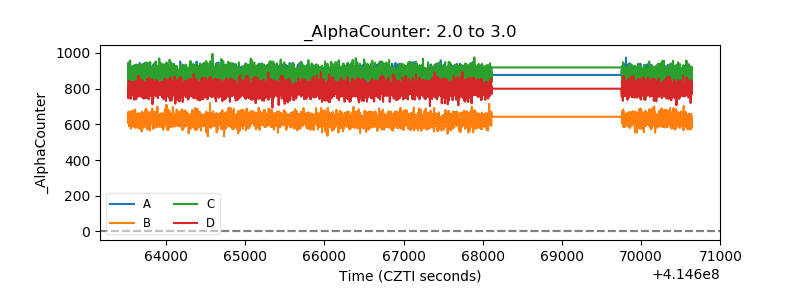

| Alpha Counter |  |

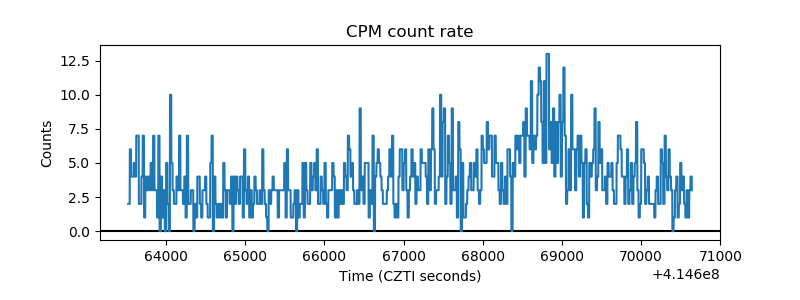

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

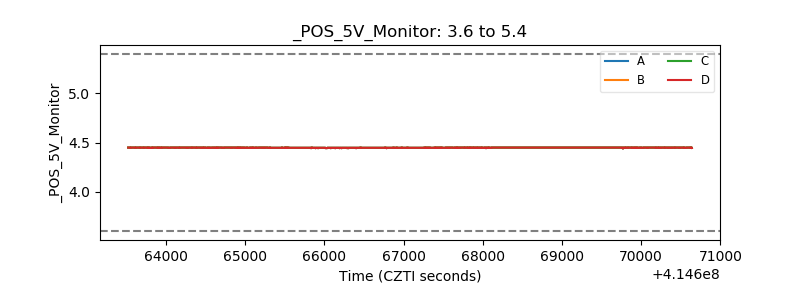

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
