| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_056T02_9000005538_40349cztM0_level2.fits | modeM0/AS1A12_056T02_9000005538_40349cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,661,440 | 98,040,960 |
| Size | 409.8 MB | 93.5 MB |
| Events in quadrant A | 3,881,255 | 668,594 |
| Events in quadrant B | 2,705,177 | 699,073 |
| Events in quadrant C | 4,197,166 | 641,227 |
| Events in quadrant D | 4,661,528 | 546,830 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15260 | 3 |
| B | 0 | 12053 | 2 |
| C | 0 | 16108 | 2 |
| D | 0 | 17823 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5909 | 202 | 3.418514% |
| B | 5909 | 10 | 0.169233% |
| C | 5909 | 283 | 4.789304% |
| D | 5909 | 645 | 10.915553% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9015 | 5911 | 183 | 183 | 2.03% | 3.10% |  |
| B | 9014 | 5909 | 2 | 2 | 0.02% | 0.03% |  |
| C | 9014 | 5909 | 283 | 283 | 3.14% | 4.79% |  |
| D | 9014 | 5910 | 315 | 315 | 3.49% | 5.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 586066 | 4405.0 | 648 | 639 | 132.9 |
| A | 10 | 83 | 492420 | 3700.37 | 648 | 639 | 132.9 |
| A | 6 | 10 | 183311 | 1374.5 | 648 | 639 | 132.9 |
| B | 4 | 170 | 51738 | 409.73 | 651 | 635 | 124.7 |
| B | 0 | 230 | 39867 | 314.55 | 651 | 635 | 124.7 |
| B | 5 | 255 | 33027 | 259.71 | 651 | 635 | 124.7 |
| C | 14 | 254 | 1440278 | 9642.31 | 632 | 637 | 149.3 |
| C | 15 | 214 | 266322 | 1779.48 | 632 | 637 | 149.3 |
| C | 10 | 70 | 9005 | 56.05 | 632 | 637 | 149.3 |
| D | 12 | 227 | 1548455 | 10364.73 | 602 | 585 | 149.3 |
| D | 12 | 128 | 453438 | 3032.36 | 602 | 585 | 149.3 |
| D | 12 | 191 | 142301 | 948.95 | 602 | 585 | 149.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

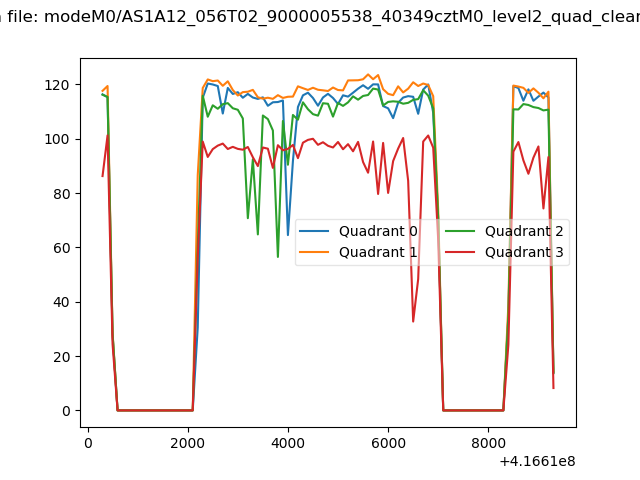

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

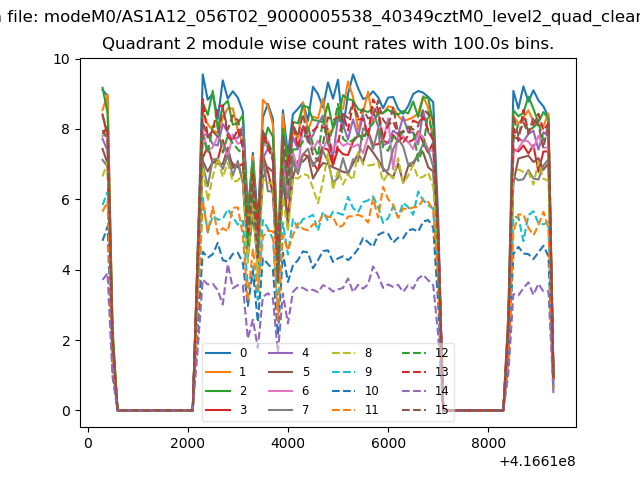

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

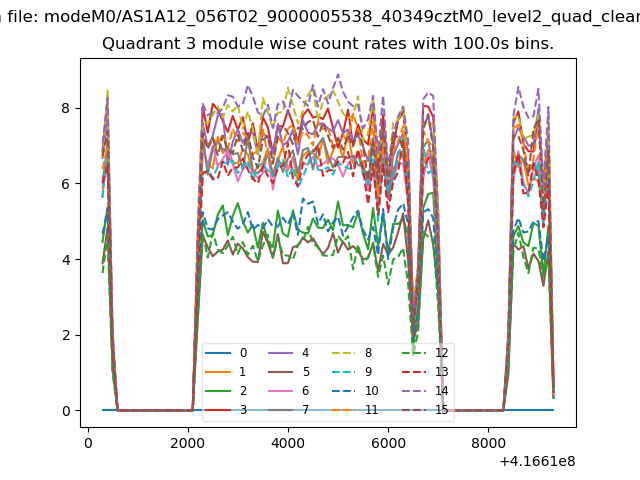

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

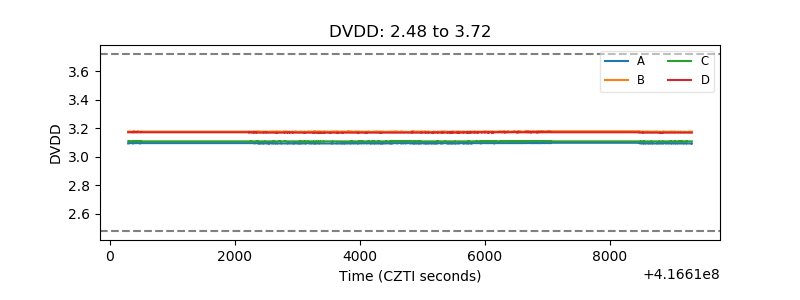

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

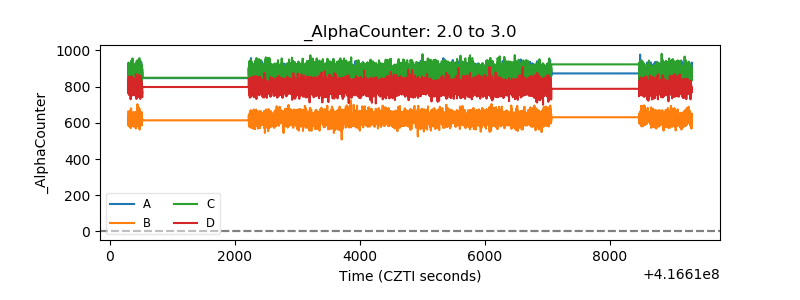

| Alpha Counter |  |

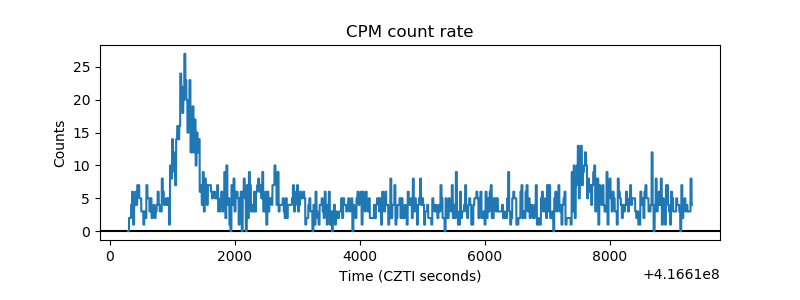

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

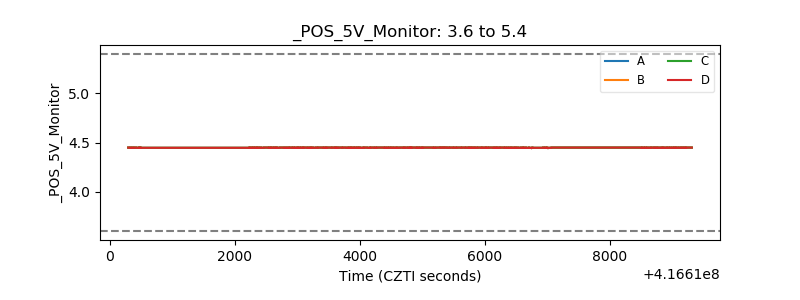

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
