| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_095T02_9000005568_40778cztM0_level2.fits | modeM0/AS1A12_095T02_9000005568_40778cztM0_level2_quad_clean.evt |
| Size (bytes) | 311,872,320 | 85,464,000 |
| Size | 297.4 MB | 81.5 MB |
| Events in quadrant A | 2,729,158 | 597,931 |
| Events in quadrant B | 2,784,485 | 619,858 |
| Events in quadrant C | 2,704,217 | 584,544 |
| Events in quadrant D | 2,934,940 | 434,224 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11097 | 3 |
| B | 0 | 11373 | 2 |
| C | 0 | 10990 | 2 |
| D | 0 | 12203 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5010 | 14 | 0.279441% |
| B | 5010 | 100 | 1.996008% |
| C | 5010 | 103 | 2.055888% |
| D | 5010 | 1144 | 22.834331% |

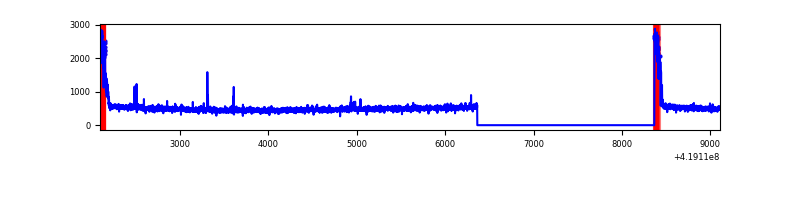

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7013 | 5011 | 6 | 6 | 0.09% | 0.12% |  |
| B | 7013 | 5011 | 70 | 70 | 1.00% | 1.40% |  |
| C | 7013 | 5011 | 96 | 96 | 1.37% | 1.92% |  |
| D | 7013 | 5011 | 54 | 54 | 0.77% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 470531 | 4057.52 | 569 | 558 | 115.8 |
| A | 12 | 189 | 28038 | 237.25 | 569 | 558 | 115.8 |
| A | 2 | 79 | 23345 | 196.73 | 569 | 558 | 115.8 |
| B | 5 | 255 | 235465 | 2152.64 | 572 | 557 | 109.1 |
| B | 0 | 229 | 151094 | 1379.48 | 572 | 557 | 109.1 |
| B | 7 | 202 | 72632 | 660.48 | 572 | 557 | 109.1 |
| C | 0 | 10 | 279352 | 2131.65 | 559 | 563 | 130.8 |
| C | 15 | 214 | 215157 | 1640.81 | 559 | 563 | 130.8 |
| C | 9 | 187 | 15885 | 117.15 | 559 | 563 | 130.8 |
| D | 12 | 191 | 252706 | 2055.56 | 496 | 483 | 122.7 |
| D | 1 | 47 | 223275 | 1815.71 | 496 | 483 | 122.7 |
| D | 12 | 227 | 141170 | 1146.57 | 496 | 483 | 122.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

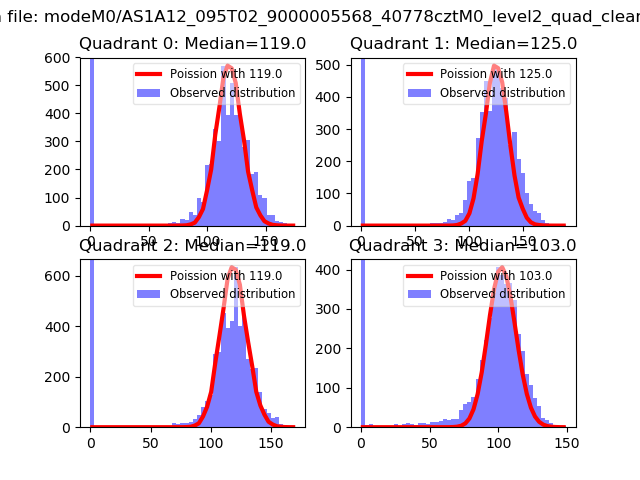

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

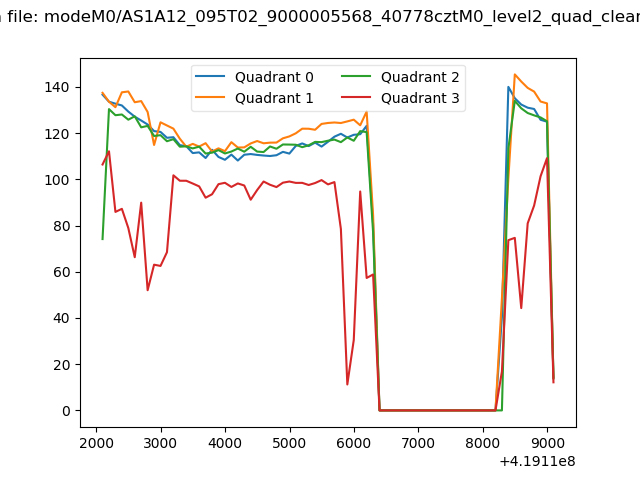

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

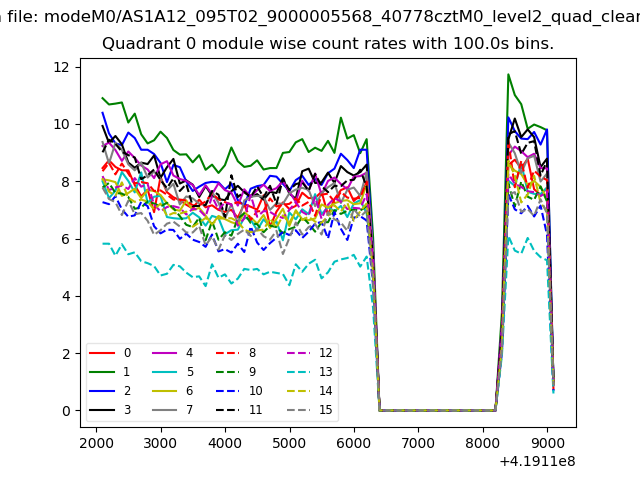

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

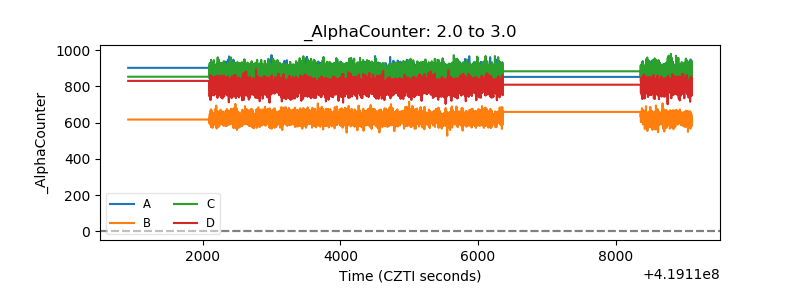

| Alpha Counter |  |

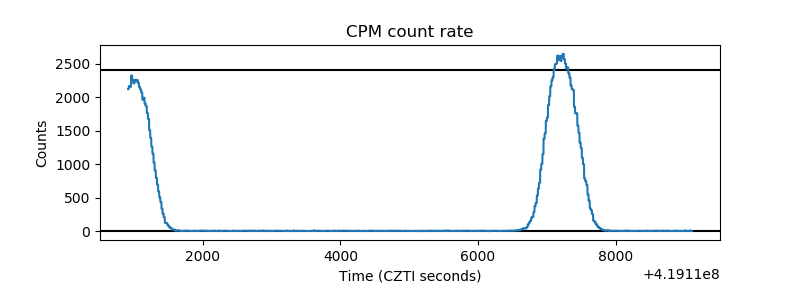

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

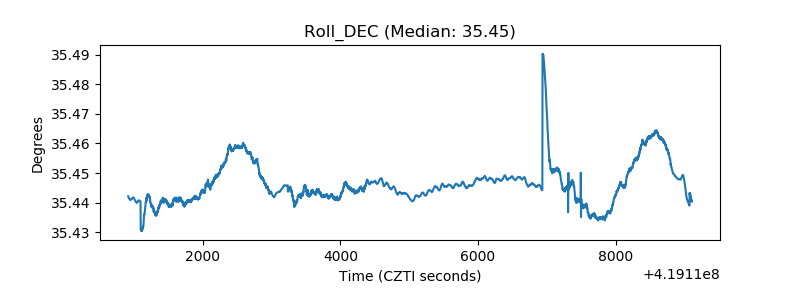

| _Roll_DEC |  |
| _Roll_RA |  |

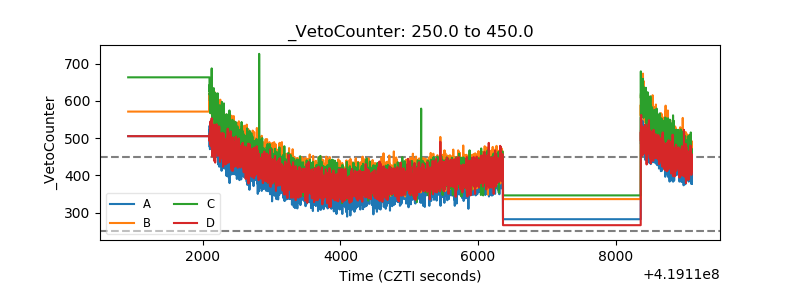

| Veto Counter |  |
