| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_095T02_9000005568_40793cztM0_level2.fits | modeM0/AS1A12_095T02_9000005568_40793cztM0_level2_quad_clean.evt |
| Size (bytes) | 295,545,600 | 88,439,040 |
| Size | 281.9 MB | 84.3 MB |
| Events in quadrant A | 2,745,165 | 597,417 |
| Events in quadrant B | 2,425,848 | 622,747 |
| Events in quadrant C | 2,608,330 | 584,794 |
| Events in quadrant D | 2,772,736 | 524,292 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11181 | 3 |
| B | 0 | 10381 | 2 |
| C | 0 | 10704 | 2 |
| D | 0 | 11749 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4974 | 18 | 0.361882% |
| B | 4974 | 39 | 0.784077% |
| C | 4974 | 81 | 1.628468% |
| D | 4974 | 153 | 3.075995% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7037 | 4975 | 14 | 14 | 0.20% | 0.28% |  |
| B | 7037 | 4975 | 38 | 38 | 0.54% | 0.76% |  |
| C | 7037 | 4975 | 80 | 80 | 1.14% | 1.61% |  |
| D | 7037 | 4975 | 145 | 145 | 2.06% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 465987 | 4016.2 | 565 | 555 | 115.9 |
| A | 12 | 189 | 45105 | 384.42 | 565 | 555 | 115.9 |
| A | 6 | 10 | 20820 | 174.87 | 565 | 555 | 115.9 |
| B | 7 | 202 | 100392 | 912.68 | 570 | 554 | 109.4 |
| B | 0 | 230 | 47805 | 431.95 | 570 | 554 | 109.4 |
| B | 5 | 255 | 28488 | 255.36 | 570 | 554 | 109.4 |
| C | 0 | 10 | 218009 | 1688.51 | 554 | 559 | 128.8 |
| C | 15 | 214 | 213856 | 1656.26 | 554 | 559 | 128.8 |
| C | 14 | 254 | 9449 | 69.03 | 554 | 559 | 128.8 |
| D | 2 | 249 | 347187 | 2585.11 | 541 | 526 | 134.1 |
| D | 13 | 249 | 270281 | 2011.61 | 541 | 526 | 134.1 |
| D | 2 | 153 | 32002 | 234.72 | 541 | 526 | 134.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

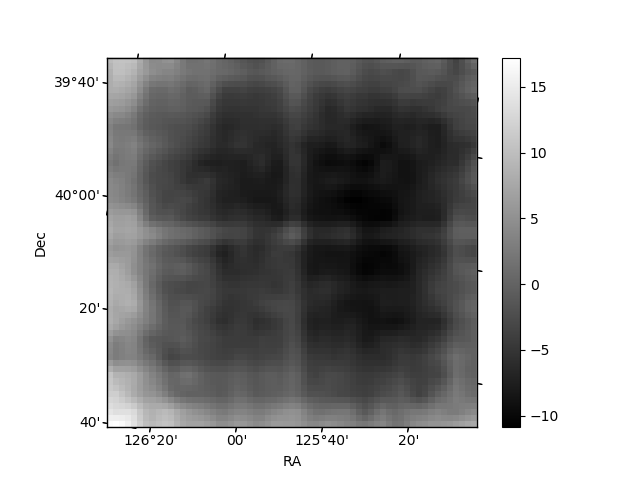

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

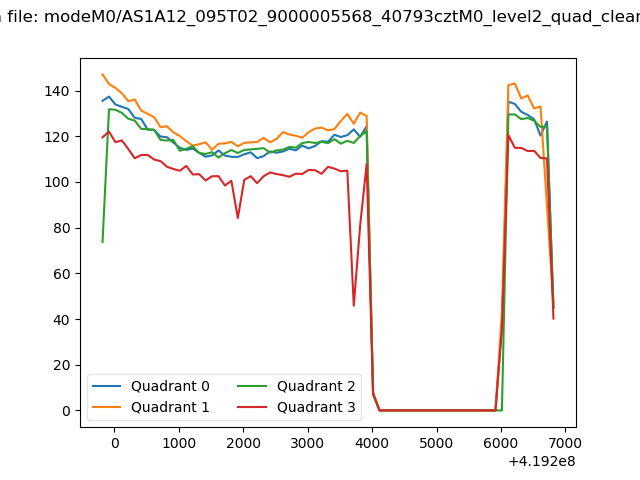

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

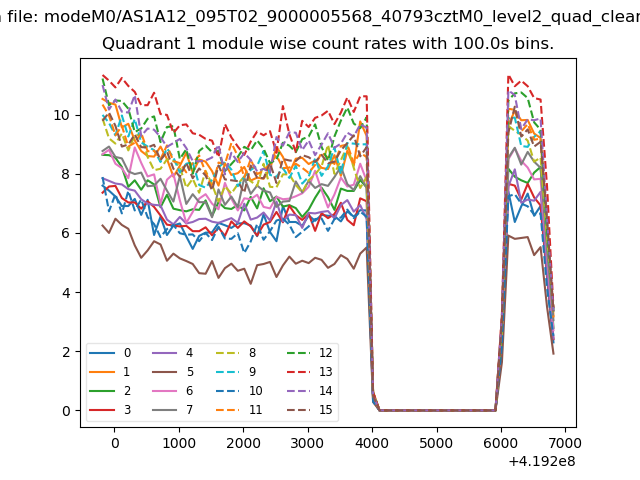

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

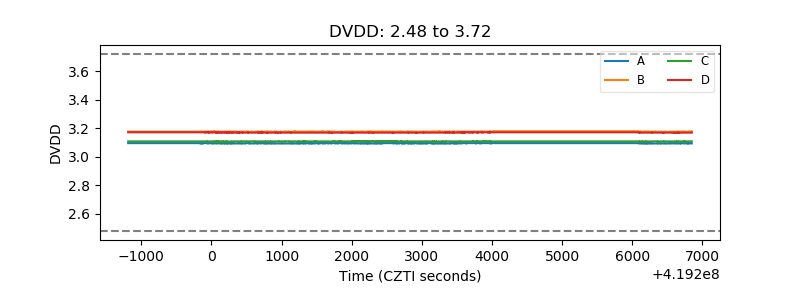

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

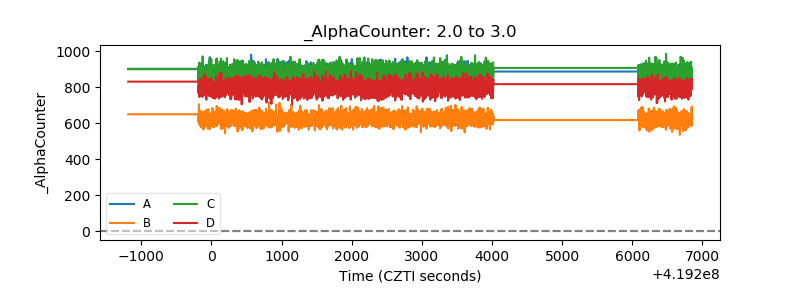

| Alpha Counter |  |

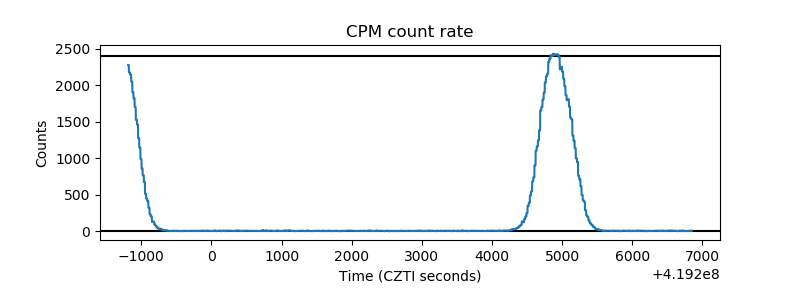

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

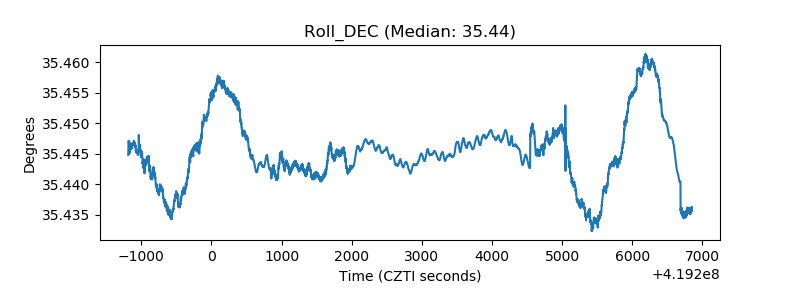

| _Roll_DEC |  |
| _Roll_RA |  |

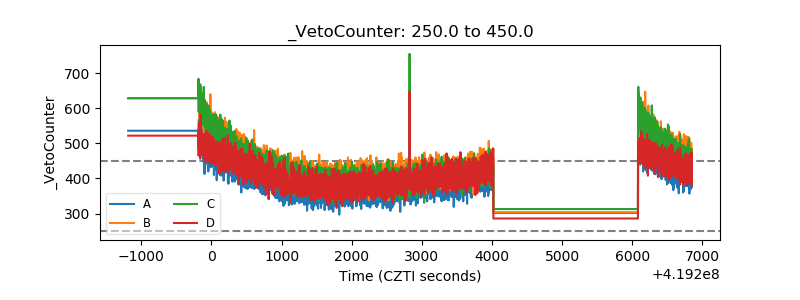

| Veto Counter |  |
