| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_099T03_9000005570_40798cztM0_level2.fits | modeM0/AS1A12_099T03_9000005570_40798cztM0_level2_quad_clean.evt |
| Size (bytes) | 340,024,320 | 92,465,280 |
| Size | 324.3 MB | 88.2 MB |
| Events in quadrant A | 3,029,236 | 616,718 |
| Events in quadrant B | 2,845,747 | 640,903 |
| Events in quadrant C | 2,764,598 | 607,012 |
| Events in quadrant D | 3,505,913 | 539,145 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12295 | 3 |
| B | 0 | 12253 | 2 |
| C | 0 | 11797 | 2 |
| D | 0 | 14545 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5662 | 18 | 0.317909% |
| B | 5662 | 40 | 0.706464% |
| C | 5662 | 45 | 0.794772% |
| D | 5662 | 282 | 4.980572% |

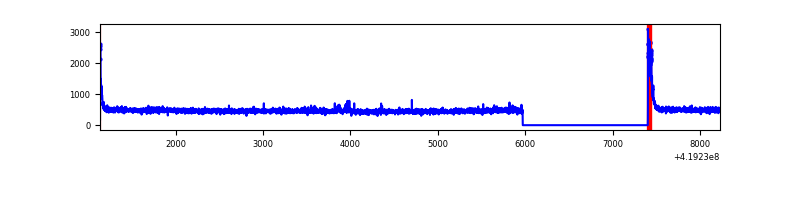

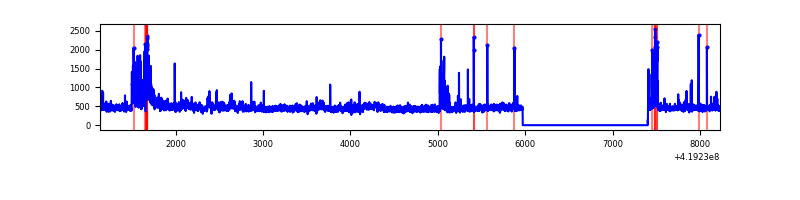

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7095 | 5663 | 5 | 5 | 0.07% | 0.09% |  |
| B | 7095 | 5663 | 22 | 22 | 0.31% | 0.39% |  |
| C | 7095 | 5663 | 40 | 40 | 0.56% | 0.71% |  |
| D | 7095 | 5663 | 304 | 304 | 4.28% | 5.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 522480 | 4072.17 | 623 | 609 | 128.2 |
| A | 12 | 189 | 45955 | 353.84 | 623 | 609 | 128.2 |
| A | 6 | 10 | 21287 | 161.35 | 623 | 609 | 128.2 |
| B | 5 | 255 | 353008 | 2912.85 | 618 | 600 | 121.0 |
| B | 0 | 230 | 46018 | 375.4 | 618 | 600 | 121.0 |
| B | 0 | 190 | 17610 | 140.6 | 618 | 600 | 121.0 |
| C | 15 | 214 | 246553 | 1731.61 | 605 | 607 | 142.0 |
| C | 0 | 10 | 133660 | 936.77 | 605 | 607 | 142.0 |
| C | 3 | 233 | 21143 | 144.59 | 605 | 607 | 142.0 |
| D | 12 | 233 | 771097 | 5350.76 | 595 | 577 | 144.0 |
| D | 13 | 249 | 228103 | 1580.02 | 595 | 577 | 144.0 |
| D | 2 | 153 | 125609 | 868.26 | 595 | 577 | 144.0 |

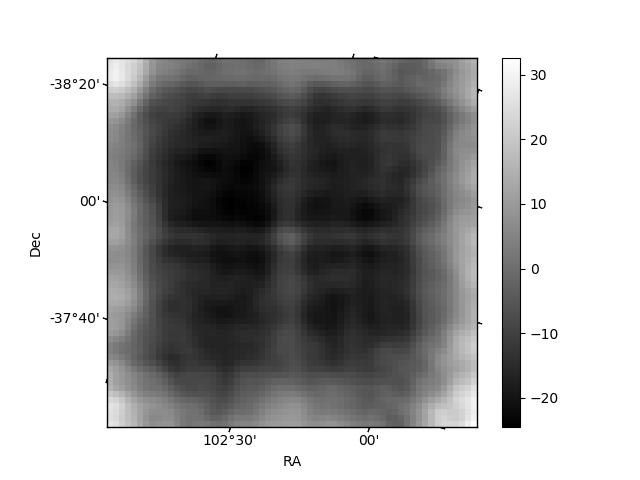

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

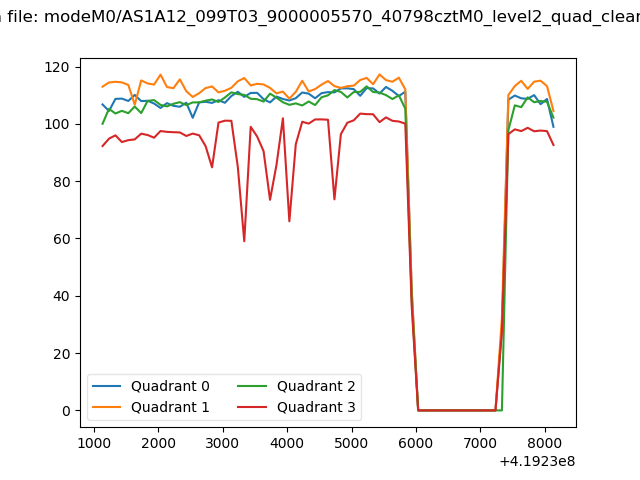

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

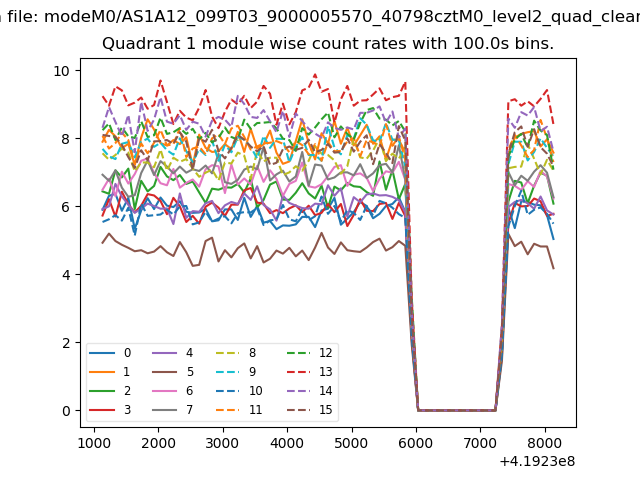

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

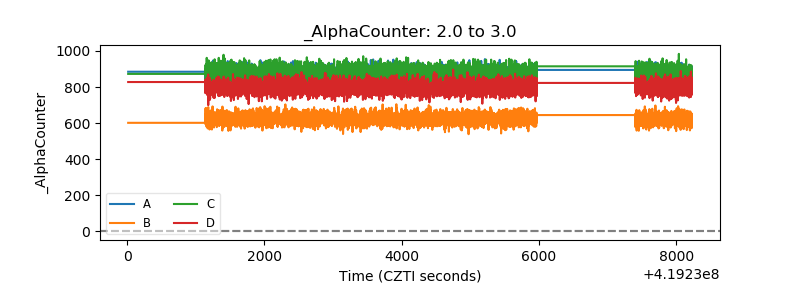

| Alpha Counter |  |

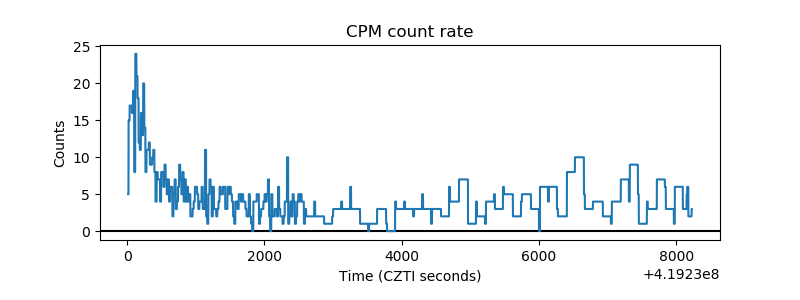

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

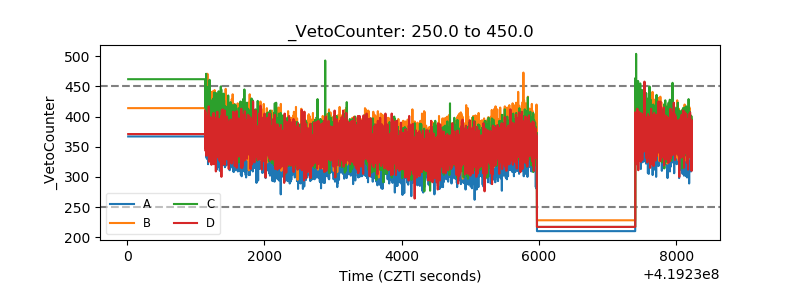

| Veto Counter |  |
