| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_099T03_9000005570_40807cztM0_level2.fits | modeM0/AS1A12_099T03_9000005570_40807cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,680,960 | 162,489,600 |
| Size | 505.1 MB | 155.0 MB |
| Events in quadrant A | 4,971,693 | 1,104,080 |
| Events in quadrant B | 4,367,162 | 1,142,864 |
| Events in quadrant C | 4,692,478 | 1,054,515 |
| Events in quadrant D | 4,845,316 | 966,769 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20379 | 3 |
| B | 0 | 19153 | 2 |
| C | 0 | 19768 | 2 |
| D | 0 | 21237 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 192 | 0 |
| B | 0 | 192 | 0 |
| C | 0 | 192 | 0 |
| D | 0 | 192 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 39 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9404 | 21 | 0.223309% |
| B | 9404 | 15 | 0.159507% |
| C | 9404 | 68 | 0.723097% |
| D | 9404 | 108 | 1.148447% |

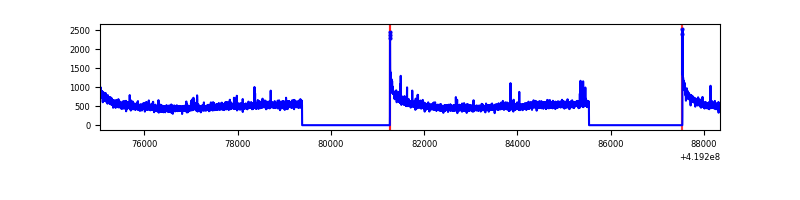

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13290 | 9406 | 5 | 5 | 0.04% | 0.05% |  |
| B | 13290 | 9406 | 9 | 9 | 0.07% | 0.10% |  |
| C | 13290 | 9406 | 70 | 70 | 0.53% | 0.74% |  |
| D | 13290 | 9406 | 119 | 119 | 0.90% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 804312 | 3725.71 | 1062 | 1041 | 215.6 |
| A | 2 | 79 | 31470 | 141.13 | 1062 | 1041 | 215.6 |
| A | 13 | 254 | 14114 | 60.63 | 1062 | 1041 | 215.6 |
| B | 5 | 255 | 107716 | 525.4 | 1065 | 1040 | 203.0 |
| B | 12 | 111 | 25730 | 121.6 | 1065 | 1040 | 203.0 |
| B | 11 | 111 | 23773 | 111.97 | 1065 | 1040 | 203.0 |
| C | 15 | 214 | 397731 | 1665.78 | 1026 | 1033 | 238.1 |
| C | 0 | 10 | 244801 | 1023.61 | 1026 | 1033 | 238.1 |
| C | 14 | 254 | 37844 | 154.57 | 1026 | 1033 | 238.1 |
| D | 2 | 153 | 266918 | 1076.86 | 1014 | 986 | 247.0 |
| D | 2 | 249 | 210933 | 850.16 | 1014 | 986 | 247.0 |
| D | 12 | 238 | 98244 | 393.84 | 1014 | 986 | 247.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

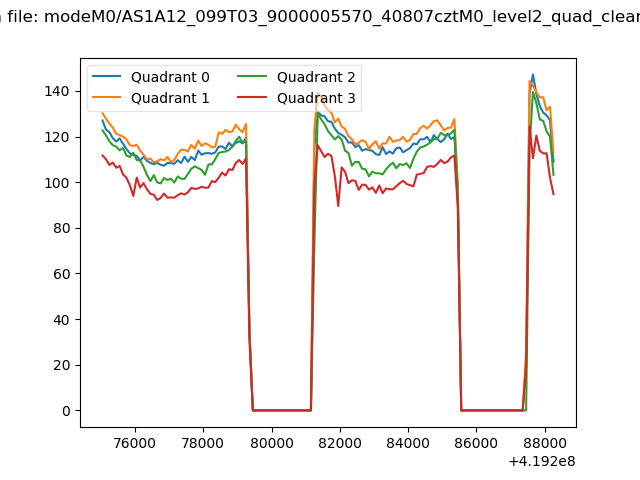

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

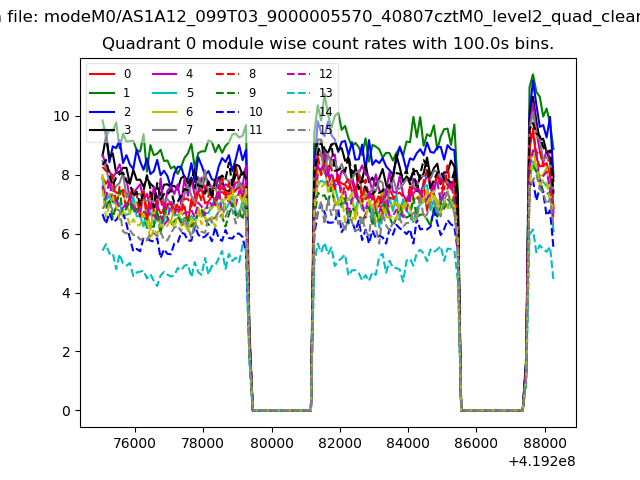

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

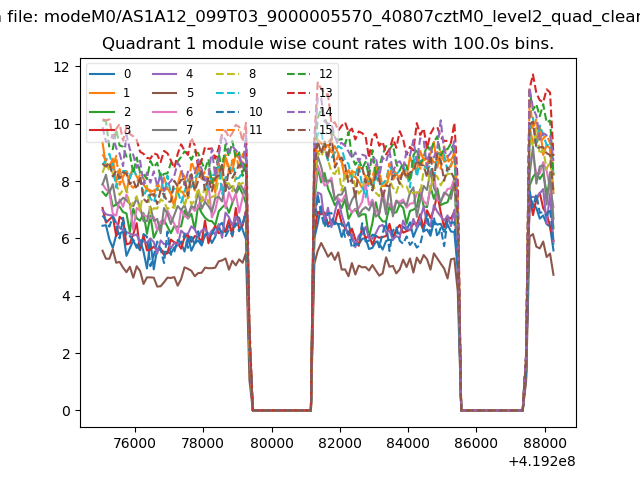

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

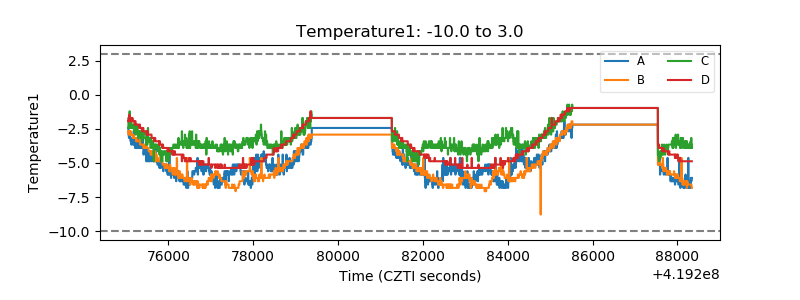

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

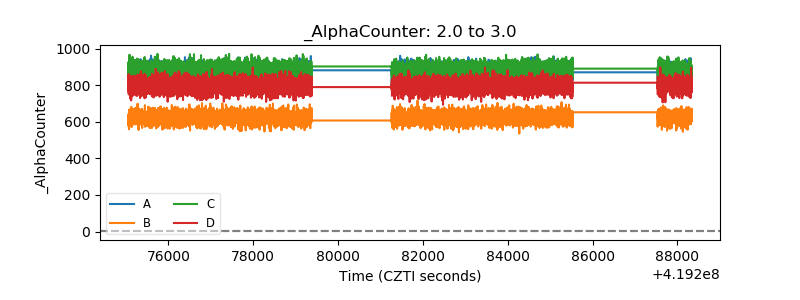

| Alpha Counter |  |

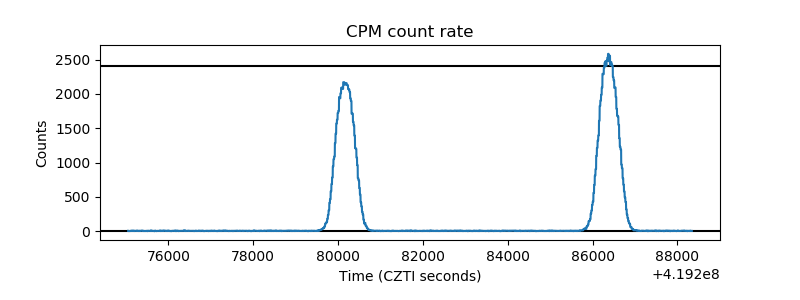

| _CPM_Rate |  |
| CZT Counter |  |

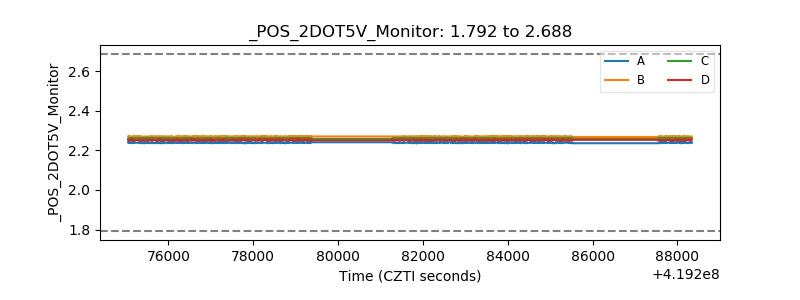

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
