| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_104T02_9000005572_40823cztM0_level2.fits | modeM0/AS1A12_104T02_9000005572_40823cztM0_level2_quad_clean.evt |
| Size (bytes) | 296,409,600 | 86,803,200 |
| Size | 282.7 MB | 82.8 MB |
| Events in quadrant A | 2,725,314 | 589,336 |
| Events in quadrant B | 2,242,707 | 611,523 |
| Events in quadrant C | 2,480,275 | 571,636 |
| Events in quadrant D | 3,143,087 | 513,513 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11019 | 3 |
| B | 0 | 9849 | 2 |
| C | 0 | 10256 | 2 |
| D | 0 | 12806 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4882 | 14 | 0.286768% |
| B | 4882 | 5 | 0.102417% |
| C | 4882 | 28 | 0.573535% |
| D | 4882 | 150 | 3.072511% |

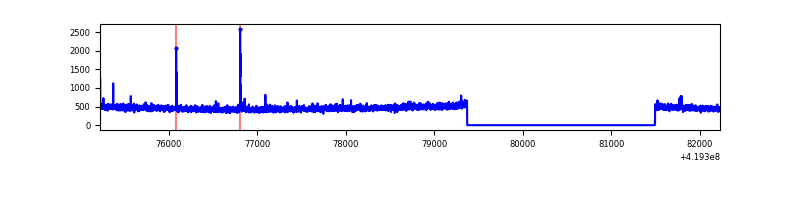

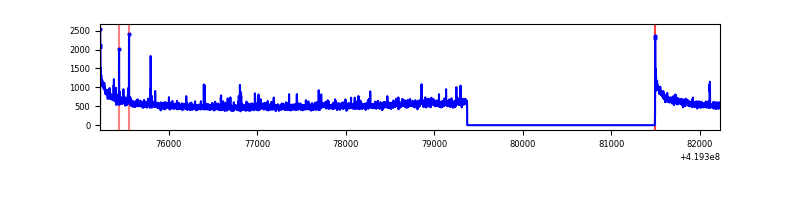

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7005 | 4883 | 7 | 7 | 0.10% | 0.14% |  |
| B | 7005 | 4883 | 2 | 2 | 0.03% | 0.04% |  |
| C | 7005 | 4883 | 34 | 34 | 0.49% | 0.70% |  |
| D | 7005 | 4883 | 149 | 149 | 2.13% | 3.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 458933 | 4018.12 | 560 | 551 | 114.1 |
| A | 6 | 10 | 48801 | 422.95 | 560 | 551 | 114.1 |
| A | 12 | 189 | 26865 | 230.67 | 560 | 551 | 114.1 |
| B | 0 | 190 | 21415 | 192.06 | 564 | 550 | 108.6 |
| B | 12 | 111 | 13669 | 120.76 | 564 | 550 | 108.6 |
| B | 11 | 111 | 12325 | 108.39 | 564 | 550 | 108.6 |
| C | 15 | 214 | 209207 | 1638.86 | 545 | 549 | 127.3 |
| C | 0 | 10 | 128911 | 1008.19 | 545 | 549 | 127.3 |
| C | 3 | 233 | 12132 | 90.98 | 545 | 549 | 127.3 |
| D | 2 | 249 | 472690 | 3618.81 | 531 | 515 | 130.5 |
| D | 1 | 47 | 465688 | 3565.15 | 531 | 515 | 130.5 |
| D | 2 | 153 | 102309 | 780.16 | 531 | 515 | 130.5 |

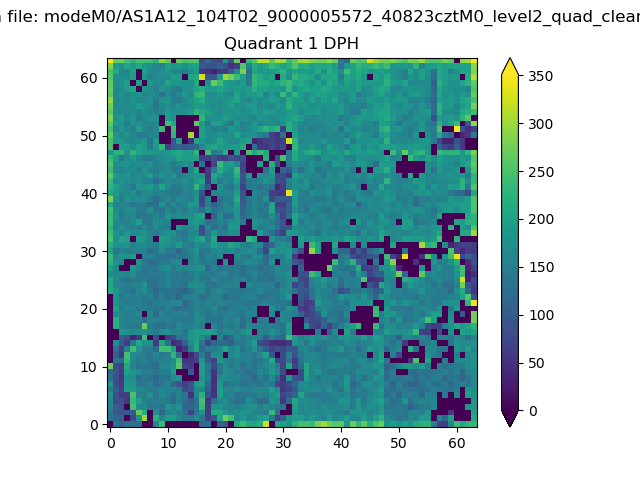

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

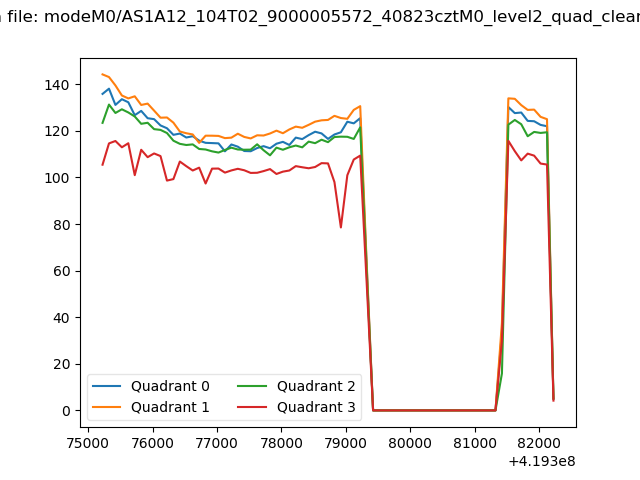

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

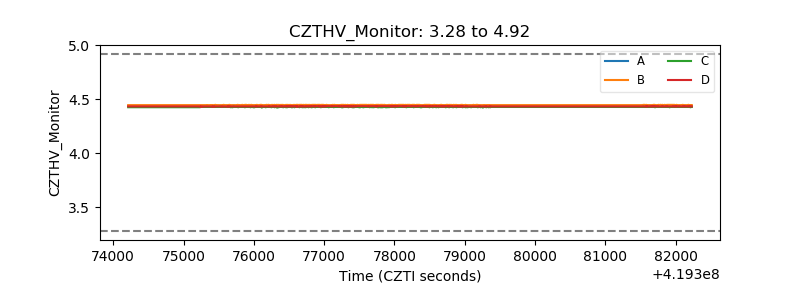

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

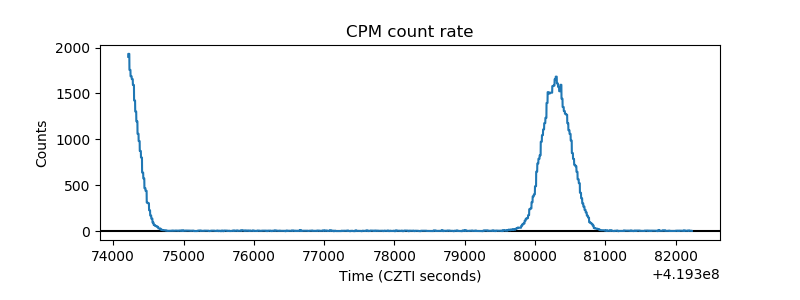

| _CPM_Rate |  |
| CZT Counter |  |

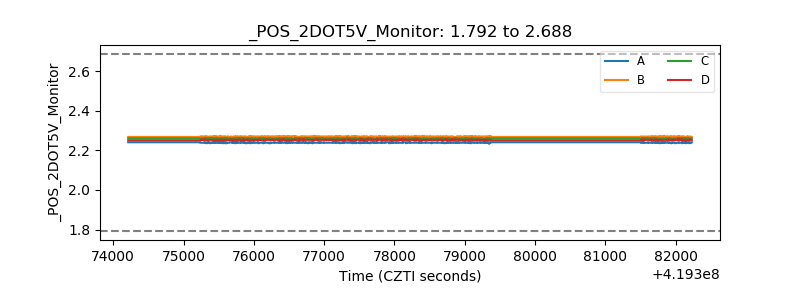

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

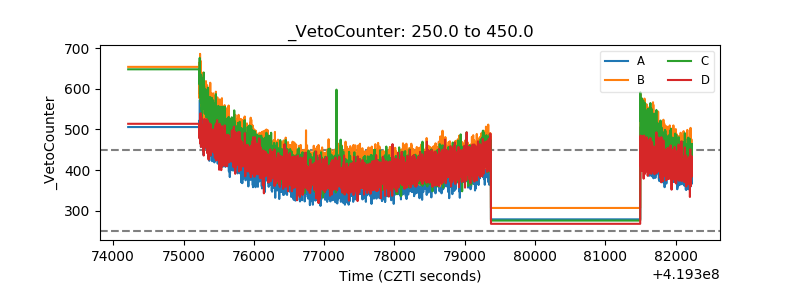

| Veto Counter |  |
