| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_097T01_9000005574_40872cztM0_level2.fits | modeM0/AS1A12_097T01_9000005574_40872cztM0_level2_quad_clean.evt |
| Size (bytes) | 409,544,640 | 99,244,800 |
| Size | 390.6 MB | 94.6 MB |
| Events in quadrant A | 3,363,500 | 654,432 |
| Events in quadrant B | 2,747,821 | 688,446 |
| Events in quadrant C | 3,515,248 | 652,777 |
| Events in quadrant D | 5,055,050 | 579,765 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13520 | 3 |
| B | 0 | 12443 | 2 |
| C | 0 | 14183 | 2 |
| D | 0 | 19161 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6155 | 15 | 0.243704% |
| B | 6155 | 9 | 0.146223% |
| C | 6155 | 50 | 0.812348% |
| D | 6155 | 250 | 4.061738% |

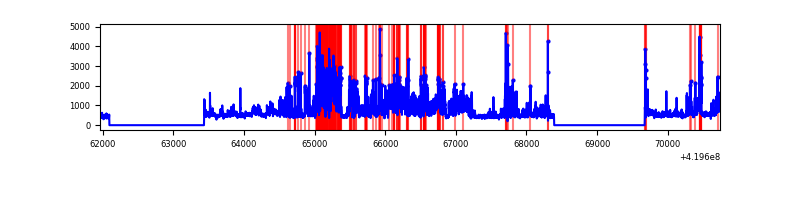

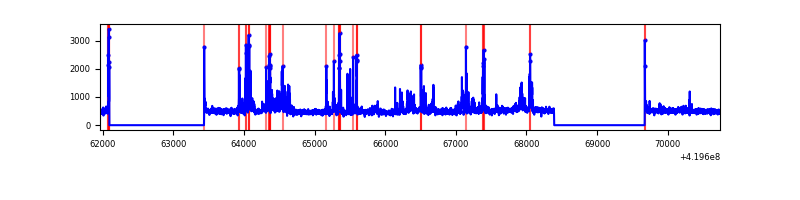

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

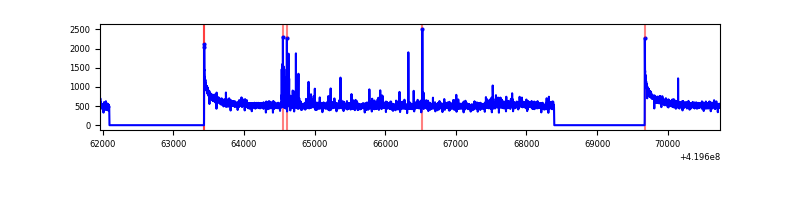

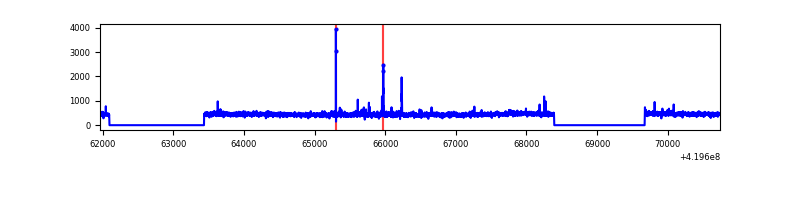

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8780 | 6157 | 6 | 6 | 0.07% | 0.10% |  |
| B | 8780 | 6157 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8780 | 6157 | 46 | 46 | 0.52% | 0.75% |  |
| D | 8780 | 6157 | 261 | 261 | 2.97% | 4.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 583623 | 4140.27 | 681 | 666 | 140.8 |
| A | 13 | 248 | 55425 | 388.91 | 681 | 666 | 140.8 |
| A | 12 | 189 | 43396 | 303.47 | 681 | 666 | 140.8 |
| B | 15 | 85 | 18890 | 136.43 | 679 | 658 | 133.6 |
| B | 0 | 230 | 16983 | 122.16 | 679 | 658 | 133.6 |
| B | 12 | 111 | 16691 | 119.97 | 679 | 658 | 133.6 |
| C | 14 | 254 | 537709 | 3412.86 | 665 | 670 | 157.4 |
| C | 15 | 214 | 261917 | 1660.21 | 665 | 670 | 157.4 |
| C | 9 | 54 | 86772 | 547.17 | 665 | 670 | 157.4 |
| D | 12 | 79 | 1441300 | 8905.56 | 654 | 635 | 161.8 |
| D | 2 | 249 | 538801 | 3326.71 | 654 | 635 | 161.8 |
| D | 13 | 249 | 204780 | 1261.93 | 654 | 635 | 161.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

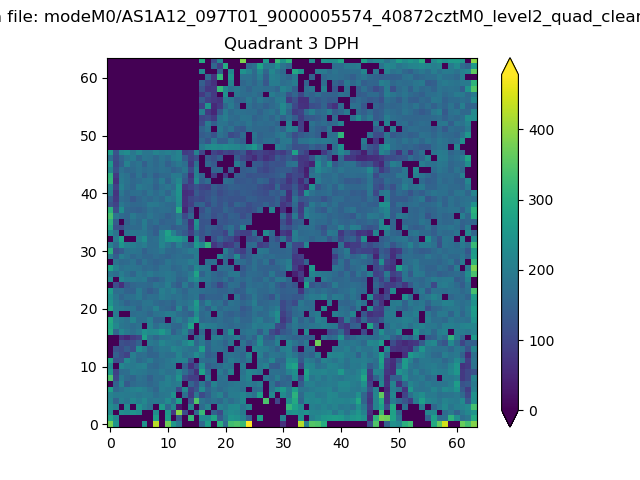

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

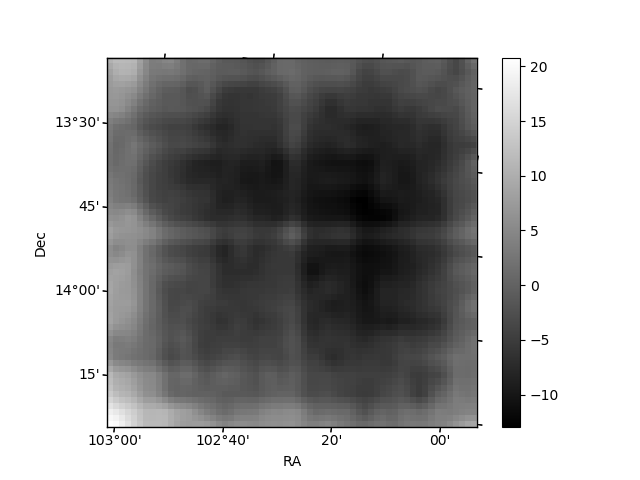

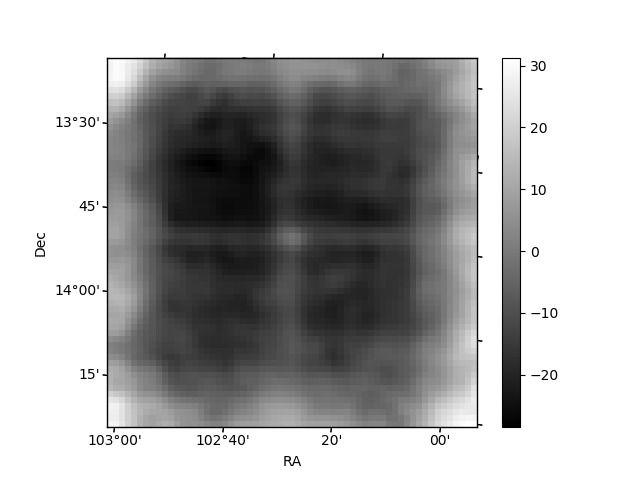

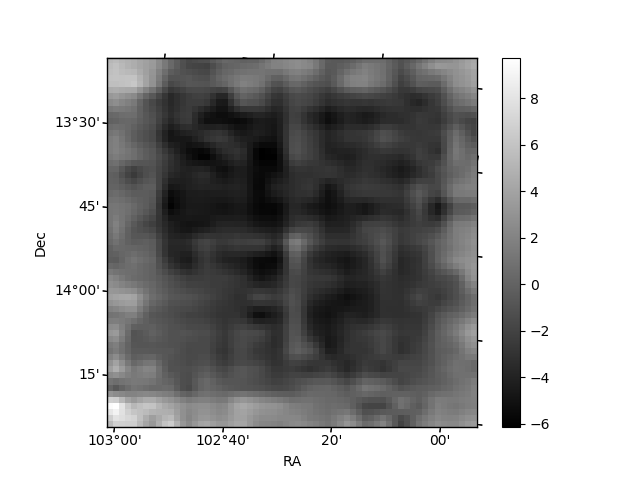

| Plot type | Count rate plots | Images |
|---|---|---|

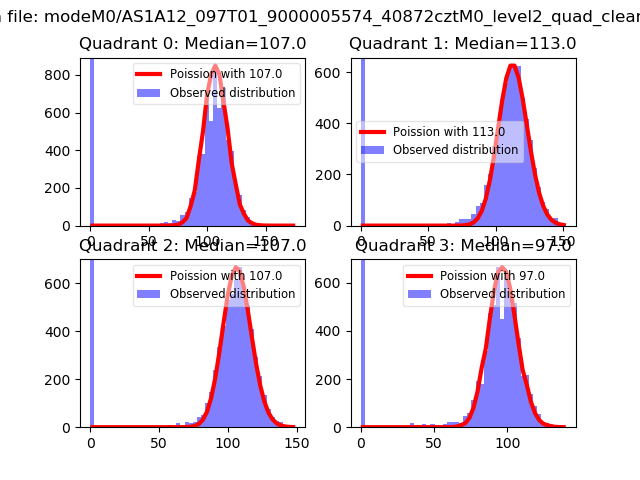

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

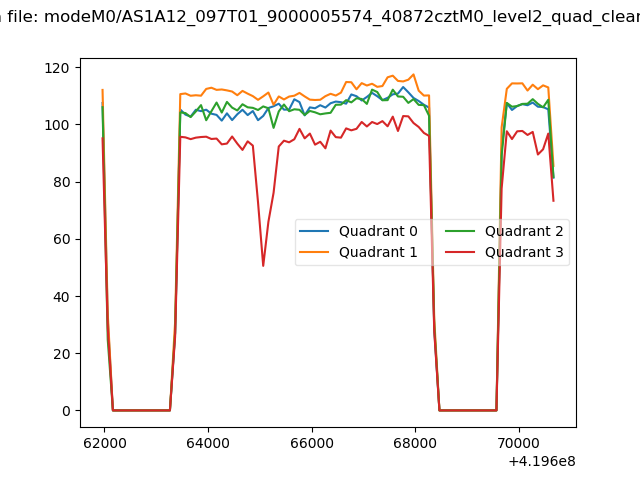

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

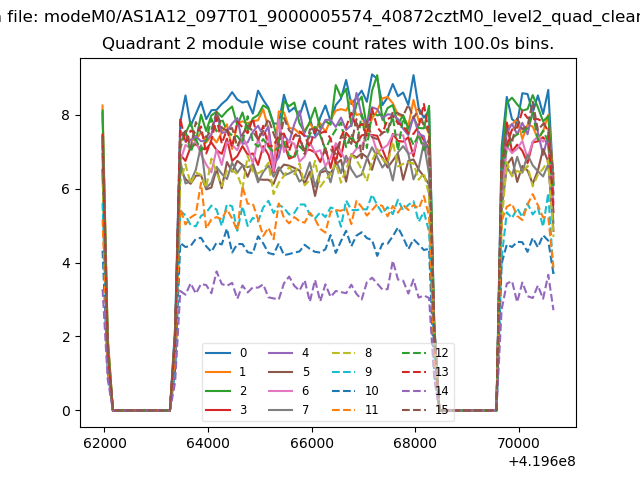

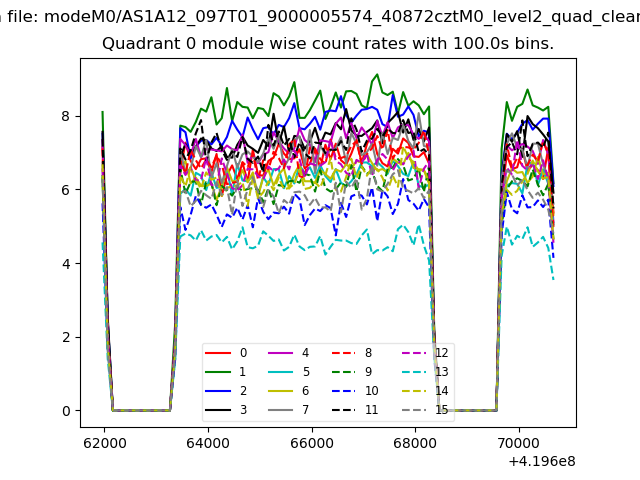

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

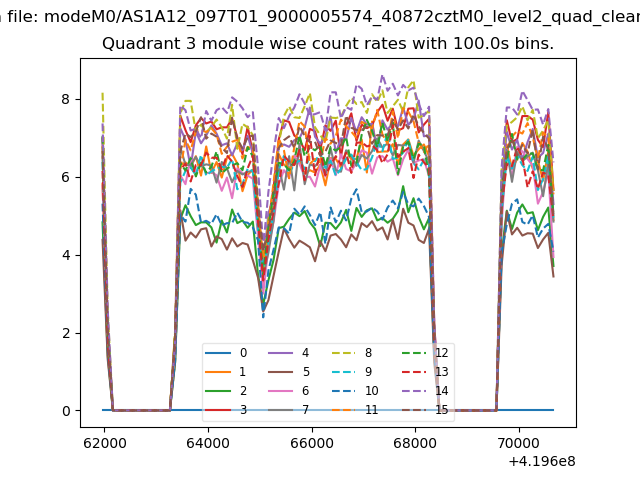

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

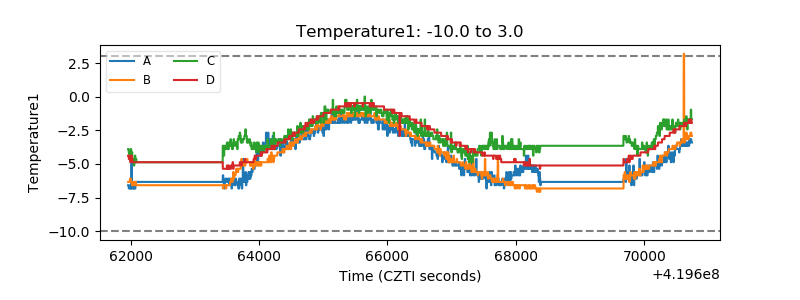

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

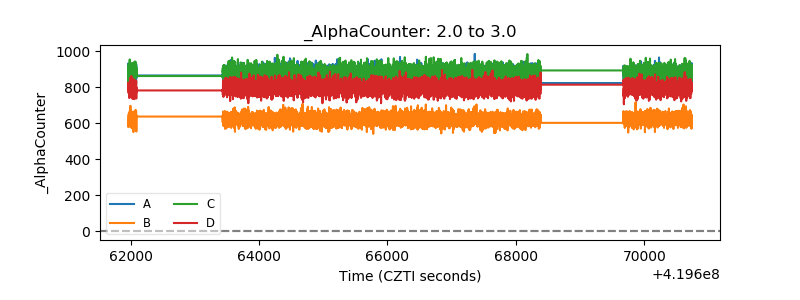

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

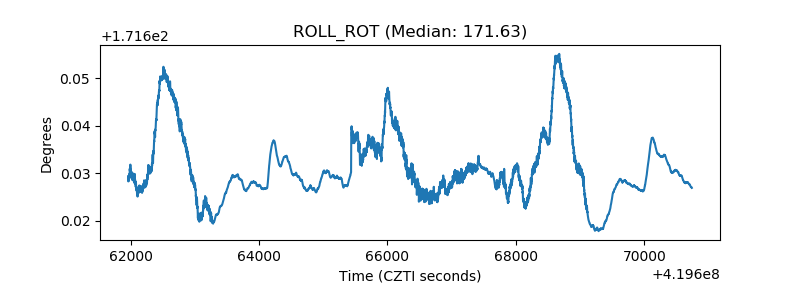

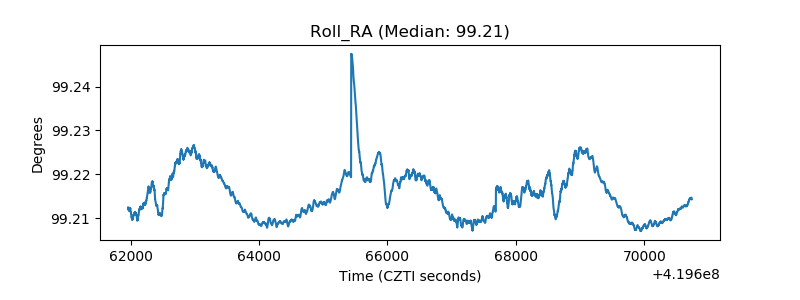

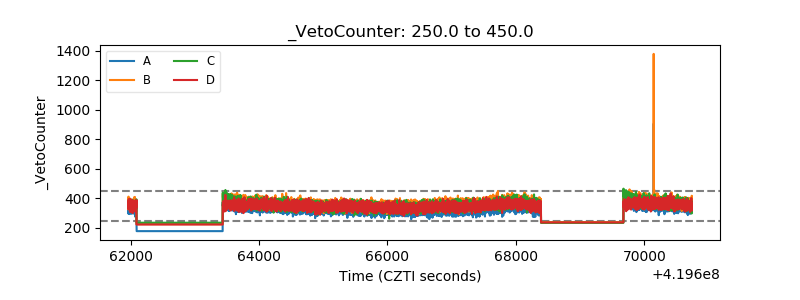

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
