| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_066T01_9000005584_40986cztM0_level2.fits | modeM0/AS1A12_066T01_9000005584_40986cztM0_level2_quad_clean.evt |
| Size (bytes) | 349,496,640 | 100,483,200 |
| Size | 333.3 MB | 95.8 MB |
| Events in quadrant A | 3,309,317 | 677,970 |
| Events in quadrant B | 2,689,295 | 687,476 |
| Events in quadrant C | 3,011,283 | 652,191 |
| Events in quadrant D | 3,455,025 | 601,647 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13629 | 3 |
| B | 0 | 12307 | 2 |
| C | 0 | 12699 | 2 |
| D | 0 | 14583 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6065 | 11 | 0.181369% |
| B | 6065 | 11 | 0.181369% |
| C | 6065 | 38 | 0.626546% |
| D | 6065 | 113 | 1.863149% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9411 | 6067 | 4 | 4 | 0.04% | 0.07% |  |
| B | 9411 | 6067 | 2 | 2 | 0.02% | 0.03% |  |
| C | 9411 | 6067 | 35 | 35 | 0.37% | 0.58% |  |
| D | 9411 | 6067 | 111 | 111 | 1.18% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 534494 | 3841.65 | 675 | 662 | 139.0 |
| A | 12 | 189 | 157884 | 1131.43 | 675 | 662 | 139.0 |
| A | 13 | 254 | 9299 | 62.15 | 675 | 662 | 139.0 |
| B | 5 | 255 | 27281 | 203.0 | 669 | 649 | 131.2 |
| B | 0 | 186 | 23934 | 177.49 | 669 | 649 | 131.2 |
| B | 12 | 111 | 16812 | 123.2 | 669 | 649 | 131.2 |
| C | 15 | 214 | 257453 | 1660.39 | 659 | 662 | 154.7 |
| C | 0 | 10 | 135840 | 874.05 | 659 | 662 | 154.7 |
| C | 14 | 254 | 38260 | 243.11 | 659 | 662 | 154.7 |
| D | 13 | 249 | 699090 | 4315.28 | 656 | 638 | 161.9 |
| D | 13 | 171 | 69682 | 426.58 | 656 | 638 | 161.9 |
| D | 1 | 47 | 52309 | 319.24 | 656 | 638 | 161.9 |

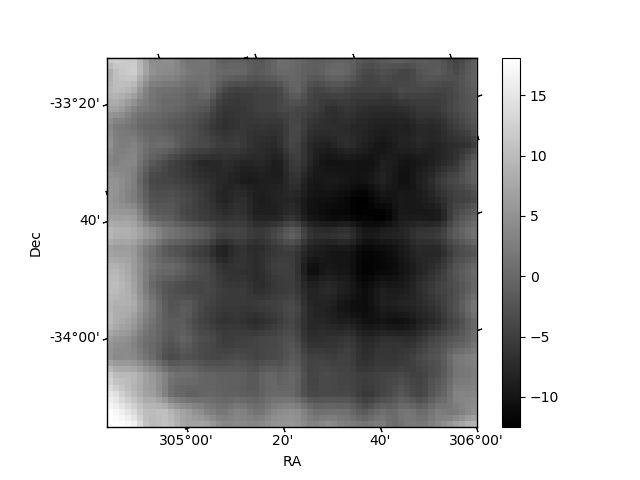

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

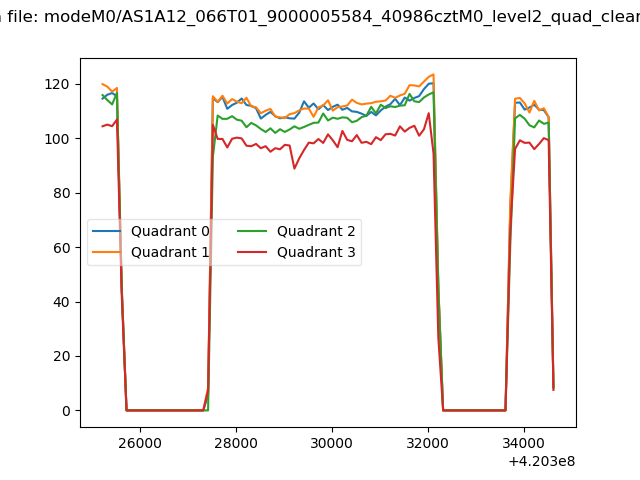

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

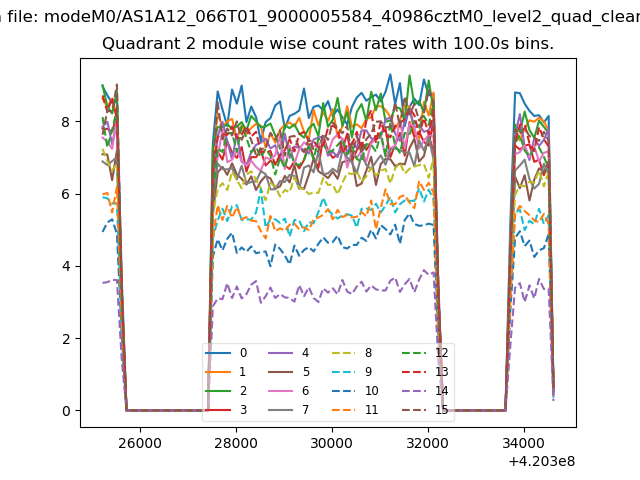

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

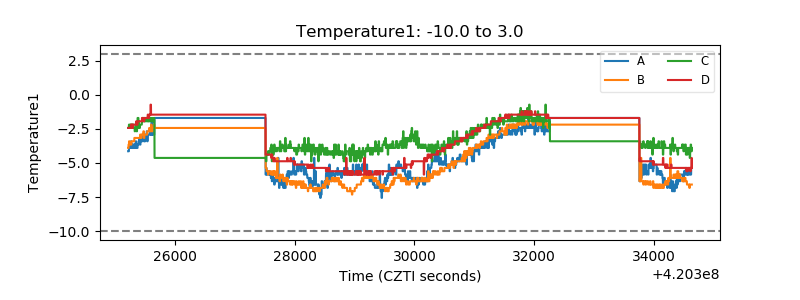

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

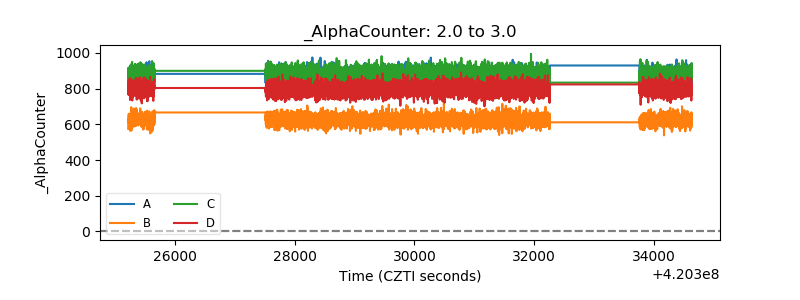

| Alpha Counter |  |

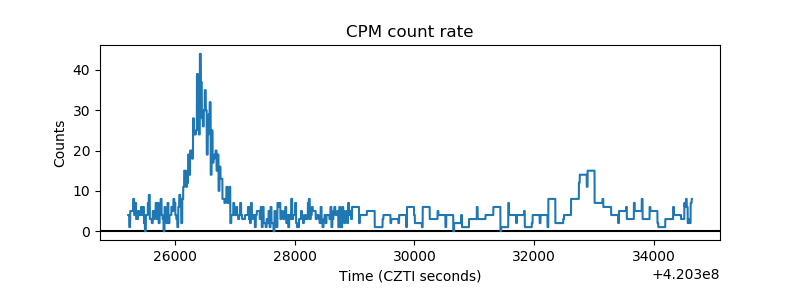

| _CPM_Rate |  |

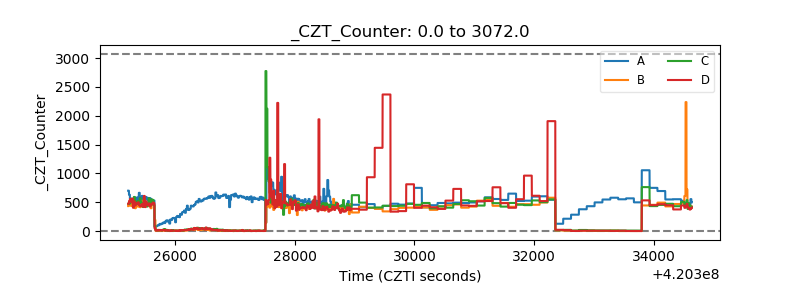

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

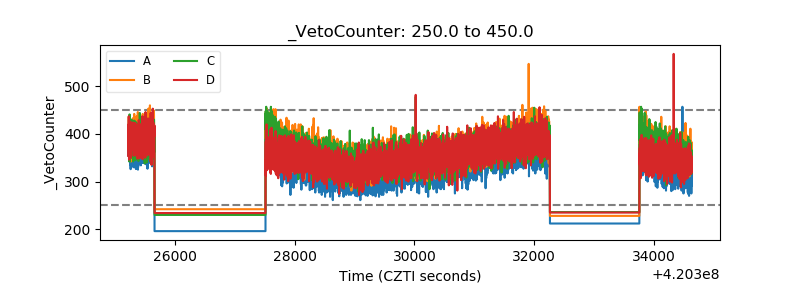

| Veto Counter |  |
