| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_066T01_9000005584_40997cztM0_level2.fits | modeM0/AS1A12_066T01_9000005584_40997cztM0_level2_quad_clean.evt |
| Size (bytes) | 312,814,080 | 90,230,400 |
| Size | 298.3 MB | 86.1 MB |
| Events in quadrant A | 2,807,967 | 625,194 |
| Events in quadrant B | 2,484,649 | 632,811 |
| Events in quadrant C | 2,644,266 | 584,259 |
| Events in quadrant D | 3,255,411 | 542,155 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11291 | 3 |
| B | 0 | 10475 | 2 |
| C | 0 | 10687 | 2 |
| D | 0 | 12940 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4967 | 13 | 0.261727% |
| B | 4967 | 33 | 0.664385% |
| C | 4967 | 64 | 1.288504% |
| D | 4967 | 162 | 3.261526% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7090 | 4968 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7090 | 4968 | 25 | 25 | 0.35% | 0.50% |  |
| C | 7090 | 4968 | 60 | 60 | 0.85% | 1.21% |  |
| D | 7089 | 4967 | 154 | 154 | 2.17% | 3.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 486703 | 4025.63 | 593 | 583 | 120.8 |
| A | 12 | 189 | 20091 | 161.55 | 593 | 583 | 120.8 |
| A | 13 | 254 | 7793 | 59.71 | 593 | 583 | 120.8 |
| B | 5 | 255 | 164158 | 1470.34 | 587 | 572 | 111.3 |
| B | 12 | 111 | 14049 | 121.13 | 587 | 572 | 111.3 |
| B | 11 | 111 | 13176 | 113.29 | 587 | 572 | 111.3 |
| C | 15 | 214 | 213597 | 1611.38 | 567 | 571 | 132.2 |
| C | 0 | 10 | 179070 | 1350.21 | 567 | 571 | 132.2 |
| C | 12 | 249 | 26780 | 198.25 | 567 | 571 | 132.2 |
| D | 12 | 233 | 340870 | 2501.55 | 566 | 550 | 136.0 |
| D | 13 | 249 | 322304 | 2365.08 | 566 | 550 | 136.0 |
| D | 2 | 249 | 293388 | 2152.53 | 566 | 550 | 136.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

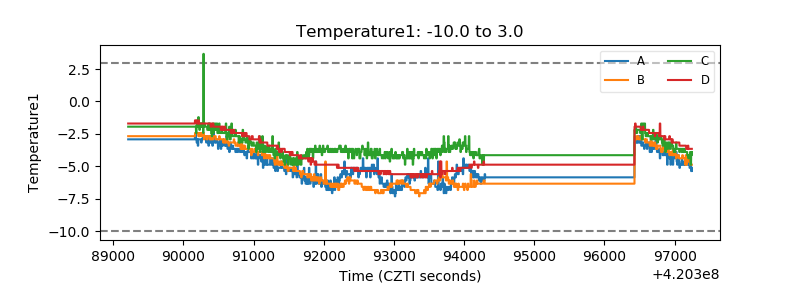

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

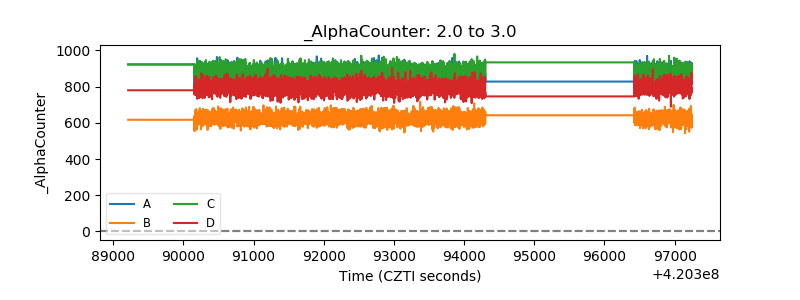

| Alpha Counter |  |

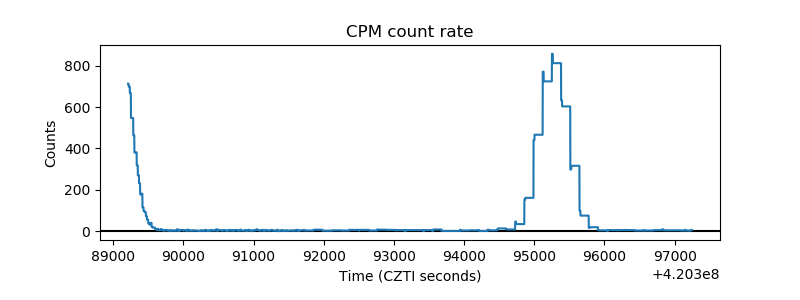

| _CPM_Rate |  |
| CZT Counter |  |

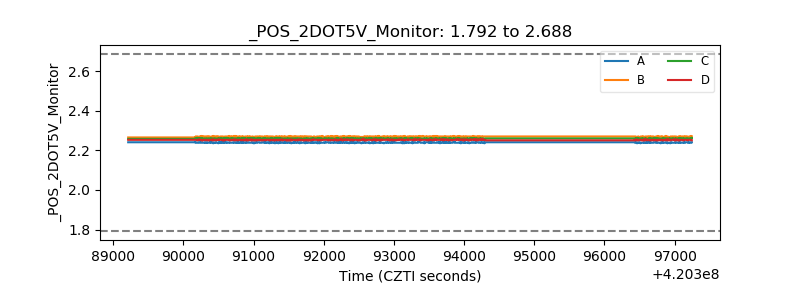

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

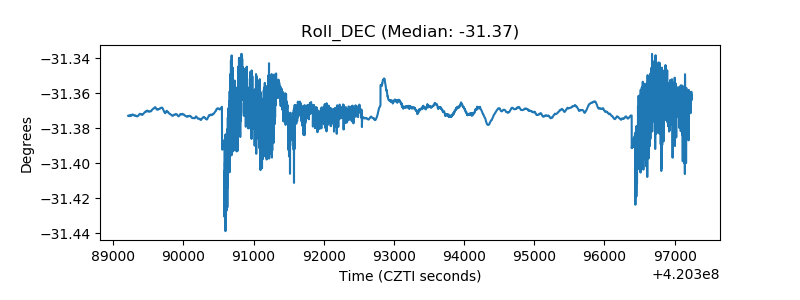

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
