| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_066T01_9000005584_40998cztM0_level2.fits | modeM0/AS1A12_066T01_9000005584_40998cztM0_level2_quad_clean.evt |
| Size (bytes) | 309,896,640 | 85,366,080 |
| Size | 295.5 MB | 81.4 MB |
| Events in quadrant A | 2,761,383 | 589,032 |
| Events in quadrant B | 2,630,940 | 594,759 |
| Events in quadrant C | 2,567,104 | 551,103 |
| Events in quadrant D | 3,131,521 | 507,717 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11190 | 3 |
| B | 0 | 10988 | 2 |
| C | 0 | 10523 | 2 |
| D | 0 | 12634 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4880 | 16 | 0.327869% |
| B | 4880 | 48 | 0.983607% |
| C | 4880 | 68 | 1.393443% |
| D | 4880 | 205 | 4.200820% |

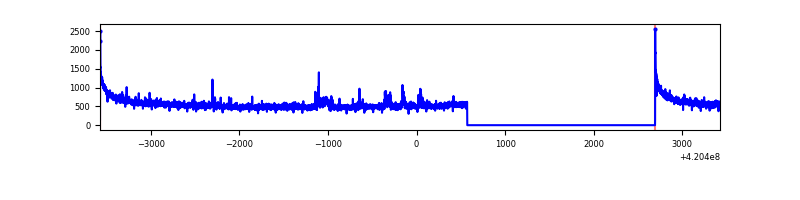

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7001 | 4879 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7001 | 4880 | 40 | 40 | 0.57% | 0.82% |  |
| C | 7001 | 4879 | 62 | 62 | 0.89% | 1.27% |  |
| D | 7001 | 4879 | 192 | 192 | 2.74% | 3.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 476061 | 4147.03 | 564 | 553 | 114.7 |
| A | 12 | 189 | 87001 | 753.94 | 564 | 553 | 114.7 |
| A | 13 | 248 | 10892 | 90.17 | 564 | 553 | 114.7 |
| B | 5 | 255 | 315957 | 2909.8 | 557 | 542 | 108.4 |
| B | 0 | 229 | 122092 | 1121.33 | 557 | 542 | 108.4 |
| B | 12 | 111 | 13450 | 119.08 | 557 | 542 | 108.4 |
| C | 15 | 214 | 211771 | 1671.66 | 542 | 546 | 126.4 |
| C | 0 | 10 | 186358 | 1470.54 | 542 | 546 | 126.4 |
| C | 12 | 249 | 32436 | 252.38 | 542 | 546 | 126.4 |
| D | 2 | 249 | 354350 | 2710.07 | 536 | 522 | 130.6 |
| D | 13 | 249 | 315297 | 2410.95 | 536 | 522 | 130.6 |
| D | 12 | 233 | 238107 | 1819.73 | 536 | 522 | 130.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

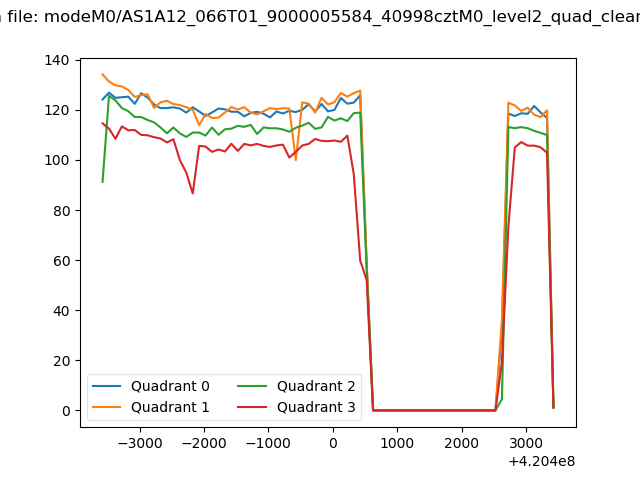

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

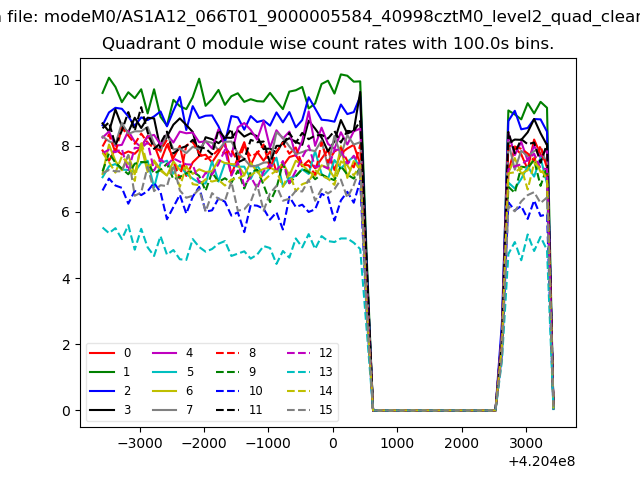

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

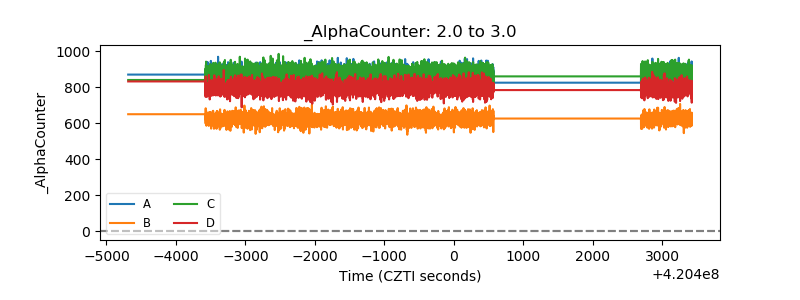

| Alpha Counter |  |

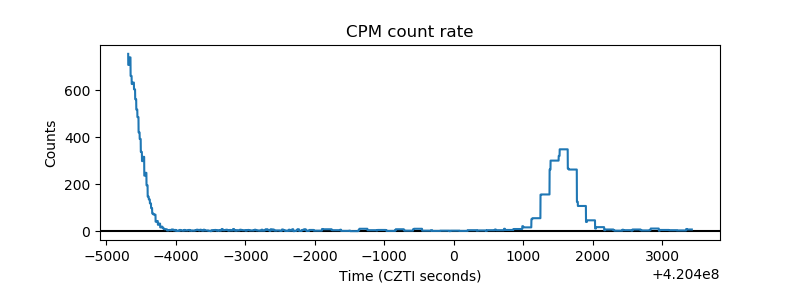

| _CPM_Rate |  |
| CZT Counter |  |

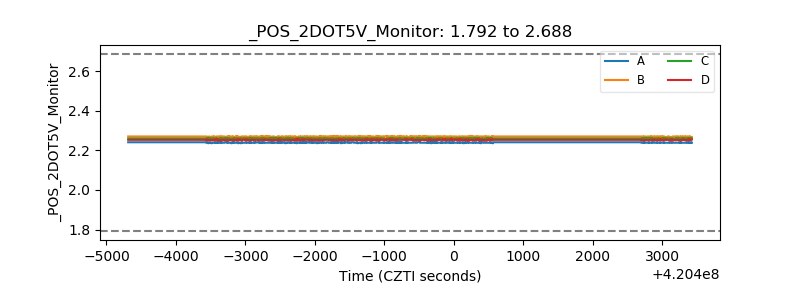

| +2.5 Volts monitor |  |

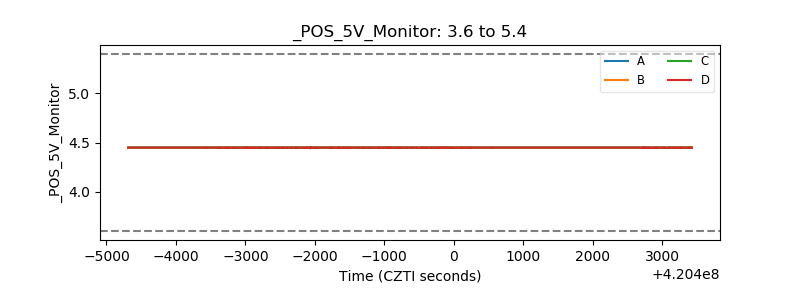

| +5 Volts monitor |  |
| _ROLL_ROT |  |

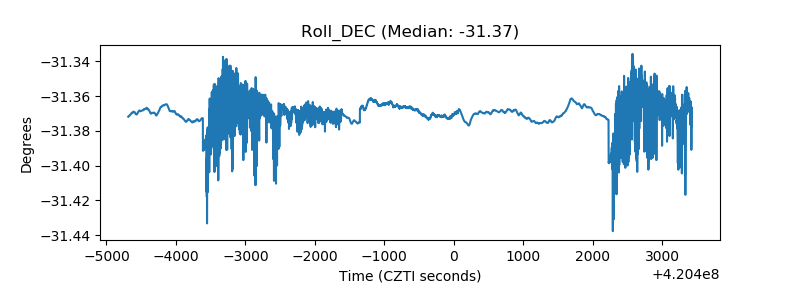

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
