| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_029T02_9000005590_41020cztM0_level2.fits | modeM0/AS1A12_029T02_9000005590_41020cztM0_level2_quad_clean.evt |
| Size (bytes) | 313,977,600 | 90,780,480 |
| Size | 299.4 MB | 86.6 MB |
| Events in quadrant A | 3,042,409 | 603,609 |
| Events in quadrant B | 2,466,823 | 621,406 |
| Events in quadrant C | 2,678,776 | 597,060 |
| Events in quadrant D | 2,998,808 | 535,739 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12483 | 2 |
| B | 0 | 11260 | 1 |
| C | 0 | 11390 | 1 |
| D | 0 | 12847 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5587 | 4 | 0.071595% |
| B | 5587 | 4 | 0.071595% |
| C | 5587 | 7 | 0.125291% |
| D | 5587 | 143 | 2.559513% |

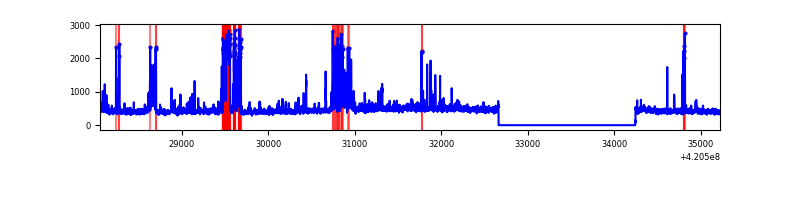

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7170 | 5588 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7170 | 5588 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7170 | 5588 | 7 | 7 | 0.10% | 0.13% |  |
| D | 7170 | 5588 | 117 | 117 | 1.63% | 2.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 470658 | 3687.48 | 618 | 606 | 127.5 |
| A | 12 | 189 | 158202 | 1236.31 | 618 | 606 | 127.5 |
| A | 2 | 79 | 10541 | 77.94 | 618 | 606 | 127.5 |
| B | 0 | 190 | 41917 | 343.24 | 614 | 597 | 120.4 |
| B | 12 | 111 | 15827 | 126.51 | 614 | 597 | 120.4 |
| B | 11 | 111 | 14729 | 117.39 | 614 | 597 | 120.4 |
| C | 15 | 214 | 240637 | 1704.32 | 601 | 603 | 140.8 |
| C | 12 | 249 | 31351 | 218.32 | 601 | 603 | 140.8 |
| C | 0 | 10 | 28147 | 195.57 | 601 | 603 | 140.8 |
| D | 13 | 249 | 419125 | 2857.73 | 596 | 578 | 146.5 |
| D | 13 | 171 | 93091 | 631.65 | 596 | 578 | 146.5 |
| D | 12 | 79 | 62418 | 422.23 | 596 | 578 | 146.5 |

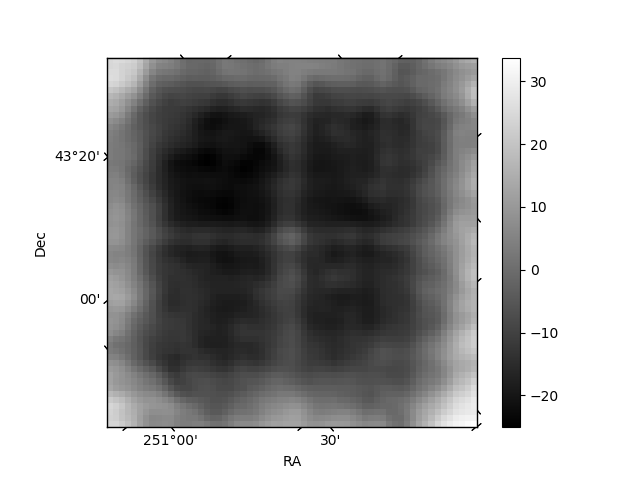

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

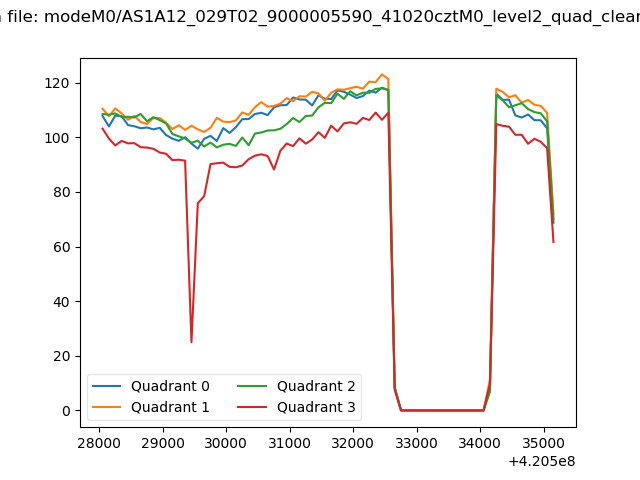

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

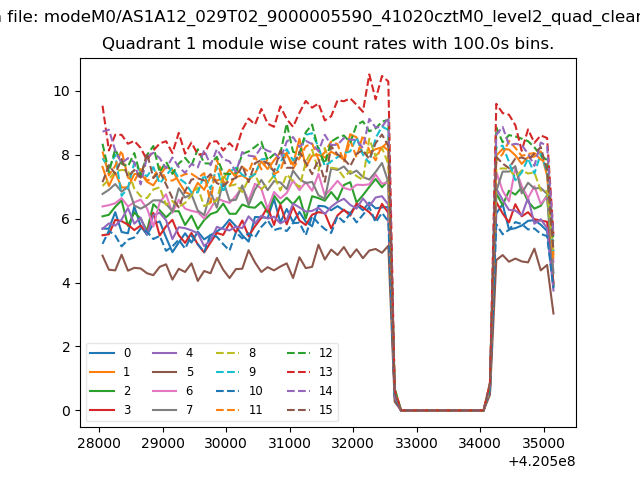

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

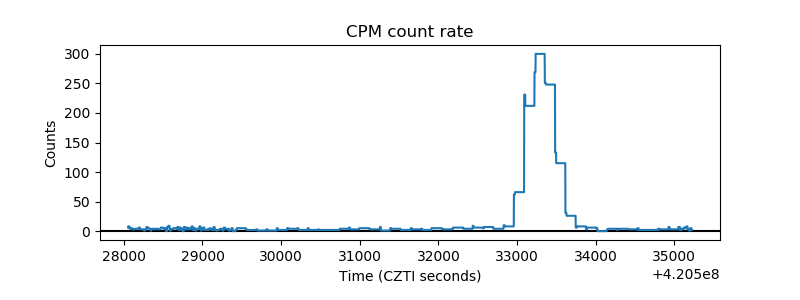

| _CPM_Rate |  |

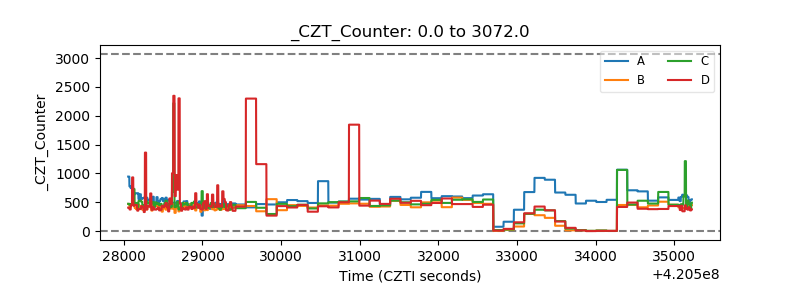

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

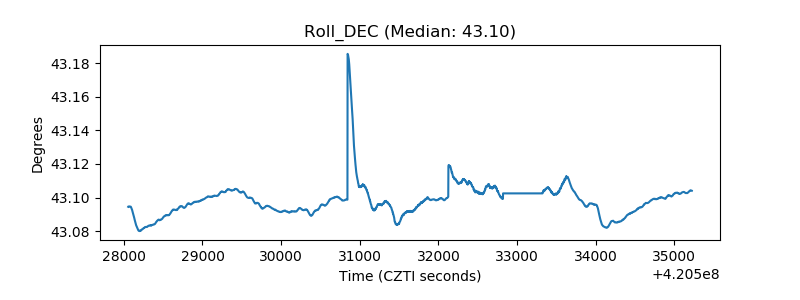

| _Roll_DEC |  |
| _Roll_RA |  |

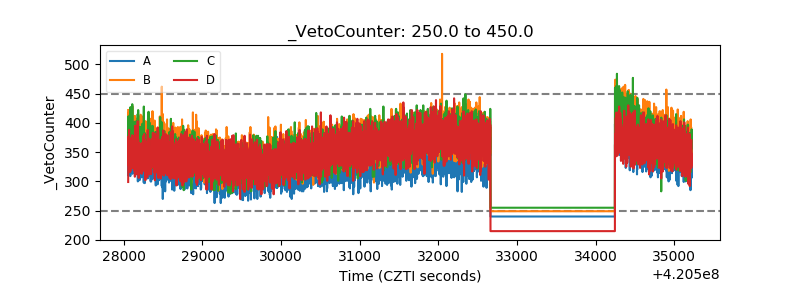

| Veto Counter |  |
