| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_029T02_9000005590_41028cztM0_level2.fits | modeM0/AS1A12_029T02_9000005590_41028cztM0_level2_quad_clean.evt |
| Size (bytes) | 292,138,560 | 85,484,160 |
| Size | 278.6 MB | 81.5 MB |
| Events in quadrant A | 2,741,982 | 568,680 |
| Events in quadrant B | 2,419,080 | 586,814 |
| Events in quadrant C | 2,722,510 | 561,104 |
| Events in quadrant D | 2,537,716 | 518,612 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11316 | 3 |
| B | 0 | 10400 | 2 |
| C | 0 | 11231 | 2 |
| D | 0 | 11160 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 39 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5034 | 11 | 0.218514% |
| B | 5034 | 6 | 0.119190% |
| C | 5034 | 80 | 1.589193% |
| D | 5034 | 55 | 1.092571% |

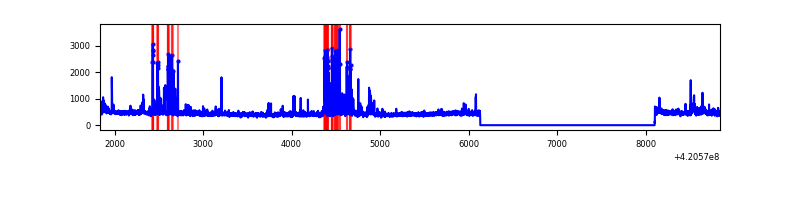

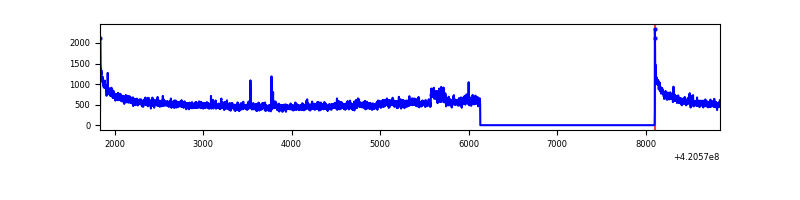

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7007 | 5035 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7007 | 5035 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7007 | 5035 | 71 | 71 | 1.01% | 1.41% |  |
| D | 7007 | 5035 | 58 | 58 | 0.83% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 475136 | 4211.61 | 549 | 540 | 112.7 |
| A | 12 | 189 | 125967 | 1113.05 | 549 | 540 | 112.7 |
| A | 13 | 254 | 8202 | 67.99 | 549 | 540 | 112.7 |
| B | 0 | 229 | 214084 | 2000.71 | 550 | 534 | 106.7 |
| B | 0 | 245 | 31025 | 285.66 | 550 | 534 | 106.7 |
| B | 12 | 111 | 13535 | 121.8 | 550 | 534 | 106.7 |
| C | 15 | 214 | 218073 | 1707.55 | 542 | 546 | 127.4 |
| C | 0 | 10 | 192766 | 1508.9 | 542 | 546 | 127.4 |
| C | 14 | 254 | 123212 | 962.91 | 542 | 546 | 127.4 |
| D | 13 | 249 | 149617 | 1127.8 | 539 | 525 | 132.2 |
| D | 1 | 47 | 135858 | 1023.72 | 539 | 525 | 132.2 |
| D | 12 | 79 | 46982 | 351.42 | 539 | 525 | 132.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

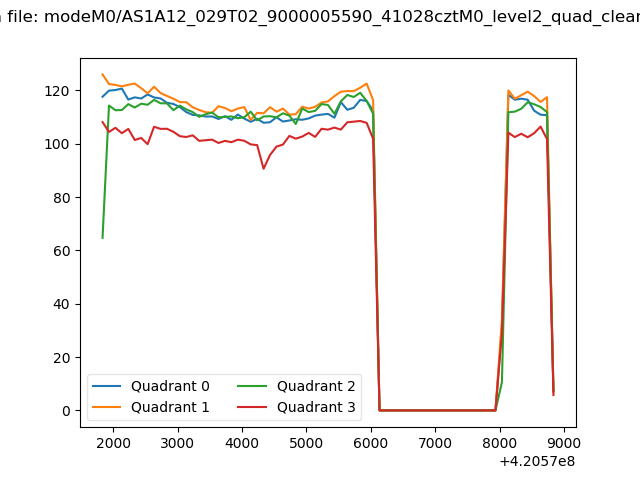

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

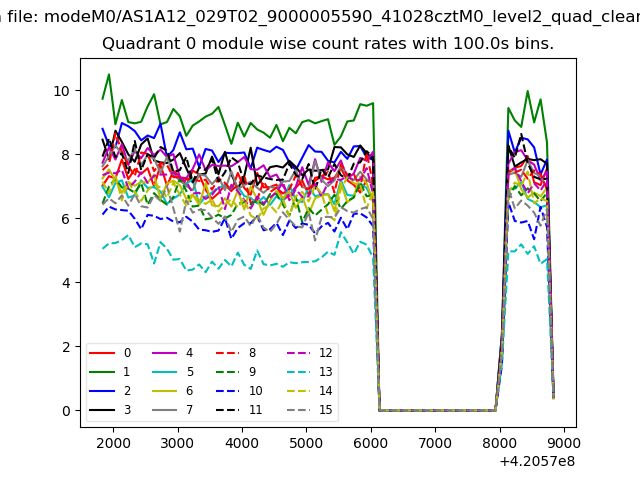

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

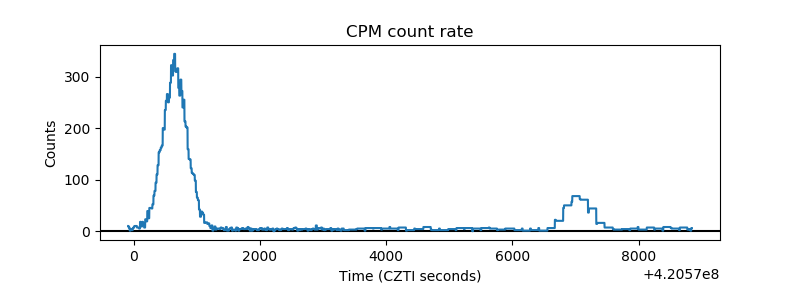

| _CPM_Rate |  |

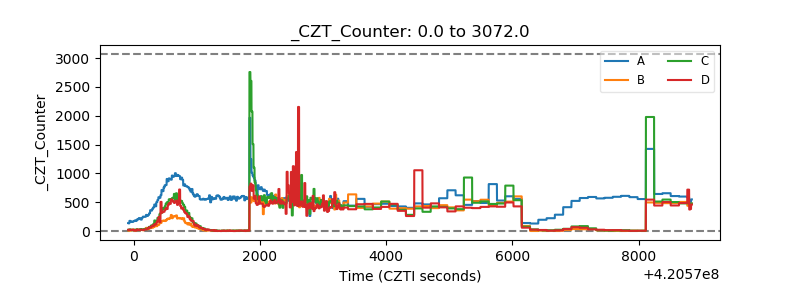

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

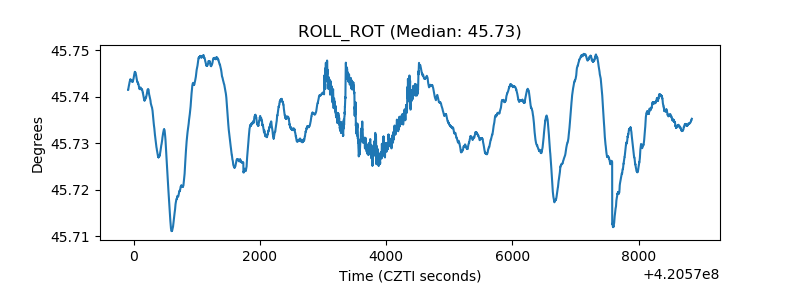

| _ROLL_ROT |  |
| _Roll_DEC |  |

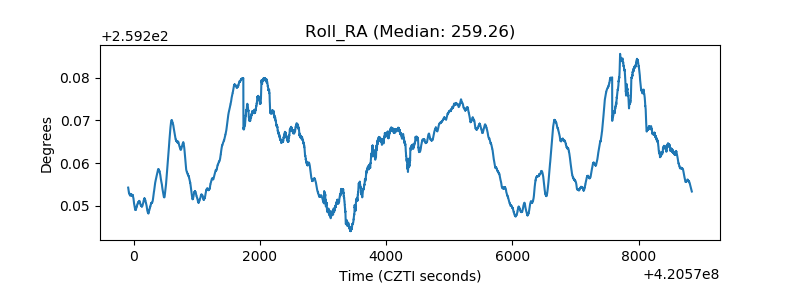

| _Roll_RA |  |
| Veto Counter |  |
