| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_042T01_9000005588_41011cztM0_level2.fits | modeM0/AS1A12_042T01_9000005588_41011cztM0_level2_quad_clean.evt |
| Size (bytes) | 138,936,960 | 39,810,240 |
| Size | 132.5 MB | 38.0 MB |
| Events in quadrant A | 1,252,667 | 273,407 |
| Events in quadrant B | 1,164,405 | 277,176 |
| Events in quadrant C | 1,247,121 | 258,684 |
| Events in quadrant D | 1,308,142 | 239,757 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5049 | 1 |
| B | 0 | 4839 | 1 |
| C | 0 | 4980 | 1 |
| D | 0 | 5296 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2164 | 9 | 0.415896% |
| B | 2164 | 10 | 0.462107% |
| C | 2164 | 15 | 0.693161% |
| D | 2164 | 33 | 1.524954% |

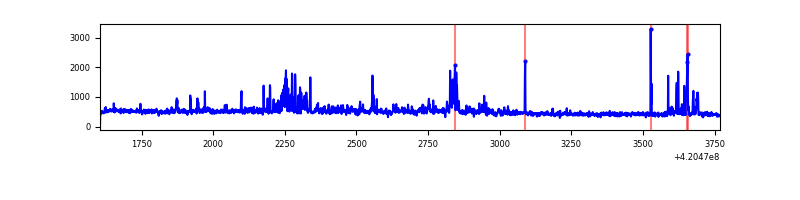

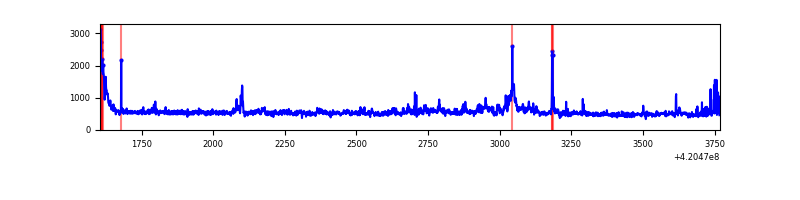

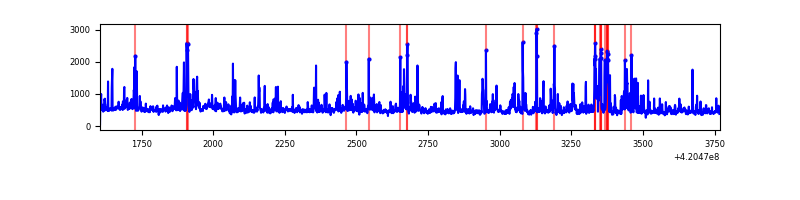

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2164 | 2164 | 2 | 2 | 0.09% | 0.09% |  |
| B | 2164 | 2164 | 5 | 5 | 0.23% | 0.23% |  |
| C | 2164 | 2164 | 11 | 11 | 0.51% | 0.51% |  |
| D | 2164 | 2164 | 30 | 30 | 1.39% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 256163 | 4915.0 | 251 | 246 | 52.1 |
| A | 12 | 189 | 23897 | 454.23 | 251 | 246 | 52.1 |
| A | 13 | 254 | 3333 | 59.29 | 251 | 246 | 52.1 |
| B | 0 | 186 | 113486 | 2389.34 | 245 | 238 | 47.4 |
| B | 5 | 255 | 54609 | 1147.13 | 245 | 238 | 47.4 |
| B | 15 | 85 | 31447 | 658.46 | 245 | 238 | 47.4 |
| C | 3 | 233 | 111603 | 1939.46 | 244 | 246 | 57.4 |
| C | 15 | 214 | 95760 | 1663.53 | 244 | 246 | 57.4 |
| C | 14 | 254 | 40604 | 702.9 | 244 | 246 | 57.4 |
| D | 2 | 153 | 118300 | 1921.78 | 247 | 240 | 61.4 |
| D | 13 | 171 | 86593 | 1405.65 | 247 | 240 | 61.4 |
| D | 12 | 233 | 61632 | 999.34 | 247 | 240 | 61.4 |

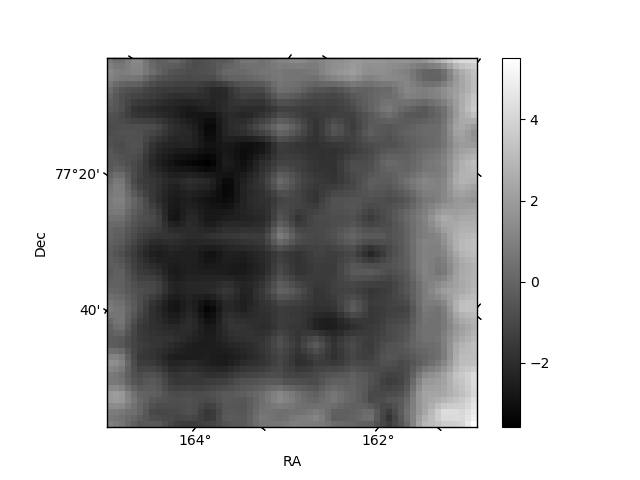

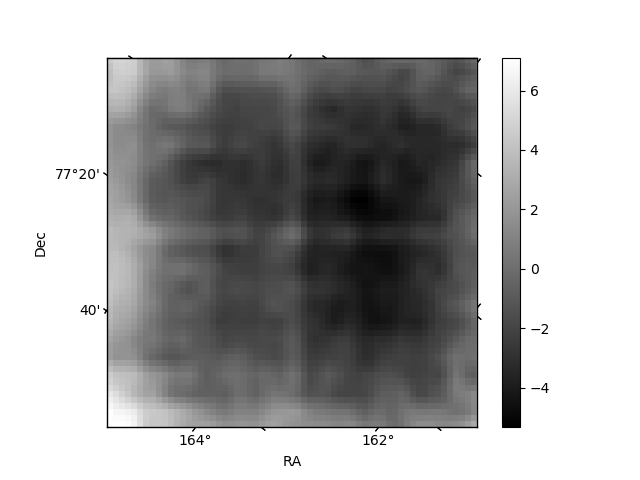

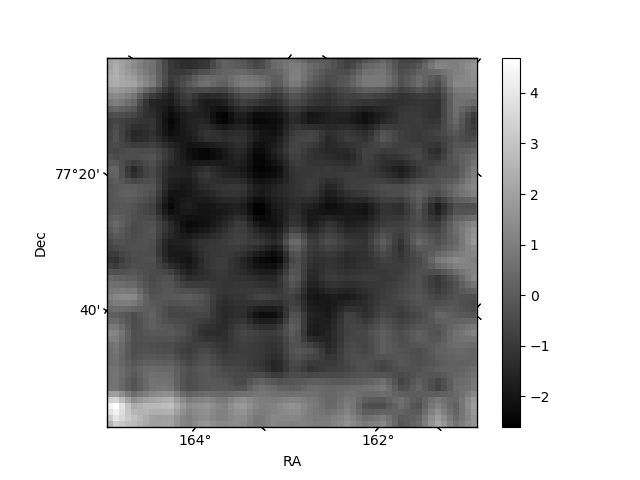

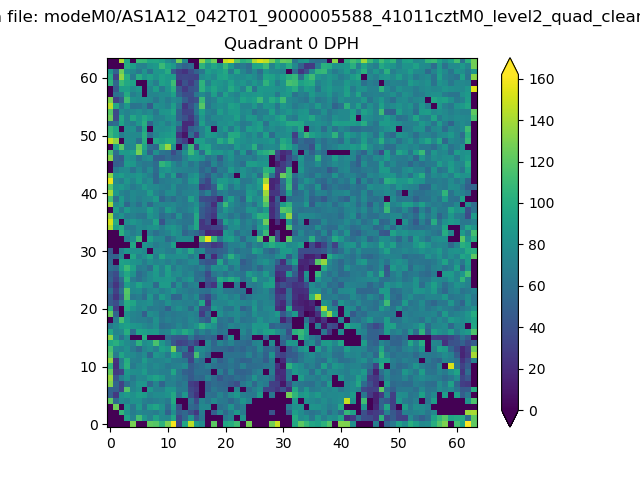

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

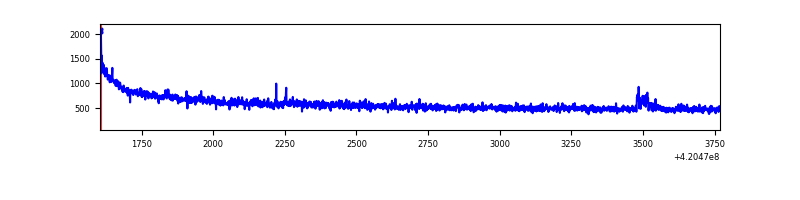

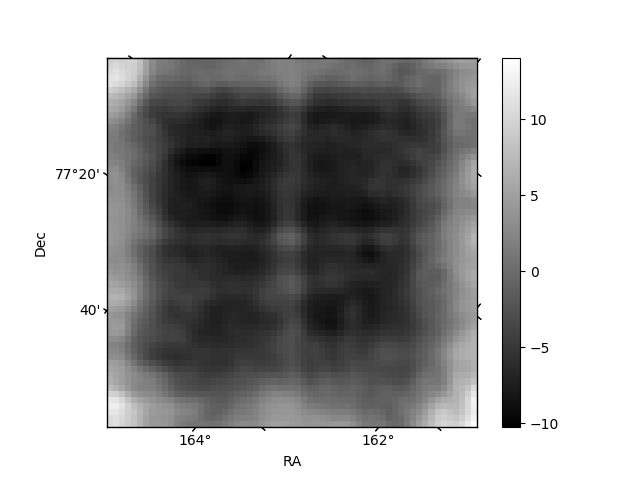

| Plot type | Count rate plots | Images |
|---|---|---|

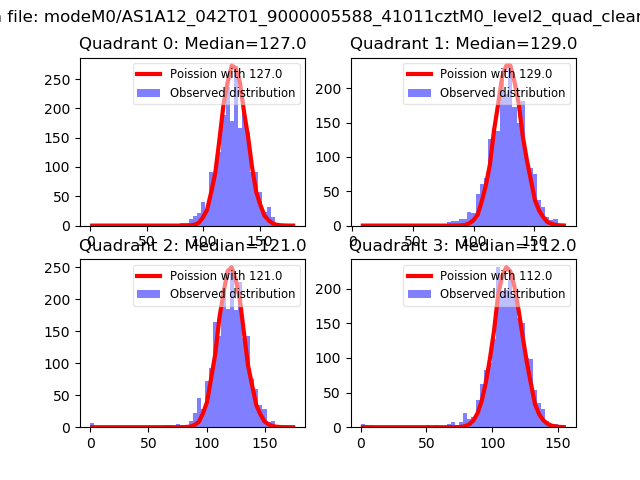

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

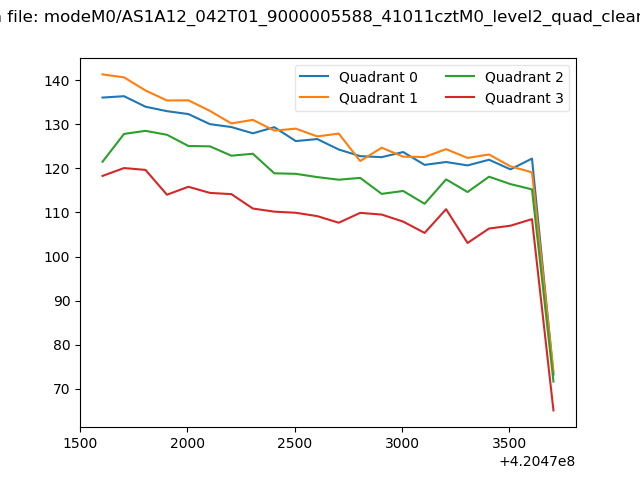

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

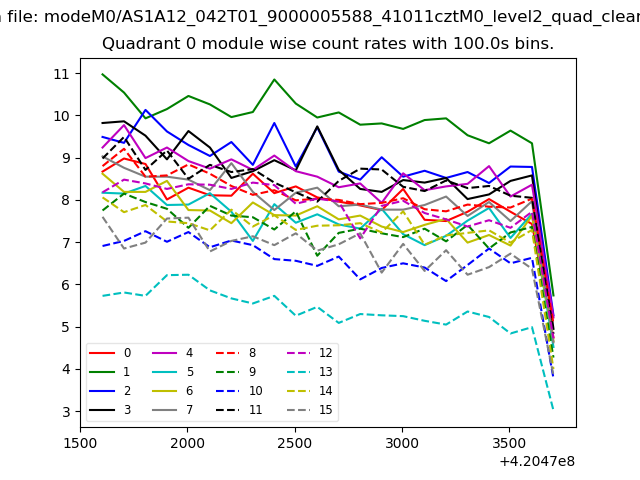

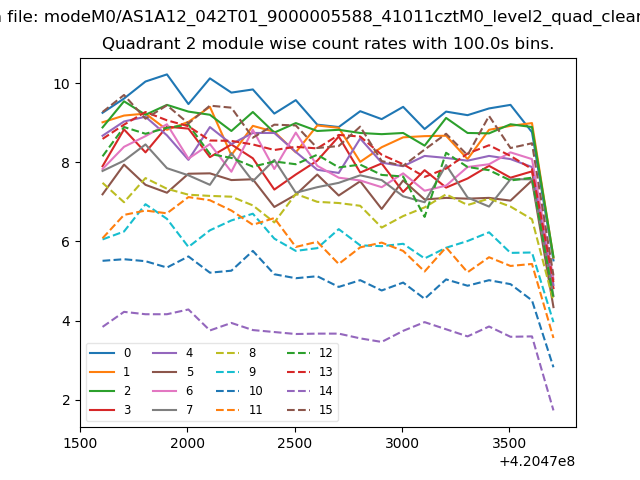

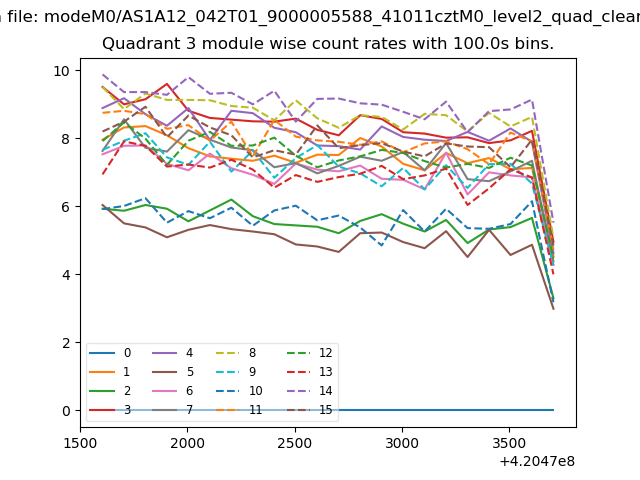

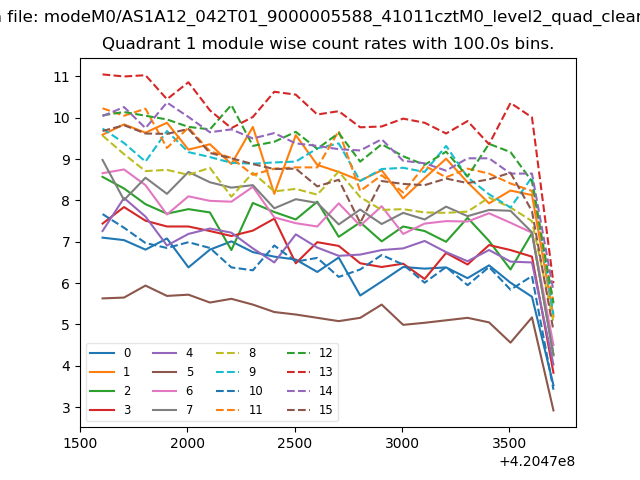

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

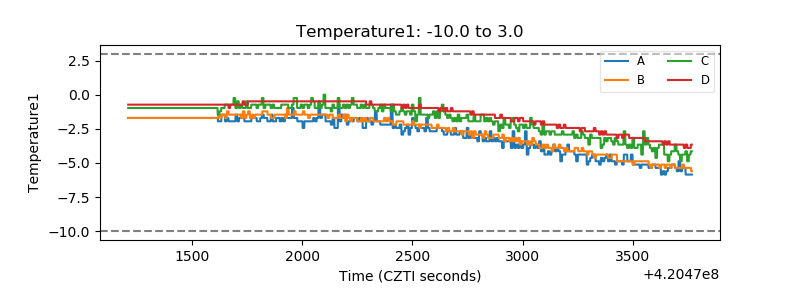

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

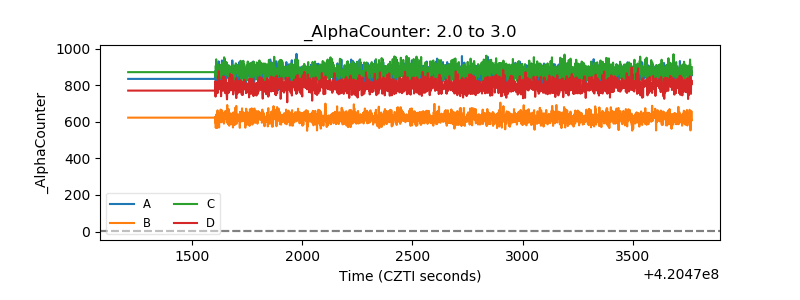

| Alpha Counter |  |

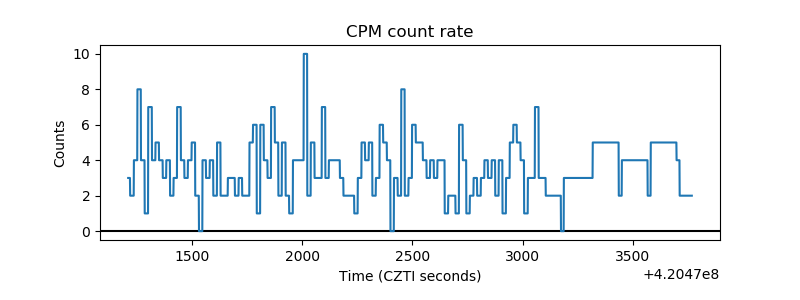

| _CPM_Rate |  |

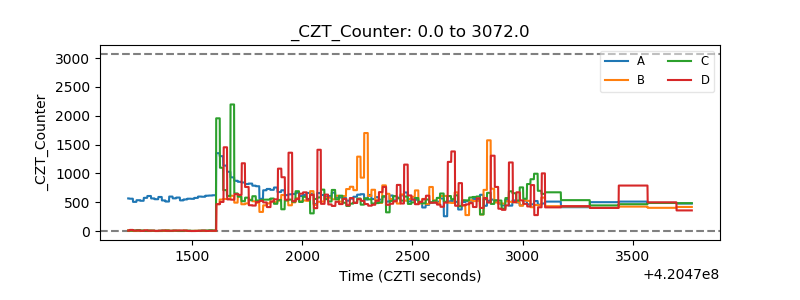

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

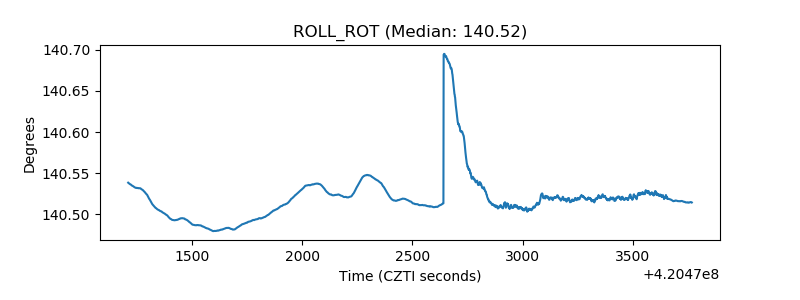

| _ROLL_ROT |  |

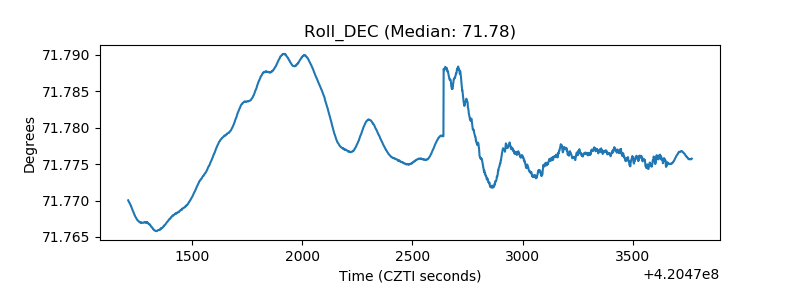

| _Roll_DEC |  |

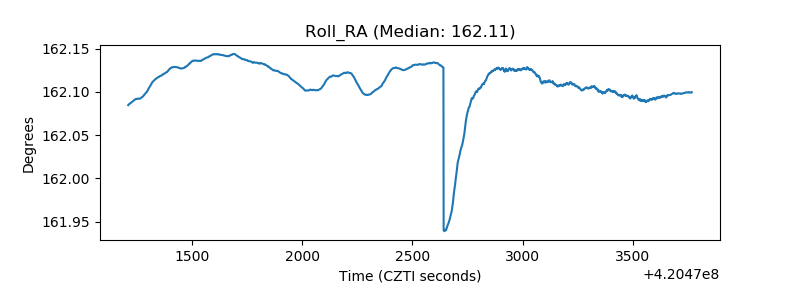

| _Roll_RA |  |

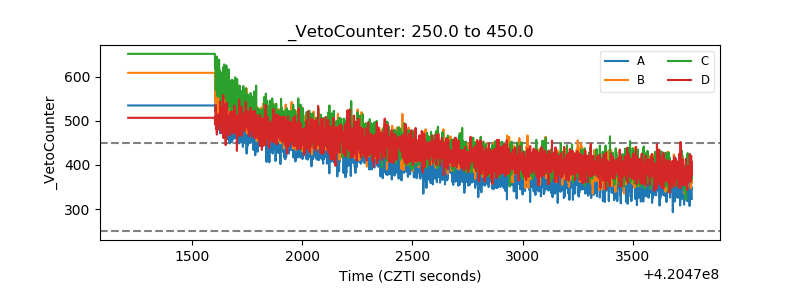

| Veto Counter |  |
