| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_093T02_9000005594_41067cztM0_level2.fits | modeM0/AS1A12_093T02_9000005594_41067cztM0_level2_quad_clean.evt |
| Size (bytes) | 340,894,080 | 93,162,240 |
| Size | 325.1 MB | 88.8 MB |
| Events in quadrant A | 3,102,606 | 636,327 |
| Events in quadrant B | 2,468,129 | 661,187 |
| Events in quadrant C | 2,752,538 | 612,728 |
| Events in quadrant D | 3,890,374 | 546,563 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12386 | 3 |
| B | 0 | 10529 | 2 |
| C | 0 | 11144 | 2 |
| D | 0 | 14976 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5202 | 48 | 0.922722% |
| B | 5202 | 7 | 0.134564% |
| C | 5202 | 30 | 0.576701% |
| D | 5202 | 282 | 5.420992% |

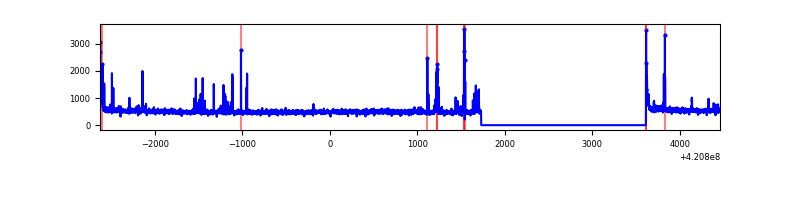

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7086 | 5203 | 23 | 23 | 0.32% | 0.44% |  |
| B | 7086 | 5203 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7086 | 5203 | 14 | 14 | 0.20% | 0.27% |  |
| D | 7086 | 5203 | 234 | 234 | 3.30% | 4.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 480453 | 3752.73 | 624 | 612 | 127.9 |
| A | 12 | 189 | 108131 | 840.88 | 624 | 612 | 127.9 |
| A | 13 | 248 | 94790 | 736.55 | 624 | 612 | 127.9 |
| B | 0 | 229 | 20417 | 164.78 | 618 | 602 | 120.3 |
| B | 15 | 32 | 17292 | 138.79 | 618 | 602 | 120.3 |
| B | 12 | 111 | 15258 | 121.88 | 618 | 602 | 120.3 |
| C | 15 | 214 | 224670 | 1595.28 | 602 | 605 | 140.5 |
| C | 14 | 254 | 129470 | 917.48 | 602 | 605 | 140.5 |
| C | 0 | 10 | 48929 | 344.05 | 602 | 605 | 140.5 |
| D | 2 | 249 | 928703 | 6410.96 | 591 | 575 | 144.8 |
| D | 2 | 16 | 323007 | 2227.17 | 591 | 575 | 144.8 |
| D | 12 | 79 | 284636 | 1962.13 | 591 | 575 | 144.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

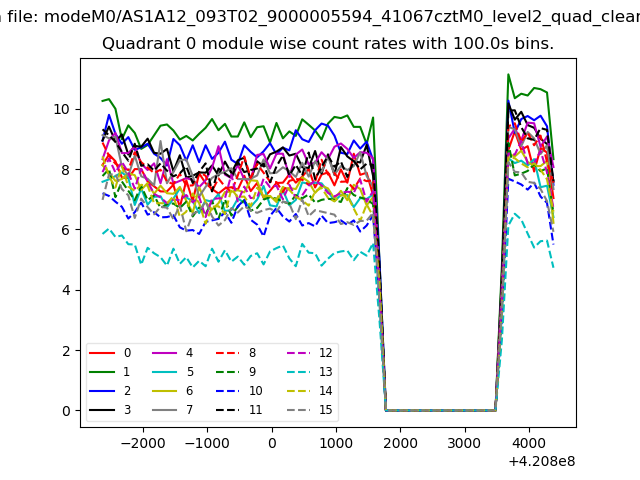

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

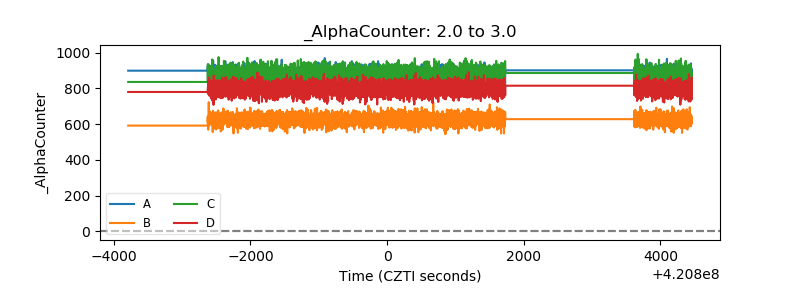

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

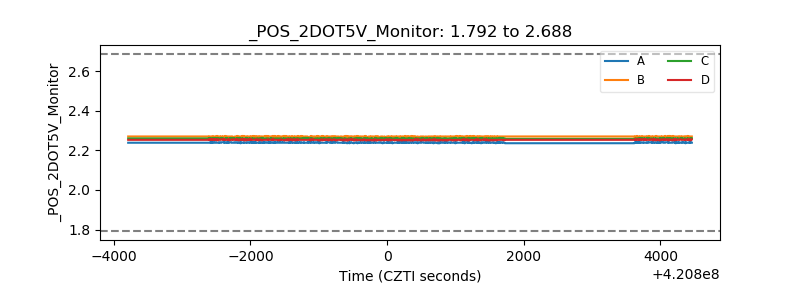

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

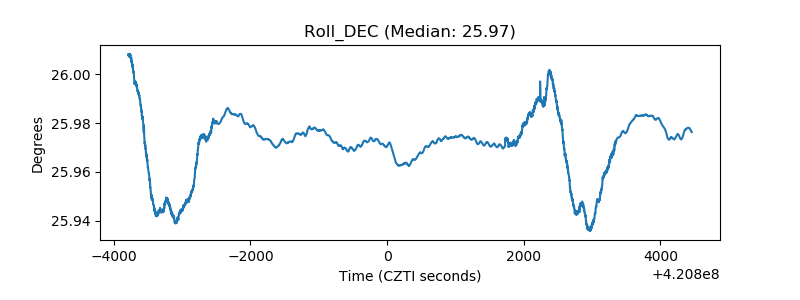

| _Roll_DEC |  |

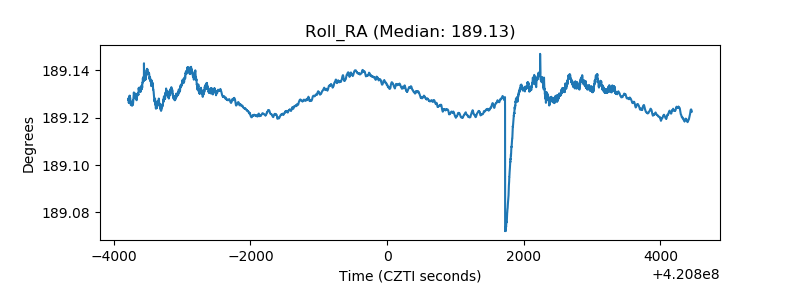

| _Roll_RA |  |
| Veto Counter |  |
