| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_101T02_9000005622_41198cztM0_level2.fits | modeM0/AS1A12_101T02_9000005622_41198cztM0_level2_quad_clean.evt |
| Size (bytes) | 333,031,680 | 88,617,600 |
| Size | 317.6 MB | 84.5 MB |
| Events in quadrant A | 2,817,426 | 616,920 |
| Events in quadrant B | 3,494,735 | 586,430 |
| Events in quadrant C | 3,018,426 | 569,032 |
| Events in quadrant D | 2,595,405 | 550,363 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11359 | 3 |
| B | 0 | 13844 | 2 |
| C | 0 | 12126 | 2 |
| D | 0 | 11326 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5152 | 10 | 0.194099% |
| B | 5152 | 479 | 9.297360% |
| C | 5152 | 231 | 4.483696% |
| D | 5152 | 40 | 0.776398% |

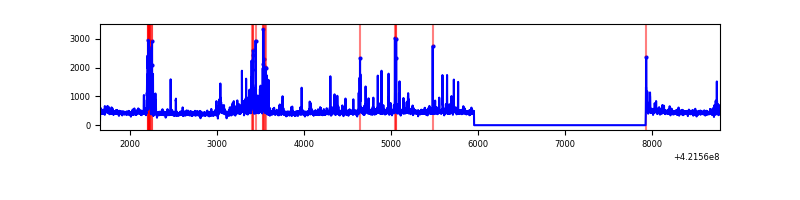

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7124 | 5153 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7124 | 5153 | 420 | 420 | 5.90% | 8.15% |  |
| C | 7124 | 5153 | 234 | 234 | 3.28% | 4.54% |  |
| D | 7124 | 5153 | 29 | 29 | 0.41% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 498389 | 4149.98 | 587 | 576 | 120.0 |
| A | 2 | 79 | 23769 | 193.35 | 587 | 576 | 120.0 |
| A | 12 | 189 | 19675 | 159.22 | 587 | 576 | 120.0 |
| B | 5 | 255 | 1292795 | 12305.22 | 551 | 538 | 105.0 |
| B | 0 | 229 | 30398 | 284.33 | 551 | 538 | 105.0 |
| B | 12 | 111 | 13092 | 119.54 | 551 | 538 | 105.0 |
| C | 0 | 10 | 663924 | 5264.46 | 547 | 551 | 126.0 |
| C | 15 | 214 | 215866 | 1708.72 | 547 | 551 | 126.0 |
| C | 15 | 159 | 4787 | 33.62 | 547 | 551 | 126.0 |
| D | 13 | 249 | 158413 | 1169.17 | 564 | 548 | 135.0 |
| D | 2 | 249 | 149311 | 1101.76 | 564 | 548 | 135.0 |
| D | 12 | 217 | 76744 | 564.32 | 564 | 548 | 135.0 |

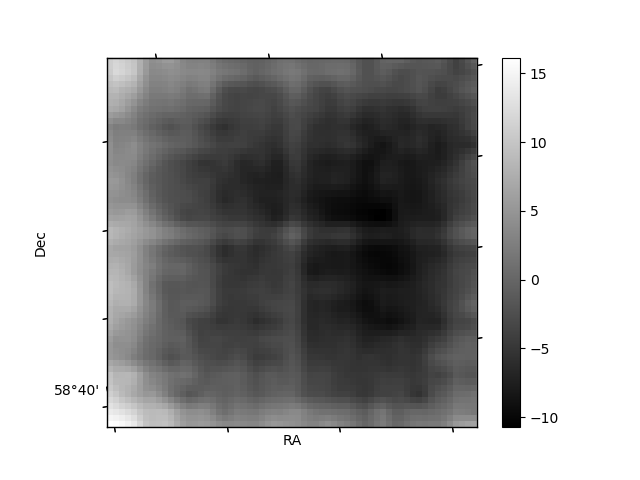

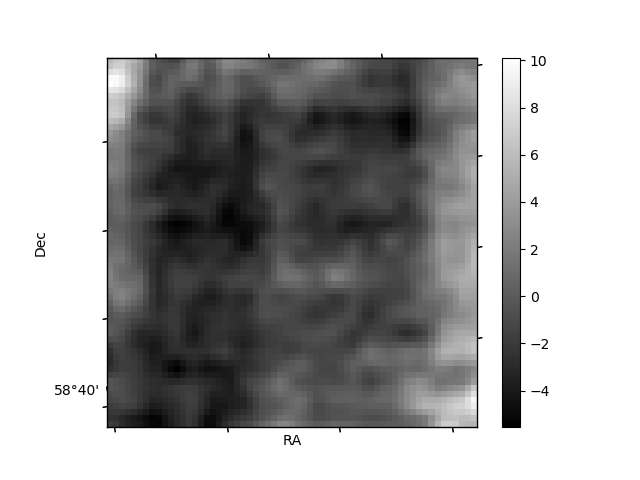

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

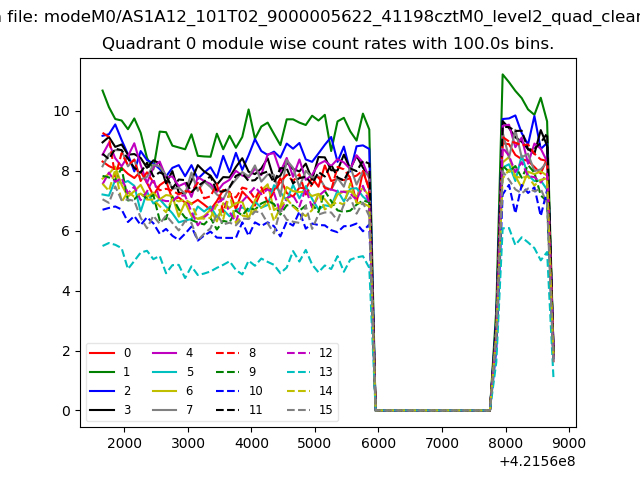

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

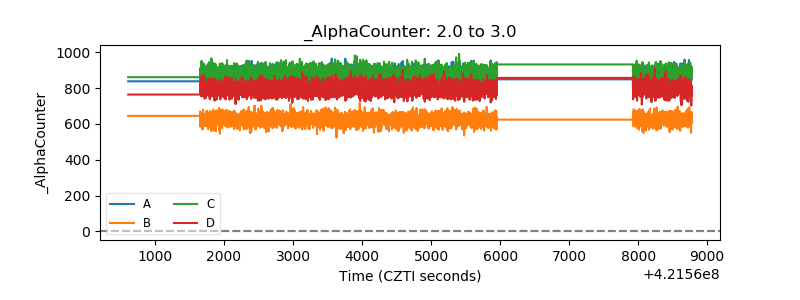

| Alpha Counter |  |

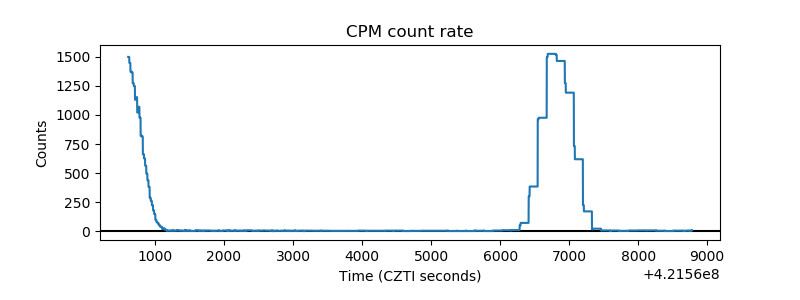

| _CPM_Rate |  |
| CZT Counter |  |

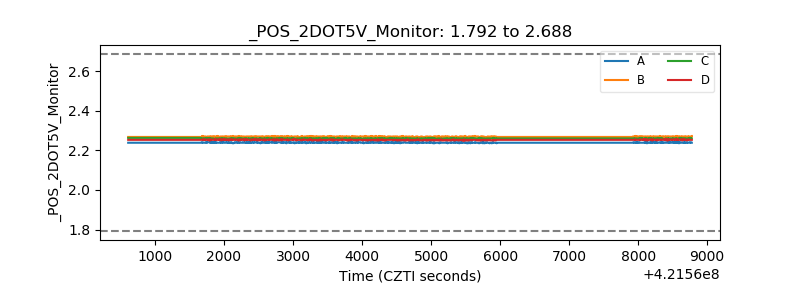

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

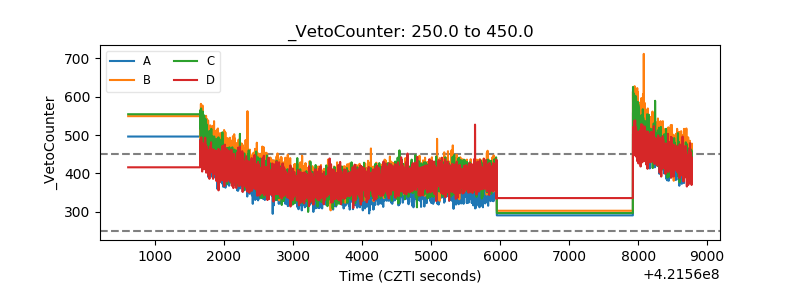

| Veto Counter |  |
