| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_102T01_9000005634_41233cztM0_level2.fits | modeM0/AS1T05_102T01_9000005634_41233cztM0_level2_quad_clean.evt |
| Size (bytes) | 381,913,920 | 98,879,040 |
| Size | 364.2 MB | 94.3 MB |
| Events in quadrant A | 3,431,704 | 666,924 |
| Events in quadrant B | 3,096,771 | 678,273 |
| Events in quadrant C | 3,749,316 | 637,626 |
| Events in quadrant D | 3,390,140 | 589,772 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13807 | 3 |
| B | 0 | 13294 | 2 |
| C | 0 | 15076 | 2 |
| D | 0 | 14398 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6030 | 21 | 0.348259% |
| B | 6030 | 34 | 0.563847% |
| C | 6030 | 184 | 3.051410% |
| D | 6030 | 192 | 3.184080% |

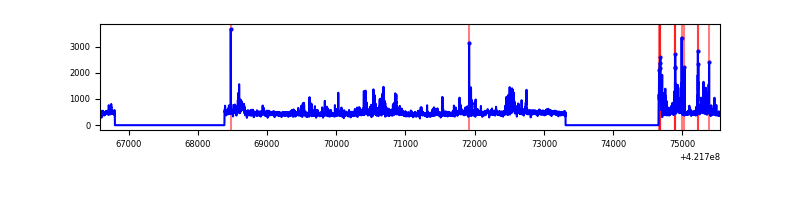

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8956 | 6032 | 15 | 15 | 0.17% | 0.25% |  |
| B | 8956 | 6032 | 14 | 14 | 0.16% | 0.23% |  |
| C | 8956 | 6032 | 176 | 176 | 1.97% | 2.92% |  |
| D | 8956 | 6032 | 179 | 179 | 2.00% | 2.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 563355 | 4102.63 | 663 | 649 | 137.2 |
| A | 0 | 8 | 265557 | 1931.42 | 663 | 649 | 137.2 |
| A | 13 | 6 | 15604 | 109.03 | 663 | 649 | 137.2 |
| B | 5 | 255 | 148020 | 1150.58 | 657 | 639 | 128.1 |
| B | 0 | 229 | 144072 | 1119.76 | 657 | 639 | 128.1 |
| B | 5 | 185 | 87682 | 679.53 | 657 | 639 | 128.1 |
| C | 9 | 54 | 538386 | 3601.23 | 638 | 642 | 149.3 |
| C | 0 | 10 | 457474 | 3059.37 | 638 | 642 | 149.3 |
| C | 15 | 214 | 255119 | 1704.21 | 638 | 642 | 149.3 |
| D | 2 | 249 | 452270 | 2854.6 | 642 | 624 | 158.2 |
| D | 5 | 222 | 289540 | 1826.08 | 642 | 624 | 158.2 |
| D | 6 | 112 | 62307 | 389.86 | 642 | 624 | 158.2 |

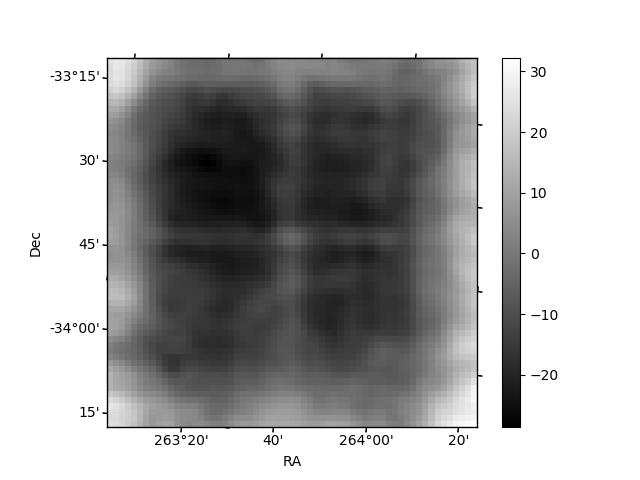

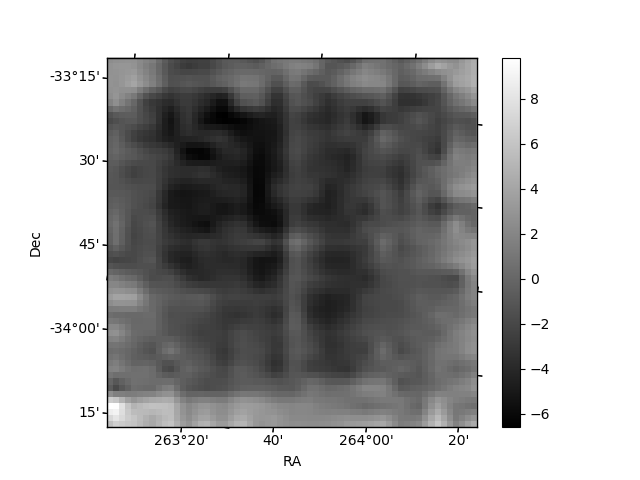

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

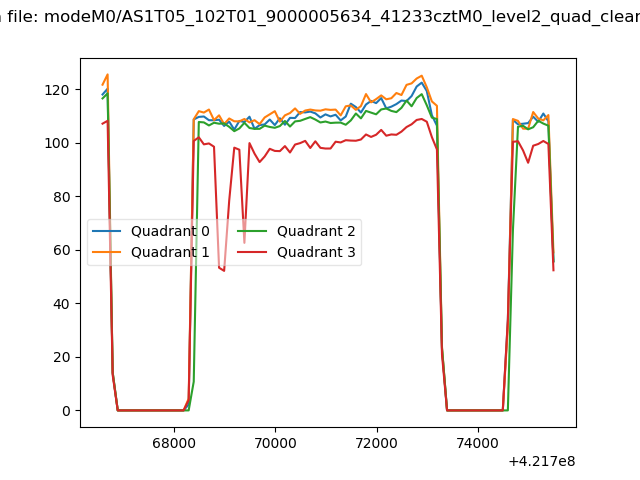

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

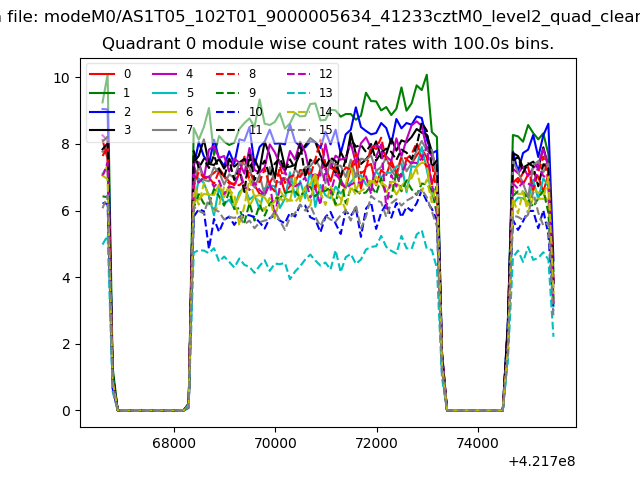

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

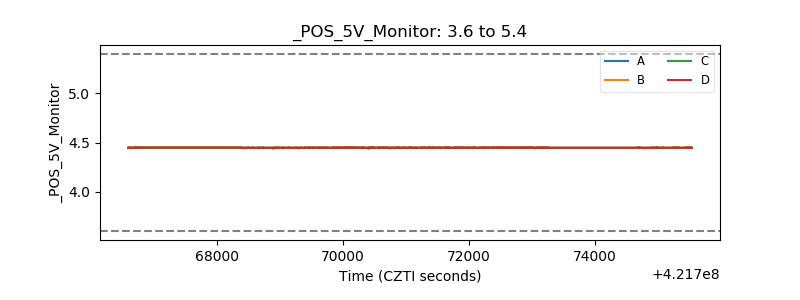

| +5 Volts monitor |  |

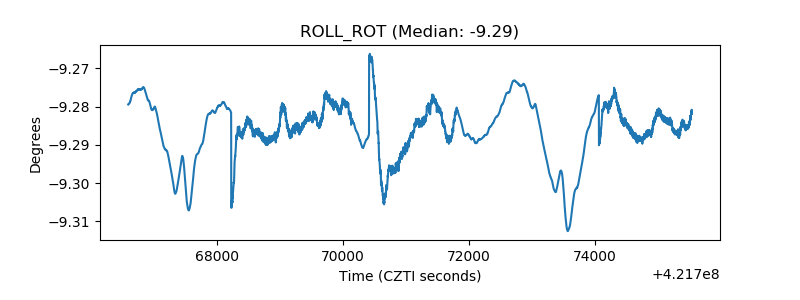

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
