| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_106T01_9000005642_41305cztM0_level2.fits | modeM0/AS1T05_106T01_9000005642_41305cztM0_level2_quad_clean.evt |
| Size (bytes) | 355,991,040 | 91,517,760 |
| Size | 339.5 MB | 87.3 MB |
| Events in quadrant A | 3,577,249 | 605,497 |
| Events in quadrant B | 2,575,556 | 630,518 |
| Events in quadrant C | 3,186,576 | 585,377 |
| Events in quadrant D | 3,397,667 | 554,256 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14087 | 3 |
| B | 0 | 11672 | 2 |
| C | 0 | 13099 | 2 |
| D | 0 | 14076 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5659 | 94 | 1.661071% |
| B | 5659 | 5 | 0.088355% |
| C | 5659 | 255 | 4.506096% |
| D | 5659 | 121 | 2.138187% |

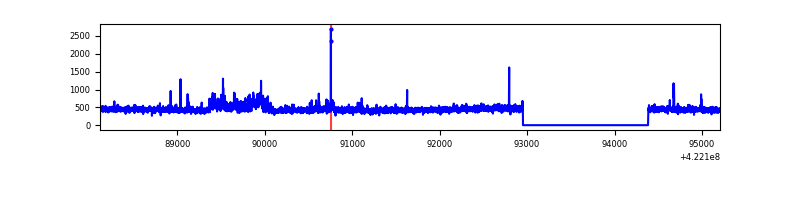

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7091 | 5660 | 89 | 89 | 1.26% | 1.57% |  |
| B | 7091 | 5660 | 2 | 2 | 0.03% | 0.04% |  |
| C | 7091 | 5660 | 244 | 244 | 3.44% | 4.31% |  |
| D | 7091 | 5660 | 109 | 109 | 1.54% | 1.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 10 | 558602 | 4450.38 | 604 | 592 | 125.4 |
| A | 10 | 83 | 533052 | 4246.61 | 604 | 592 | 125.4 |
| A | 2 | 79 | 62010 | 489.84 | 604 | 592 | 125.4 |
| B | 0 | 186 | 105598 | 906.28 | 605 | 589 | 115.9 |
| B | 0 | 229 | 34644 | 293.91 | 605 | 589 | 115.9 |
| B | 0 | 245 | 32903 | 278.88 | 605 | 589 | 115.9 |
| C | 0 | 10 | 685379 | 5085.94 | 578 | 583 | 134.6 |
| C | 15 | 214 | 235879 | 1747.53 | 578 | 583 | 134.6 |
| C | 7 | 220 | 8484 | 58.68 | 578 | 583 | 134.6 |
| D | 2 | 249 | 425451 | 3006.69 | 589 | 575 | 141.3 |
| D | 5 | 222 | 343778 | 2428.72 | 589 | 575 | 141.3 |
| D | 13 | 249 | 148660 | 1047.94 | 589 | 575 | 141.3 |

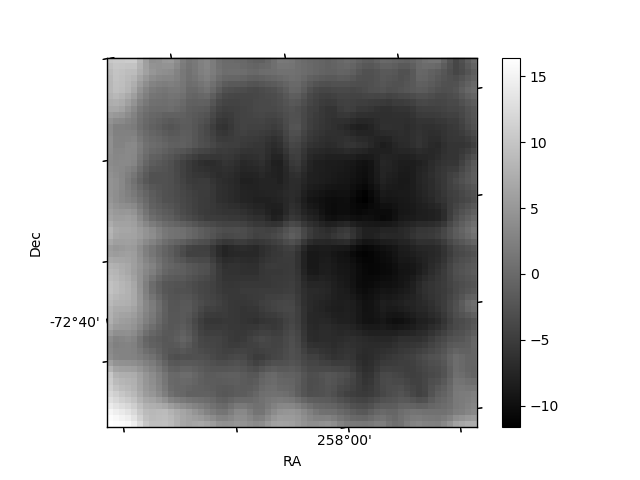

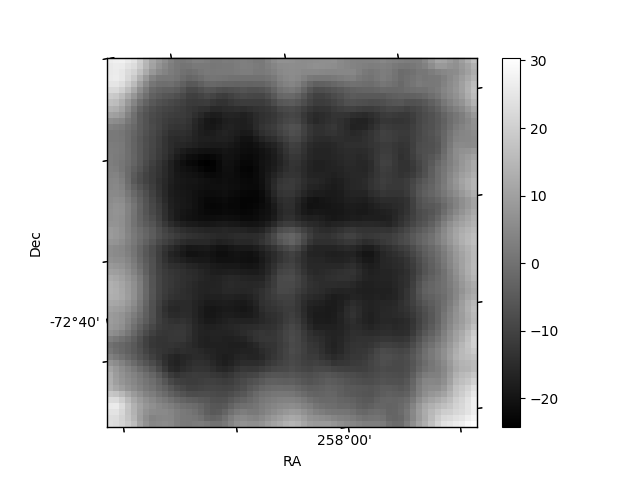

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

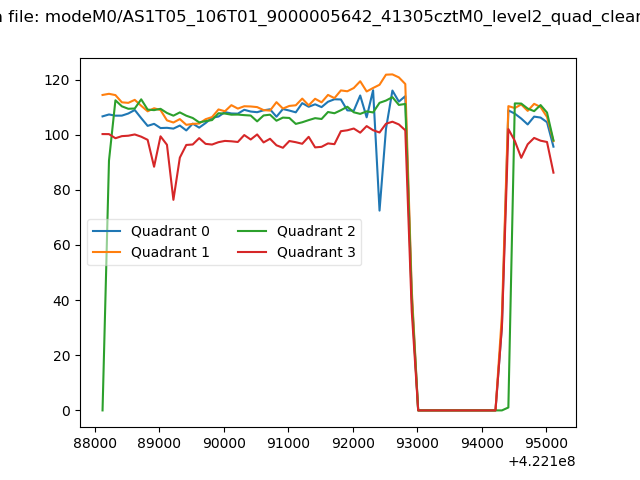

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

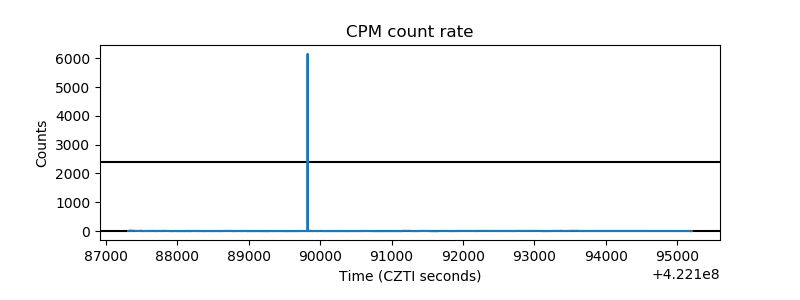

| _CPM_Rate |  |

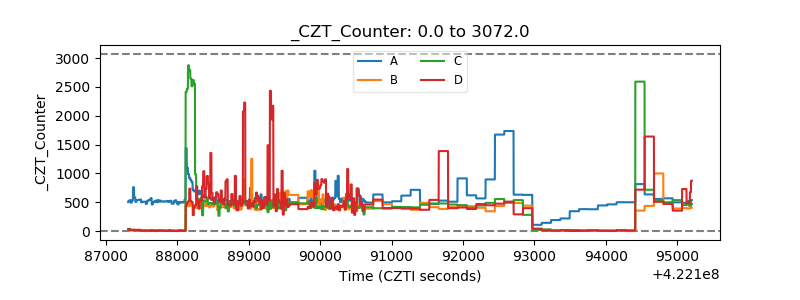

| CZT Counter |  |

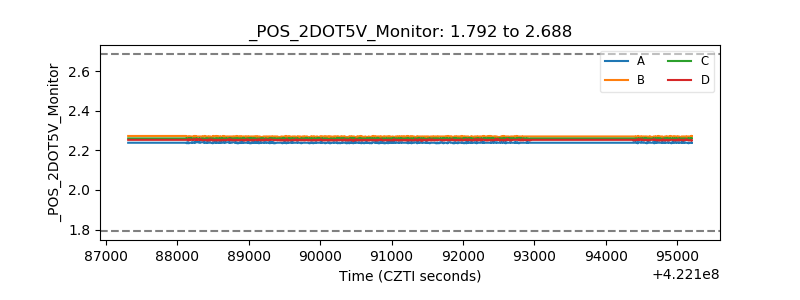

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
