| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_035T02_9000005680_41635cztM0_level2.fits | modeM0/AS1A12_035T02_9000005680_41635cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,158,080 | 79,424,640 |
| Size | 494.2 MB | 75.7 MB |
| Events in quadrant A | 2,788,241 | 618,578 |
| Events in quadrant B | 2,463,837 | 629,153 |
| Events in quadrant C | 3,207,077 | 556,657 |
| Events in quadrant D | 10,338,755 | 255,155 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11193 | 2 |
| B | 0 | 10524 | 2 |
| C | 0 | 12402 | 2 |
| D | 0 | 34057 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4920 | 15 | 0.304878% |
| B | 4920 | 21 | 0.426829% |
| C | 4920 | 248 | 5.040650% |
| D | 4920 | 3020 | 61.382114% |

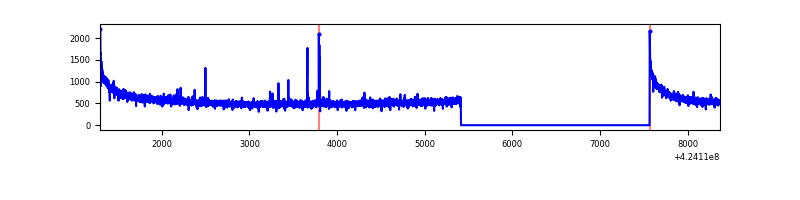

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7073 | 4921 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7073 | 4921 | 5 | 5 | 0.07% | 0.10% |  |
| C | 7073 | 4921 | 237 | 237 | 3.35% | 4.82% |  |
| D | 7073 | 4921 | 3117 | 3117 | 44.07% | 63.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 510700 | 4368.29 | 576 | 566 | 116.8 |
| A | 2 | 79 | 15415 | 127.15 | 576 | 566 | 116.8 |
| A | 9 | 254 | 12871 | 105.37 | 576 | 566 | 116.8 |
| B | 0 | 189 | 103412 | 945.33 | 573 | 559 | 108.8 |
| B | 4 | 141 | 60429 | 550.27 | 573 | 559 | 108.8 |
| B | 0 | 190 | 17237 | 153.29 | 573 | 559 | 108.8 |
| C | 0 | 10 | 550497 | 4382.09 | 540 | 544 | 125.5 |
| C | 14 | 254 | 318713 | 2535.21 | 540 | 544 | 125.5 |
| C | 15 | 214 | 211113 | 1677.84 | 540 | 544 | 125.5 |
| D | 12 | 79 | 7625349 | 67500.57 | 461 | 447 | 113.0 |
| D | 2 | 249 | 572073 | 5060.4 | 461 | 447 | 113.0 |
| D | 13 | 249 | 242689 | 2144.48 | 461 | 447 | 113.0 |

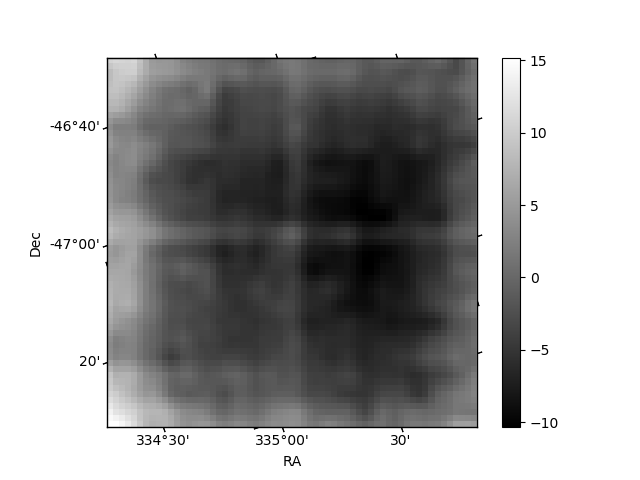

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

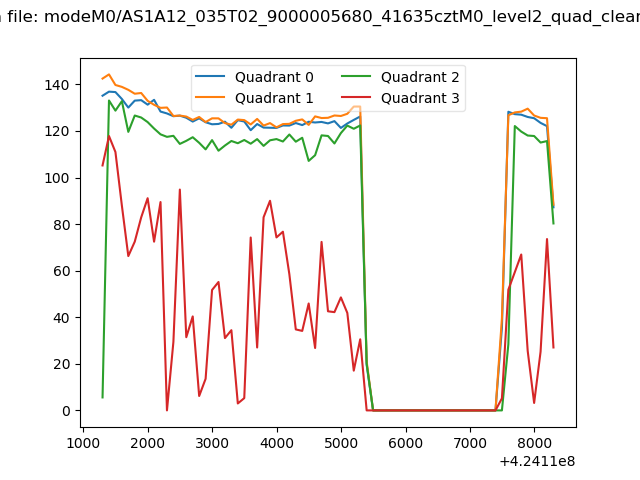

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

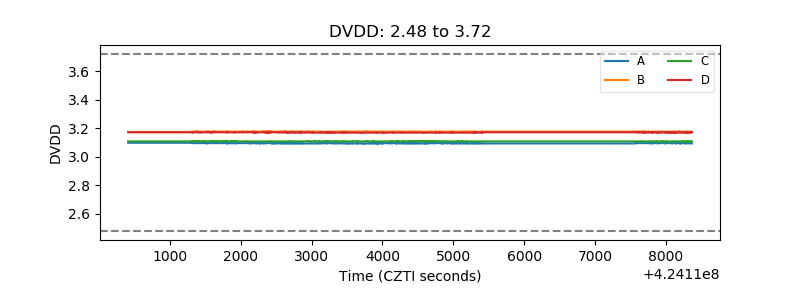

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

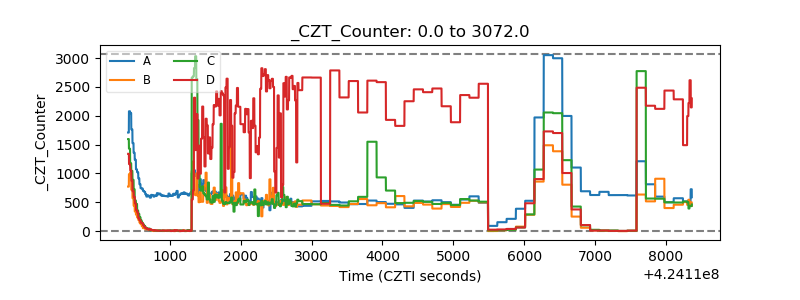

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

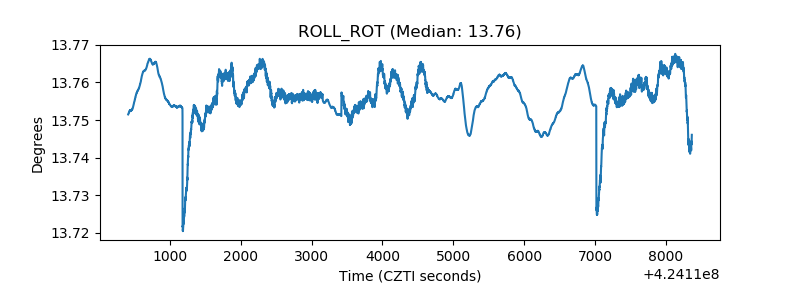

| _ROLL_ROT |  |
| _Roll_DEC |  |

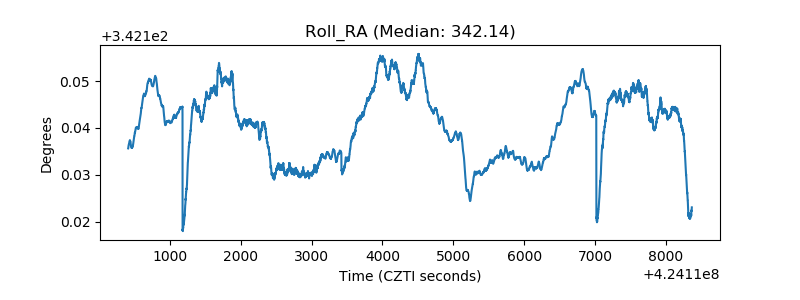

| _Roll_RA |  |

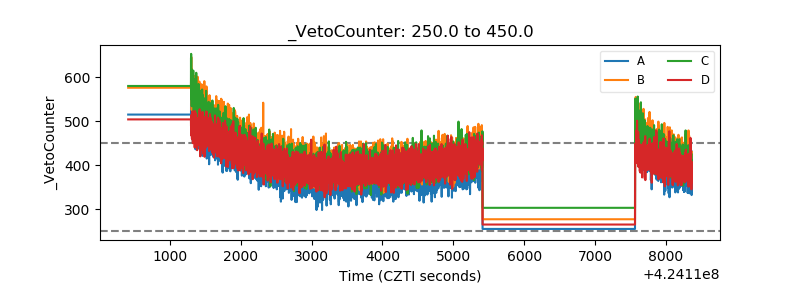

| Veto Counter |  |
