| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_035T02_9000005680_41639cztM0_level2.fits | modeM0/AS1A12_035T02_9000005680_41639cztM0_level2_quad_clean.evt |
| Size (bytes) | 220,973,760 | 45,146,880 |
| Size | 210.7 MB | 43.1 MB |
| Events in quadrant A | 1,473,697 | 310,287 |
| Events in quadrant B | 1,236,834 | 315,810 |
| Events in quadrant C | 1,604,915 | 290,897 |
| Events in quadrant D | 3,640,988 | 246,805 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6183 | 1 |
| B | 0 | 5789 | 1 |
| C | 0 | 6569 | 1 |
| D | 0 | 12855 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2849 | 8 | 0.280800% |
| B | 2849 | 2 | 0.070200% |
| C | 2850 | 97 | 3.403509% |
| D | 2850 | 418 | 14.666667% |

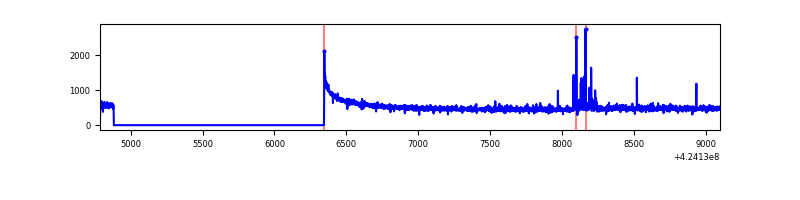

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

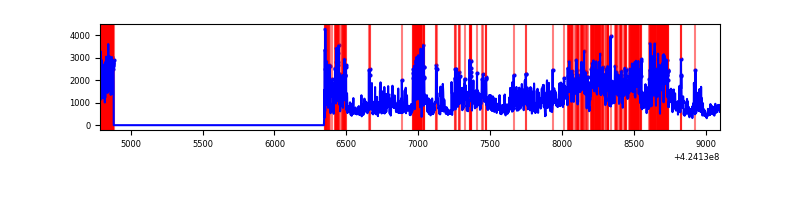

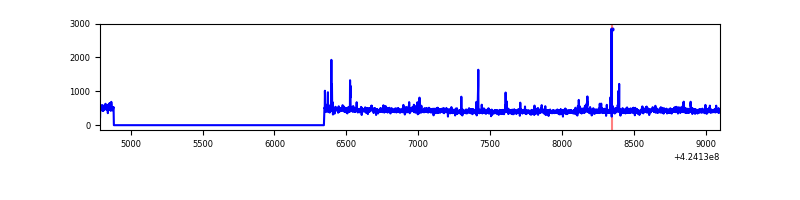

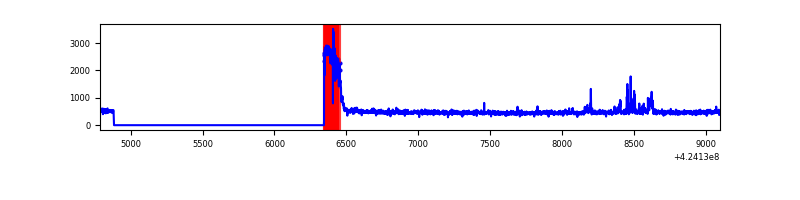

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4312 | 2850 | 3 | 3 | 0.07% | 0.11% |  |
| B | 4312 | 2850 | 1 | 1 | 0.02% | 0.04% |  |
| C | 4313 | 2851 | 96 | 96 | 2.23% | 3.37% |  |
| D | 4313 | 2850 | 429 | 429 | 9.95% | 15.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 270353 | 4334.69 | 299 | 292 | 62.3 |
| A | 13 | 248 | 38209 | 608.6 | 299 | 292 | 62.3 |
| A | 2 | 79 | 5970 | 91.14 | 299 | 292 | 62.3 |
| B | 0 | 190 | 23602 | 396.47 | 298 | 289 | 58.8 |
| B | 5 | 255 | 14491 | 241.52 | 298 | 289 | 58.8 |
| B | 0 | 189 | 13957 | 232.44 | 298 | 289 | 58.8 |
| C | 0 | 10 | 267407 | 3804.7 | 293 | 294 | 70.2 |
| C | 15 | 214 | 115144 | 1635.9 | 293 | 294 | 70.2 |
| C | 1 | 23 | 49293 | 697.93 | 293 | 294 | 70.2 |
| D | 13 | 249 | 1290823 | 18500.68 | 280 | 272 | 69.8 |
| D | 12 | 79 | 833740 | 11948.17 | 280 | 272 | 69.8 |
| D | 2 | 249 | 229285 | 3283.01 | 280 | 272 | 69.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

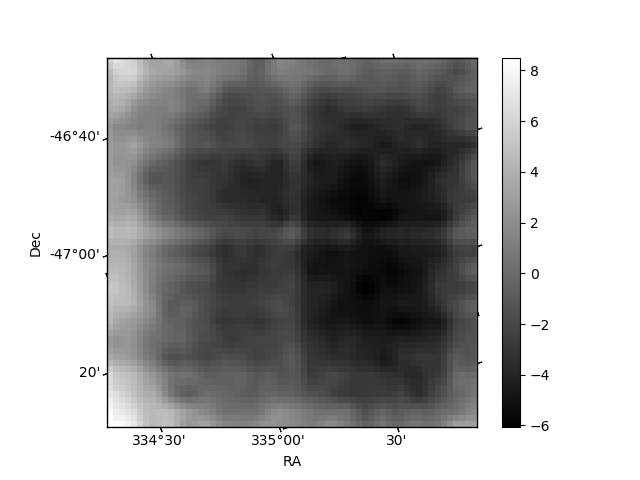

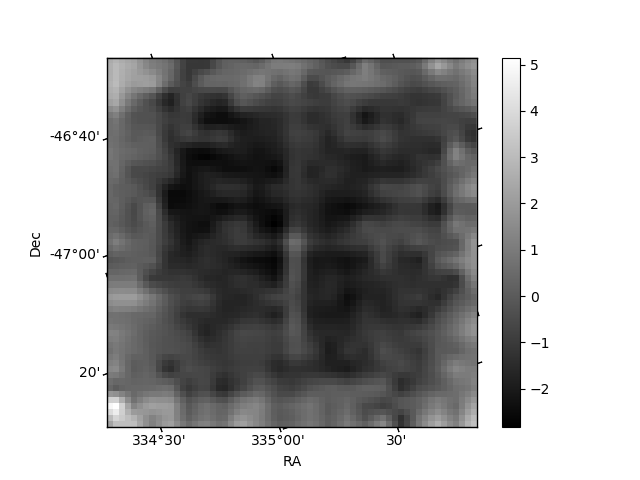

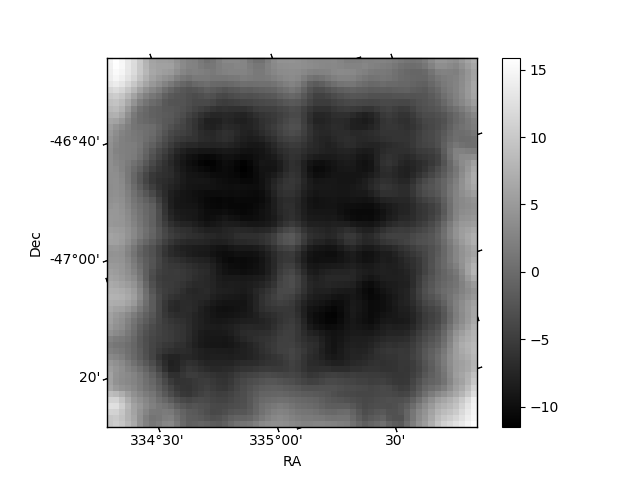

| Plot type | Count rate plots | Images |
|---|---|---|

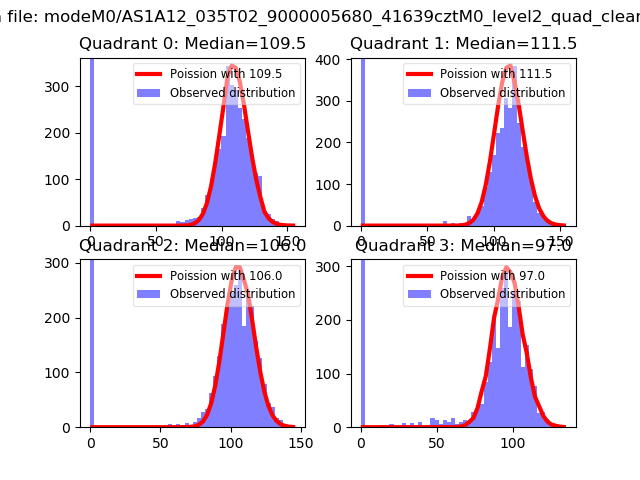

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

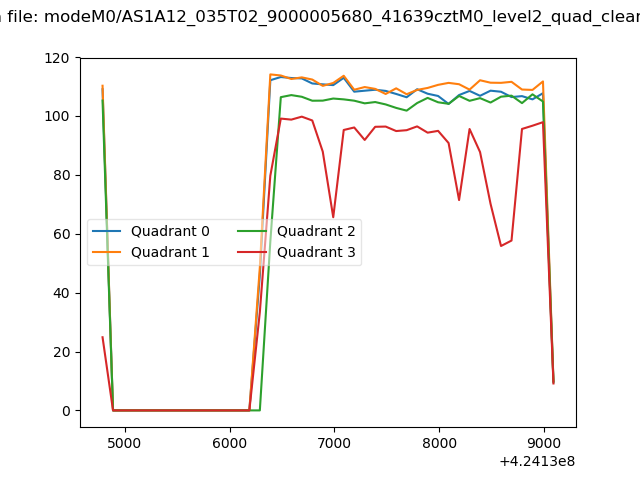

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

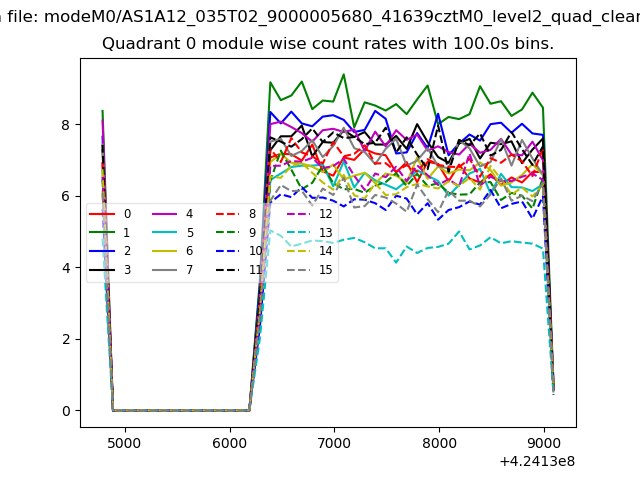

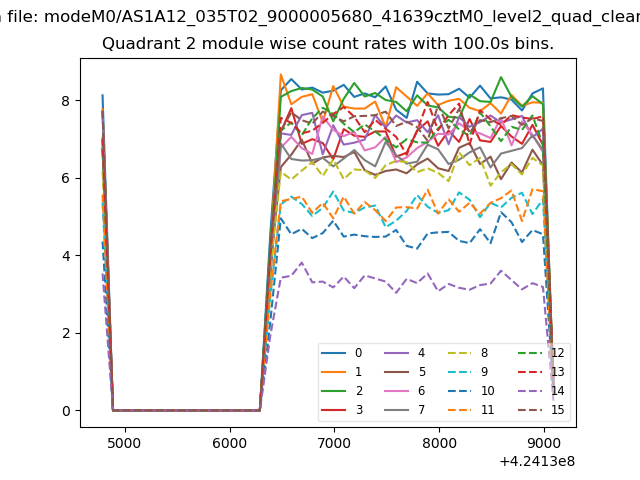

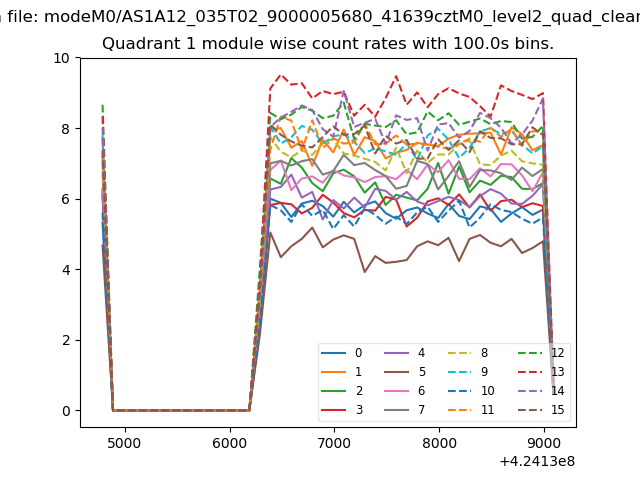

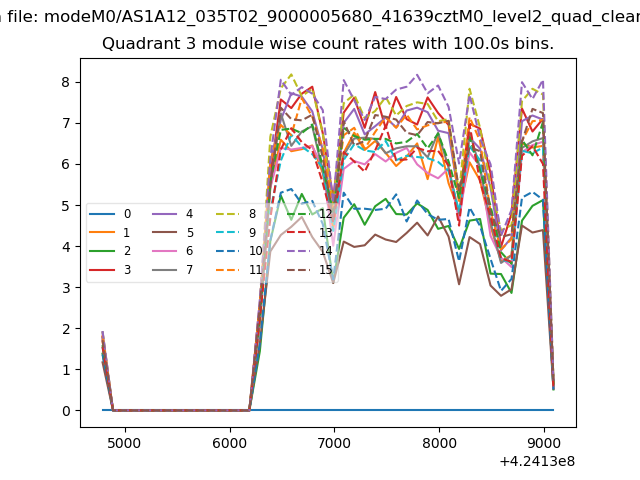

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

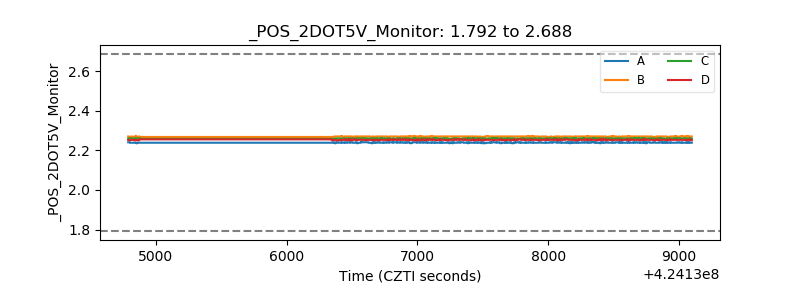

| D_VDD |  |

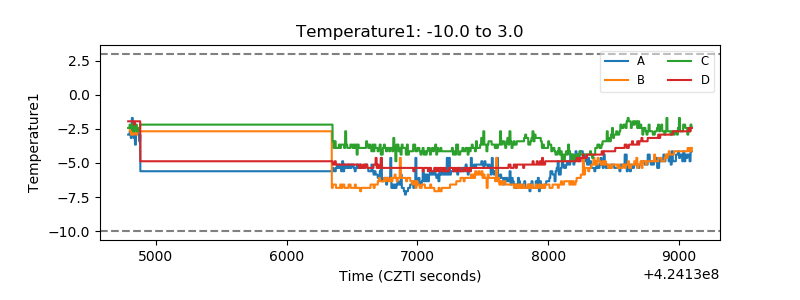

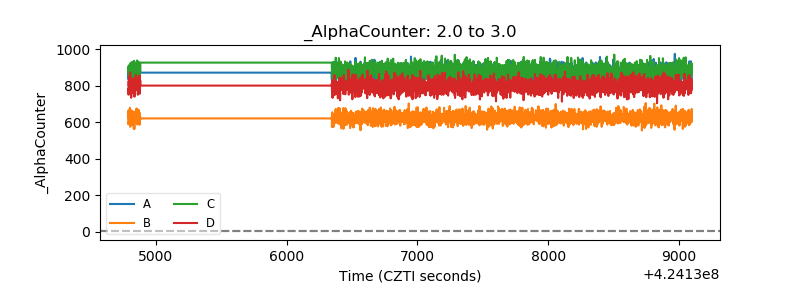

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

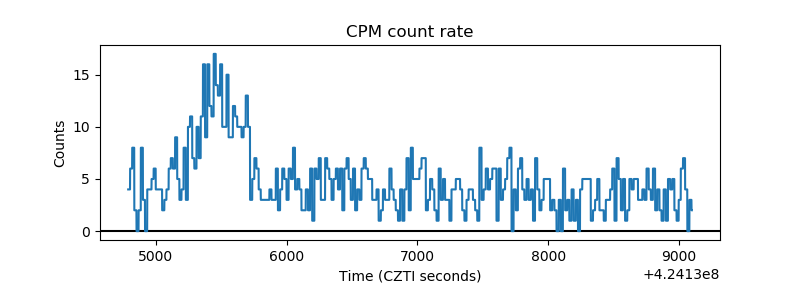

| _CPM_Rate |  |

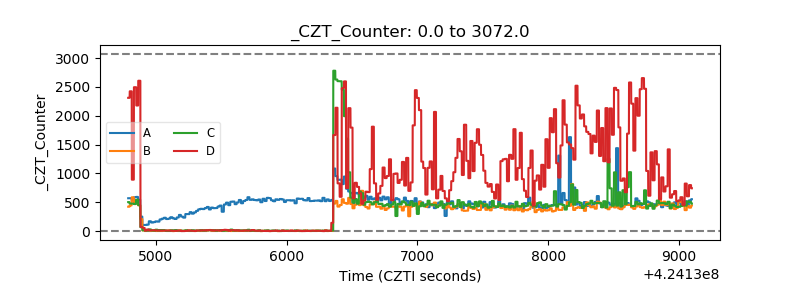

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

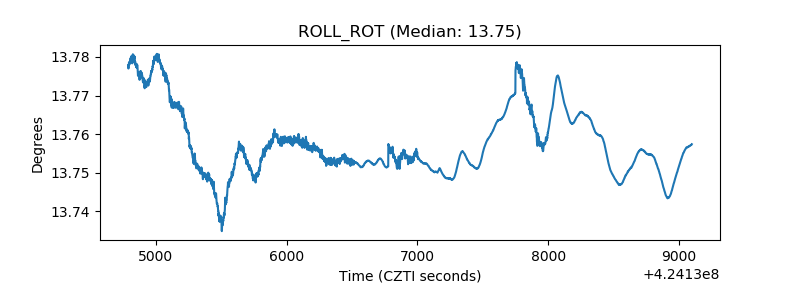

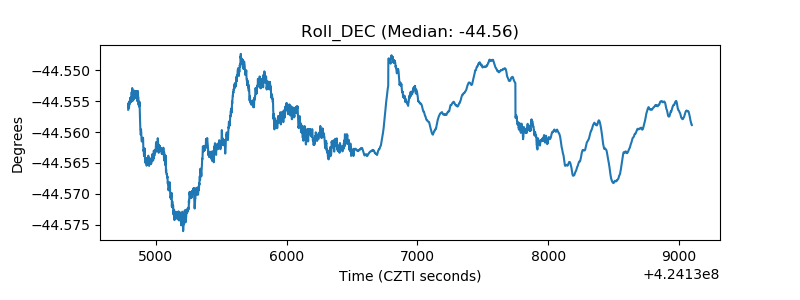

| _ROLL_ROT |  |
| _Roll_DEC |  |

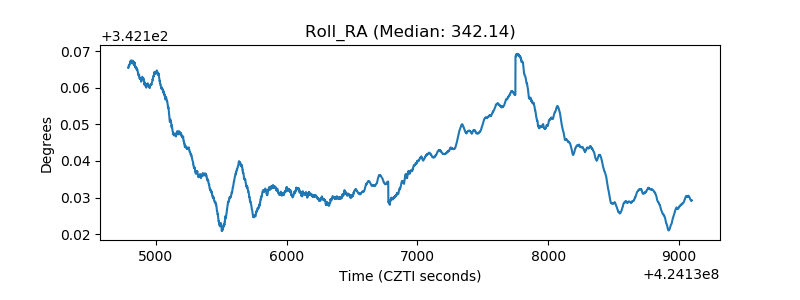

| _Roll_RA |  |

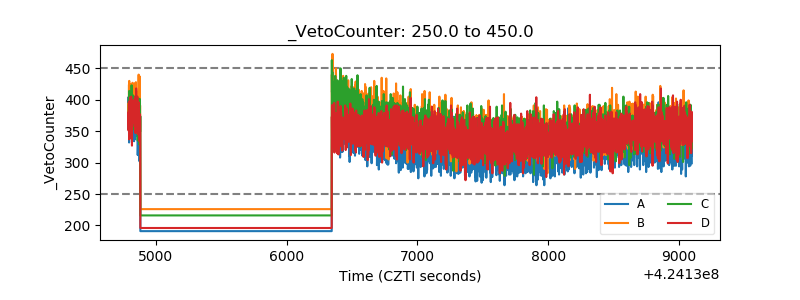

| Veto Counter |  |
