| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_117T01_9000005684_41671cztM0_level2.fits | modeM0/AS1T05_117T01_9000005684_41671cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,012,682,880 | 246,225,600 |
| Size | 965.8 MB | 234.8 MB |
| Events in quadrant A | 8,458,108 | 1,659,367 |
| Events in quadrant B | 7,188,797 | 1,704,799 |
| Events in quadrant C | 7,865,219 | 1,638,226 |
| Events in quadrant D | 12,760,966 | 1,371,545 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 320 | 0 |
| B | 0 | 320 | 0 |
| C | 0 | 320 | 0 |
| D | 0 | 320 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 51 | 0 |
| C | 0 | 51 | 0 |
| D | 0 | 51 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34391 | 4 |
| B | 0 | 32365 | 4 |
| C | 0 | 33559 | 4 |
| D | 0 | 48901 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15664 | 104 | 0.663943% |
| B | 15664 | 33 | 0.210674% |
| C | 15664 | 114 | 0.727783% |
| D | 15664 | 1439 | 9.186670% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

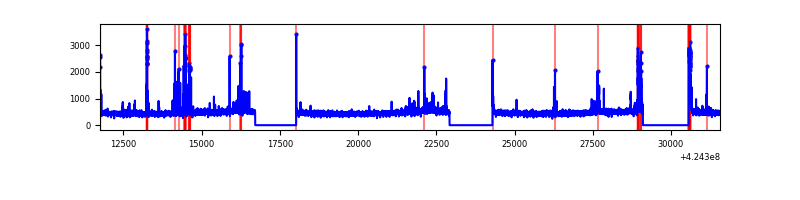

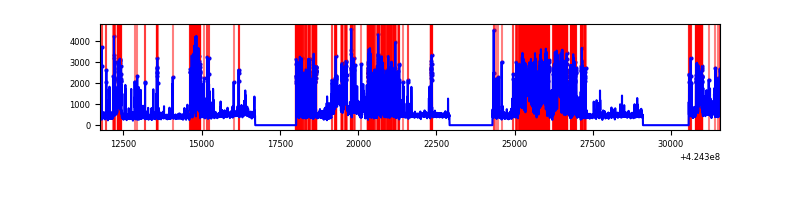

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19811 | 15667 | 73 | 73 | 0.37% | 0.47% |  |
| B | 19811 | 15667 | 8 | 8 | 0.04% | 0.05% |  |
| C | 19811 | 15667 | 107 | 107 | 0.54% | 0.68% |  |
| D | 19811 | 15667 | 1381 | 1381 | 6.97% | 8.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1409818 | 4012.12 | 1713 | 1677 | 351.0 |
| A | 15 | 223 | 314909 | 892.47 | 1713 | 1677 | 351.0 |
| A | 13 | 248 | 41146 | 112.46 | 1713 | 1677 | 351.0 |
| B | 0 | 190 | 312973 | 942.0 | 1704 | 1655 | 330.5 |
| B | 5 | 255 | 109032 | 324.91 | 1704 | 1655 | 330.5 |
| B | 12 | 111 | 43117 | 125.46 | 1704 | 1655 | 330.5 |
| C | 15 | 214 | 630018 | 1617.52 | 1674 | 1684 | 388.5 |
| C | 14 | 254 | 318039 | 814.39 | 1674 | 1684 | 388.5 |
| C | 0 | 10 | 199837 | 510.1 | 1674 | 1684 | 388.5 |
| D | 13 | 249 | 3785354 | 9591.84 | 1617 | 1573 | 394.5 |
| D | 2 | 249 | 1986298 | 5031.25 | 1617 | 1573 | 394.5 |
| D | 2 | 120 | 387968 | 979.51 | 1617 | 1573 | 394.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

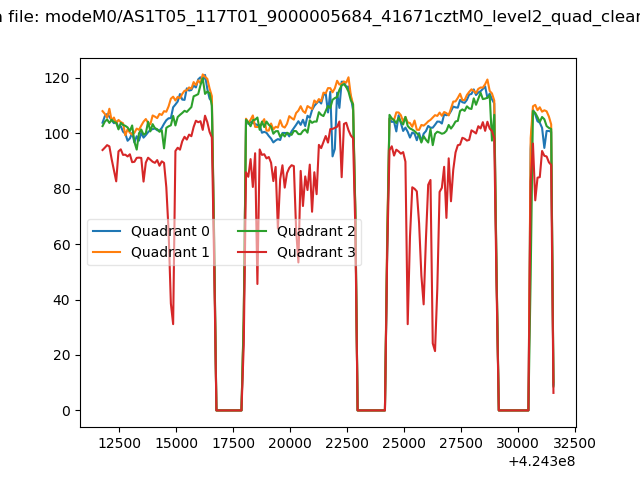

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

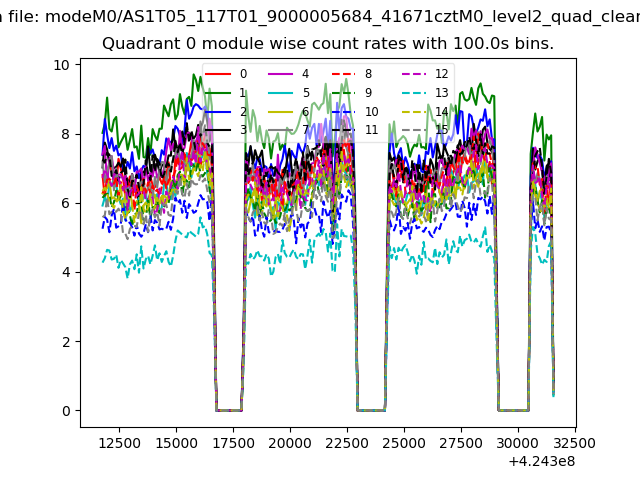

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

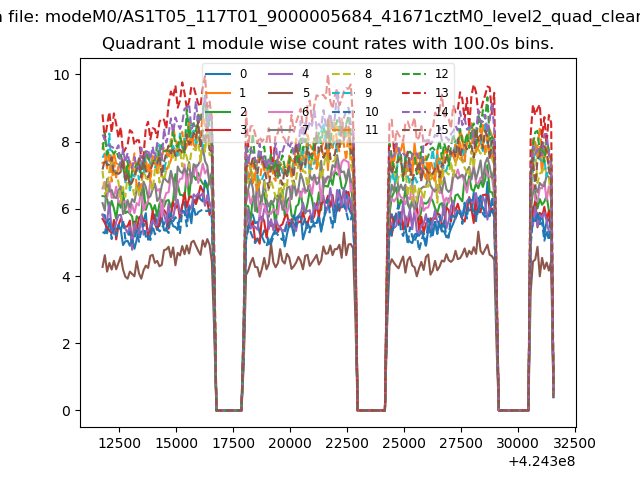

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

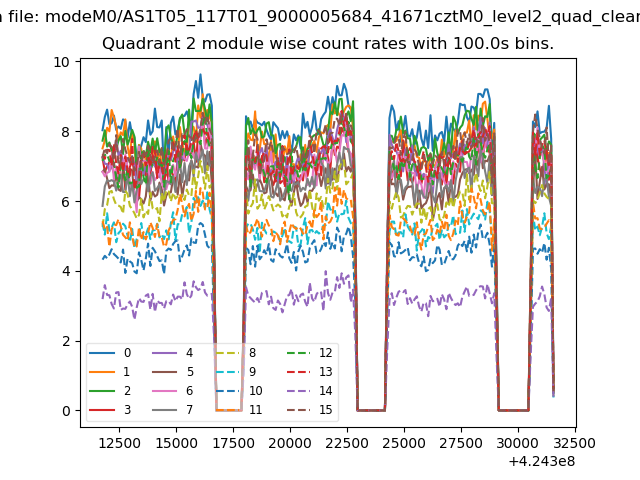

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

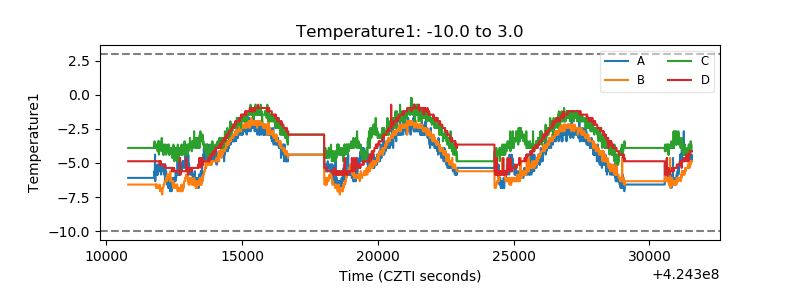

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

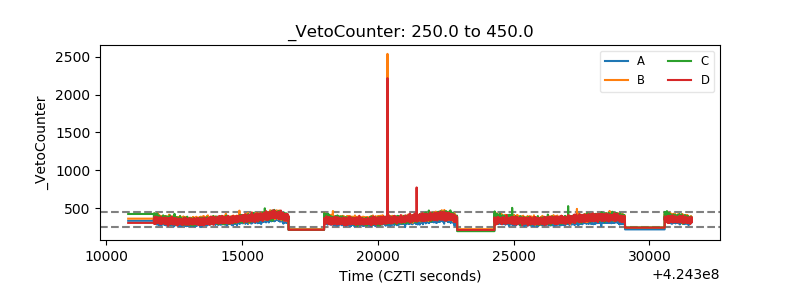

| Veto Counter |  |
