| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_117T01_9000005684_41673cztM0_level2.fits | modeM0/AS1T05_117T01_9000005684_41673cztM0_level2_quad_clean.evt |
| Size (bytes) | 367,986,240 | 92,528,640 |
| Size | 350.9 MB | 88.2 MB |
| Events in quadrant A | 3,075,640 | 630,189 |
| Events in quadrant B | 2,520,983 | 649,442 |
| Events in quadrant C | 2,945,506 | 600,949 |
| Events in quadrant D | 4,636,018 | 523,101 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12565 | 2 |
| B | 0 | 11458 | 2 |
| C | 0 | 12358 | 2 |
| D | 0 | 17638 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5693 | 10 | 0.175654% |
| B | 5693 | 6 | 0.105393% |
| C | 5693 | 107 | 1.879501% |
| D | 5693 | 560 | 9.836641% |

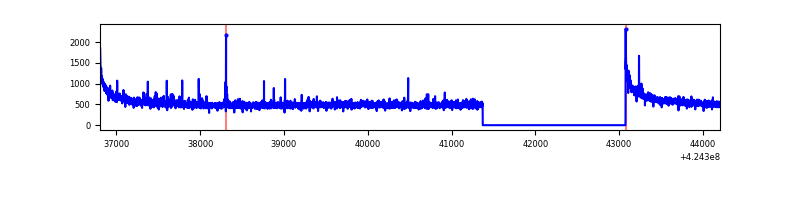

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7397 | 5694 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7397 | 5694 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7397 | 5694 | 100 | 100 | 1.35% | 1.76% |  |
| D | 7397 | 5694 | 504 | 504 | 6.81% | 8.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 558608 | 4246.63 | 635 | 622 | 131.4 |
| A | 13 | 248 | 43341 | 325.12 | 635 | 622 | 131.4 |
| A | 3 | 1 | 8602 | 60.73 | 635 | 622 | 131.4 |
| B | 0 | 245 | 19972 | 158.99 | 627 | 610 | 121.8 |
| B | 15 | 35 | 15850 | 125.14 | 627 | 610 | 121.8 |
| B | 12 | 111 | 15458 | 121.92 | 627 | 610 | 121.8 |
| C | 0 | 10 | 321164 | 2256.35 | 608 | 612 | 142.1 |
| C | 15 | 214 | 232621 | 1633.1 | 608 | 612 | 142.1 |
| C | 15 | 111 | 12927 | 86.68 | 608 | 612 | 142.1 |
| D | 13 | 249 | 941108 | 6471.19 | 594 | 578 | 145.3 |
| D | 2 | 249 | 808618 | 5559.61 | 594 | 578 | 145.3 |
| D | 2 | 120 | 241053 | 1654.56 | 594 | 578 | 145.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

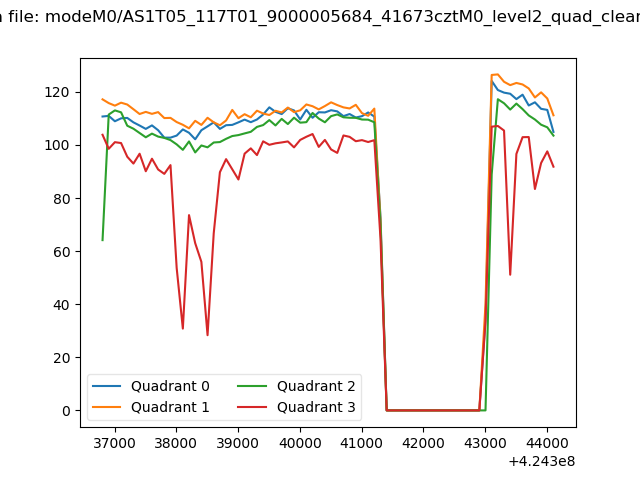

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

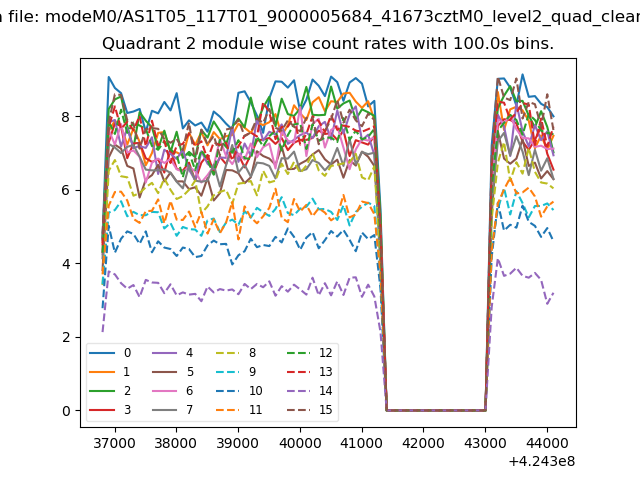

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

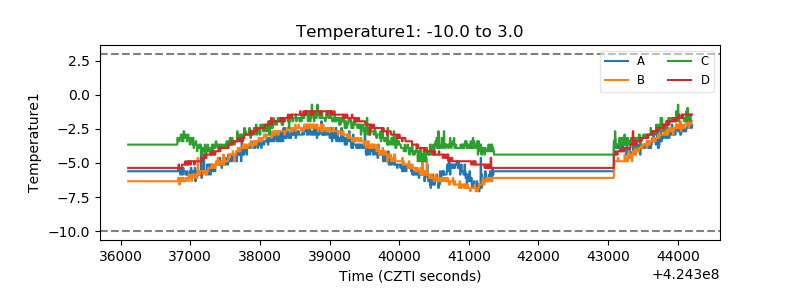

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

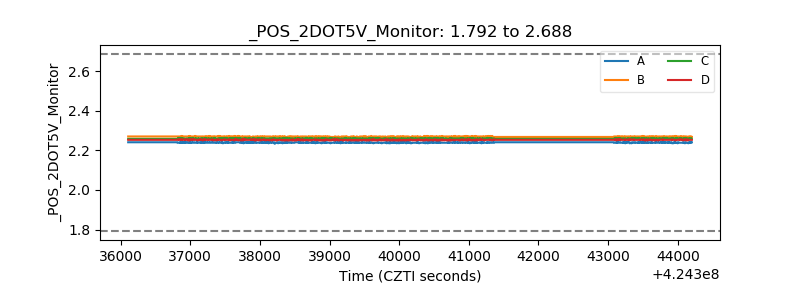

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
