| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_093T02_9000005704_41823cztM0_level2.fits | modeM0/AS1A12_093T02_9000005704_41823cztM0_level2_quad_clean.evt |
| Size (bytes) | 216,659,520 | 61,715,520 |
| Size | 206.6 MB | 58.9 MB |
| Events in quadrant A | 2,067,568 | 430,532 |
| Events in quadrant B | 1,646,513 | 434,055 |
| Events in quadrant C | 2,166,982 | 388,041 |
| Events in quadrant D | 1,872,724 | 375,189 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8241 | 1 |
| B | 0 | 7036 | 1 |
| C | 0 | 8329 | 1 |
| D | 0 | 7838 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3399 | 8 | 0.235363% |
| B | 3399 | 9 | 0.264784% |
| C | 3399 | 150 | 4.413063% |
| D | 3399 | 66 | 1.941748% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

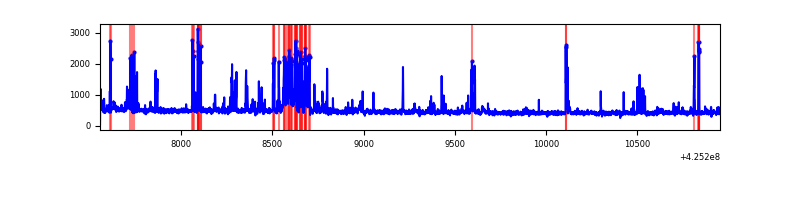

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3399 | 3399 | 4 | 4 | 0.12% | 0.12% |  |
| B | 3399 | 3399 | 3 | 3 | 0.09% | 0.09% |  |
| C | 3399 | 3399 | 147 | 147 | 4.32% | 4.32% |  |
| D | 3399 | 3399 | 57 | 57 | 1.68% | 1.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 348595 | 4193.28 | 403 | 395 | 83.0 |
| A | 12 | 189 | 79141 | 948.32 | 403 | 395 | 83.0 |
| A | 14 | 24 | 74656 | 894.31 | 403 | 395 | 83.0 |
| B | 0 | 186 | 24151 | 310.34 | 395 | 385 | 76.6 |
| B | 3 | 112 | 19902 | 254.85 | 395 | 385 | 76.6 |
| B | 0 | 183 | 13139 | 166.54 | 395 | 385 | 76.6 |
| C | 0 | 10 | 494429 | 5661.87 | 373 | 375 | 87.3 |
| C | 15 | 214 | 136656 | 1561.78 | 373 | 375 | 87.3 |
| C | 14 | 254 | 76528 | 872.72 | 373 | 375 | 87.3 |
| D | 13 | 249 | 255493 | 2701.9 | 389 | 379 | 94.4 |
| D | 12 | 233 | 35091 | 367.63 | 389 | 379 | 94.4 |
| D | 5 | 222 | 22469 | 233.95 | 389 | 379 | 94.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

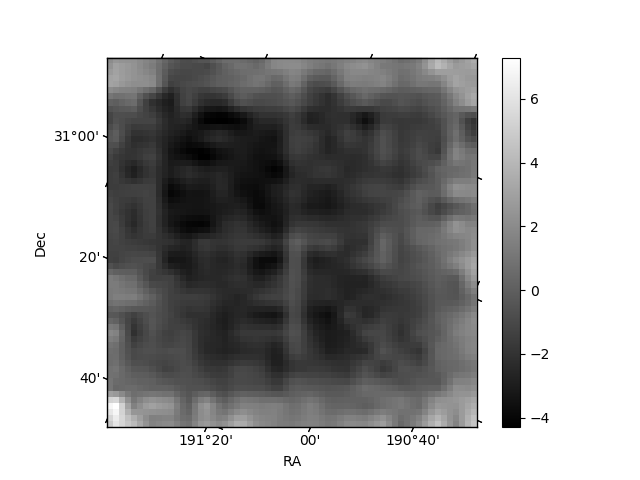

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

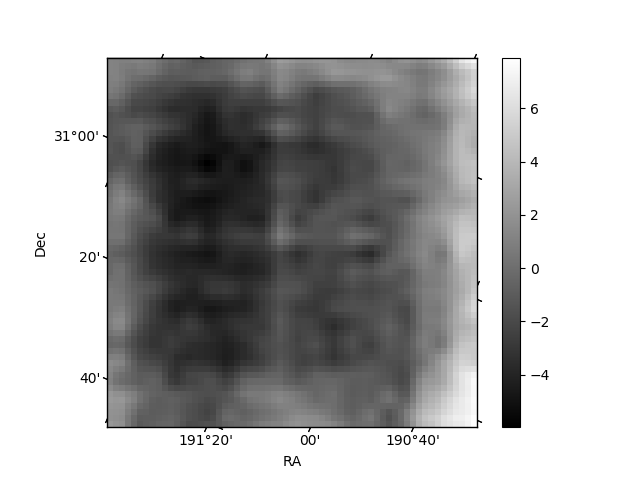

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

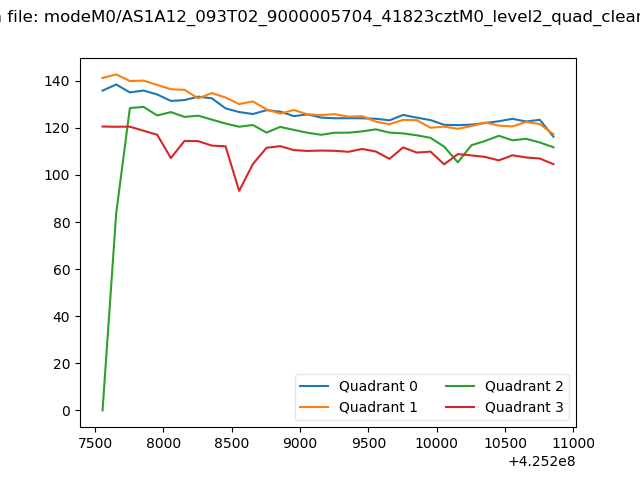

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

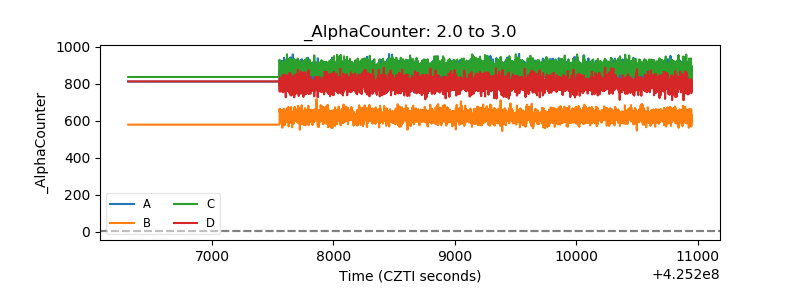

| Alpha Counter |  |
| _CPM_Rate |  |

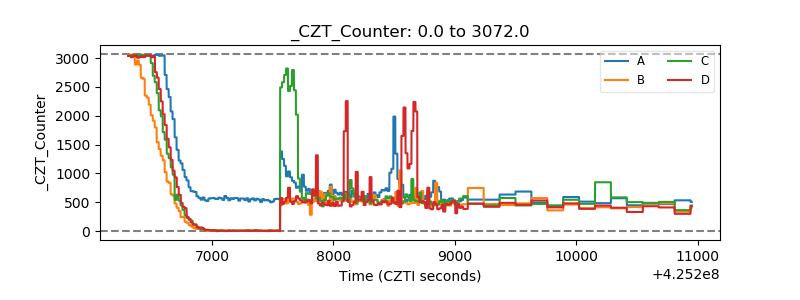

| CZT Counter |  |

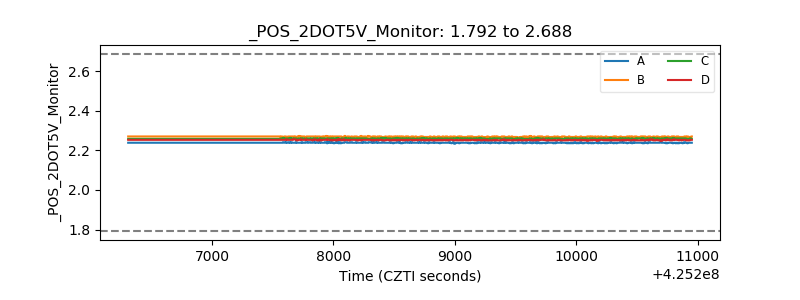

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

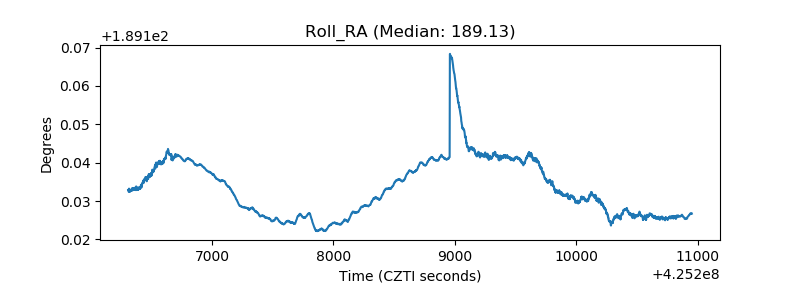

| _Roll_RA |  |
| Veto Counter |  |
