| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_099T01_9000005716_41907cztM0_level2.fits | modeM0/AS1A12_099T01_9000005716_41907cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,321,920 | 85,556,160 |
| Size | 439.0 MB | 81.6 MB |
| Events in quadrant A | 3,336,437 | 614,970 |
| Events in quadrant B | 2,904,446 | 624,989 |
| Events in quadrant C | 3,248,721 | 573,733 |
| Events in quadrant D | 7,135,500 | 403,425 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13163 | 2 |
| B | 0 | 12240 | 2 |
| C | 0 | 12767 | 2 |
| D | 0 | 24727 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5330 | 44 | 0.825516% |
| B | 5330 | 179 | 3.358349% |
| C | 5330 | 275 | 5.159475% |
| D | 5330 | 1429 | 26.810507% |

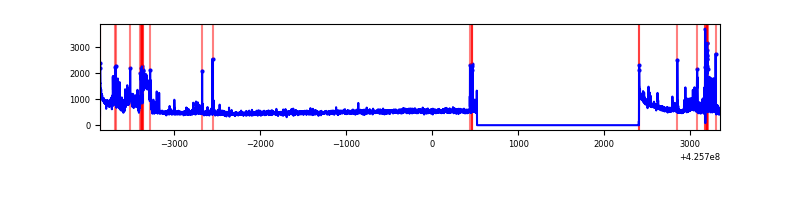

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7214 | 5331 | 37 | 37 | 0.51% | 0.69% |  |
| B | 7214 | 5330 | 130 | 130 | 1.80% | 2.44% |  |
| C | 7214 | 5331 | 272 | 272 | 3.77% | 5.10% |  |
| D | 7214 | 5331 | 1422 | 1422 | 19.71% | 26.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 520244 | 4275.29 | 592 | 581 | 121.6 |
| A | 14 | 24 | 465279 | 3823.09 | 592 | 581 | 121.6 |
| A | 15 | 223 | 59318 | 483.23 | 592 | 581 | 121.6 |
| B | 5 | 255 | 560243 | 4948.12 | 589 | 574 | 113.1 |
| B | 0 | 245 | 15069 | 128.15 | 589 | 574 | 113.1 |
| B | 12 | 111 | 14075 | 119.36 | 589 | 574 | 113.1 |
| C | 0 | 10 | 794589 | 5996.65 | 569 | 573 | 132.4 |
| C | 15 | 214 | 207978 | 1566.39 | 569 | 573 | 132.4 |
| C | 0 | 15 | 25189 | 185.91 | 569 | 573 | 132.4 |
| D | 12 | 79 | 4922847 | 42319.43 | 477 | 465 | 116.3 |
| D | 12 | 6 | 111818 | 957.34 | 477 | 465 | 116.3 |
| D | 13 | 249 | 88442 | 756.37 | 477 | 465 | 116.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

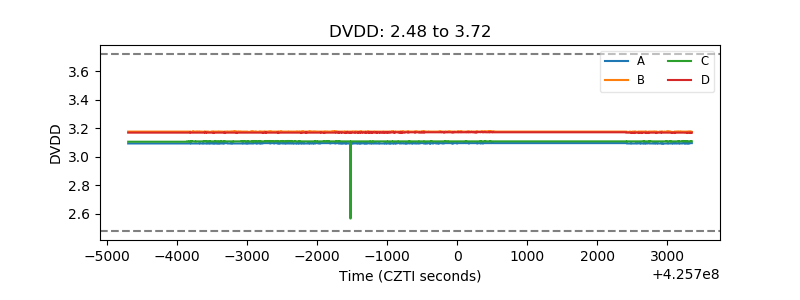

| D_VDD |  |

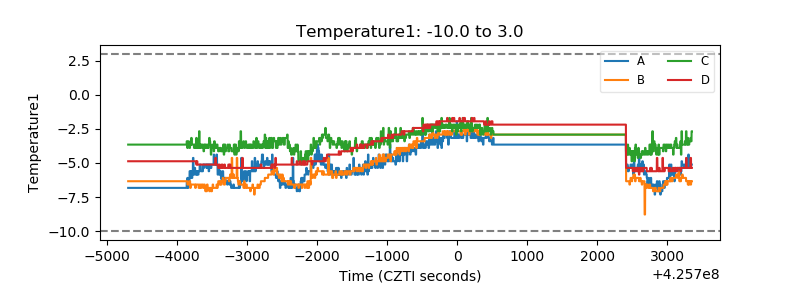

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

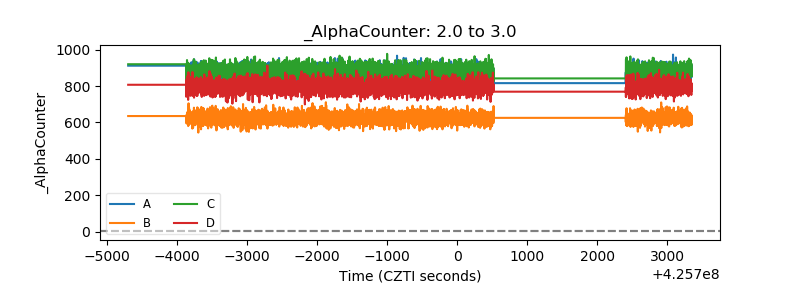

| Alpha Counter |  |

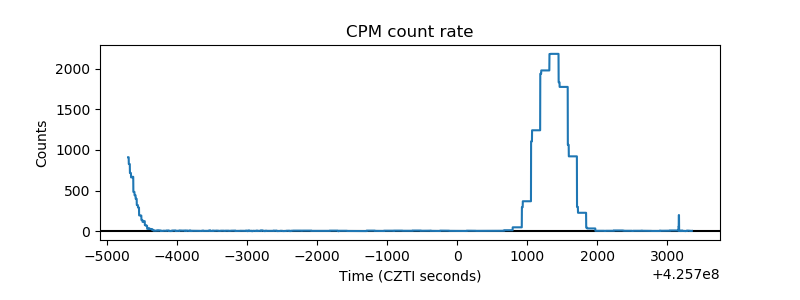

| _CPM_Rate |  |

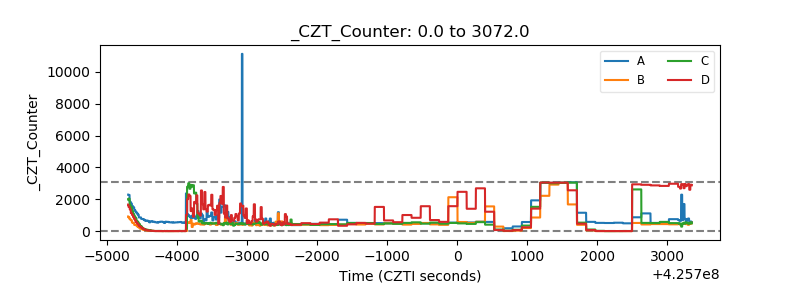

| CZT Counter |  |

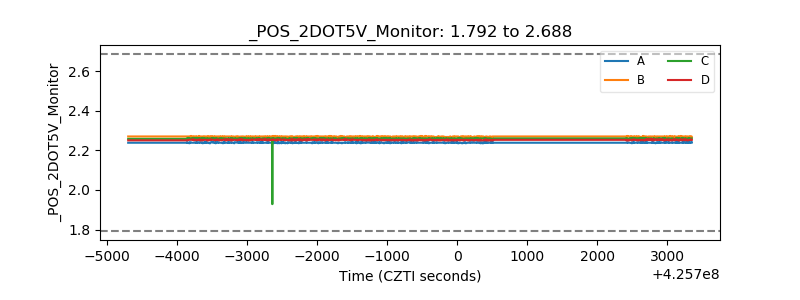

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
