| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_104T01_9000005728_41984cztM0_level2.fits | modeM0/AS1A12_104T01_9000005728_41984cztM0_level2_quad_clean.evt |
| Size (bytes) | 278,136,000 | 83,707,200 |
| Size | 265.3 MB | 79.8 MB |
| Events in quadrant A | 2,639,287 | 562,527 |
| Events in quadrant B | 2,256,664 | 579,984 |
| Events in quadrant C | 2,339,175 | 548,237 |
| Events in quadrant D | 2,671,348 | 494,447 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10735 | 3 |
| B | 0 | 10150 | 2 |
| C | 0 | 10050 | 2 |
| D | 0 | 11447 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4986 | 10 | 0.200562% |
| B | 4986 | 9 | 0.180505% |
| C | 4986 | 4 | 0.080225% |
| D | 4986 | 127 | 2.547132% |

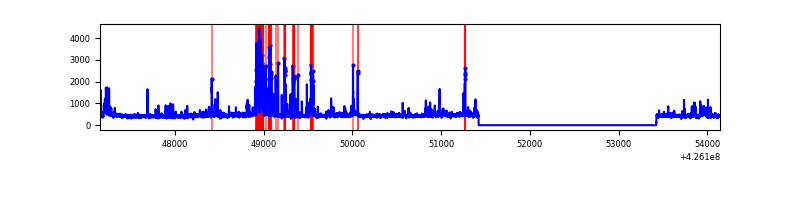

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6989 | 4987 | 4 | 4 | 0.06% | 0.08% |  |
| B | 6989 | 4987 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6989 | 4987 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6989 | 4987 | 92 | 92 | 1.32% | 1.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 491952 | 4361.91 | 552 | 542 | 112.7 |
| A | 2 | 79 | 11282 | 95.33 | 552 | 542 | 112.7 |
| A | 3 | 137 | 6067 | 49.04 | 552 | 542 | 112.7 |
| B | 0 | 190 | 33788 | 312.47 | 548 | 533 | 106.4 |
| B | 3 | 112 | 24619 | 226.32 | 548 | 533 | 106.4 |
| B | 12 | 0 | 21010 | 192.41 | 548 | 533 | 106.4 |
| C | 15 | 214 | 210618 | 1665.3 | 534 | 537 | 126.2 |
| C | 9 | 54 | 21362 | 165.08 | 534 | 537 | 126.2 |
| C | 8 | 79 | 20178 | 155.69 | 534 | 537 | 126.2 |
| D | 13 | 249 | 388673 | 3005.86 | 529 | 514 | 129.1 |
| D | 2 | 249 | 64783 | 497.69 | 529 | 514 | 129.1 |
| D | 11 | 6 | 62833 | 482.59 | 529 | 514 | 129.1 |

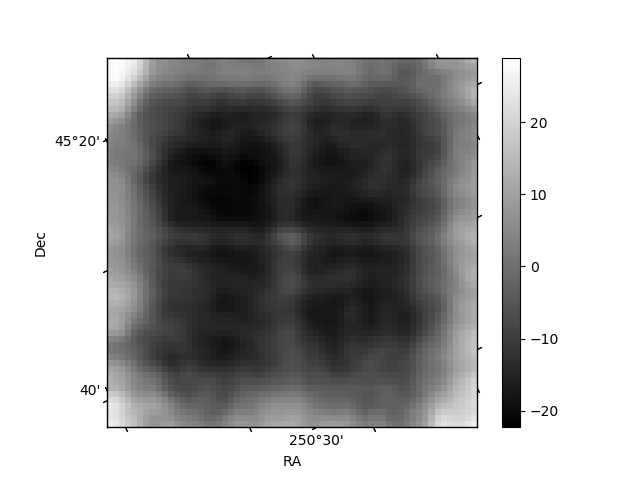

Histogram calculated using DETX and DETY for each event in the final _common_clean file

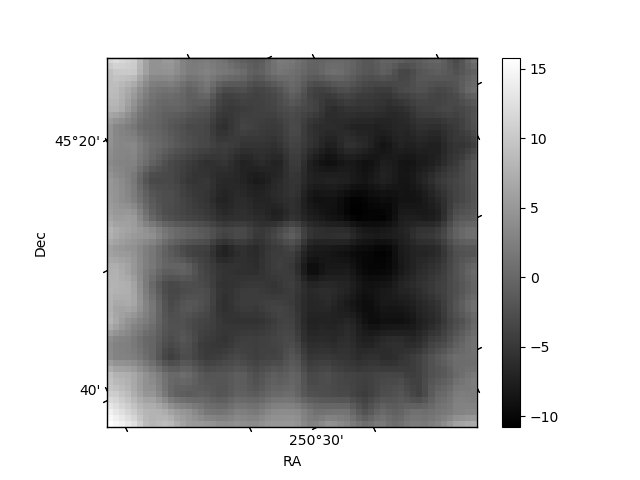

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

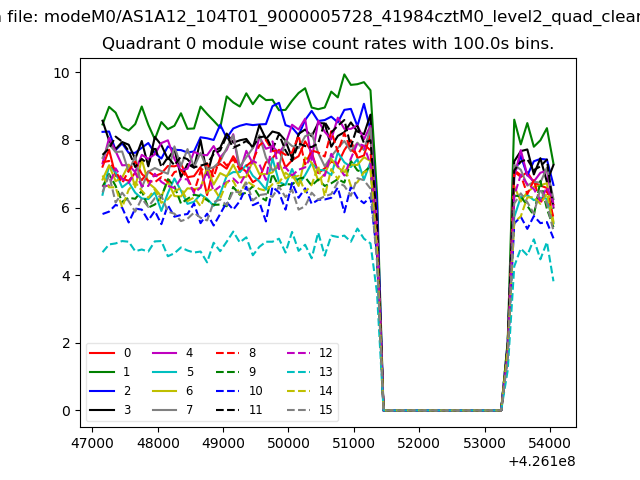

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

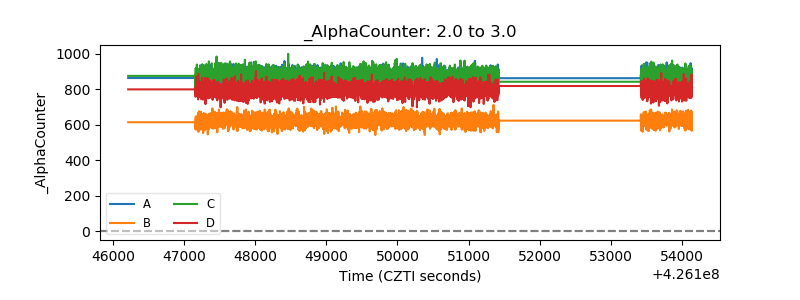

| Alpha Counter |  |

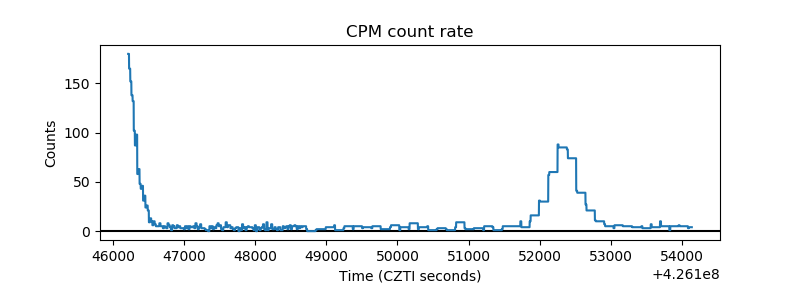

| _CPM_Rate |  |

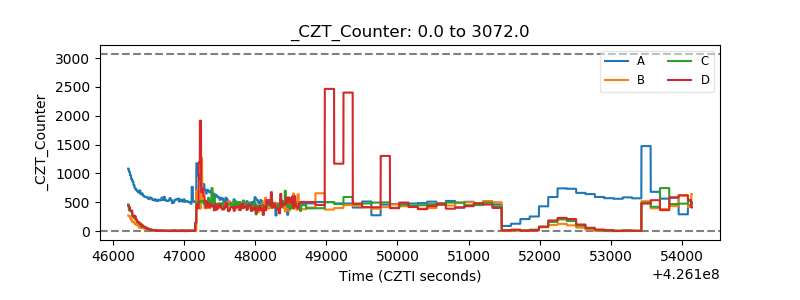

| CZT Counter |  |

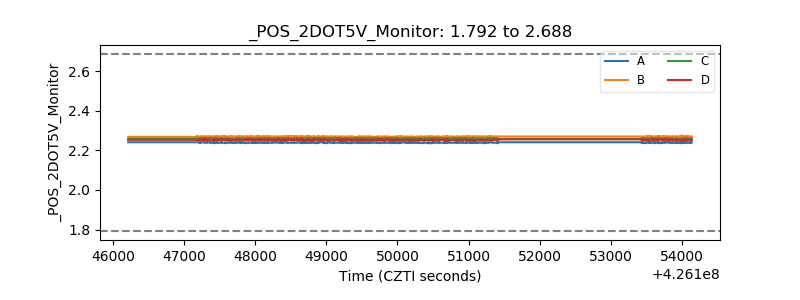

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
