| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_032T04_9000005766_42175cztM0_level2.fits | modeM0/AS1A11_032T04_9000005766_42175cztM0_level2_quad_clean.evt |
| Size (bytes) | 397,503,360 | 110,304,000 |
| Size | 379.1 MB | 105.2 MB |
| Events in quadrant A | 3,704,203 | 739,779 |
| Events in quadrant B | 3,665,604 | 734,307 |
| Events in quadrant C | 3,185,231 | 725,448 |
| Events in quadrant D | 3,625,527 | 662,329 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14927 | 2 |
| B | 0 | 15667 | 2 |
| C | 0 | 13766 | 3 |
| D | 0 | 15766 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6858 | 35 | 0.510353% |
| B | 6858 | 238 | 3.470400% |
| C | 6858 | 3 | 0.043745% |
| D | 6858 | 92 | 1.341499% |

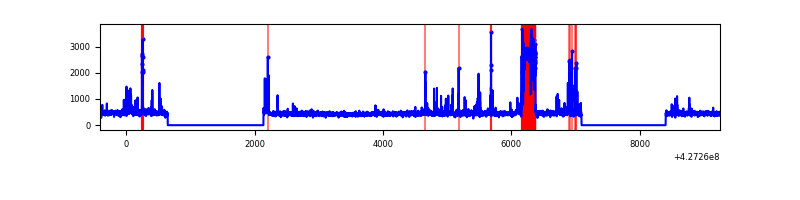

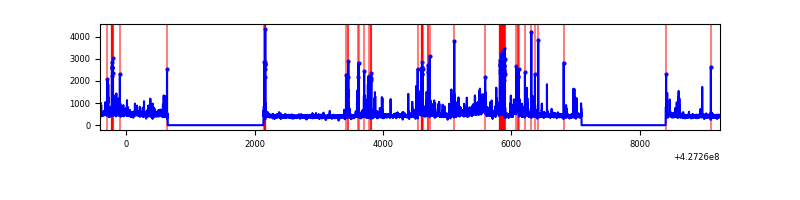

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9663 | 6860 | 22 | 22 | 0.23% | 0.32% |  |
| B | 9663 | 6860 | 193 | 193 | 2.00% | 2.81% |  |
| C | 9663 | 6860 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9663 | 6860 | 84 | 84 | 0.87% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 653017 | 4200.71 | 749 | 734 | 155.3 |
| A | 15 | 223 | 91301 | 583.25 | 749 | 734 | 155.3 |
| A | 12 | 189 | 38644 | 244.14 | 749 | 734 | 155.3 |
| B | 3 | 112 | 556720 | 3898.22 | 732 | 711 | 142.6 |
| B | 5 | 255 | 78927 | 548.38 | 732 | 711 | 142.6 |
| B | 0 | 229 | 71460 | 496.03 | 732 | 711 | 142.6 |
| C | 15 | 214 | 285984 | 1645.39 | 734 | 739 | 173.4 |
| C | 0 | 207 | 35952 | 203.12 | 734 | 739 | 173.4 |
| C | 13 | 61 | 4808 | 23.47 | 734 | 739 | 173.4 |
| D | 12 | 233 | 209868 | 1176.22 | 728 | 706 | 177.8 |
| D | 10 | 199 | 208568 | 1168.91 | 728 | 706 | 177.8 |
| D | 1 | 52 | 116079 | 648.8 | 728 | 706 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

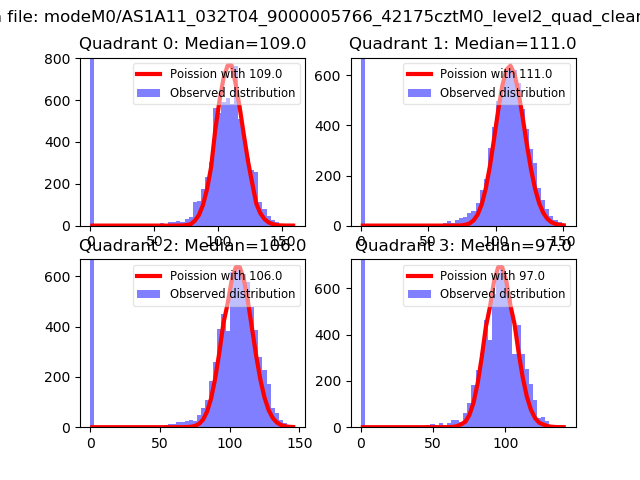

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

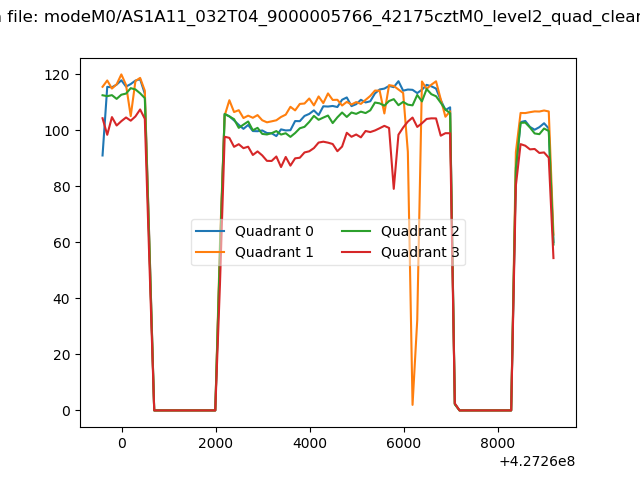

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

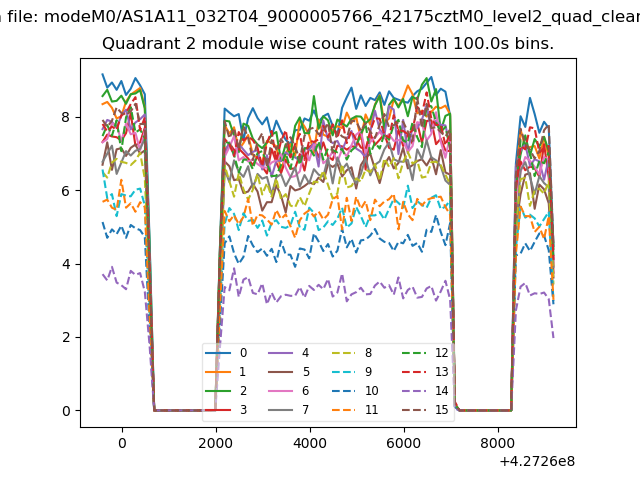

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

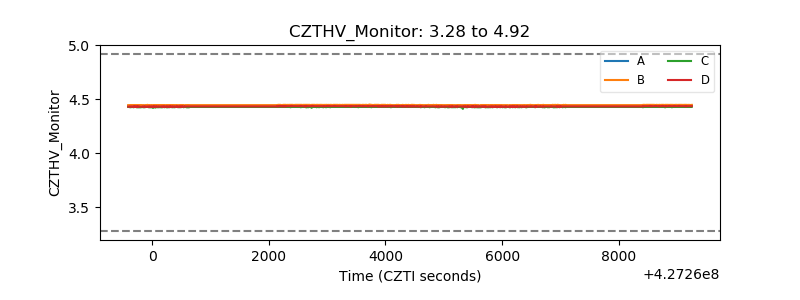

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

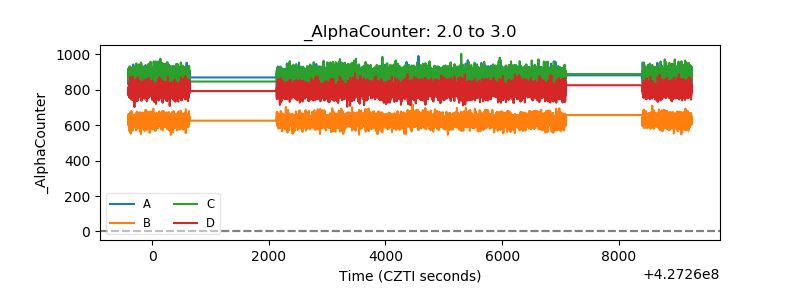

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

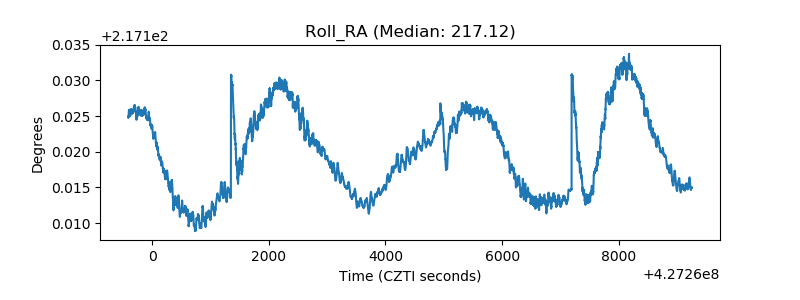

| _Roll_RA |  |
| Veto Counter |  |
