| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_088T21_9000005764_42160cztM0_level2.fits | modeM0/AS1A12_088T21_9000005764_42160cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,818,560 | 101,623,680 |
| Size | 446.1 MB | 96.9 MB |
| Events in quadrant A | 3,931,311 | 683,239 |
| Events in quadrant B | 3,037,924 | 710,149 |
| Events in quadrant C | 2,961,228 | 671,876 |
| Events in quadrant D | 6,889,265 | 565,182 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15636 | 2 |
| B | 0 | 13479 | 2 |
| C | 0 | 12894 | 2 |
| D | 0 | 24968 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6404 | 106 | 1.655215% |
| B | 6404 | 32 | 0.499688% |
| C | 6404 | 5 | 0.078076% |
| D | 6405 | 749 | 11.693989% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

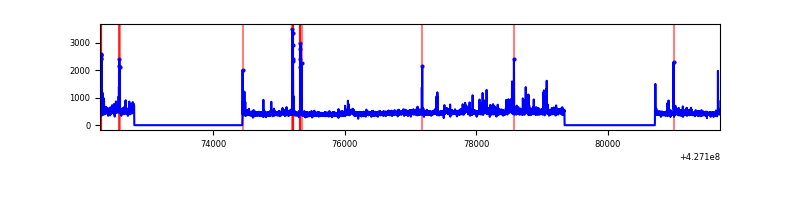

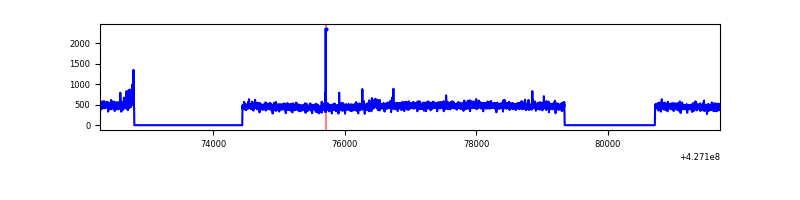

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9421 | 6406 | 99 | 99 | 1.05% | 1.55% |  |
| B | 9421 | 6406 | 22 | 22 | 0.23% | 0.34% |  |
| C | 9421 | 6406 | 1 | 1 | 0.01% | 0.02% |  |
| D | 9422 | 6406 | 767 | 767 | 8.14% | 11.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 623843 | 4369.38 | 693 | 678 | 142.6 |
| A | 15 | 222 | 470616 | 3295.01 | 693 | 678 | 142.6 |
| A | 12 | 189 | 82337 | 572.56 | 693 | 678 | 142.6 |
| B | 5 | 255 | 100469 | 736.38 | 694 | 675 | 135.5 |
| B | 0 | 229 | 75045 | 548.77 | 694 | 675 | 135.5 |
| B | 0 | 156 | 54335 | 395.95 | 694 | 675 | 135.5 |
| C | 15 | 214 | 269634 | 1683.37 | 678 | 683 | 159.8 |
| C | 0 | 239 | 21750 | 131.86 | 678 | 683 | 159.8 |
| C | 15 | 111 | 16059 | 96.24 | 678 | 683 | 159.8 |
| D | 12 | 33 | 2074060 | 13023.82 | 648 | 629 | 159.2 |
| D | 12 | 6 | 794600 | 4987.16 | 648 | 629 | 159.2 |
| D | 1 | 52 | 354181 | 2220.76 | 648 | 629 | 159.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

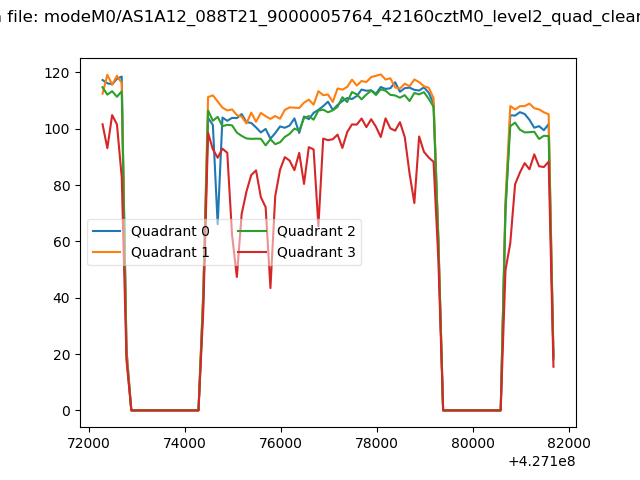

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

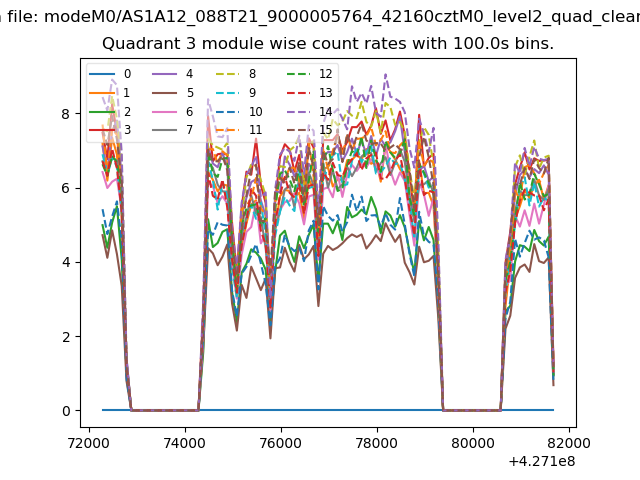

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

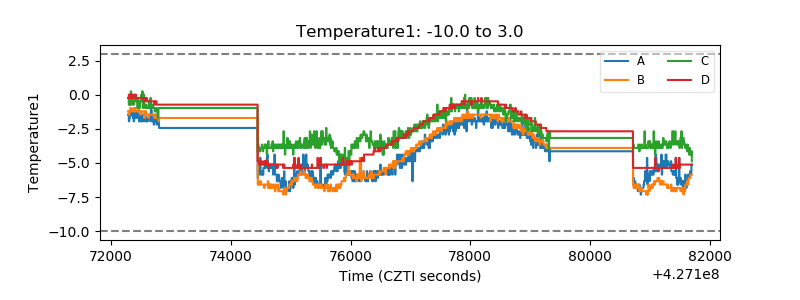

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

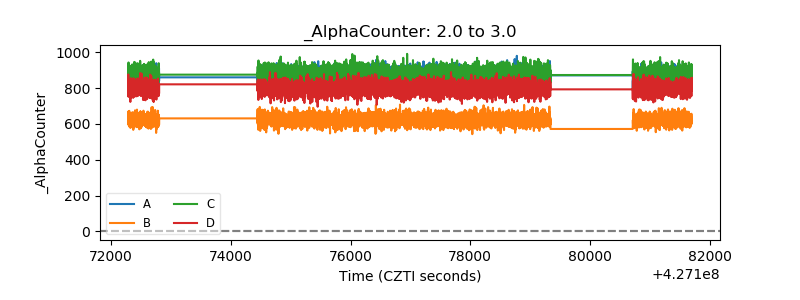

| Alpha Counter |  |

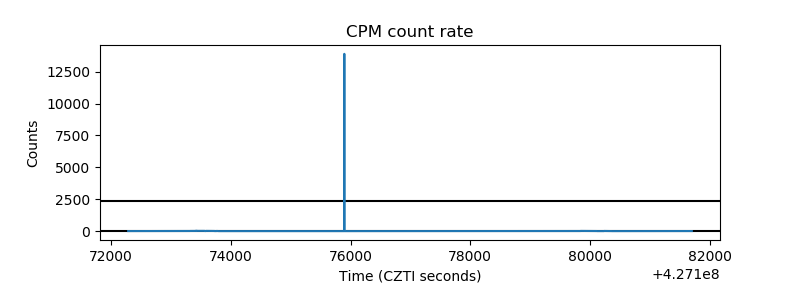

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

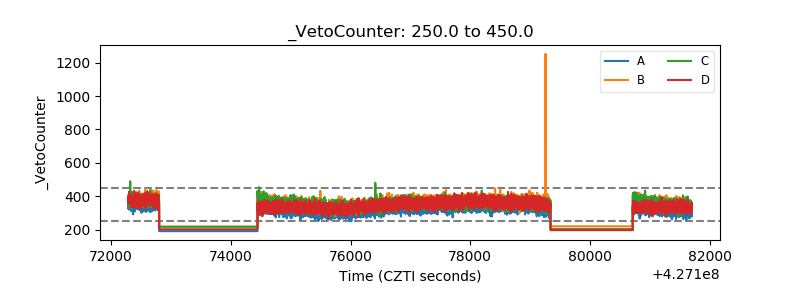

| Veto Counter |  |
