| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_999T99_9000005772_42300cztM0_level2.fits | modeM0/AS1P01_999T99_9000005772_42300cztM0_level2_quad_clean.evt |
| Size (bytes) | 314,438,400 | 91,710,720 |
| Size | 299.9 MB | 87.5 MB |
| Events in quadrant A | 2,879,730 | 635,065 |
| Events in quadrant B | 2,646,477 | 642,534 |
| Events in quadrant C | 2,432,453 | 609,137 |
| Events in quadrant D | 3,299,324 | 546,919 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11663 | 95 |
| B | 0 | 11059 | 100 |
| C | 0 | 10269 | 79 |
| D | 0 | 13297 | 224 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 101 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4902 | 12 | 0.244798% |
| B | 4898 | 64 | 1.306656% |
| C | 4903 | 8 | 0.163165% |
| D | 4873 | 174 | 3.570696% |

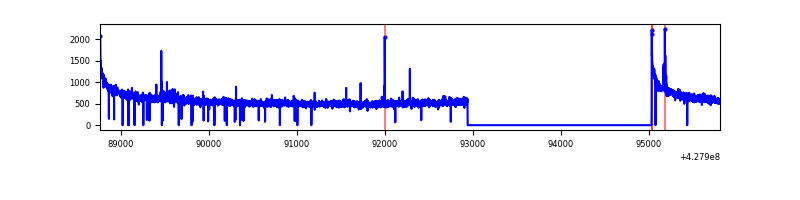

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7047 | 4938 | 5 | 5 | 0.07% | 0.10% |  |
| B | 7047 | 4935 | 37 | 37 | 0.53% | 0.75% |  |
| C | 7046 | 4936 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7046 | 4930 | 140 | 140 | 1.99% | 2.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 543067 | 4451.51 | 593 | 584 | 121.9 |
| A | 13 | 248 | 30893 | 248.71 | 593 | 584 | 121.9 |
| A | 13 | 6 | 7491 | 56.68 | 593 | 584 | 121.9 |
| B | 4 | 171 | 224299 | 2002.78 | 581 | 568 | 111.7 |
| B | 3 | 112 | 48612 | 430.08 | 581 | 568 | 111.7 |
| B | 0 | 245 | 47356 | 418.83 | 581 | 568 | 111.7 |
| C | 15 | 214 | 204503 | 1559.94 | 563 | 568 | 130.7 |
| C | 12 | 249 | 25884 | 193.65 | 563 | 568 | 130.7 |
| C | 3 | 233 | 5433 | 37.21 | 563 | 568 | 130.7 |
| D | 12 | 233 | 581956 | 4298.72 | 557 | 541 | 135.3 |
| D | 1 | 52 | 264731 | 1953.3 | 557 | 541 | 135.3 |
| D | 12 | 6 | 74267 | 545.1 | 557 | 541 | 135.3 |

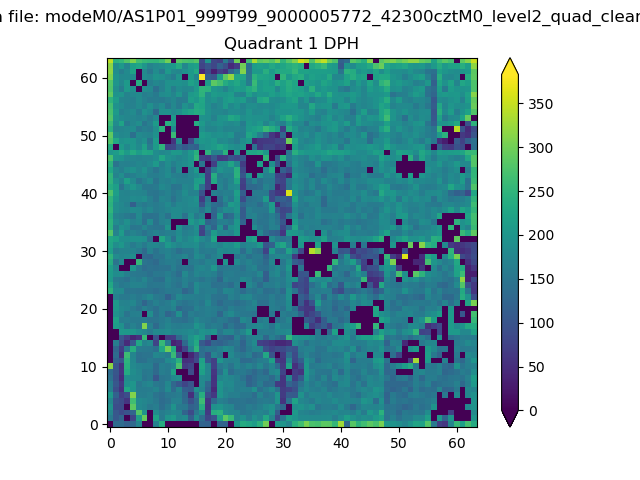

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

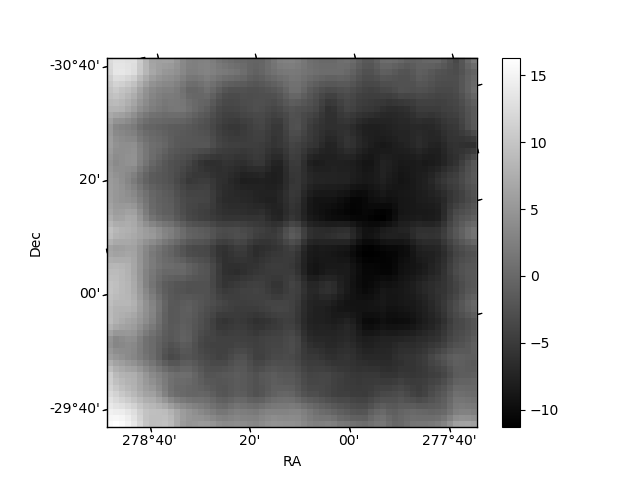

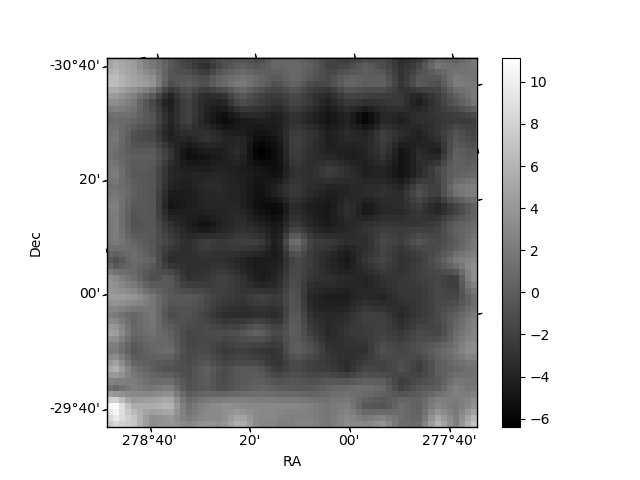

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

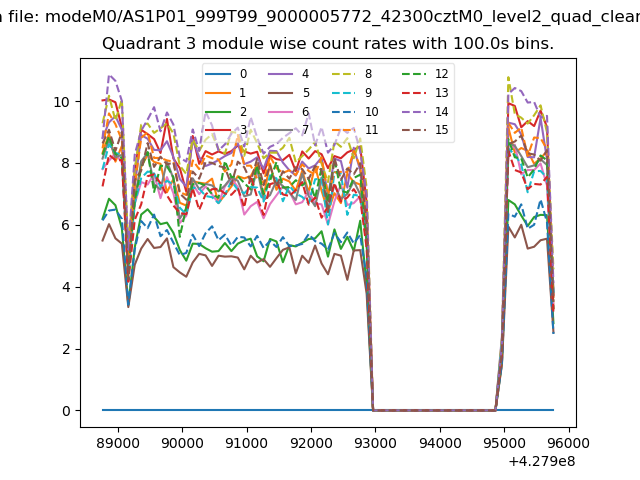

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

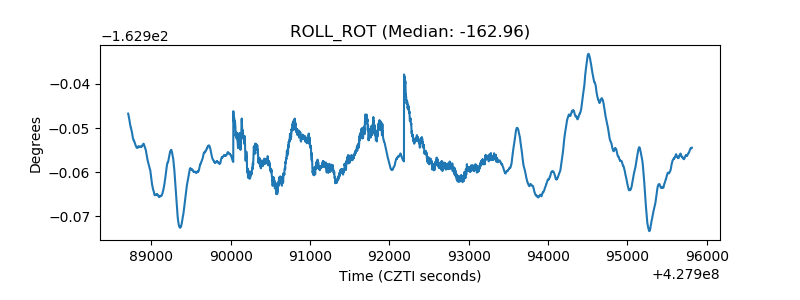

| _ROLL_ROT |  |

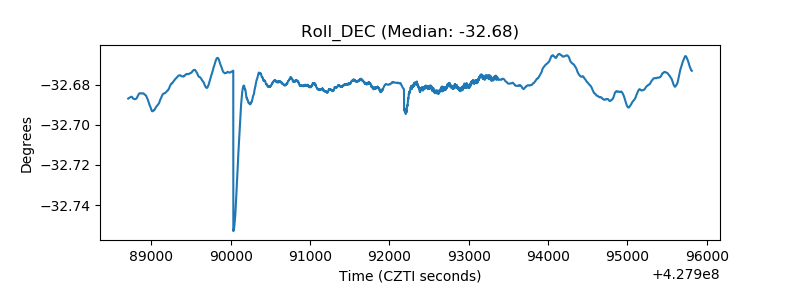

| _Roll_DEC |  |
| _Roll_RA |  |

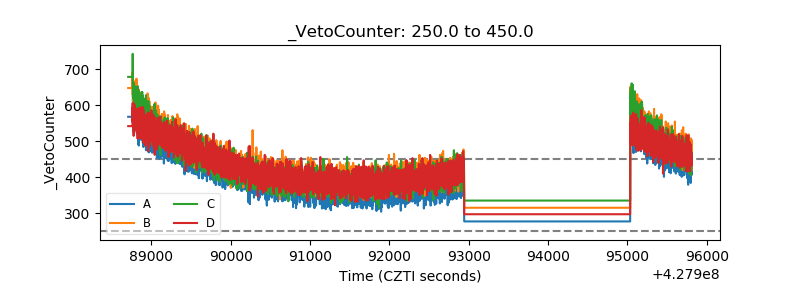

| Veto Counter |  |
