| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_088T24_9000005768_42188cztM0_level2.fits | modeM0/AS1A12_088T24_9000005768_42188cztM0_level2_quad_clean.evt |
| Size (bytes) | 334,005,120 | 88,162,560 |
| Size | 318.5 MB | 84.1 MB |
| Events in quadrant A | 3,004,350 | 593,458 |
| Events in quadrant B | 2,595,095 | 612,394 |
| Events in quadrant C | 2,536,286 | 577,316 |
| Events in quadrant D | 3,801,144 | 502,744 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12334 | 2 |
| B | 0 | 11598 | 3 |
| C | 0 | 11052 | 2 |
| D | 0 | 15367 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5477 | 15 | 0.273873% |
| B | 5477 | 21 | 0.383422% |
| C | 5477 | 3 | 0.054775% |
| D | 5477 | 326 | 5.952164% |

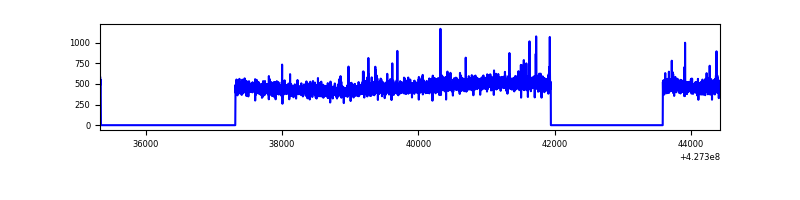

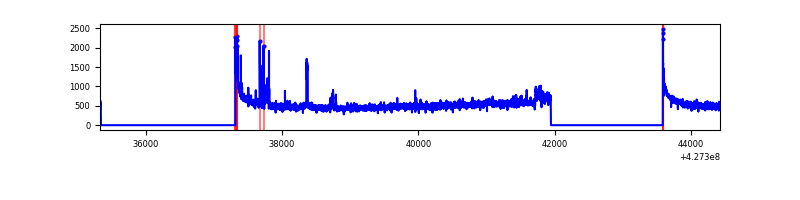

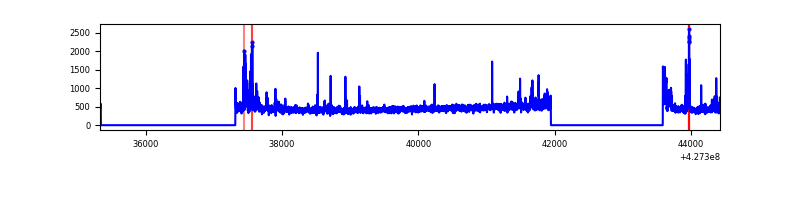

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9092 | 5479 | 11 | 11 | 0.12% | 0.20% |  |
| B | 9092 | 5479 | 8 | 8 | 0.09% | 0.15% |  |
| C | 9092 | 5479 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9092 | 5478 | 306 | 306 | 3.37% | 5.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 535562 | 4365.65 | 593 | 581 | 122.5 |
| A | 15 | 223 | 164316 | 1336.14 | 593 | 581 | 122.5 |
| A | 3 | 137 | 6500 | 48.3 | 593 | 581 | 122.5 |
| B | 5 | 255 | 122770 | 1056.56 | 593 | 573 | 115.7 |
| B | 0 | 229 | 121216 | 1043.12 | 593 | 573 | 115.7 |
| B | 15 | 35 | 23664 | 199.65 | 593 | 573 | 115.7 |
| C | 15 | 214 | 233657 | 1703.5 | 581 | 587 | 136.8 |
| C | 0 | 207 | 12527 | 87.27 | 581 | 587 | 136.8 |
| C | 14 | 67 | 8868 | 60.53 | 581 | 587 | 136.8 |
| D | 1 | 52 | 409098 | 2984.83 | 556 | 538 | 136.9 |
| D | 7 | 55 | 288327 | 2102.51 | 556 | 538 | 136.9 |
| D | 13 | 249 | 219311 | 1598.3 | 556 | 538 | 136.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

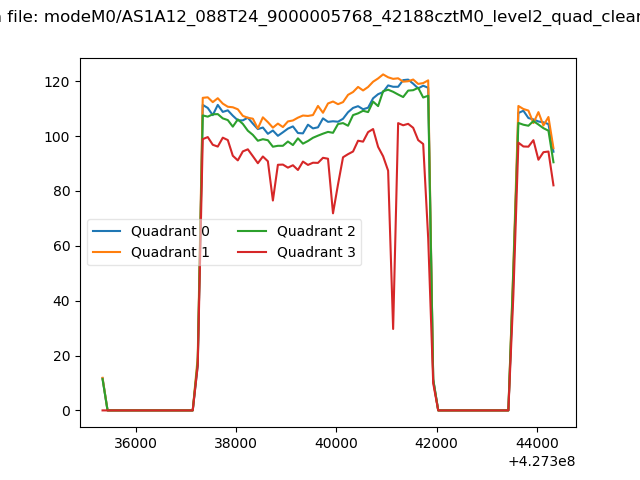

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

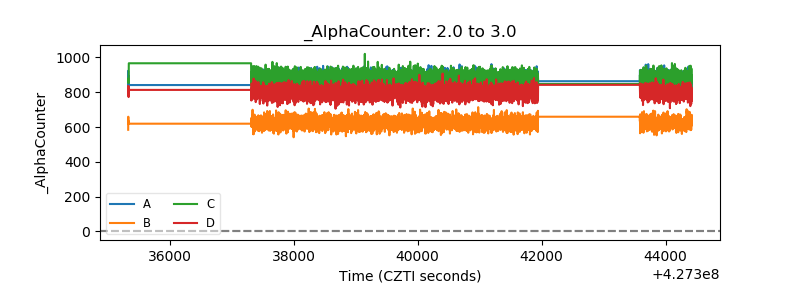

| Alpha Counter |  |

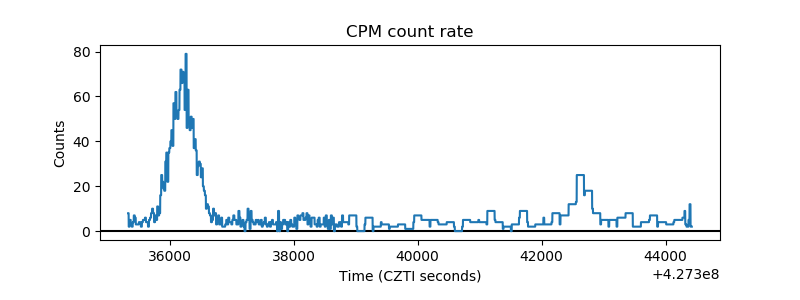

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

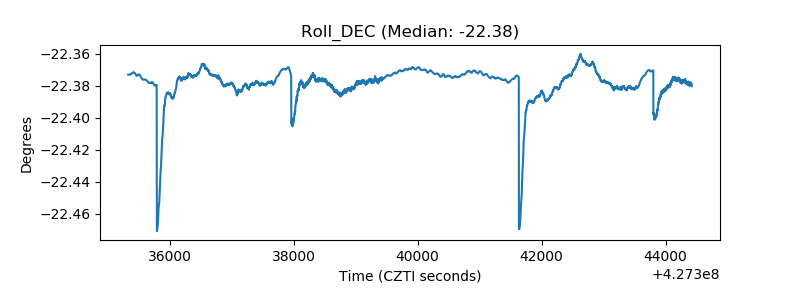

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
