| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A12_088T51_9000005780_42212cztM0_level2.fits | modeM0/AS1A12_088T51_9000005780_42212cztM0_level2_quad_clean.evt |
| Size (bytes) | 156,021,120 | 41,423,040 |
| Size | 148.8 MB | 39.5 MB |
| Events in quadrant A | 1,634,434 | 281,544 |
| Events in quadrant B | 1,180,369 | 292,181 |
| Events in quadrant C | 1,133,256 | 273,788 |
| Events in quadrant D | 1,648,721 | 243,117 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6297 | 1 |
| B | 0 | 4922 | 1 |
| C | 0 | 4642 | 1 |
| D | 0 | 6464 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2269 | 67 | 2.952843% |
| B | 2269 | 25 | 1.101807% |
| C | 2269 | 2 | 0.088145% |
| D | 2268 | 137 | 6.040564% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4213 | 2270 | 46 | 46 | 1.09% | 2.03% |  |
| B | 4213 | 2270 | 14 | 14 | 0.33% | 0.62% |  |
| C | 4213 | 2270 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4212 | 2269 | 111 | 111 | 2.64% | 4.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 289385 | 5031.6 | 273 | 268 | 57.5 |
| A | 10 | 83 | 261559 | 4547.33 | 273 | 268 | 57.5 |
| A | 15 | 222 | 14601 | 249.44 | 273 | 268 | 57.5 |
| B | 3 | 112 | 59098 | 1086.78 | 273 | 266 | 54.1 |
| B | 0 | 229 | 32547 | 596.31 | 273 | 266 | 54.1 |
| B | 5 | 255 | 8921 | 159.88 | 273 | 266 | 54.1 |
| C | 15 | 214 | 97633 | 1551.22 | 265 | 267 | 62.8 |
| C | 13 | 61 | 1855 | 25.3 | 265 | 267 | 62.8 |
| C | 12 | 249 | 1546 | 20.38 | 265 | 267 | 62.8 |
| D | 1 | 52 | 275081 | 4272.5 | 259 | 251 | 64.3 |
| D | 10 | 118 | 153021 | 2374.96 | 259 | 251 | 64.3 |
| D | 1 | 47 | 67555 | 1046.31 | 259 | 251 | 64.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

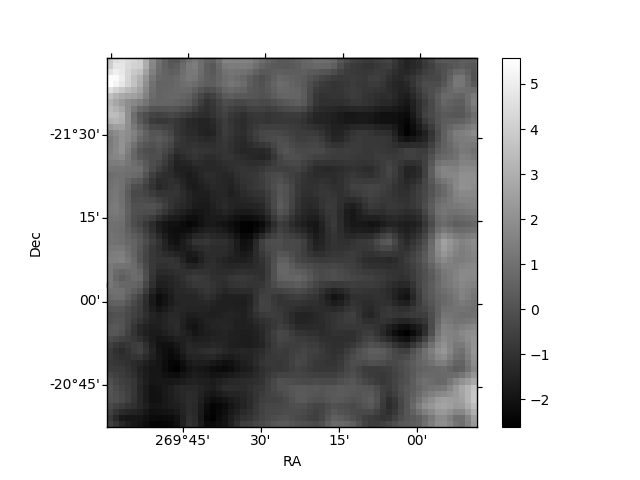

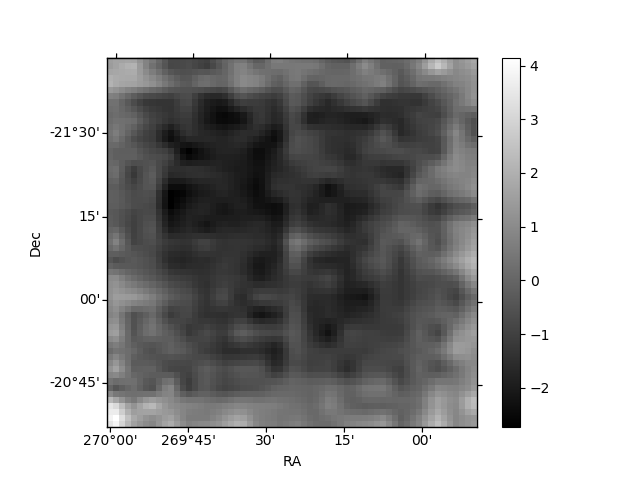

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

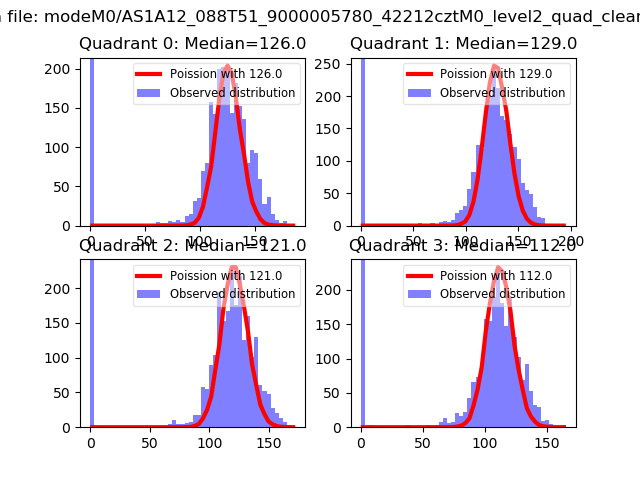

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

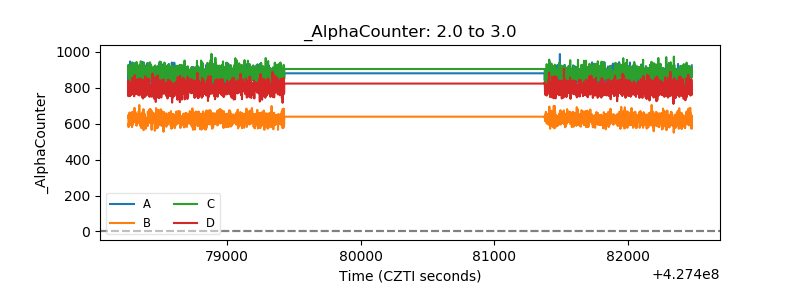

| Alpha Counter |  |

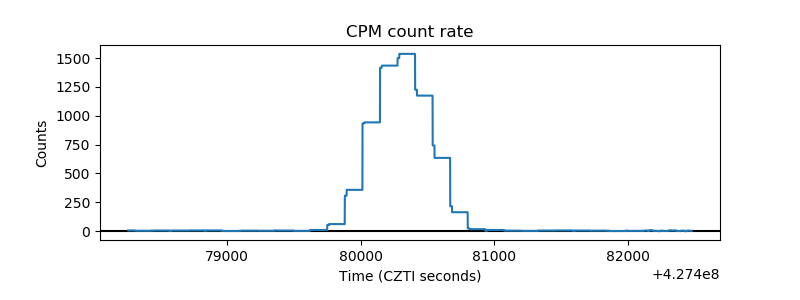

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

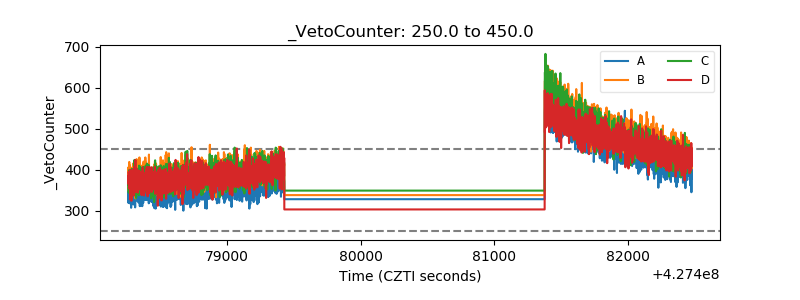

| Veto Counter |  |
