| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005806_42502cztM0_level2.fits | modeM0/AS1C07_001T10_9000005806_42502cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,525,440 | 79,456,320 |
| Size | 470.7 MB | 75.8 MB |
| Events in quadrant A | 2,804,682 | 593,893 |
| Events in quadrant B | 2,302,312 | 602,635 |
| Events in quadrant C | 9,430,025 | 337,435 |
| Events in quadrant D | 3,339,249 | 517,863 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11299 | 2 |
| B | 0 | 10367 | 2 |
| C | 0 | 31489 | 2 |
| D | 0 | 13345 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5046 | 12 | 0.237812% |
| B | 5047 | 13 | 0.257579% |
| C | 5047 | 2446 | 48.464434% |
| D | 5047 | 216 | 4.279770% |

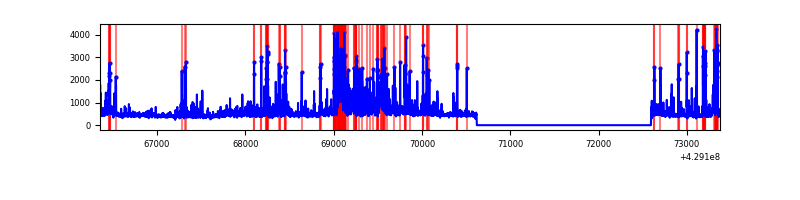

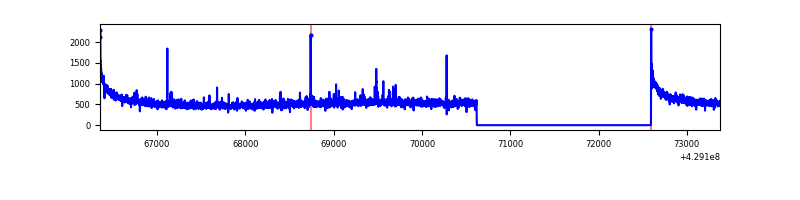

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7020 | 5047 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7021 | 5048 | 6 | 6 | 0.09% | 0.12% |  |
| C | 7021 | 5048 | 2537 | 2537 | 36.13% | 50.26% |  |
| D | 7021 | 5048 | 171 | 171 | 2.44% | 3.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 535460 | 4627.49 | 563 | 552 | 115.6 |
| A | 12 | 189 | 52575 | 450.05 | 563 | 552 | 115.6 |
| A | 13 | 248 | 16940 | 141.77 | 563 | 552 | 115.6 |
| B | 15 | 85 | 58798 | 551.97 | 555 | 540 | 105.5 |
| B | 15 | 33 | 30574 | 284.56 | 555 | 540 | 105.5 |
| B | 5 | 255 | 22475 | 207.82 | 555 | 540 | 105.5 |
| C | 0 | 239 | 7180662 | 66288.83 | 468 | 471 | 108.3 |
| C | 15 | 214 | 190912 | 1758.19 | 468 | 471 | 108.3 |
| C | 9 | 54 | 120495 | 1108.08 | 468 | 471 | 108.3 |
| D | 2 | 249 | 462882 | 3563.0 | 538 | 524 | 129.8 |
| D | 12 | 6 | 207220 | 1592.83 | 538 | 524 | 129.8 |
| D | 12 | 233 | 156318 | 1200.57 | 538 | 524 | 129.8 |

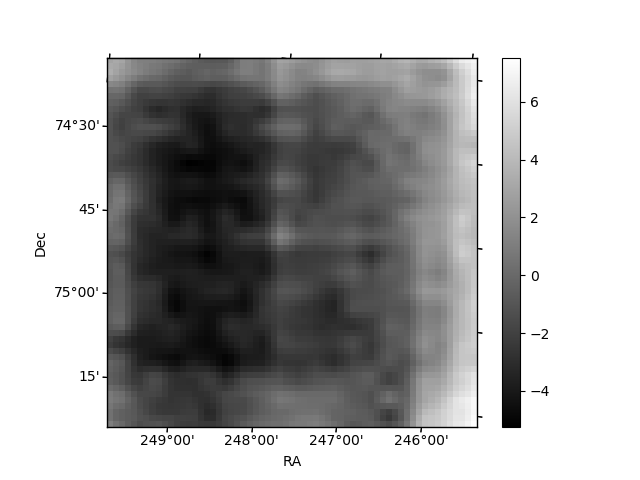

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

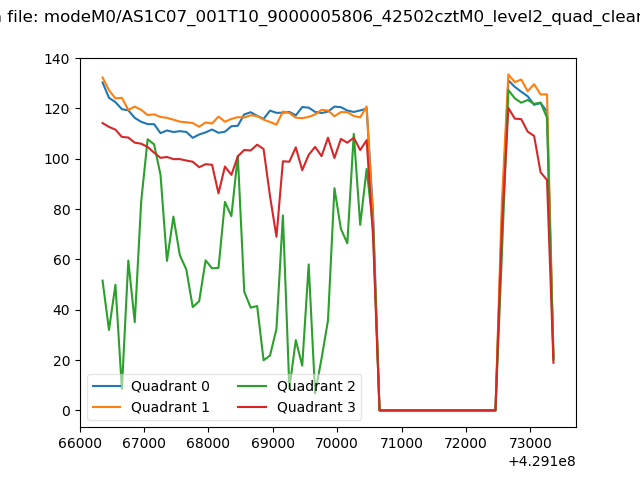

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

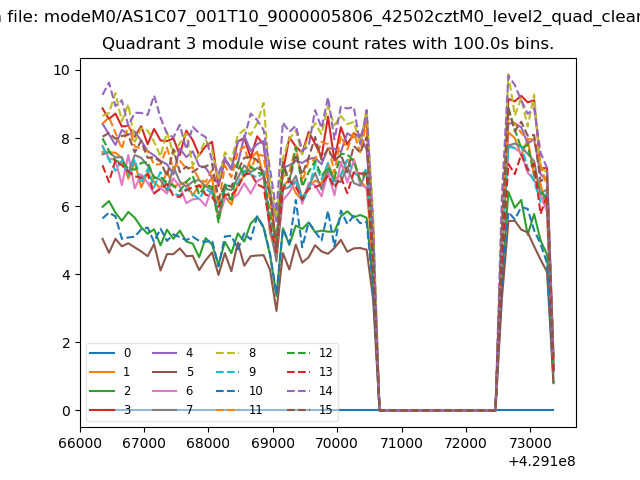

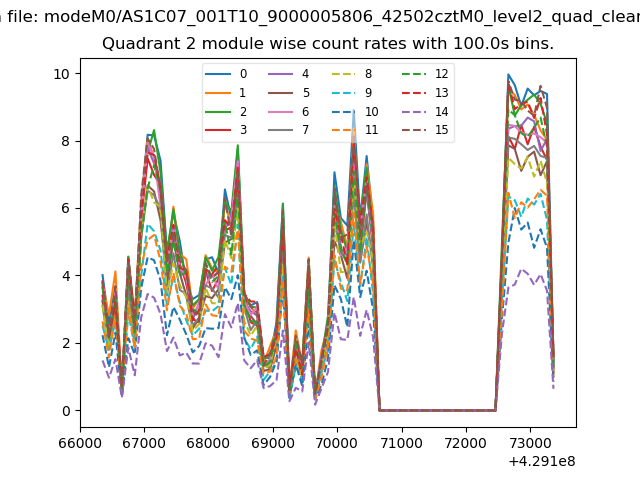

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

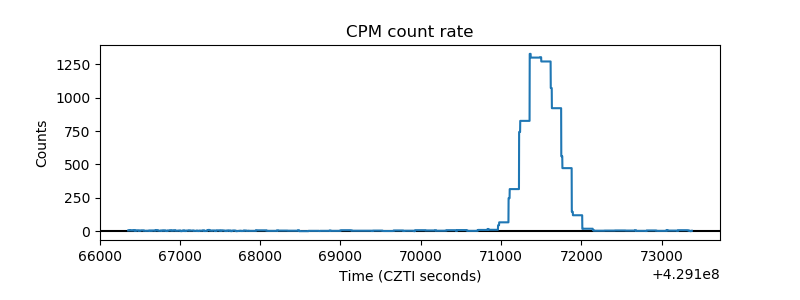

| _CPM_Rate |  |
| CZT Counter |  |

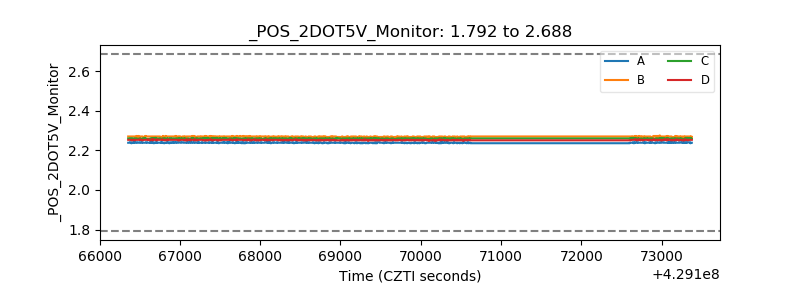

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
