| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000005822_42726cztM0_level2.fits | modeM0/AS1A05_013T01_9000005822_42726cztM0_level2_quad_clean.evt |
| Size (bytes) | 343,941,120 | 95,832,000 |
| Size | 328.0 MB | 91.4 MB |
| Events in quadrant A | 3,158,805 | 642,911 |
| Events in quadrant B | 2,865,517 | 646,940 |
| Events in quadrant C | 2,905,793 | 626,746 |
| Events in quadrant D | 3,346,555 | 576,786 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12769 | 1 |
| B | 0 | 12626 | 1 |
| C | 0 | 12243 | 1 |
| D | 0 | 13991 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5841 | 13 | 0.222565% |
| B | 5842 | 38 | 0.650462% |
| C | 5842 | 10 | 0.171174% |
| D | 5842 | 107 | 1.831565% |

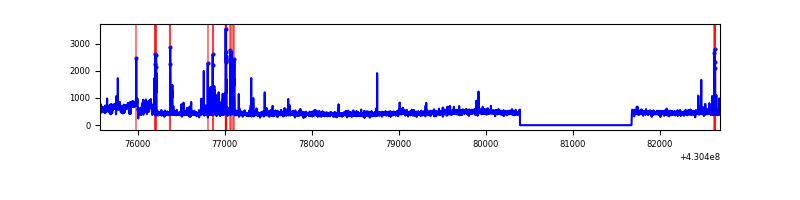

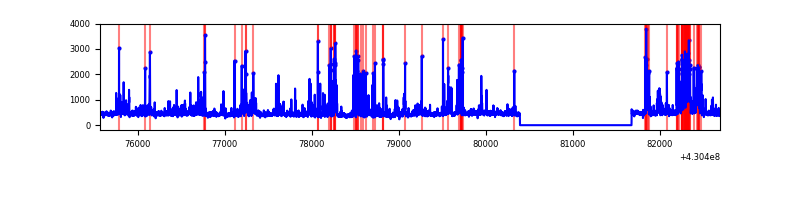

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7124 | 5842 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7125 | 5843 | 26 | 26 | 0.36% | 0.44% |  |
| C | 7125 | 5843 | 5 | 5 | 0.07% | 0.09% |  |
| D | 7125 | 5843 | 108 | 108 | 1.52% | 1.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 576574 | 4328.97 | 645 | 632 | 133.0 |
| A | 12 | 189 | 67427 | 502.05 | 645 | 632 | 133.0 |
| A | 13 | 248 | 15451 | 111.38 | 645 | 632 | 133.0 |
| B | 6 | 235 | 140681 | 1122.25 | 636 | 620 | 124.8 |
| B | 5 | 172 | 119419 | 951.89 | 636 | 620 | 124.8 |
| B | 5 | 255 | 28966 | 227.13 | 636 | 620 | 124.8 |
| C | 15 | 214 | 244074 | 1661.74 | 623 | 628 | 146.5 |
| C | 8 | 79 | 114584 | 777.85 | 623 | 628 | 146.5 |
| C | 3 | 233 | 50852 | 342.83 | 623 | 628 | 146.5 |
| D | 2 | 249 | 392414 | 2535.54 | 626 | 607 | 154.5 |
| D | 12 | 233 | 260883 | 1684.35 | 626 | 607 | 154.5 |
| D | 5 | 171 | 73257 | 470.15 | 626 | 607 | 154.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

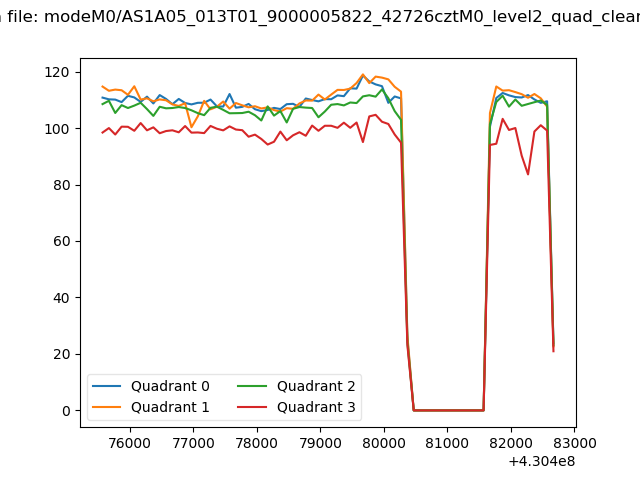

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

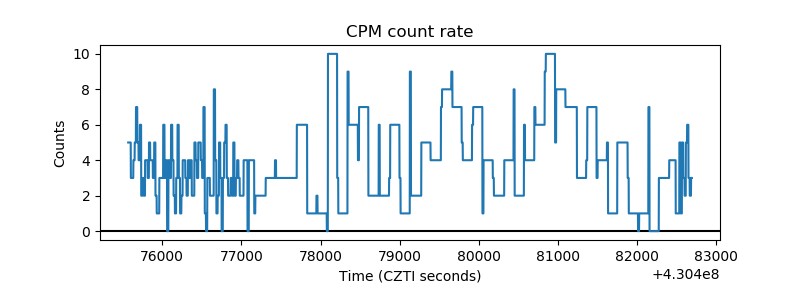

| _CPM_Rate |  |

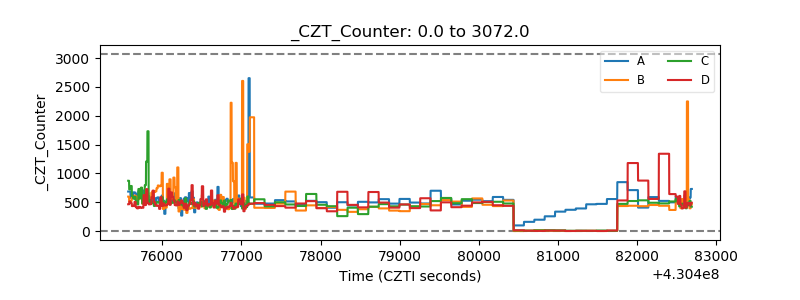

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

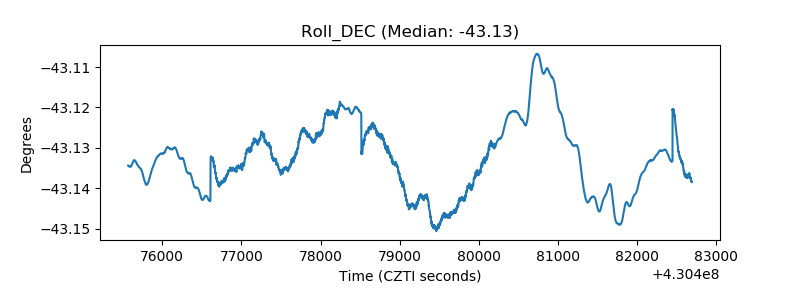

| _Roll_DEC |  |
| _Roll_RA |  |

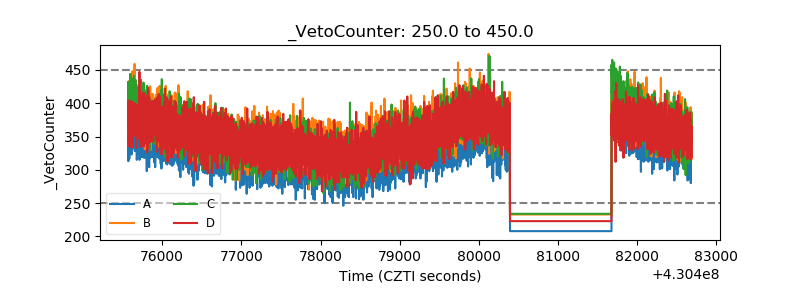

| Veto Counter |  |
