| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_143T01_9000005830_42925cztM0_level2.fits | modeM0/AS1T05_143T01_9000005830_42925cztM0_level2_quad_clean.evt |
| Size (bytes) | 317,854,080 | 81,653,760 |
| Size | 303.1 MB | 77.9 MB |
| Events in quadrant A | 2,918,557 | 552,951 |
| Events in quadrant B | 2,834,502 | 541,299 |
| Events in quadrant C | 2,266,600 | 549,606 |
| Events in quadrant D | 3,369,469 | 489,694 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11688 | 2 |
| B | 0 | 11943 | 2 |
| C | 0 | 9802 | 2 |
| D | 0 | 13495 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4832 | 44 | 0.910596% |
| B | 4832 | 315 | 6.519040% |
| C | 4832 | 3 | 0.062086% |
| D | 4832 | 217 | 4.490894% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6955 | 4833 | 42 | 42 | 0.60% | 0.87% |  |
| B | 6955 | 4833 | 241 | 241 | 3.47% | 4.99% |  |
| C | 6955 | 4833 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6955 | 4833 | 237 | 237 | 3.41% | 4.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 544170 | 5092.62 | 517 | 508 | 106.8 |
| A | 15 | 222 | 260423 | 2434.69 | 517 | 508 | 106.8 |
| A | 13 | 248 | 72723 | 676.46 | 517 | 508 | 106.8 |
| B | 4 | 81 | 799294 | 8113.14 | 510 | 495 | 98.5 |
| B | 4 | 171 | 16314 | 160.67 | 510 | 495 | 98.5 |
| B | 12 | 111 | 11986 | 116.71 | 510 | 495 | 98.5 |
| C | 15 | 214 | 196808 | 1631.31 | 516 | 519 | 120.3 |
| C | 14 | 254 | 22171 | 179.94 | 516 | 519 | 120.3 |
| C | 0 | 239 | 18696 | 151.06 | 516 | 519 | 120.3 |
| D | 1 | 52 | 317833 | 2599.05 | 501 | 487 | 122.1 |
| D | 2 | 249 | 284967 | 2329.88 | 501 | 487 | 122.1 |
| D | 12 | 6 | 269967 | 2207.03 | 501 | 487 | 122.1 |

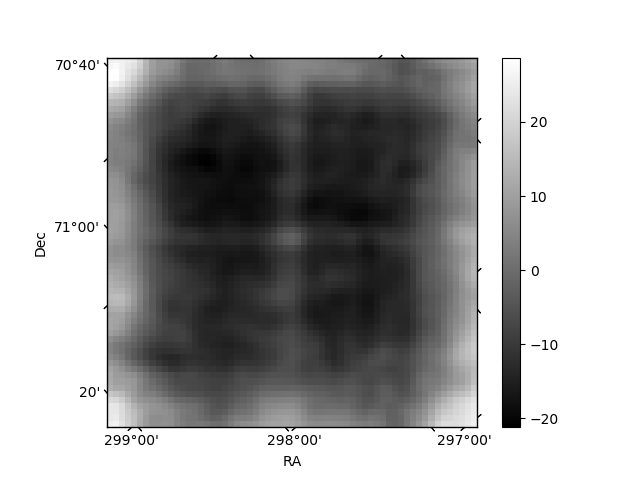

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

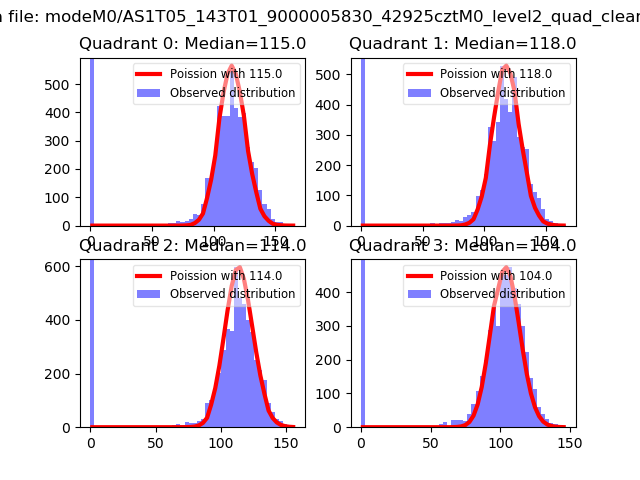

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

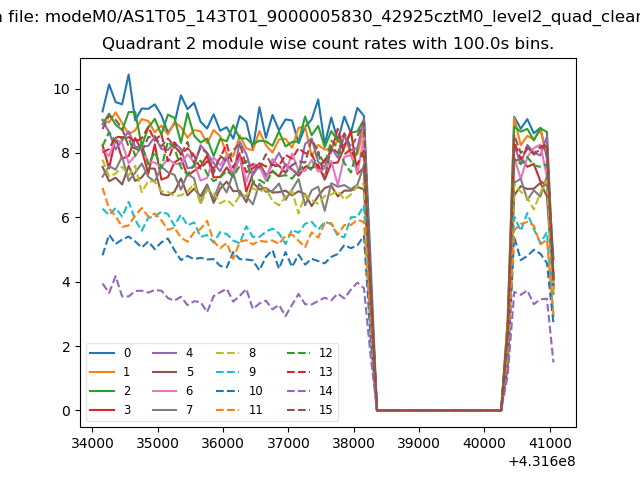

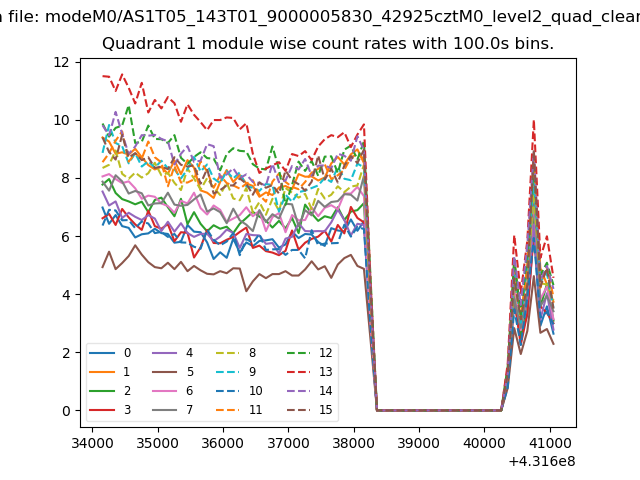

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
