| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_148T01_9000005838_43004cztM0_level2.fits | modeM0/AS1T05_148T01_9000005838_43004cztM0_level2_quad_clean.evt |
| Size (bytes) | 679,962,240 | 212,794,560 |
| Size | 648.5 MB | 202.9 MB |
| Events in quadrant A | 6,415,513 | 1,480,744 |
| Events in quadrant B | 5,918,092 | 1,498,441 |
| Events in quadrant C | 5,706,305 | 1,433,564 |
| Events in quadrant D | 6,278,691 | 1,270,934 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41 | 0 |
| B | 0 | 41 | 0 |
| C | 0 | 41 | 0 |
| D | 0 | 41 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 226 | 0 |
| B | 0 | 226 | 0 |
| C | 0 | 226 | 0 |
| D | 0 | 226 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25808 | 3 |
| B | 0 | 24577 | 3 |
| C | 0 | 23172 | 3 |
| D | 0 | 26066 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10980 | 58 | 0.528233% |
| B | 10981 | 108 | 0.983517% |
| C | 10981 | 31 | 0.282306% |
| D | 10981 | 252 | 2.294873% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15100 | 10983 | 34 | 34 | 0.23% | 0.31% |  |
| B | 15101 | 10984 | 46 | 46 | 0.30% | 0.42% |  |
| C | 15101 | 10984 | 30 | 30 | 0.20% | 0.27% |  |
| D | 15101 | 10984 | 215 | 215 | 1.42% | 1.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1097317 | 3846.46 | 1316 | 1295 | 284.9 |
| A | 15 | 237 | 199188 | 694.5 | 1316 | 1295 | 284.9 |
| A | 13 | 248 | 16500 | 53.36 | 1316 | 1295 | 284.9 |
| B | 4 | 171 | 651611 | 2436.92 | 1305 | 1276 | 266.9 |
| B | 15 | 85 | 68030 | 250.14 | 1305 | 1276 | 266.9 |
| B | 4 | 81 | 33992 | 122.59 | 1305 | 1276 | 266.9 |
| C | 15 | 214 | 446920 | 1421.0 | 1278 | 1292 | 313.6 |
| C | 5 | 250 | 122150 | 385.39 | 1278 | 1292 | 313.6 |
| C | 14 | 254 | 55307 | 172.24 | 1278 | 1292 | 313.6 |
| D | 1 | 52 | 551083 | 1703.1 | 1258 | 1221 | 322.9 |
| D | 13 | 249 | 487799 | 1507.09 | 1258 | 1221 | 322.9 |
| D | 1 | 47 | 155426 | 477.62 | 1258 | 1221 | 322.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

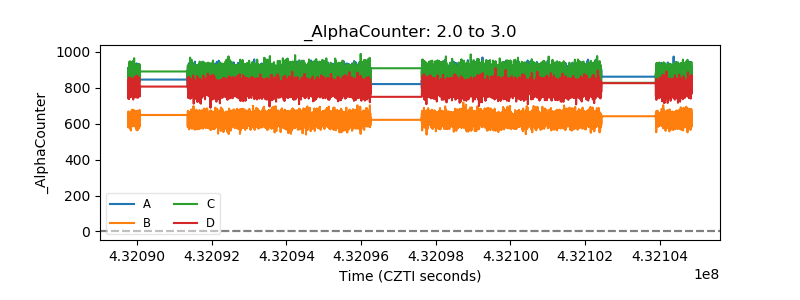

| Alpha Counter |  |

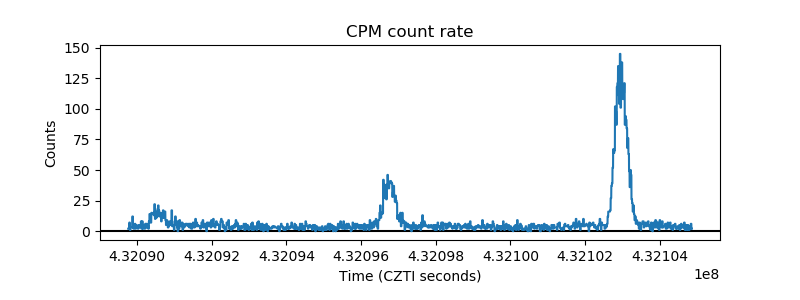

| _CPM_Rate |  |
| CZT Counter |  |

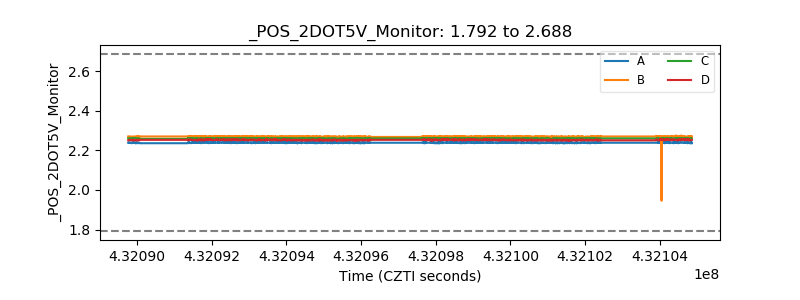

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

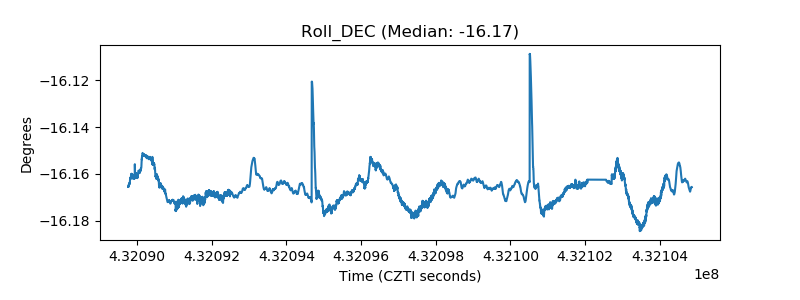

| _Roll_DEC |  |

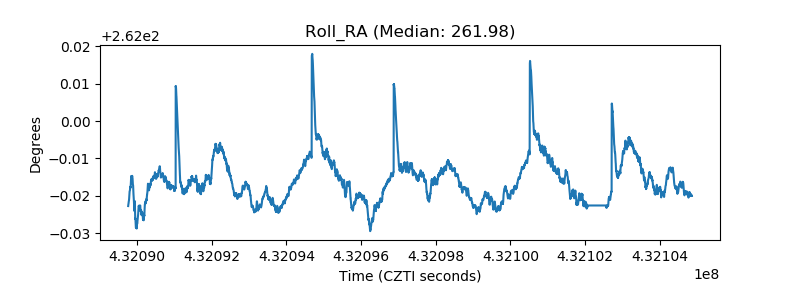

| _Roll_RA |  |

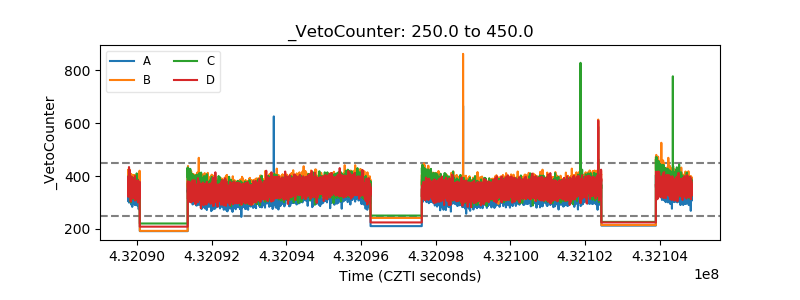

| Veto Counter |  |
